Features
- Asterisk FXO FXS Card Analog Voice Telephone Board
- Ports : 3 FXO+1 FXS
- Interface : PCI
- Software Supported : Asterisk,Dahdi,Freepbx,Issabel,Free PBX,VitalPBX,Freeswitch and other software based on Asterisk/Dahdi
- Using the card, open source software and PC,you can build a VoIP telephone system/ Asterisk PBX Phone System / call center VoIP Gateway Trunk appliance easily at a very low cost
Tips

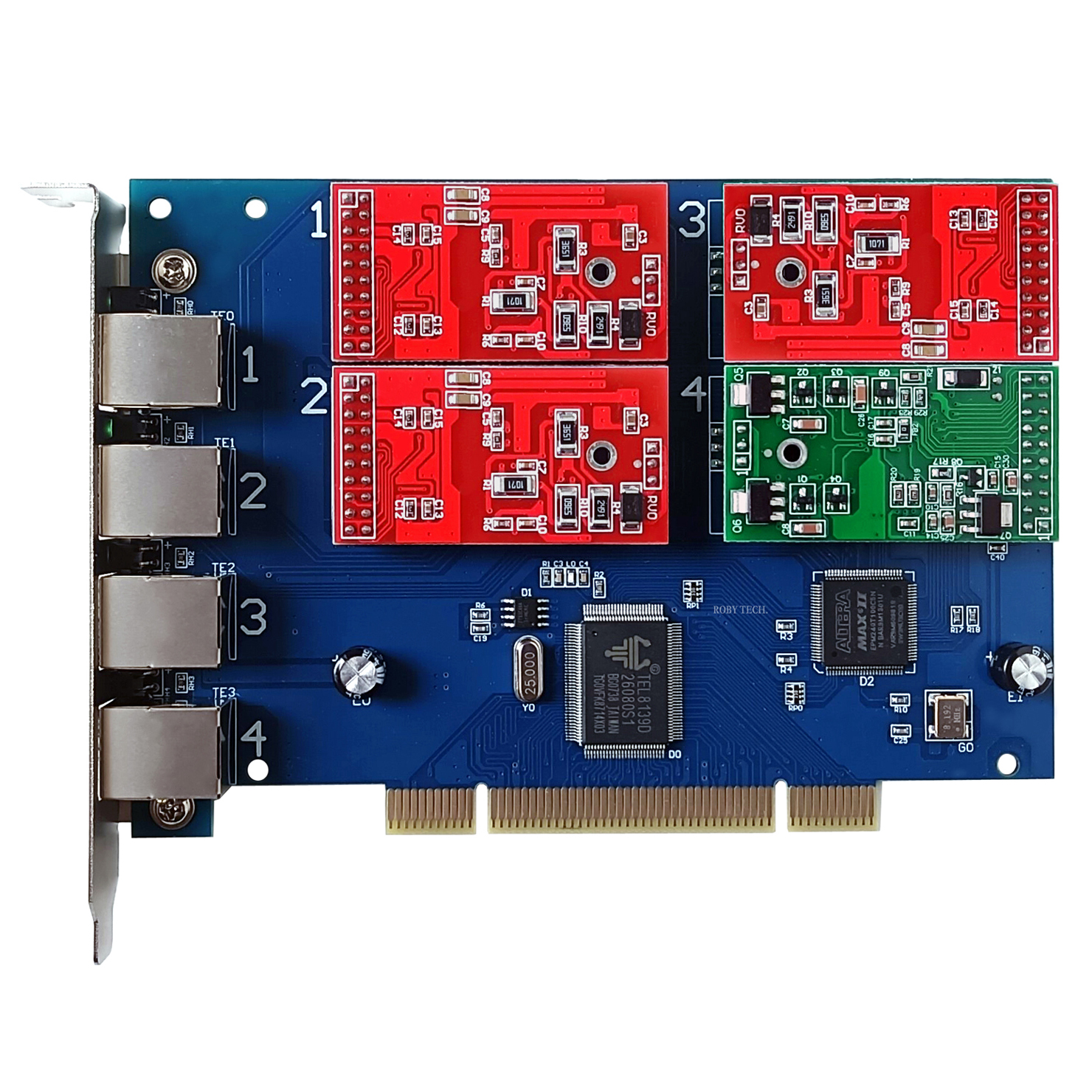

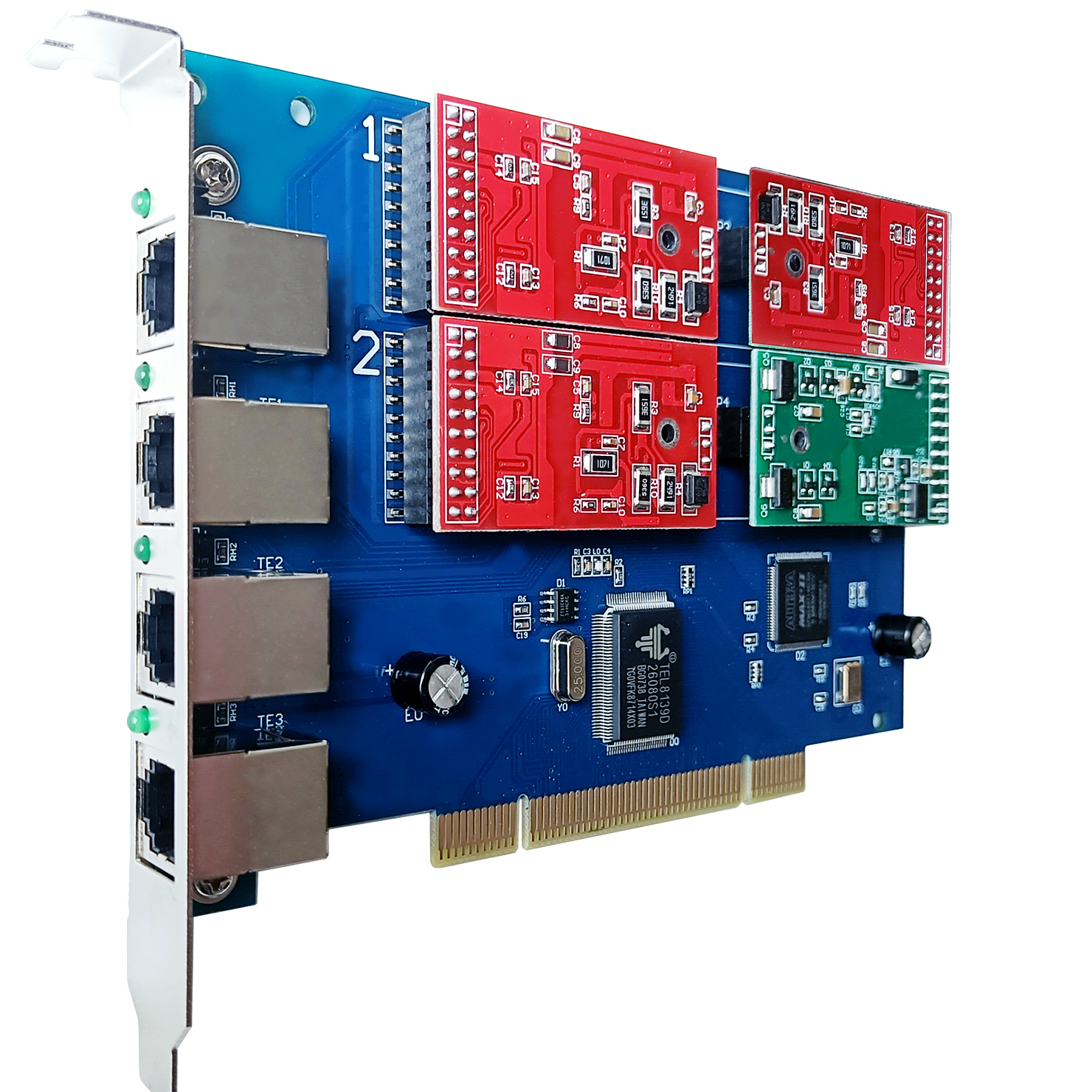

The card is bundled with 3 FXO+1 FXS modules.

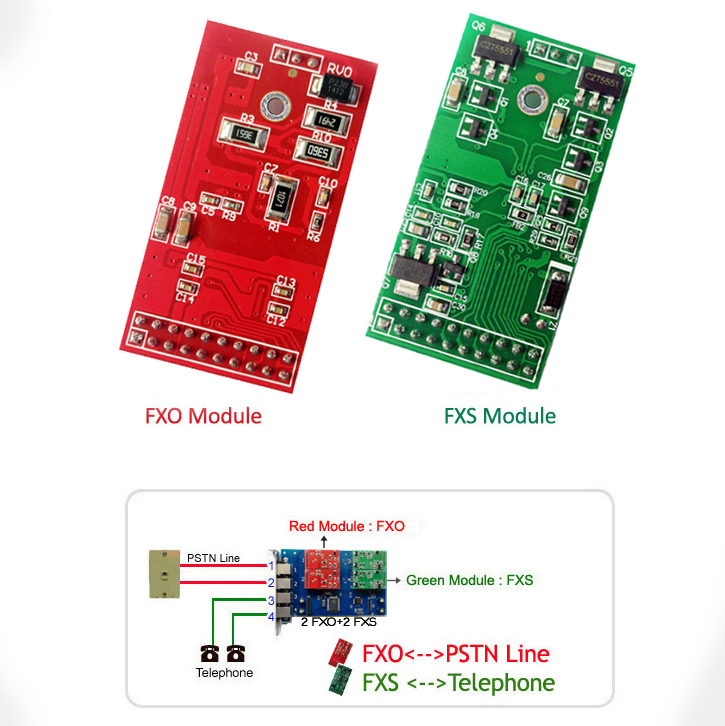

The FXO module is in red and the FXS model is in green .
FXO port connects to PSTN line (traditional telephone line) and the FXS port connects to a traditional telephone set.

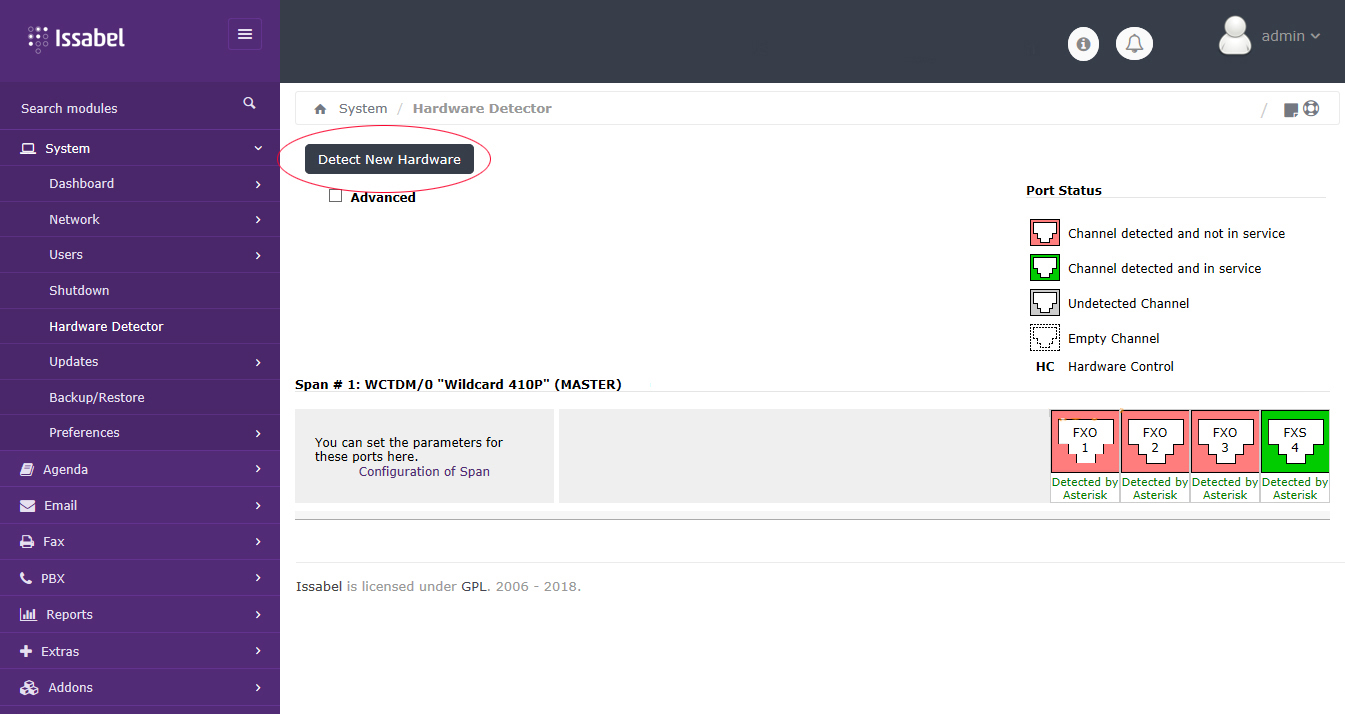

Asterisk ,Dahdi, Issabel, Freepbx Settings:
[Issabel.localdomain ~]# dahdi_genconf
[Issabel.localdomain ~]# dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
======================
Channel map:
Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)
Channel 03: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 03)
Channel 04: FXO Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 04)
[Issabel.localdomain ~]# asterisk -vvr
Issabel*CLI> dahdi show channels
pseudo default en default In Service
1 from-pstn en default In Service
2 from-pstn en default In Service
3 from-pstn en default In Service
4 from-pstn en default In Service
