    Asterisk Card PCI TDM800P with 8 FXO Ports,with Low Profile,FXO card analog FXO board tdm800 compatible digium wildcard For Telephone PBX System TDM400P

    Be the first to review this product...
    • TDM800P Asterisk FXO Card Analog Voice Telephone Board
    • Ports : 8 FXO
    • Interface : PCI
    • Software Supported : Asterisk,Dahdi,Freepbx,Issabel,Free PBX,VitalPBX,Freeswitch and other software based on Asterisk/Dahdi
    • The FXO module is in red and the FXS model is in green. FXO port connects to traditional telephone line (PSTN line) and the FXS port connects to a telephone set (traditional analog telephone).
    • Using the card, open source software and PC,you can build a VoIP telephone system/ Asterisk PBX Phone System / call center VoIP Gateway Trunk appliance easily at a very low cost
    • with Low Profile for 2U Computer / 2U Server
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

    Purchase Notice:

    • Ports : 8 FXO .
    • Interface : PCI
    • Supports Asterisk,Issabel,FreePBX,Dahdi ...and other softwares based on Asterisk/Dahdi
    • with Low profile for 2U computer / server.


    Description:

    Using the card, open source softwares such as FreePBX,Issabel,Asterisk..., Using the card, open source software based on Asterisk and PC,you can build business VoIP telephone system/ IP PBX / call center /SIP server/VoIP Gateway Trunk appliance easily at a very low cost.


    Specification:

    The FXO module is in red and the FXS model is in green.
    FXO port connects to PSTN line (traditional telephone line) and the FXS port connects to the traditional telephone set.

    Issabel/FreePBX/Asterisk Settings:

    [ .localdomain]#dahdi_genconf
    [ .localdomain]#dahdi_cfg -vvvv
    DAHDI Tools Version - 2.2.0
    DAHDI Version: 2.2.0
    Echo Canceller(s): MG2
    Configuration
    ====================
    Channel map:

    Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2)
    Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2)
    Channel 03: FXS Kewlstart (Default) (Echo Canceler: mg2)
    Channel 04: FXS Kewlstart (Default) (Echo Canceler: mg2)
    Channel 05: FXS Kewlstart (Default) (Echo Canceler: mg2)
    Channel 06: FXS Kewlstart (Default) (Echo Canceler: mg2)
    Channel 07: FXS Kewlstart (Default) (Echo Canceler: mg2)
    Channel 08: FXS Kewlstart (Default) (Echo Canceler: mg2)
    ======================

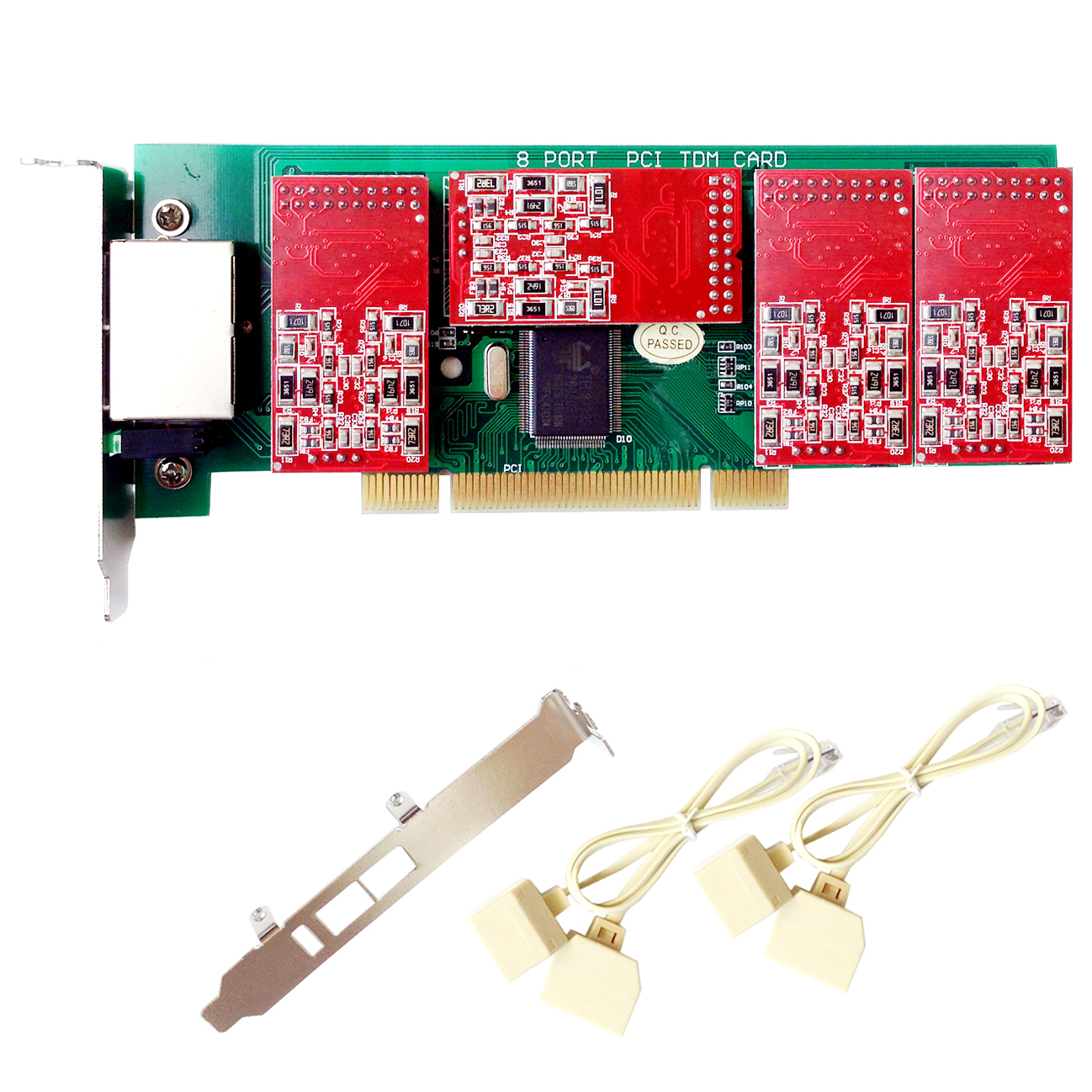

    Asterisk card TDM800P

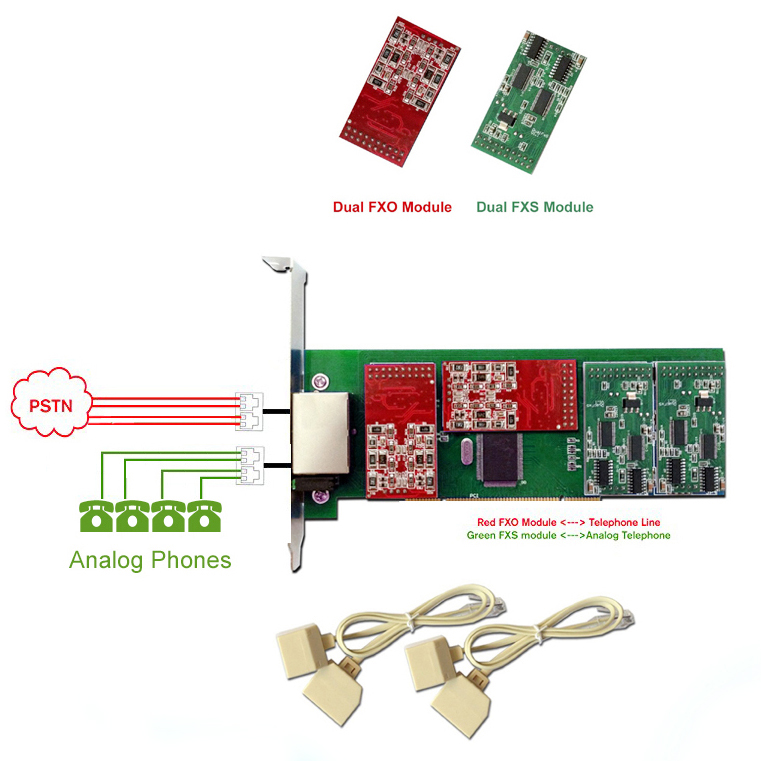

    Asterisk Telephone board
    Purchase Notice:

    1). The card is with 8 FXO ports.

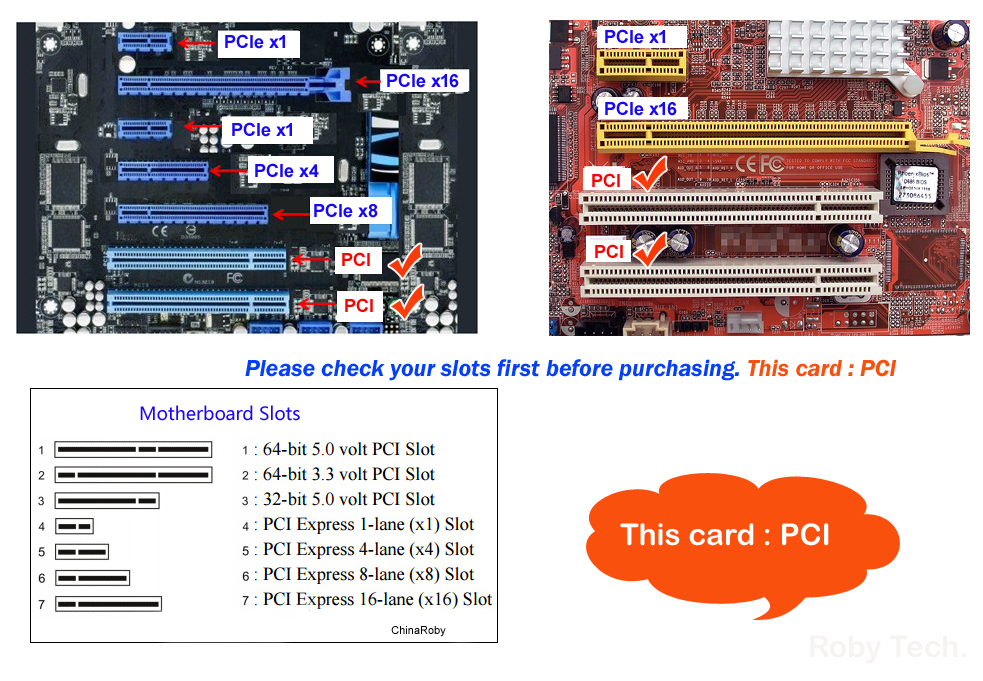

    2). The card is with PCI connector.
    3). It supports Asterisk,Issabel,AsteriskNow,Freepbx,...Dahdi driver.You can build a telephone solution / IP PBX / call center /SIP server based on the card easily at a very low cost.

    Description :

    Using the card, open source Asterisk and stand alone PC, users can create their SOHO telephony solution,IP PBX,call center include all the sophisticated features of traditional PBX, and extend features such as voice mail,IVR,Call meeting,SIP trunk,outbound route,inbound route,call waiting ,call forwarding ...
    It supports standard dahdi / zaptel drivers , can work with Asterisk / FreePbx / Elastix / Issabel /AsteriskNow Dahdi...


    Specification:


    The card is bundled with 8 FXO or FXS ports.

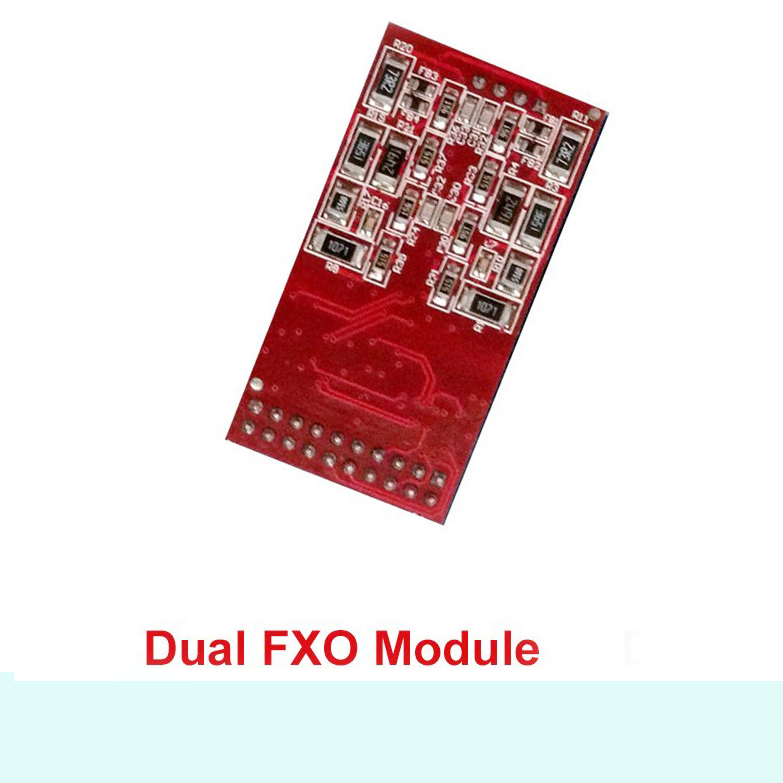

    The FXO module is in red and the FXS model is in green .
    FXO port connects to PSTN line and the FXS port connects to the telephone.

    Issabel, AsteriskNow, Freepbx Settings:

    [Issabel.localdomain ~]# dahdi_genconf
    [Issabel.localdomain ~]# dahdi_cfg -vvvv
    DAHDI Tools Version - 2.2.0
    DAHDI Version: 2.2.0
    Echo Canceller(s): MG2
    Configuration
    ======================


    Channel map:

    Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01)
    Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)
    Channel 03: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 03)
    Channel 04: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 04)
    Channel 05: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 05)
    Channel 06: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 06)
    Channel 07: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 07)
    Channel 08: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 08)

    [Issabel.localdomain ~]# asterisk -vvr

    Issabel*CLI> dahdi show channels

    pseudo default en default In Service
    1 from-pstn en default In Service
    2 from-pstn en default In Service
    3 from-pstn en default In Service
    4 from-pstn en default In Service
    5 from-pstn en default In Service
    6 from-pstn en default In Service
    7 from-pstn en default In Service
    8 from-pstn en default In Service


    ------------------------------------------------
    Refer to,
    https://www.freepbx.org/
    https://www.issabel.org/
    https://www.asterisk.org/
