Question 1

Thinking about getting this or another comparible product to install freebsd for a DC/Mail server/2ndary internal firewall/ media hub. I am wondering can I get rid of this windows 8.1 crap and install BSD 10.1?

Accepted Answer

I don't see why you couldn't, I immediately reformatted the drive and installed Windows 7 on it and a quick Google search shows others who have installed Linux on it successfully. Good luck!

Question 2

Can you output to VGA and HDMI simultaneously?

Accepted Answer

never tried this, but I would imagine you can, since Win 8.1 has multi head support

Question 3

What kind of memory this system takes? Can any one share the model or item of memory they have upgraded. Thank You.

Accepted Answer

This EEE-Box takes 204-pin SO-DIMM DDR3 1333 memory (PC3 10666) with timing of 9-9-9-24, although I would guess that it will work with 1600 (PC3 12800). There is one gotcha: it must be 1.35 nominal voltage - 1.5 will not work, and I do not see any voltage adjustment in BIOS.
It is supplied with one slot of two filled by one 2GB DDR3 card (as I purchased it from Newegg). It will accept two DDR3 cards, of maximum 4GB each.

Question 4

WHAT Intel HD graphics chipset? They make a crapton of cards. HD2000, HD3000. HD4000, HD4500 ???

Accepted Answer

The graphic chipset included in this machine are considered embedded, and not part of the HD series of chips. The Intel HD graphics drivers chipset for Windows 8/8.1 does contain these drivers, so I can see how there may be some confusion as to what kind of chipset it actually is. If you wish to downgrade to Windows 7, you have to download the special embedded drivers located on the Intel website.

Google search J1900 Graphics Driver, the first website that comes up (Intel EMGD) is the one you want.

This website contains all of the information pertaining to the J1900 and what drives its graphics.
My last note is that these Windows 7 drivers need 7zip to extract the driver files... it's a 7z file.

Question 5

What is the maximum RAM possible for this machine?

Accepted Answer

Hello, Thank you for contacting us with your question. We apologize that we are unable to provide you with direct technical assistance; however, we recommend visiting our online community forum. www.eggxpert.com. At EggXpert you can chat with someone who may assist you with your question. Hope this information is helpful. Have an Eggcellent Day! Newegg.com

Question 6

Intel say their J1900 has 4 cores, but the description here says this has 2 cores. Which is it? It can't be a J1900 and have only 2 cores, so either the title or the description must be wrong.

Accepted Answer

Info is wrong. the J1900 has 4 cores.

I have mine setup as a HTPC and it works perfect for that. I added another stick of 2G dram and it made it quite a bit snappier ( now using dual channel interface).

Question 7

Will it hold a 3.5" drive or is it limited to laptop drives?

Accepted Answer

It comes with a 2.5 inch drive . Mounting hardware will not mount to a 3.5 inch drive.

Question 8

Does this come with the Windows 8.1 key, so that I would be able to install it on an aftermarket SSD?

Accepted Answer

Not that I know of, but you can image the disk onto the new SSD and you will be fine

Question 9

Does it convert old desk top computer (4th generation) with windows Xp to Tv media?

Accepted Answer

I'm sorry, I don't quite understand what you are asking.

Question 10

I'd like to upgrade the memory on this box to 4GB, so wondering: Is the 2GB of memory included with this device on a single DIMM, or is it 2 x 1GB DIMMs?  Is this using 204 pin laptop memory?

Accepted Answer

Supplied as one 204-pin 2GB SO-DIMM DDR3 as I purchased it. I upgraded to two 4GB cards, the maximum according to the mfgr. Uses DDR3 1333 (PC3-10666) timing 9-9-9-24, but I would think it will work with DDR3 1600 (match the cards). GOTCHA: must be 1.35V, not 1.5V; I cannot see voltage adjustment in BIOS. Easy to upgrade, but find a video demo of how to open the case. Drive on the other hand has a proprietary bracket difficult to remove from current HD short of a chain saw; I constructed a mount of rubber and felt for a drive upgrade.

Brand	ASUS
Series	Eee Box
Model	EB1036-B0534

Type	Nettop Computer
Form Factor	Nettop Computer
Usage	Consumer
Processor	Intel Celeron J1900 2.4GHz
Processor Main Features	64 bit Quad-Core Processor
Cache Per Processor	2 MB L2 Cache
Memory	2GB DDR3L 1333
Storage	320GB SATA 5400RPM
Graphics	Intel HD Graphics
Ethernet	Gigabit Ethernet
Power Supply	40W
Operating System	Window 8.1 64-Bit with Bing

CPU Type	Celeron
CPU Name	Intel Celeron J1900
L2 Cache Per CPU	2 MB
CPU Main Features	64 bit Dual Core Processor

GPU/VGA Type	Intel HD Graphics
Graphics Interface	Integrated video

Memory Capacity	2GB DDR3
Memory Speed	DDR3L 1333
Memory Slot (Total)	2
Maximum Memory Supported	8 GB

ASUS Desktop PC Eee Box EB1036-B0534 Intel Celeron J1900 2GB DDR3 320GB HDD Intel HD Graphics Window 8.1 64-Bit with Bing

Learn more about the ASUS EB1036-B0534

Customer Reviews of the ASUS EB1036-B0534

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

HDD	320GB
HDD Interface	SATA
HDD RPM	5400rpm
Storage Spec	FREE 100G ASUS Web Storage (12 month free)

Front USB	3 x USB 2.0 1 x USB 3.0
Front Audio Ports	2
Card Reader	4-in-1 Card Reader

Communications
LAN Speed	10/100/1000Mbps
WLAN	802.11b/g/n Wireless LAN

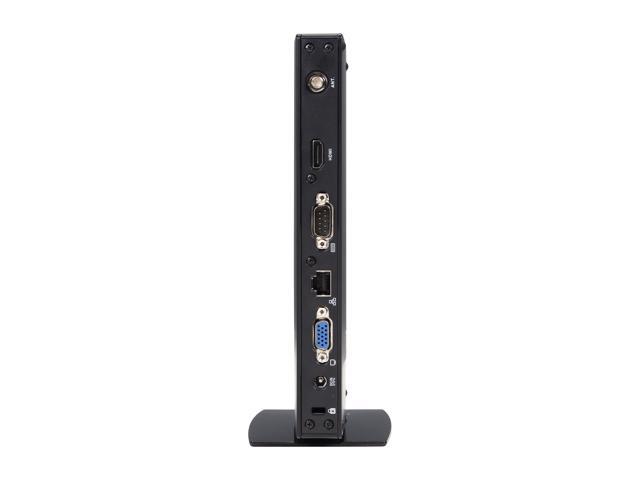

Back Panel Ports
COM	1
Video Ports	1 VGA, 1 HDMI
RJ45	1 port

Dimensions & Weight
Dimensions (H x W x D)	1.14" x 6.7" x 8.6"
Weight	1.52lbs

Item#: N82E16883220683
