10th Gen Intel Core i5-10400 6-Core Processor (12M Cache, up to 4.3 GHz)
Windows 10 Pro
256 GB PCIe NVMe M.2 SSD and 8 GB 2933 MHz DDR4 RAM (expandable up to 64 GB)
TPM 2.0 Security for secure data encryption
Small Form Factor - weighs 11 lbs.
Seamless connectivity with Gig+ Dual-Band Wi-Fi 6 (802.11ax) and Bluetooth 5.0

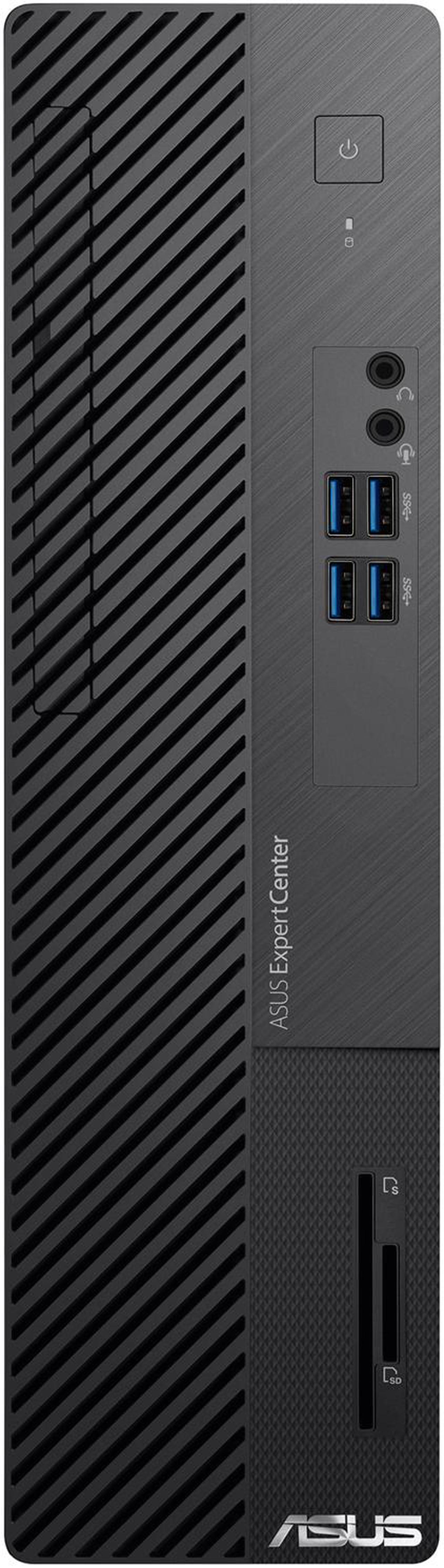

Front I/O: 1 x DVD Writer, 1 x Headphone jack, 1 x 3.5mm combo audio jack, 4 x USB 3.2 Type-A (Gen 1), Smartcard Reader, SD Card Reader

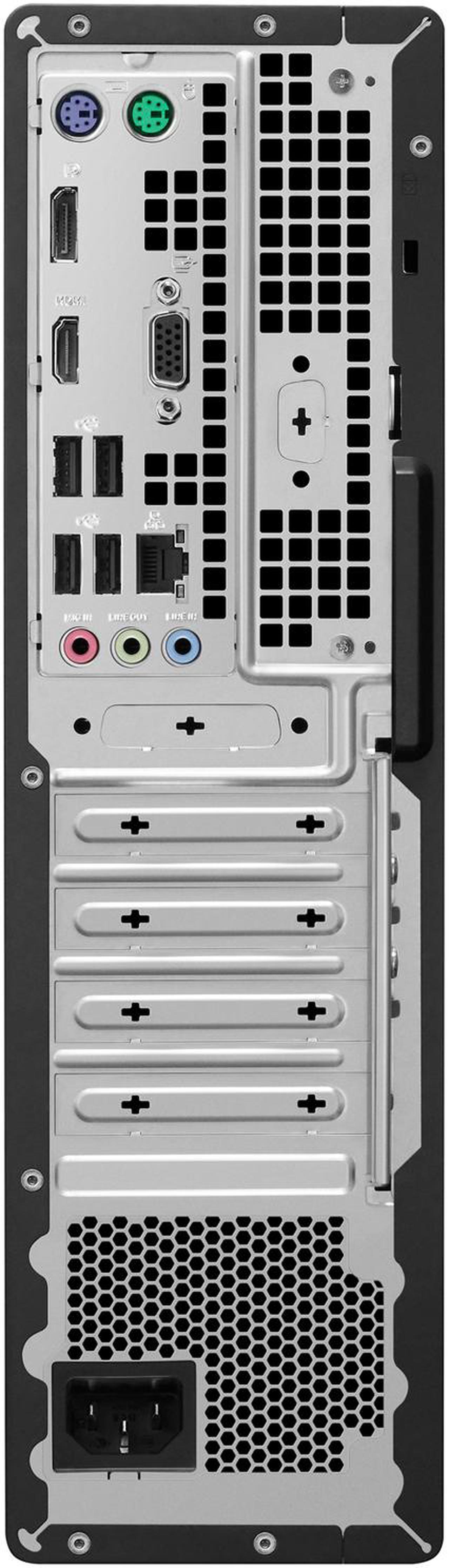

Rear I/O: RJ45 Gigabit LAN, 1 x HDMI 1.4, 1 x DisplayPort, 1 x DVI-D, 2 x PS2, 4 x USB 2.0 Type-A (Gen 1), 3 x Audio jacks
Expansion slots include 1 x PCIe 3.0 x16, 1 x PCI, 2 x PCIe 3.0 x1, 1 x M.2 connector for Wi-Fi (occupied), 2 x M.2 connector for storage (1 x occupied), 2 x DDR4 U-DIMM slot (1 x occupied)

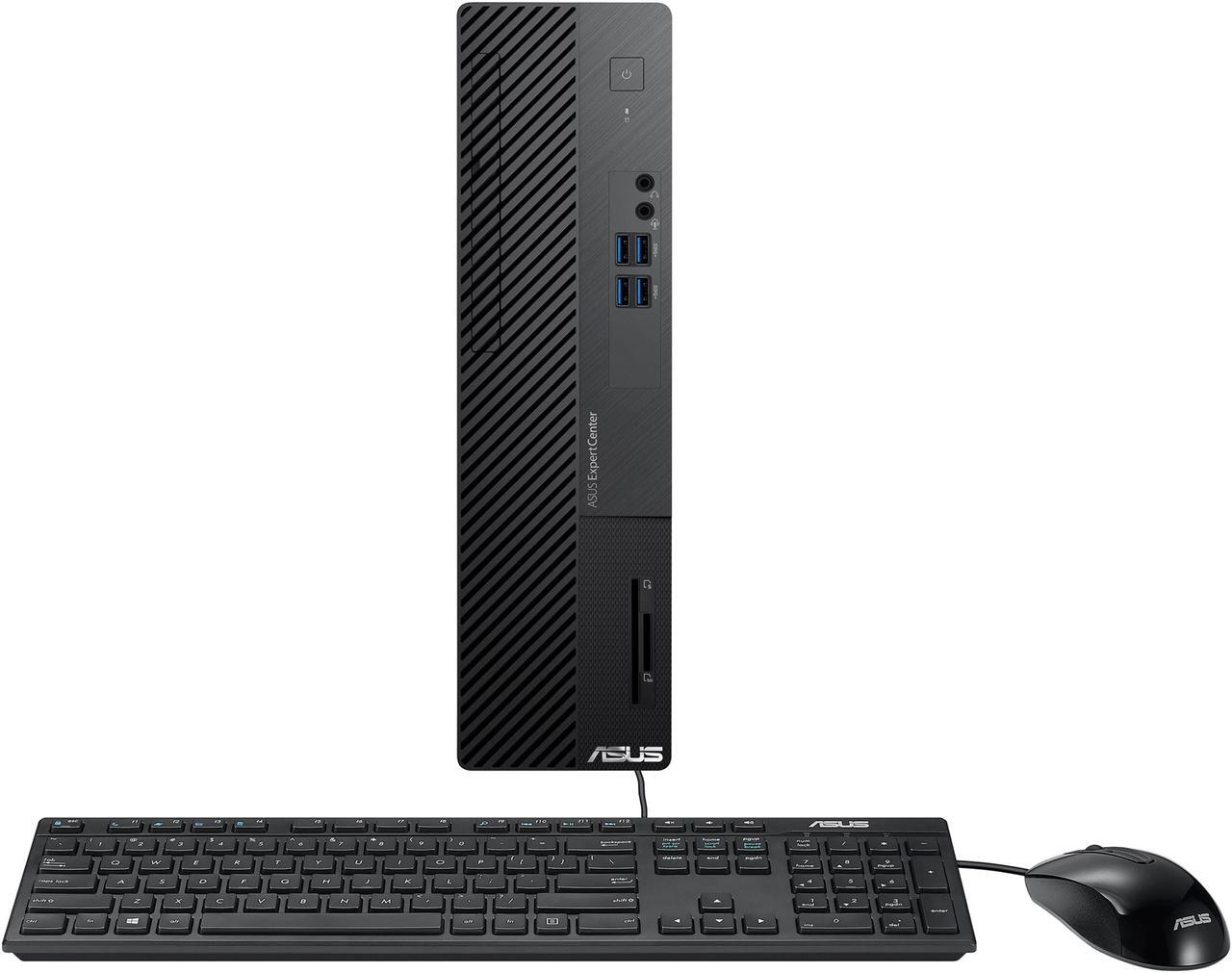

Keyboard and mouse included
*The Windows 11 upgrade will be delivered to qualifying devices late 2021 into 2022. Timing varies by device. Certain features require additional hardware (see aka.ms/windows11-spec)
Overview
Specs
Reviews (5)
Learn more about the ASUS D500SA-EB501
Model
Brand
ASUS
Series
ExpertCenter
Model
D500SA-EB501
Part Number
90PF0231-M05390
Quick Info
Type
Business Desktops & Workstations
Form Factor
Slim/Small Form Factor
Usage
Business
Color
Black
Processor
Intel Core i5-10400 2.90 GHz
Processor Main Features
64 bit 6-Core 12-Thread Processor
Cache Per Processor
12 MB L3 Cache
Memory
8 GB DDR4 2933 MHz
Storage
256 GB M.2 NVMe PCIe 3.0 SSD
Optical Drive
DVD Writer 8X
Graphics
Intel UHD Graphics 630
Power Supply
300W power supply (80+ Platinum, peak 390W)
Monitor
Monitor not included
Operating System
Windows 10 Pro 64-bit
Special Features
For Free Windows 11 upgrade eligible devices, visit ASUS Windows 11 website for more information.
Motherboard
Chipset
Intel H410
CPU
CPU Type
Intel Core i5 10th Gen
CPU Name
Intel Core i5-10400
L3 Cache Per CPU
12 MB
CPU Main Features
64 bit 6-Core 12-Thread Processor
Graphics
GPU/VGA Type
Intel UHD Graphics 630
Graphics Interface
Integrated video
Memory
Memory Capacity
8GB DDR4
Memory Speed
DDR4 2933
Memory Spec
8 GB x 1
Memory Slot (Total)
2
Memory Slot (Available)
1
Maximum Memory Supported
64 GB
Storage
SSD
256GB PCIe
HDD
No
Storage Spec
256 GB M.2 NVMe PCIe 3.0 SSD
Optical Drive
Optical Drive Type
DVD Writer 8X
Display
Screen Size
No Screen
Audio
Audio Features
High Definition 7.1 Channel Audio
Communications
LAN Speed
10/100/1000Mbps
WLAN
Intel Wi-Fi 6 (Gig+) (802.11ax)
WiFi Generation
Wi-Fi 6
Bluetooth
Bluetooth 5.0 (Dual band) 2x2
Front Panel Ports
Front USB
4 x USB 3.2 Gen 1 Type-A
Front Audio Ports
1 x Headphone 1 x 3.5mm combo audio jack
Back Panel Ports
PS/2
2
Video Ports
1 VGA, 1 Display Port, 1 HDMI
Rear USB
4 x USB 2.0 Type-A
RJ45
1 port
Rear Audio Ports
3 ports
Expansion
PCI Slots (Available/Total)
1 x PCIe 3.0 x16 1 x PCI 2 x PCIe 3.0 x1
Mouse
Mouse Type
Wired Optical Mouse
Keyboard
Keyboard Type
Wired Keyboard
Dimensions & Weight
Dimensions (H x W x D)
13.40" x 3.70" x 11.50"
Weight
11.00 lbs.
Packaging
Package Contents
Keyboard Mouse Power Cord Warranty Card Quick Start Guide
