Question 1

Can you use a graphics card with this?

Accepted Answer

Absolutely! Just not two as in a crossfire or sli setup. Also mind the size of your case as many mitx cases won't house a large card (but there are many that will).

Question 2

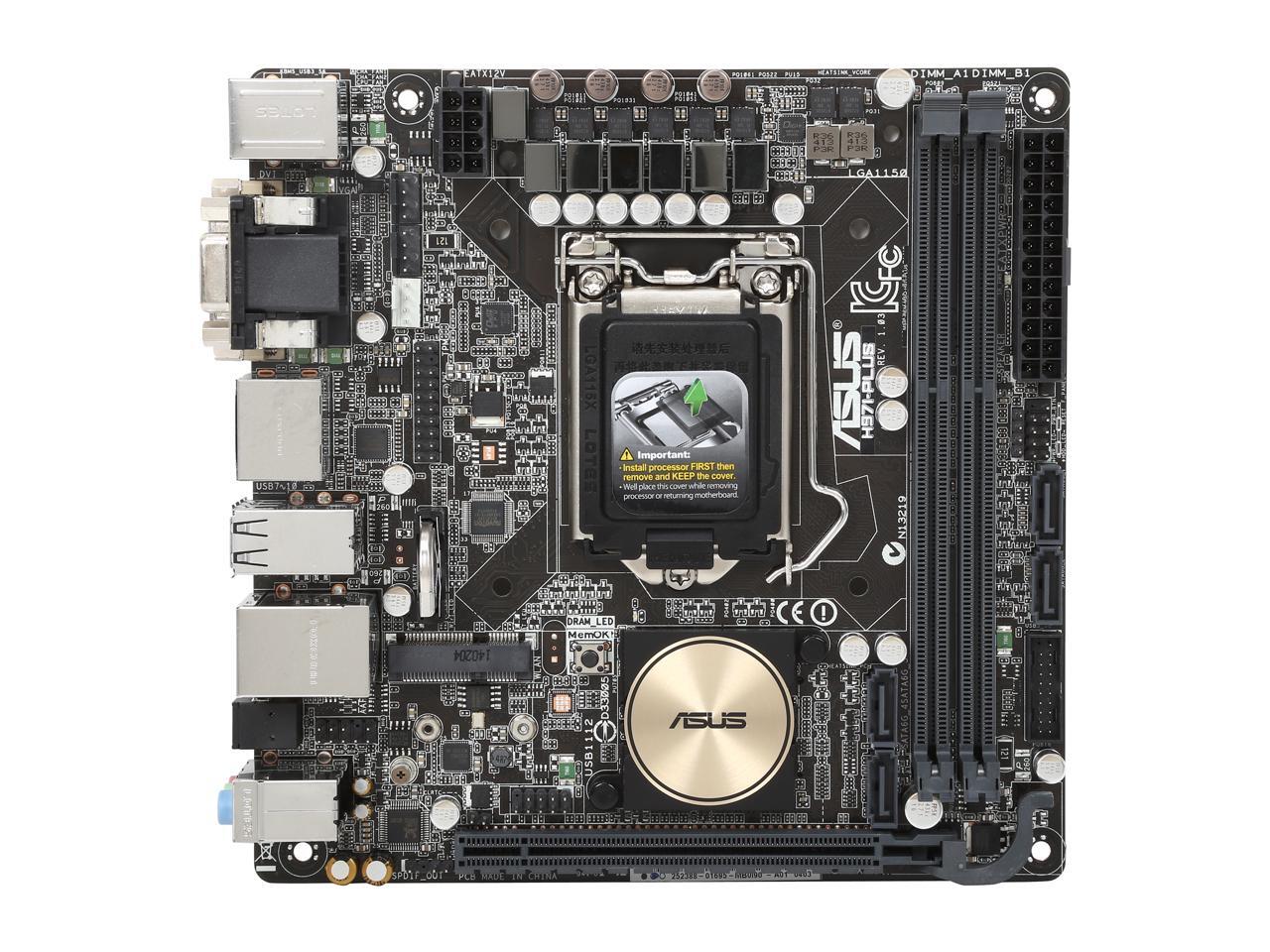

This board appears to have a mini-PCIe slot near the chipset... is this valid?

(I don't see it listed in the specs...)

Accepted Answer

I'm not too familiar with computers, kind of just started as a hobby thing learning little bits as I go, so to answer your question, I'm not 100% positive that it is a mini-pcie slot. They call it a M.2 slot which is used for a mSSD and I think it supports the mini-pcie but not 100% sure and really not sure if the two are the same or different. Wish I could be more help to you, sorry.

Question 3

Is this a motherboard sized for desktop or laptop?

Accepted Answer

No offence, but this question makes me doubt you should be buying this kind of hardware.

This is a Mini ITX board.  It is for Mini ITX cases.  Laptop motherboards are custom fabricated by the manufacturer and are not sold for you to build your own.

Question 4

does this come with a processor?

Accepted Answer

It does not include the processor. You must buy that separately.

Question 5

The documentation and the description both indicate an M.2 storage slot.  In the location indicated in the manual (between the SATA3/4 ports and the H97 chipset), the pictures on the website show no slot.  Can anyone verify there is an M.2 slot large enough to allow the 250GB M.2 drive sold by NewEgg?

Accepted Answer

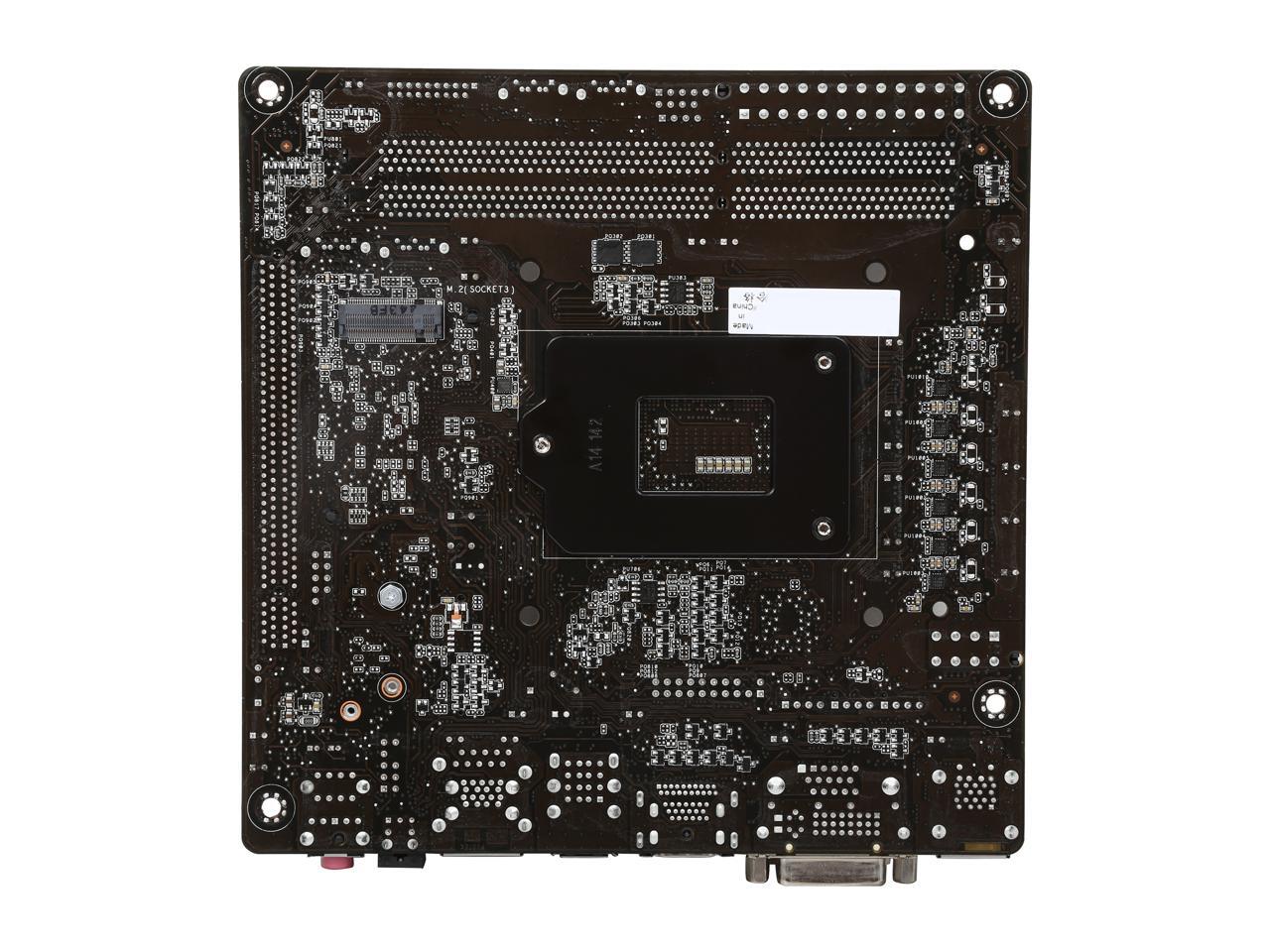

The slot is underneath the motherboard - on the bottom side.  If you plan to use the slot, be very sure you have the clearance between your motherboard and the mounting surface.  If the drive is just a chip, it shouldn't be an issue.  However, be aware that installing and uninstalling the drive will require removing the motherboard each time.

Question 6

I plan on buying a wireless adapter for this motherboard using then mini-pcie slot. Would I need to buy a separate antenna for it or does this motherboard have a built in option for it?

Accepted Answer

I recommend this board if you want wireless.

ASUS Z97I-PLUS LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.0 Mini ITX Intel Motherboard

Question 7

Does it have a USB 3.0 header for front panel USB 3.0?

Accepted Answer

Yes, there is a USB 3.0 motherboard header that provides two USB 3.0 ports to the front panel, provided your computer case has the proper cable and connector.

Question 8

does it have onboard video? minimum of 512MB video ram..

Accepted Answer

Yes it does. Intel HD 3000 is the name. The thing with onboard video is that it uses your some of your ram as its vram, so if you have enough ram you'll be fine.

Question 9

is this 4th generation ready?

Accepted Answer

Yes

Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Question 10

Does this product work with an i7 Ivybridge Motherboard?

Accepted Answer

I think you meant to say IvyBridge processor and not motherboard?

Either way

This board will fit any Intel 1150 socket CPUs. so NO a IvyBridge CPU will NOT fit (IB = FCLGA1155). This Haswell "Ready" board requires a 1150 socket Intel Haswell CPU.

Sorry for the bad news
Nick
