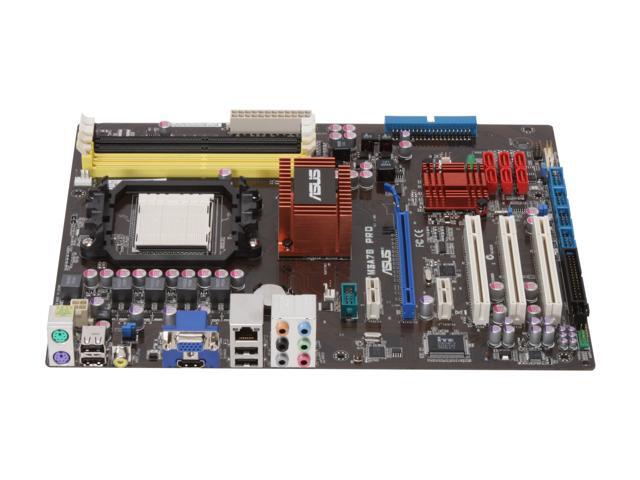

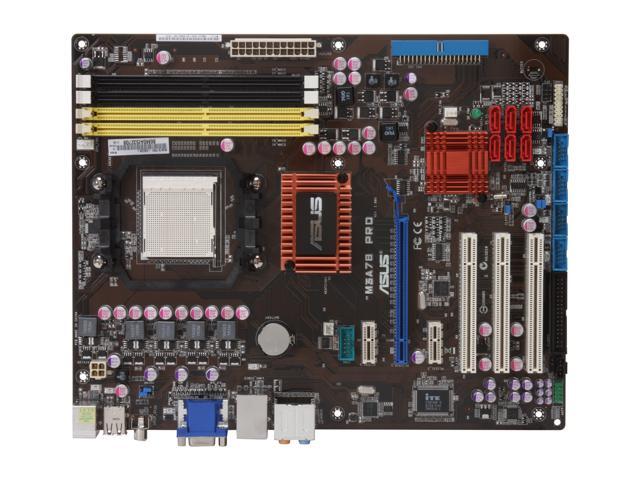

ASUS M3A78 Pro AM2+/AM2 AMD 780G HDMI ATX AMD Motherboard

OUT OF STOCK.
  • AMD 780G
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 1066/800 *Due to AMD CPU limitation, DDR2 1066 is supported by AM2+ CPU for one DIMM per channel only.
LOADING...
Specs
Reviews

Learn more about the ASUS M3A78 Pro

Model
Brand ASUS
Model M3A78 Pro
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
FSB 2600 MHz
Chipsets
Chipset AMD 780G
South Bridge AMD SB700
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR2 1066/800
*Due to AMD CPU limitation, DDR2 1066 is supported by AM2+ CPU for one DIMM per channel only.
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 3200
Onboard Audio
Audio Chipset Realtek ALC1200
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
Video Ports D-Sub
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB connectors supports additional 8 USB 2.0 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging
Package Contents M3A78 Pro
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
HDMI to DVI Adapter
Additional Information
Date First Available July 02, 2008
