Three (3) Tri-band 802.11AC Wi-Fi hubs with MU-MIMO Technology, each delivering data speeds up to 2134 Mbps
Coverage up to 6,000 sq.ft. with MAP-AC2200 hubs providing corner to corner wireless coverage for Wi-Fi enabled devices across your connected smart home
Commercial-grade Security with AiProtection powered by Trend Micro blocks external security threats to protect devices connected to your home network
Advanced parental controls featuring Family Overview allow you to easily view, manage, and schedule your family's internet and app usage from any mobile device

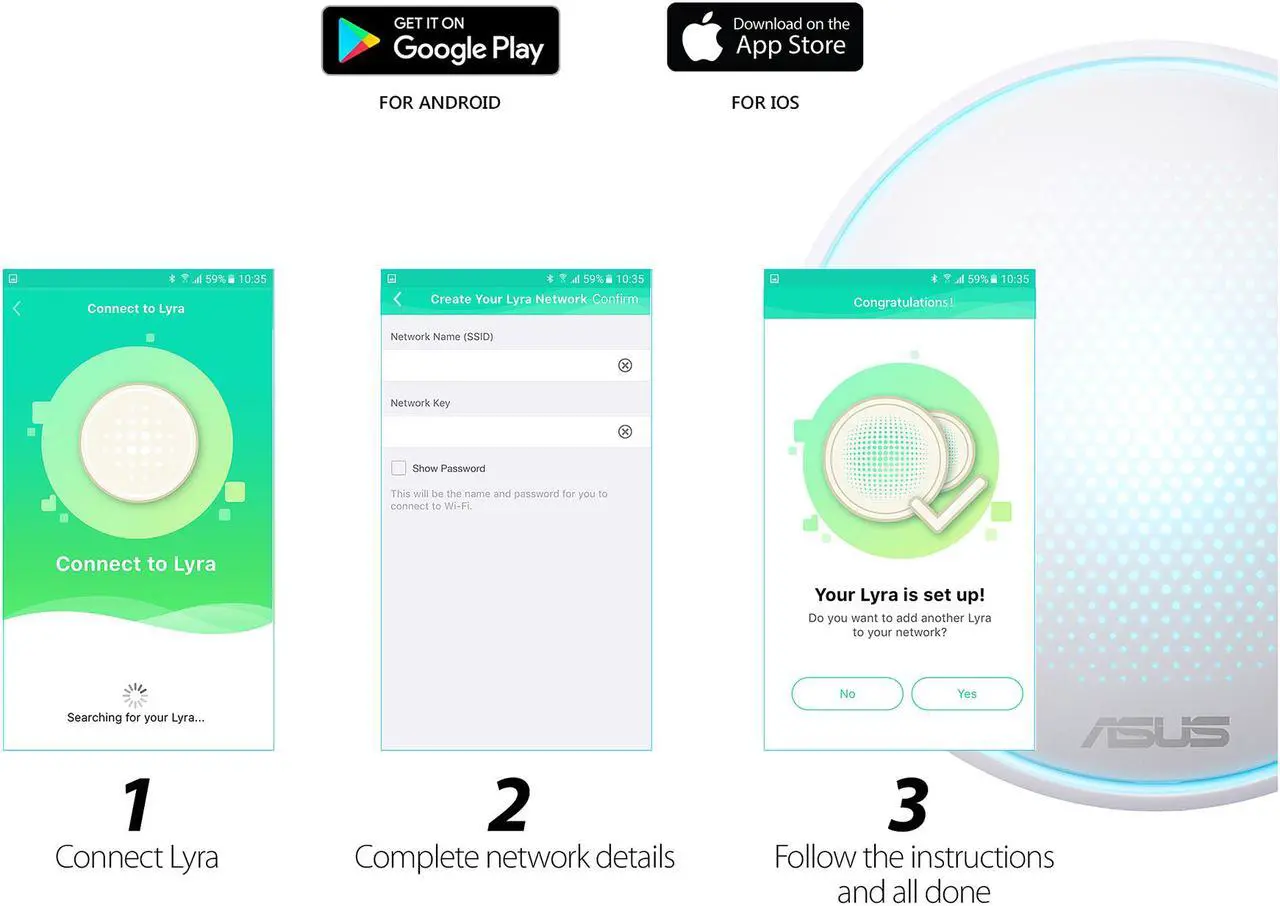

ASUS Lyra App makes setting up, expanding, and managing your network as easy as 1-2-3
Overview
Specs
Reviews (4)

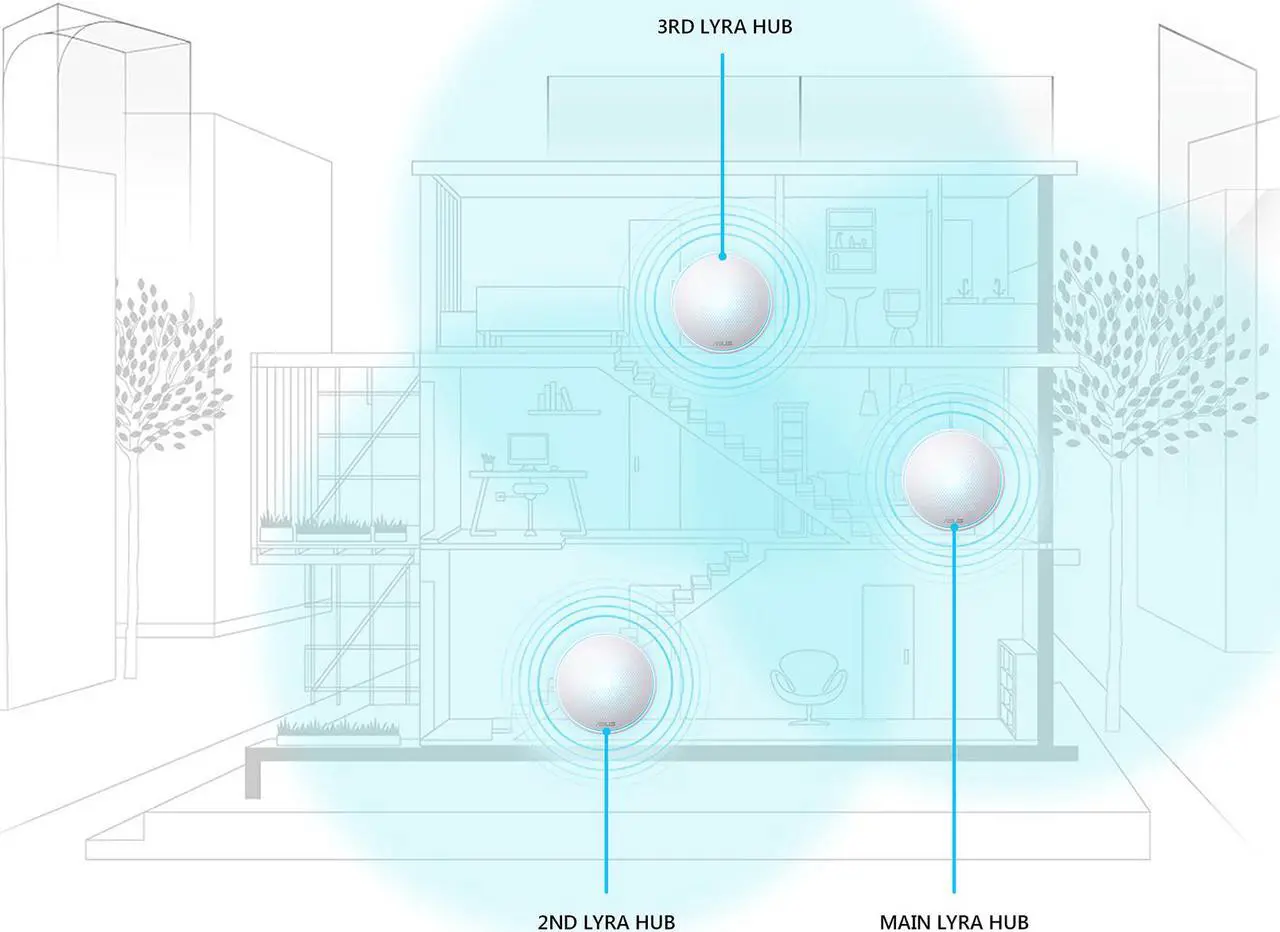

ASUS Lyra Home WiFi System provides corner-to-corner wireless coverage for every device in your home. From the basement to the backyard, devices automatically switch to the hub with the strongest WiFi connection, delivering the best online experience. AiProtection and robust parental controls provide 24/7 protection for your network and family.
Learn more about the ASUS MAP-AC2200
General
Brand
ASUS
Model
MAP-AC2200
Type
See Details
Router & Satellite Counts
3-Pack (3 Routers)
Covered Area
6,000 sq. ft.
Router/AP Spec

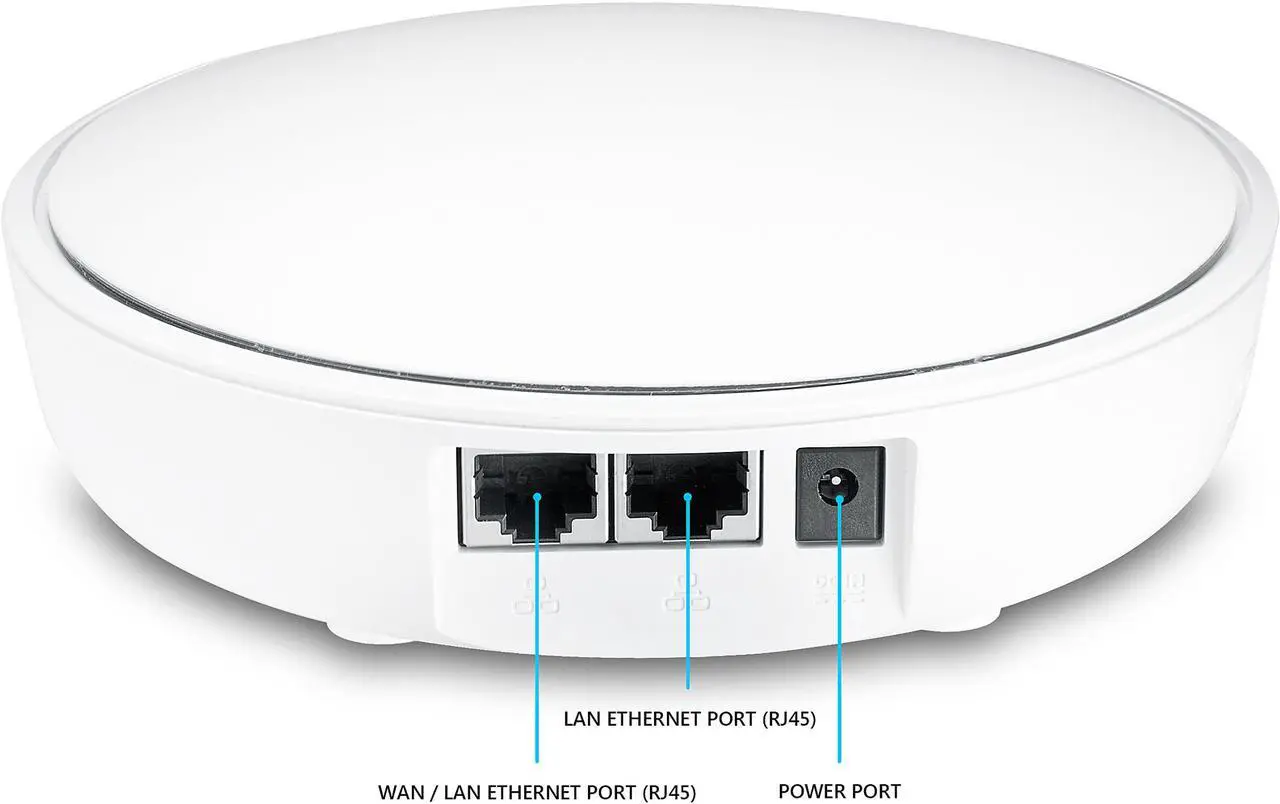

WAN Ports
1 x RJ45 for 10/100/1000/Gigabits BaseT for WAN
LAN Ports
1 x RJ45 for 10/100/1000/Gigabits BaseT for LAN
Wi-Fi Standards
Wi-Fi 5
Wireless Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: up to 400 Mbps 802.11ac: up to 867 Mbps
Frequency Band

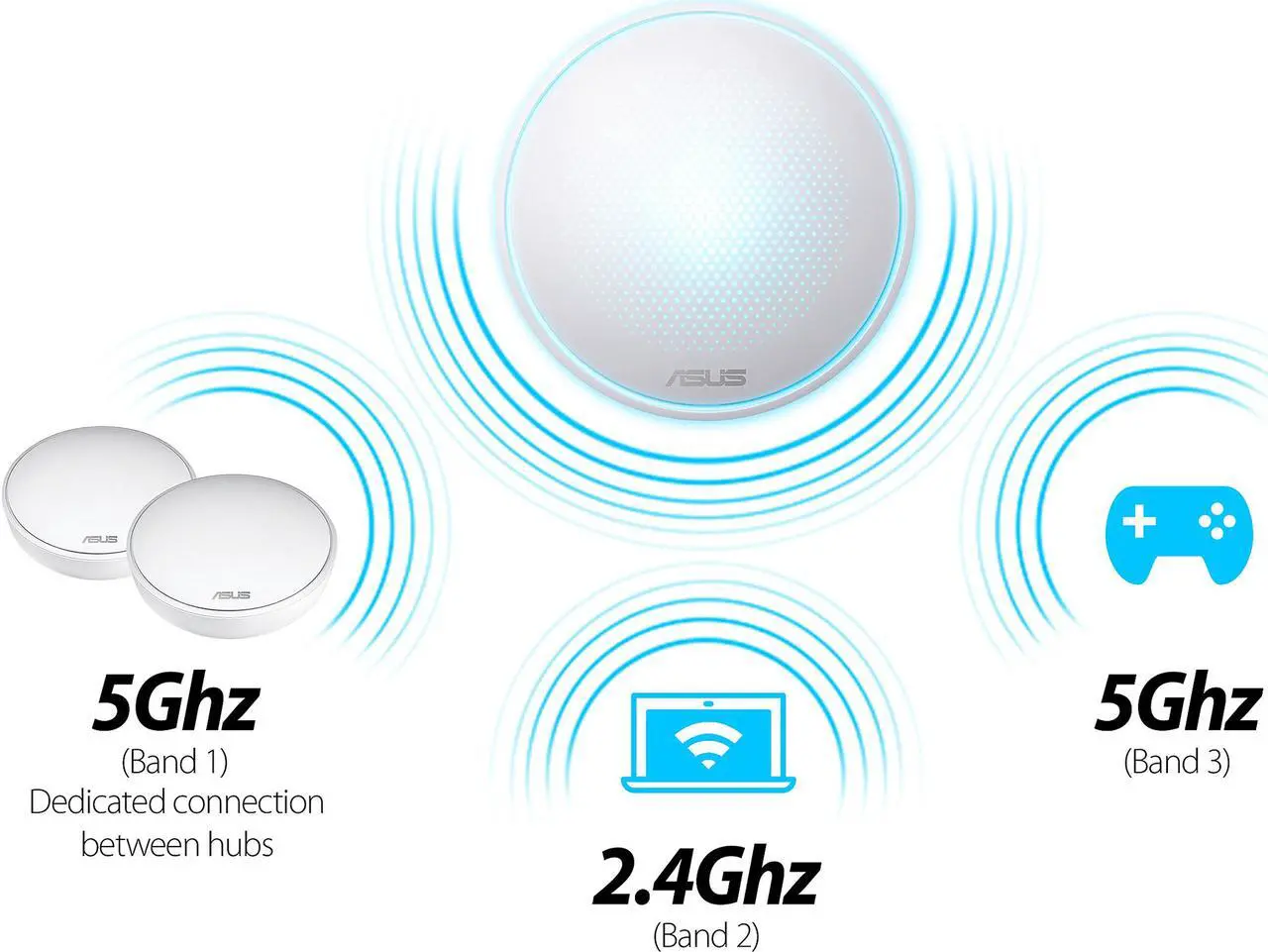

2.4G Hz, 5 GHz-1, 5 GHz-2
Security
WPA2-PSK
Antenna
7 x Internal antenna
Specification
Button
Reset Button
OS Compatibility
Windows 10 Windows 8.1 Windows 8 Windows 7 Mac OS X 10.1 Mac OS X 10.4 Mac OS X 10.4 Mac OS X 10.5 Mac OS X 10.6 Mac OS X 10.7 Mac OS X 10.8
Power Supply
AC Input: 110V~240V (50~60Hz) DC Output: 12V with max. 2A current
Dimension
1.95" x 5.90" x 5.90"
Features
Features
Banish Wi-Fi Dead Spots - Tri-band, tri-hub mesh-networking system delivers perfect Wi-Fi coverage to every corner of your home
Smart Antennas - Automatic optimization of hub connections ensures the fastest speeds, all the time
Smooth Connections, Always - Stay automatically connected to the best possible signal, wherever you are in the home
Commercial-grade Security - Protect all devices on your home network with ASUS AiProtection
You're in Control - The ASUS Lyra app enables PC-free setup, network management and diagnostics, and notifies you about any problems
Family Overview - View and control each family member's internet and app usage from your mobile device
Package Content
Package Content
3 x Lyra AC adapter Network cable (RJ-45) Quick Start Guide
