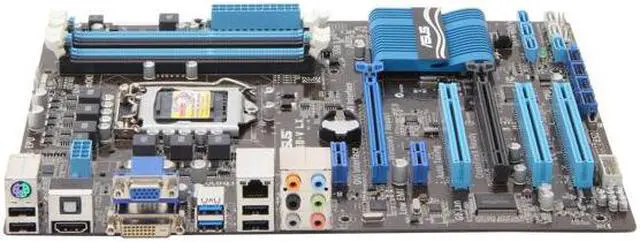

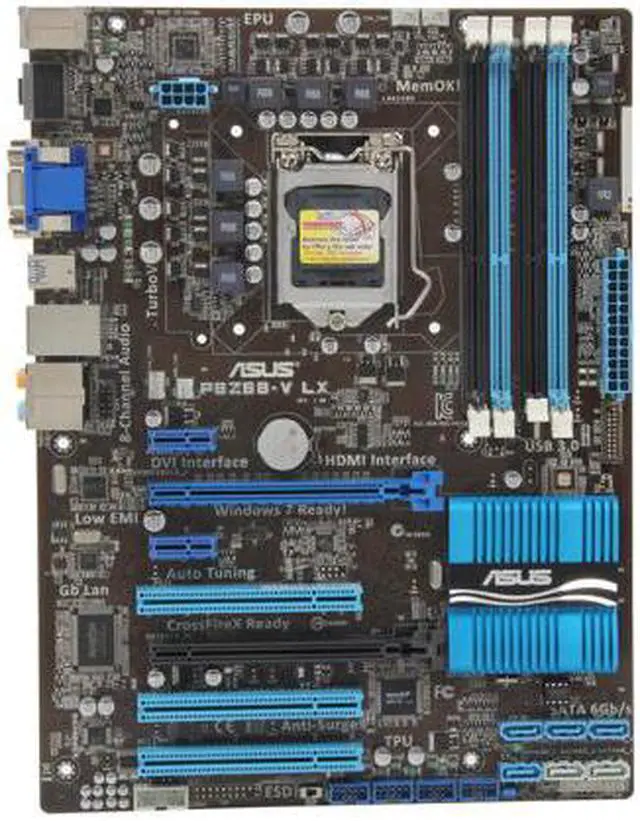

ASUS P8Z68-V LX LGA 1155 Intel Z68 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard with UEFI BIOS

CPU Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www. asus. com for CPU support list Chipset Intel® Z68 Memory 4 x DIMM, Max. 32GB, DDR3 2200(O. C. )/2133(O. C. )/1866(O. C. )/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs.

* Refer to www. asus. com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default. Graphic Integrated Graphics Processor Multi-VGA output support: HDMI/DVI/RGB ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Maximum shared memory of 1748 MB Multi-GPU Support Supports AMD Quad-GPU Cross
FireX™ Technology Supports Lucid
Logix® Virtu™ Technology Expansion Slots 1 x PCIe 2.0 x16 (blue) *1 1 x PCIe 2.0 x16 (x4 mode, black) *1 2 x PCIe 2.0 x1 3 x
PCI Storage Intel® Z68 chipset: 2 x SATA 6Gb/s port (s), gray 4 x SATA 3Gb/s port (s), blue Support Raid 0, 1, 5, 10 Support Intel® Smart Response Technology on 2nd generation Intel® Core™ processor family LAN Realtek® 8111E, 1 x Gigabit LAN Controller (s) Audio Realtek® ALC887 8-Channel High Definition Audio CODEC -
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature: - Optical S/PDIF out port (s) at back panel USB Ports ASMedia®
USB 3.0 controller: 2 x USB 3.0 port (s) (2 at back panel, blue)
Intel® Z68 chipset: 12 x USB 2.0 port (s) (4 at back panel, black, 8
at mid-board) warranty: 60 days
