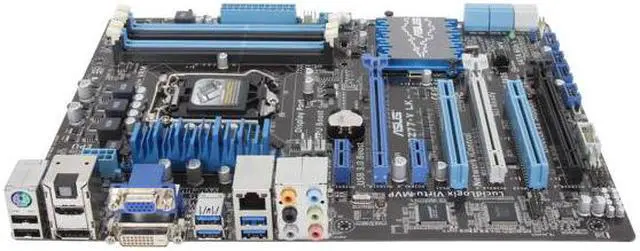

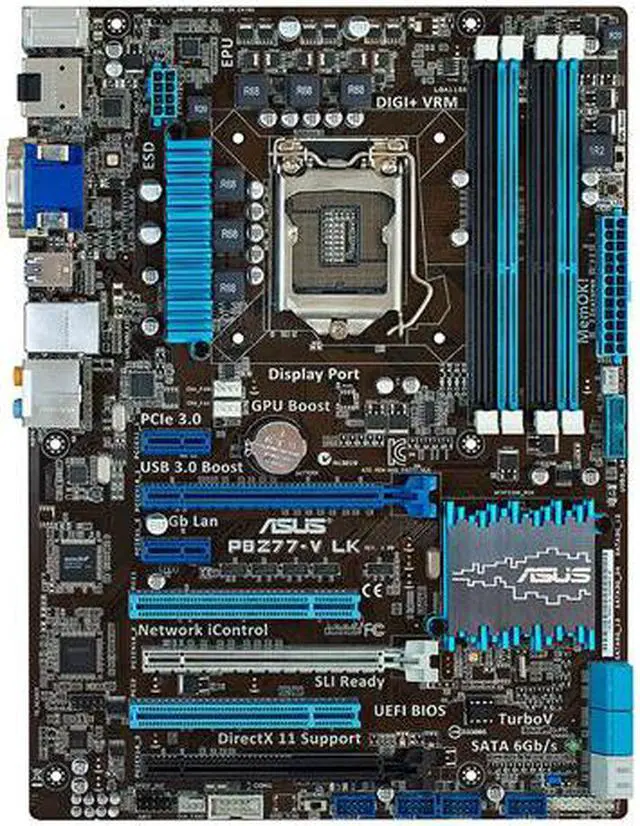

ASUS P8Z77-V LK LGA1155 Z77 ATX motherboard

Great working condition, like new. Comes with working board and IO shield. No drive and instructions Shipped by
DHL(about 3-10 days) warranty: 60 days CPU Intel® Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * Refer to www. asus. com for CPU support list Chipset Intel® Z77 Memory 4 x DIMM, Max. 32GB, DDR3 2400(O. C. )/2200(O. C. )/2133(O. C. )/2000(O. C. )/1866(O. C. )/1800(O. C. )/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Graphic Integrated Graphics Processor Multi-VGA output support: HDMI/DVI/RGB/Display
Port ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz - Supports Display
Port with max. resolution 2560 x 1600 @ 60 Hz Maximum shared memory of 1696 MB Supports Intel® HD Graphics Multi-GPU Support Supports NVIDIA® Quad-GPU SLI Technology Supports AMD Quad-GPU Cross
FireX Technology *1 Supports AMD 3-Way Cross
FireX Technology Expansion Slots 2 x PCIe 3.0 / 2.0 x16 (x16 or dual x8) *2 1 x PCIe 2.0 x16 (x4 mode, black) *3 2 x PCIe 2.0 x1 2 x
PCI Storage Intel® Z77 chipset: 2 x SATA 6Gb/s port (s), gray 4 x SATA 3Gb/s port (s), blue Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *4 LAN Realtek® 8111F, 1 x Gigabit LAN Controller (s) Audio Realtek® ALC892 8-Channel High Definition Audio CODEC -
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking USB Ports Intel® Z77 chipset: *5 4 x USB 3.0 port (s) (2 at back panel, blue, 2 at mid-board)
Intel® Z77 chipset: 10 x USB 2.0 port (s) (2 at back panel, black, 8 at mid-board) ASMedia®
USB 3.0 controller: *6 2 x USB 3.0 port (s) (2 at back panel, blue)
Warranty: 60 days
