Question 1

ASUS Prime Z690-P D4 vs Prime B660-PLUS D4: which is better for an Intel Core i5-12600K?

Accepted Answer

Choose the Prime Z690-P D4 if you plan to use a K-series processor with CPU overclocking, higher memory tuning, or PCIe 5.0 expansion. Choose the Prime B660-PLUS D4 for a standard, non-overclocked build because it supports the same LGA1700 DDR4 platform and also provides three M.2 slots, but the primary graphics slot is PCIe 4.0 rather than PCIe 5.0.

Question 2

Is the ASUS Prime Z690-P D4 suitable for a performance-focused desktop, or should I choose a smaller motherboard?

Accepted Answer

Choose the Prime Z690-P D4 for a performance-focused ATX desktop that needs full-size expansion, three M.2 slots, PCIe 5.0 graphics support, and multiple fan headers. Choose a smaller B660 or B760 motherboard for a compact build or when you do not need the Z690 chipset's CPU-tuning features. The Prime Z690-P D4 is an ATX board, so case compatibility and expansion space should be checked before purchase.

Question 3

Is the ASUS Prime Z690-P D4 a worthwhile upgrade from a Prime Z590-P?

Accepted Answer

Choose the Prime Z690-P D4 when moving to a 12th-generation or newer compatible Intel processor and when you want LGA1700, PCIe 5.0 graphics support, and DDR4 compatibility. Keep the Prime Z590-P if you are staying with a 10th- or 11th-generation LGA1200 processor, because the two boards use different CPU sockets and are not interchangeable. Existing DDR4 memory can generally be reused, but the processor and motherboard platform must match.

Question 4

Should I buy the ASUS Prime Z690-P D4 or the Prime Z790-P D4?

Accepted Answer

Choose the Prime Z690-P D4 for a 12th-generation Intel build that reuses DDR4 memory and needs PCIe 5.0 graphics support, three M.2 slots, and Z-series tuning features. Choose the Prime Z790-P D4 if you want a newer platform for 13th- or 14th-generation processors, additional PCIe 4.0 expansion slots, and more rear USB connectivity. Both boards use DDR4 and LGA1700, but Z790 provides broader newer-generation CPU support.

Question 5

ASUS Prime Z690-P D4 vs TUF Gaming Z690-Plus D4: which should I use with a Core i7 or Core i9?

Accepted Answer

Choose the TUF Gaming Z690-Plus D4 for sustained high-power Core i7 or Core i9 workloads, heavier CPU tuning, or a broader feature set. Choose the Prime Z690-P D4 when the price is more important and you are using moderate settings; testing found that its VRM can support high-end 12th-generation processors, but it has a less capable VRM and fewer rear USB and storage connections than stronger Z690 alternatives.

Question 6

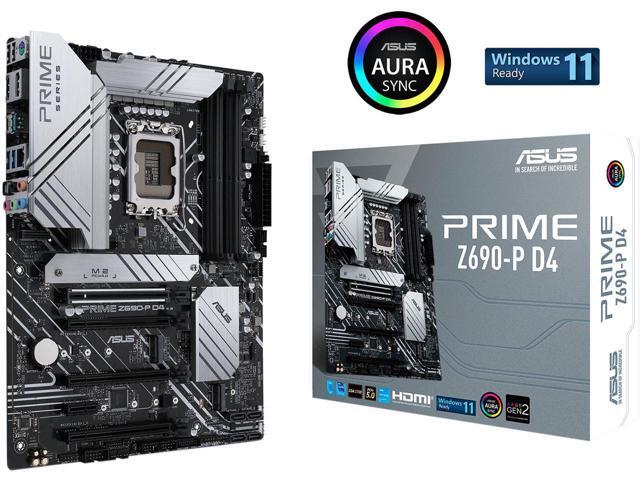

What should I expect to receive with this motherboard?

Accepted Answer

The listing includes the tested motherboard, I/O shield, and original box. Additional accessories such as SATA cables, M.2 screws, manuals, antennas, or other bundled parts are not guaranteed, so buyers should confirm that their build does not depend on missing accessories.

Question 7

Does this motherboard have built-in Wi-Fi?

Accepted Answer

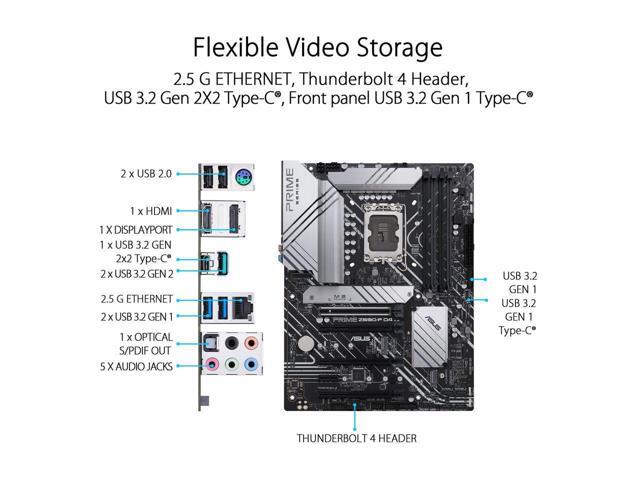

No. The ASUS Prime Z690-P D4 does not include integrated Wi-Fi. It provides wired networking through 2.5Gb Ethernet and includes an M.2 Key-E slot for adding a compatible wireless module, or you can use a PCIe or USB Wi-Fi adapter.

Question 8

Can I use DDR5 memory with this motherboard?

Accepted Answer

No. This is a DDR4-only motherboard, so DDR5 memory is not compatible. Choose standard desktop DDR4 UDIMM memory and confirm the kit's speed and capacity against the motherboard's memory support list.

Question 9

Which Intel processors are compatible with this motherboard?

Accepted Answer

This motherboard uses an Intel LGA 1700 socket and is designed for 12th Gen Intel Core, Pentium Gold, and Celeron processors. ASUS also lists support for selected 13th and 14th Gen Intel processors, but a BIOS update may be required, so verify the CPU support list and installed BIOS version before purchase.

Question 10

Is this motherboard suitable for a gaming or high-performance desktop build?

Accepted Answer

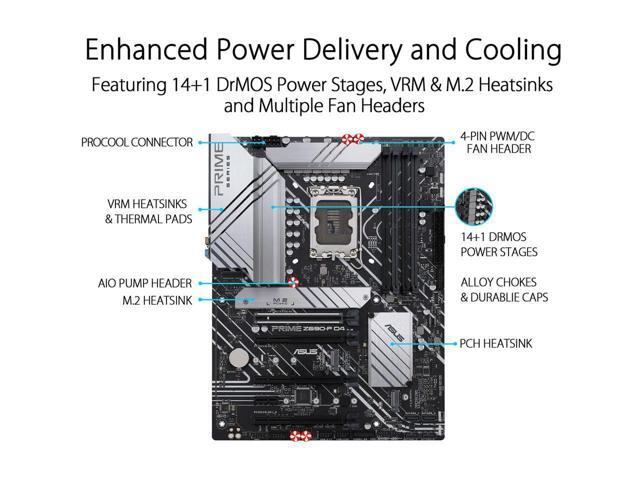

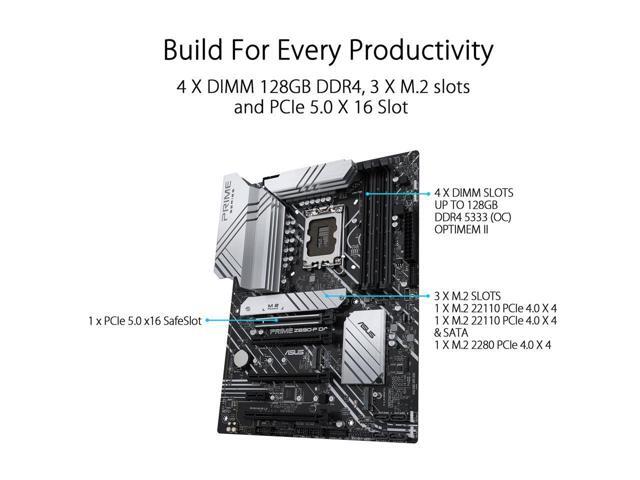

Yes. It is suitable for a full-size ATX desktop using an LGA 1700 Intel processor, DDR4 memory, and a discrete graphics card. PCIe 5.0 support, a 14+1 DrMOS power design, multiple M.2 storage options, 2.5Gb Ethernet, and enhanced cooling make it appropriate for gaming, content creation, and other demanding desktop workloads. It is not intended for compact systems that require a micro-ATX or Mini-ITX board.
