What are the dimensions and weight of the ASUS NUC 13 Pro Tall Barebone Kit?

The dimensions of the ASUS NUC 13 Pro Tall Barebone Kit are 4.61 inches x 4.41 inches x 2.13 inches, and it weighs 1.3 lbs.

What type of processor does the ASUS NUC 13 Pro Tall Barebone Kit Mini PC use?

The ASUS NUC 13 Pro Tall Barebone Kit Mini PC uses a 13th Gen Intel Core i7-13620H processor.

$599^.99

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

antonline

Top Rated

4.5 (17,951 total ratings)

$627^.66
+ FREE SHIPPING

NothingButSavings

Top Rated

4.5 (8,966 total ratings)

$635^.04

BeachAudio

Top Rated

4.4 (8,548 total ratings)

$648^.86

Volume Discounts Available

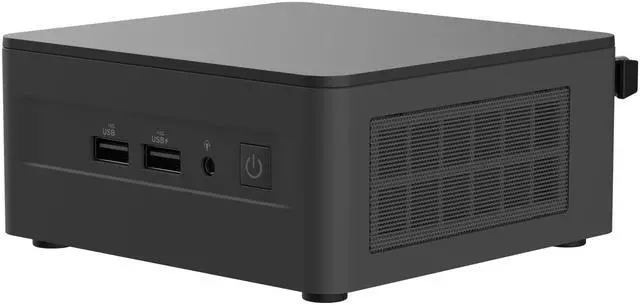

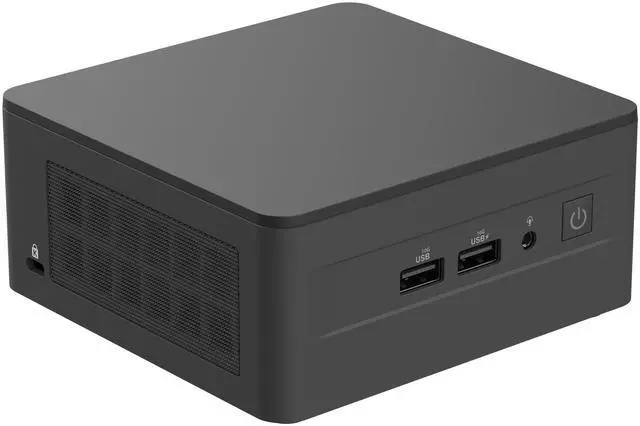

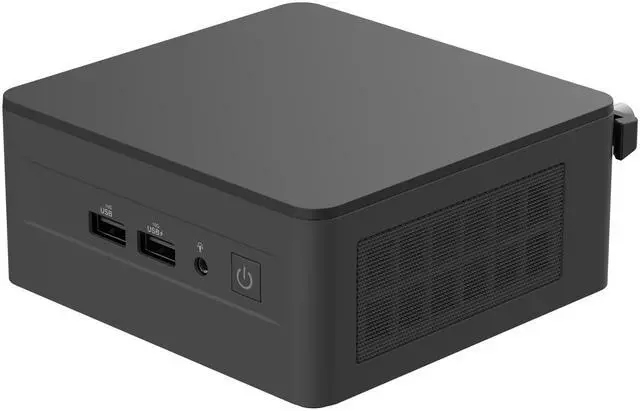

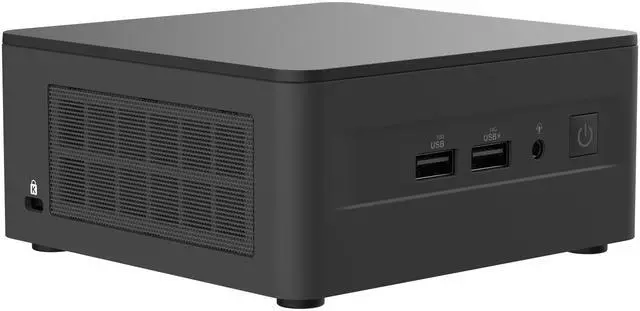

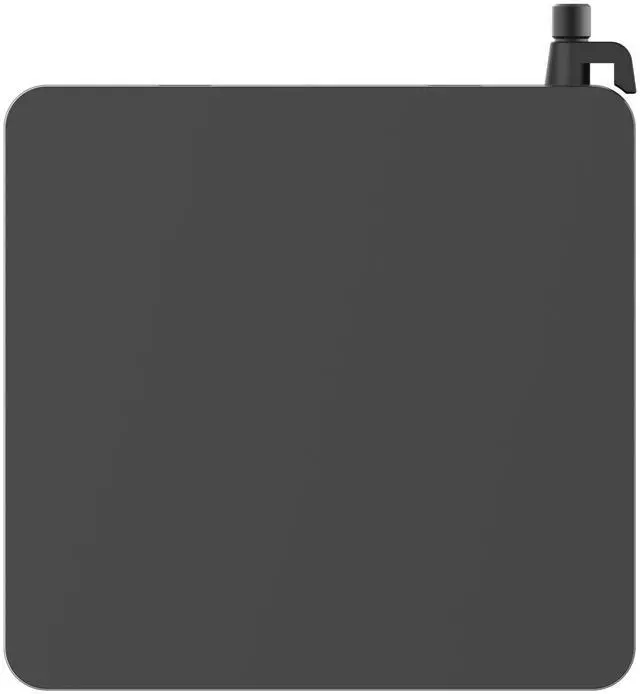

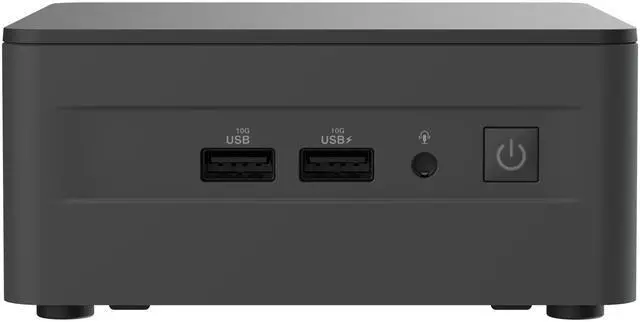

Main image of ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

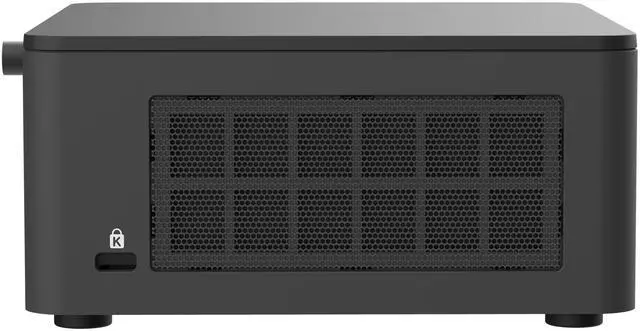

Alt view image 2 of 10 - ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

Alt view image 3 of 10 - ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

Alt view image 4 of 10 - ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

Alt view image 5 of 10 - ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

Alt view image 6 of 10 - ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

Alt view image 7 of 10 - ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

Alt view image 8 of 10 - ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

Alt view image 9 of 10 - ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

Alt view image 10 of 10 - ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

Shop All ASUS Products

ASUS NUC 13 Pro Tall Barebone Kit Mini PC with Intel 13th Gen Core i7-13620H, Dual channel DDR4 RAM, Triple Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included

Be the first to review this product...

CPU: 13th Gen Intel Core i7-13620H

13th Gen Intel Core i5-13420H
13th Gen Intel Core i7-13620H

Size: Tall

Slim
Tall

Performance: Powered by a 13th Gen Intel Core i7-13620H processor with integrated Intel UHD Graphics
Compact Design: Maximize productivity without sacrificing space, the ultrasmall 4x4 form factor enables easy setup on walls or behind monitors with the included VESA mount
Connectivity: Wired and wireless connections are lightning fast with the onboard 2.5Gbps Intel Ethernet port, Bluetooth, and Intel Wi-Fi 6E (Gig+)
Multi-Monitor Support: Connect up to one 8K or quad 4K@60Hz displays with dual HDMI and dual DP via Thunderbolt 4 Type-C ports for a variety of digital signage and display usages
Robust Capabilities: Qualified for 24/7 operation and equipped with a Kensington Lock and Cable Locking Arm for additional security
Expandability: Internal expansion bay allows for additional storage or the use of an add-on module for extra I/O ports

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Asus NUC 13 Pro RNUC13ANHH70000UI Barebone System

Mini PC
Intel Core i7 13th Gen i7-13620H Deca-core (10 Core)
Intel Chip
64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support
2 Total Memory Slots
NVMe, Serial ATA Controller
Intel Iris Xe Graphics Graphic(s)
IEEE 802.11ax
Bluetooth 5.3
Network (RJ-45)
2.5 Gigabit Ethernet
Windows 10 IoT Enterprise, Windows 11, Red Hat Enterprise Linux 9.1, Ubuntu 22.04 LTS, Ubuntu 20.04 LTS Supported Operating System
120 W

General
Brand	ASUS
Series	NUC 13 PRO
Model	RNUC13ANHH70000UI
Part Number	90AR00C1-M00360
Color	Black
Form Factor	Tall

CPU Supported
CPU Type	Intel Core i7-13620H
CPU Cores	10-Core (4P+6E)

Memory Supported
Memory installed	No Memory
Memory slot	2 x 260Pin SO-DIMM
Memory Type Supported	DDR4 3200
Max Memory Supported	64GB

Storage
Hard Drive Installed	No Hard Drive
M.2	1 x M.2 2280 PCIe G4x4 NVMe SSD (supports 128GB ~ 8TB) Key type M 1 x M.2 2242 PCIe G3x1 or SATA SSD (supports 256GB ~ 1TB) Key type B

Graphics
Integrated Graphics	Intel UHD Graphics

Audio
Onboard Audio	Realtek ALC269
Channel	2 Channel

Communications
LAN	Intel i226V
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi Generation	Wi-Fi 6E
Bluetooth	Bluetooth 5.3

Extension Bays
2.5" Internal Bays	1 x 2.5-inch SATA 6Gb/s support for HDD (supports up to 4TB)

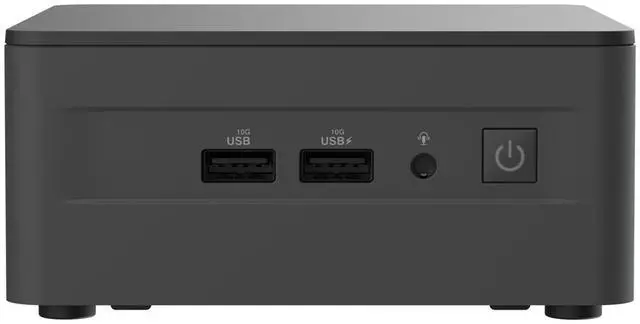

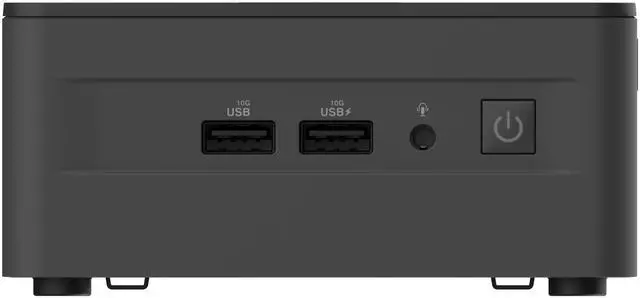

Front Panel Ports
Front USB	1 x USB 3.2 Gen2 Type-A (with BC1.2 \| 5V/0.9A, 10Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports	1 x 3.5mm Audio Jack (Line out/Mic in/Headphone out)

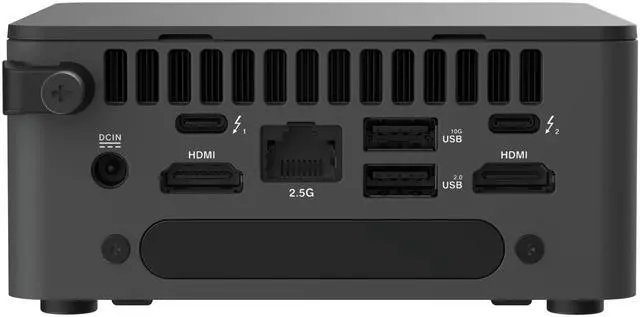

Back Panel Ports
HDMI	2 x HDMI 2.1 (with TMDS, up to 4K@60Hz)
Thunderbolt	2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB	1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ45	1 x Intel 2.5G LAN (RJ45)
Other Rear Ports	1 x Kensington Lock Slot 1 x Cable Locking Arm 1 x DC-in

Power Supply
Power Supply	120W Power Adapter

Physical SPEC
Dimensions	4.61" x 4.41" x 2.13"
Weight	1.3 lbs.

Packaging
Packaging	VESA Mount & Screws / AC Power Adapter / Power Cord, US Cord for USA
