ASUS P2-M2A690G AMD Socket AM2 AMD 690G 1 x HDMI Barebone
- AMD Athlon 64 X2 / Athlon 64 / Sempron AMD Socket AM2
- AMD 690G ATI SB600
- 2 x 240Pin DIMM DDR2 800/667
- ATI Radeon X1250
Specs
Reviews (10)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P2-M2A690G
| Brand | ASUS |
|---|---|
| Model | P2-M2A690G |
| Color | Black |
| CPU Type | AMD Athlon 64 X2 / Athlon 64 / Sempron |
|---|---|
| CPU Socket | AMD Socket AM2 |
| FSB | 1000 MHz |
| North Bridge | AMD 690G |
|---|---|
| South Bridge | ATI SB600 |
| Memory slot | 2 x 240Pin DIMM |
|---|---|
| Memory Type Supported | DDR2 800/667 |
| Max Memory Supported | 4GB |
| Dual Channel Memory Supported | Yes |
| PCI Express | 1 x PCI Express x1 |
|---|---|
| PCI | 1 |
| IDE ATA | 1 x ATA 100 |
|---|---|
| Serial ATA | 2 x SATA 3.0Gb/s |
| Onboard Video | ATI Radeon X1250 |
|---|
| Onboard Audio | Realtek ALC883 |
|---|---|
| Channel | 8-CH |
| Max LAN Speed | 10/100/1000Mbps |
|---|
| 3.5" Internal bays | 1 |
|---|---|
| 5.25" External bays | 1 |

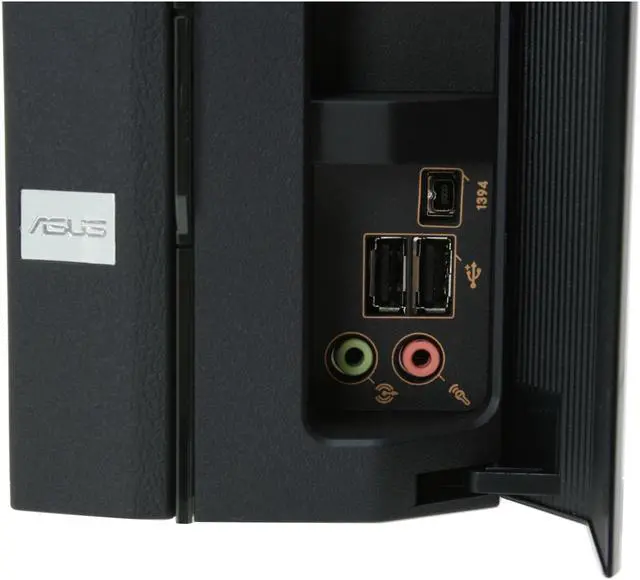

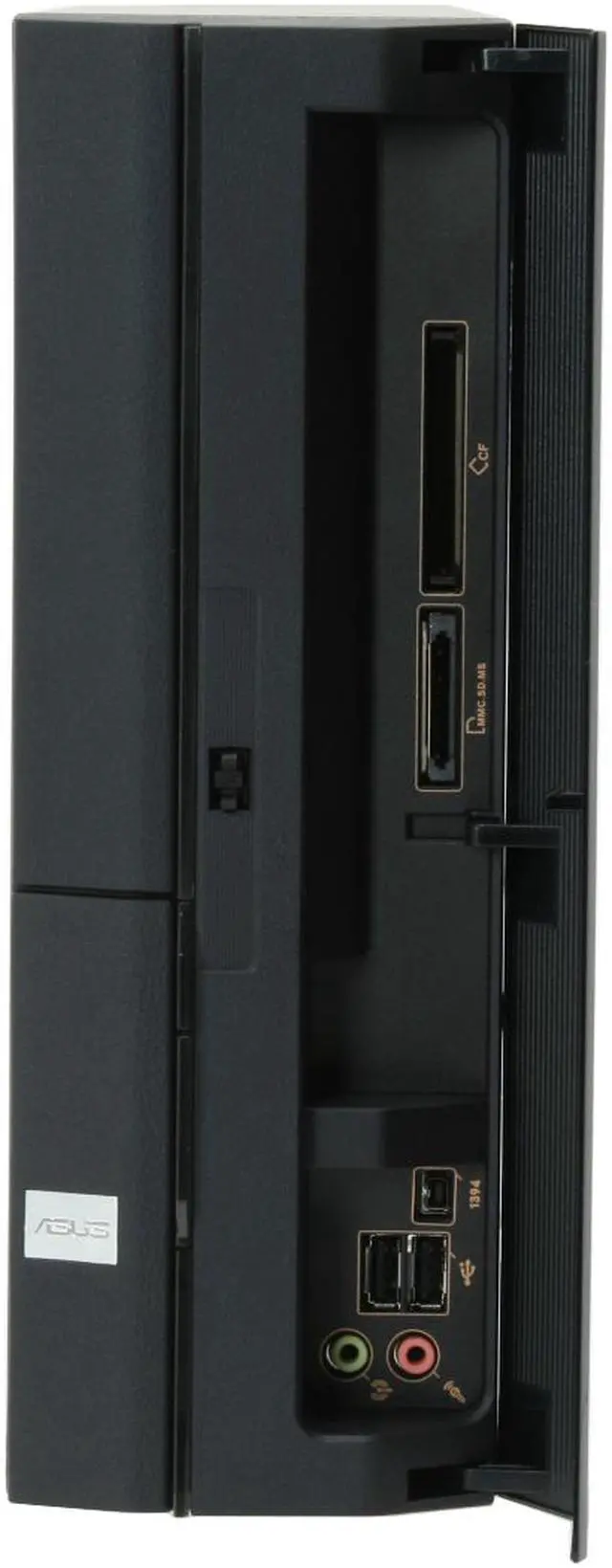

| Front USB | 2 |
|---|---|
| Front IEEE 1394 | 1 |
| Front Audio Ports | 2 jacks |
| Card Reader | CF/MMC/SD/MS Card Reader |

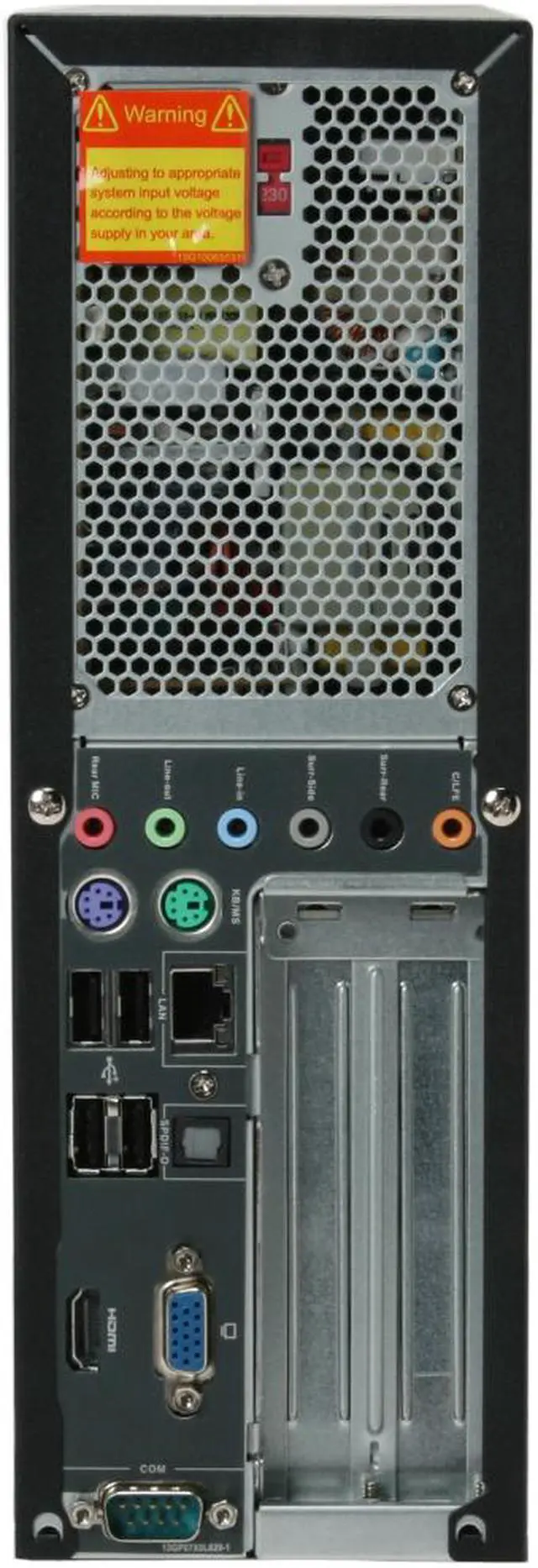

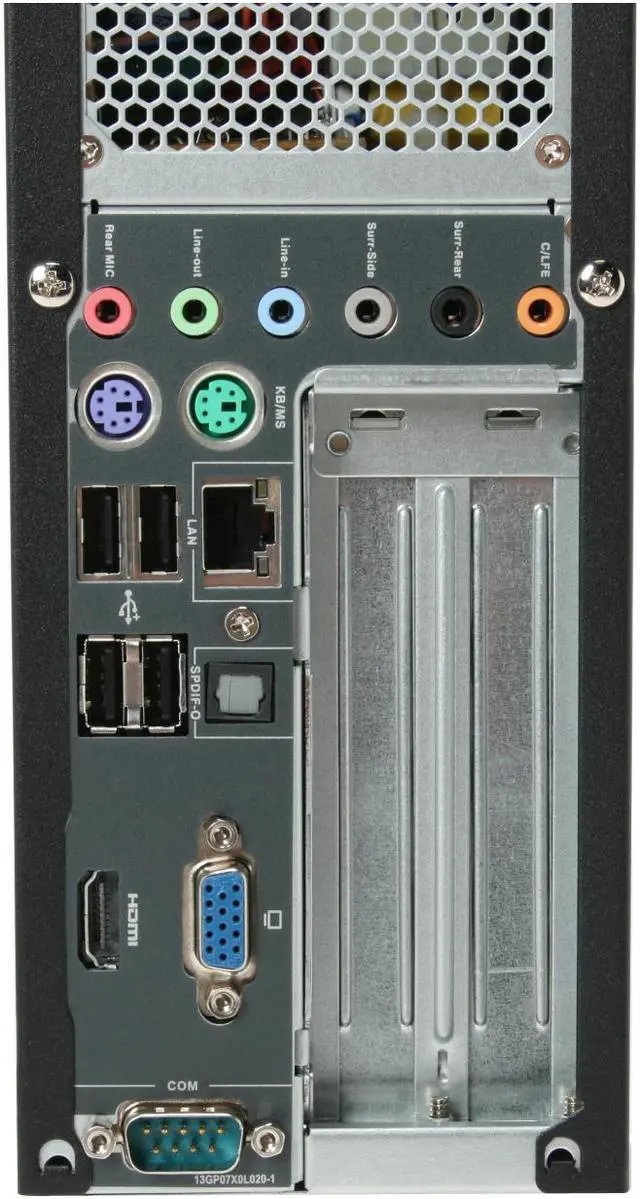

| PS/2 | 2 |
|---|---|
| COM | 1 |
| VGA | 1 x D-Sub |
| HDMI | 1 x HDMI |
| Rear USB | 4 |
| RJ45 | 1 |
| Rear S/PDIF Out | 1 x Optical S/PDIF out |
| Rear Audio Ports | 6 jacks |
| Power Supply | 200W |
|---|
| Dimensions | 14.1" x 10.8" x 3.6" |
|---|

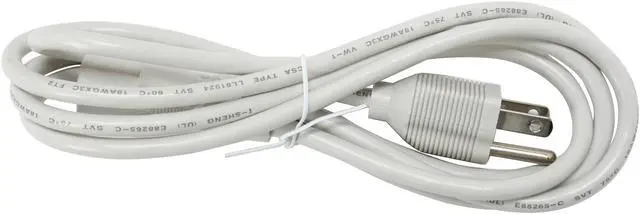

| Package Contents | P2-M2A690G Power Cord |
|---|
| First Listed on Newegg | November 09, 2007 |
|---|
