Hii I am Haresh Singh... I want to use 8 Port os SAS and SATA how do i use ??

Haresh, This card only works with specific ASUS mainboards that support it. It has a dedicated non-standard bus interface on the edge of the MB, and the SAS/SATA connectors are on the mainboard, not on the PIKE 2108. The card provides a standard LSI/MegaRAID controller and uses standard LSI accessories (eg battery-backup, management software). I use it on an ASUS KGPE-D16 MB with 4TB Seagate drives in a RAID-6 configuration. That provides around 24TB of redundant storage with plenty of additional SATA connectors for optical and utility drives. Note that performance is no better than the equivalent LSI PCI-based controller. The advantage to me of the PIKE card is that it fits well in the 4U chassis I have.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

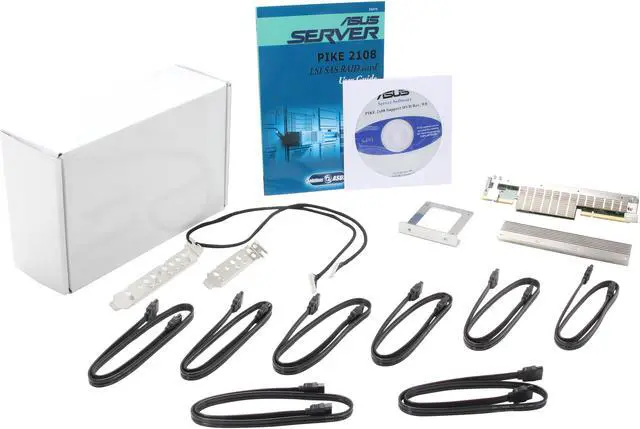

Main image of ASUS PIKE 2108 8-port SASII RAID Kit

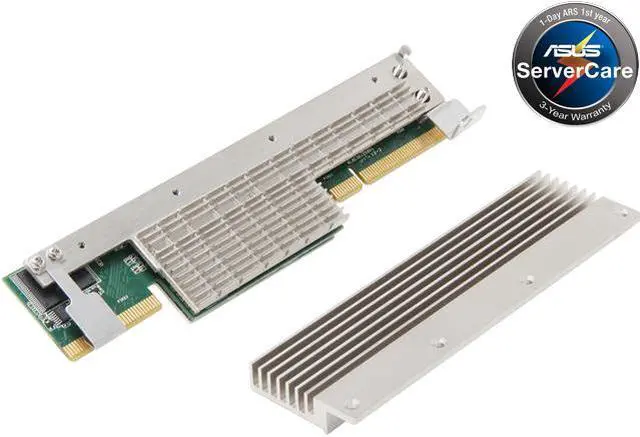

Alt view image 2 of 4 - ASUS PIKE 2108 8-port SASII RAID Kit

Alt view image 3 of 4 - ASUS PIKE 2108 8-port SASII RAID Kit

Alt view image 4 of 4 - ASUS PIKE 2108 8-port SASII RAID Kit

Shop All ASUS Products

ASUS PIKE 2108 8-port SASII RAID Kit

(1) Write a Review

PIKE 2108

Overview

Specs

Reviews (1)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	PIKE 2108

Details
Type	RAID Kit
Specifications	Chipset: LSI SAS 2108 Interface: ASUS PIKE Interface Ports: 8 Ports RAID levels: RAID 0/1/10/5/50/6/60 Devices Supported: SATA: SATA 6Gb/s SAS: SAS 6Gb/s Data Rate: SATA III and SAS II 6 Gb/s per PHY Cache: 512MB DDR2 800MHz on board SDRAM Battery Backup Support: Header reserved for LSI Standard BBU (Customer can acquire BBU from LSI existing distribution channel.) Form Factor: 6.44" x 1.57" (1U compatible) OS Support: Windows 2008 R2 Windows 2008 SP2 Windows 2003 Windows 7 Red Hat Enterprise Linux SuSE Linux Enterprise Server Free BSD Fedora Cent OS VMware

Features
Features	Motherboard support: Z8PH-D12 SE/QDR* Z8PH-D12/IFB* Z8PE-D18 Z8PE-D12X Z8PE-D12 Z8NR-D12 Z8NH-D12* Z8NA-D6 P7F-E P8B-E/4L * The MB was validated with the PIKE series by using the riser cards. System Support: RS724Q-E6/RS12 RS720Q-E6/RS12 RS300-E7/PS4 RS704D-E6/PS8 RS702D-E6/PS8 RS700D-E6/RS8 RS700D-E6/PS8 RS720-E6/RS12 RS720-E6/ERS12 RS520-E6/RS8 RS520-E6/ERS8 RS700-E6/RS4 RS700-E6/ERS4 RS500-E6/PS4 RS300-E6/PS4 RS300-E6/PS2 RS924A-E6/RS8 RS920A-E6/RS8 RS724QA-E6/RS12 RS720QA-E6/RS12 RS704DA-E6/PS4 RS700DA-E6/PS4 RS500A-S6/PS4 RS500A-E6/PS4 RS500A-X6/PS4 TS300-E7/PS4 TS700-E6/RS8 TS500-E6/PS4 TS300-E6/PS4 ESC4000 ESC4000/IB ESC2000
