ASUS Pundit P1-PH1 Intel Socket T(LGA775) ATI XPRESS 200 Barebone

(11) Write a Review

Intel Pentium 4 / Celeron Intel Socket T(LGA775)
ATI XPRESS 200 ULi 1573
2 x 240Pin DIMM DDR2 667/533
ATI Radeon Xpress 300

Overview

Specs

Reviews (11)

Any questions? Our AI beta will help you find out quickly.

Try me now

General
Brand	ASUS
Series	Pundit
Model	P1-PH1

CPU Supported
CPU Type	Intel Pentium 4 / Celeron
CPU Socket	Intel Socket T(LGA775)
FSB	800 MHz HyperTransport

Chipset
North Bridge	ATI XPRESS 200
South Bridge	ULi 1573

Memory Supported
Memory slot	2 x 240Pin DIMM
Memory Type Supported	DDR2 667/533
Max Memory Supported	2GB

Expansion Slots
PCI	2

Storage
IDE ATA	1 x ATA 100
Serial ATA	1 x SATA 1.5Gb/s

Graphics
Onboard Video	ATI Radeon Xpress 300
Video Memory	Shared

Audio
Onboard Audio	Realtek ALC655
Channel	6-CH

Communications
First LAN	10/100 LAN
Max LAN Speed	10/100Mbps

Extension Bays
3.5" Internal bays	1
5.25" External bays	1

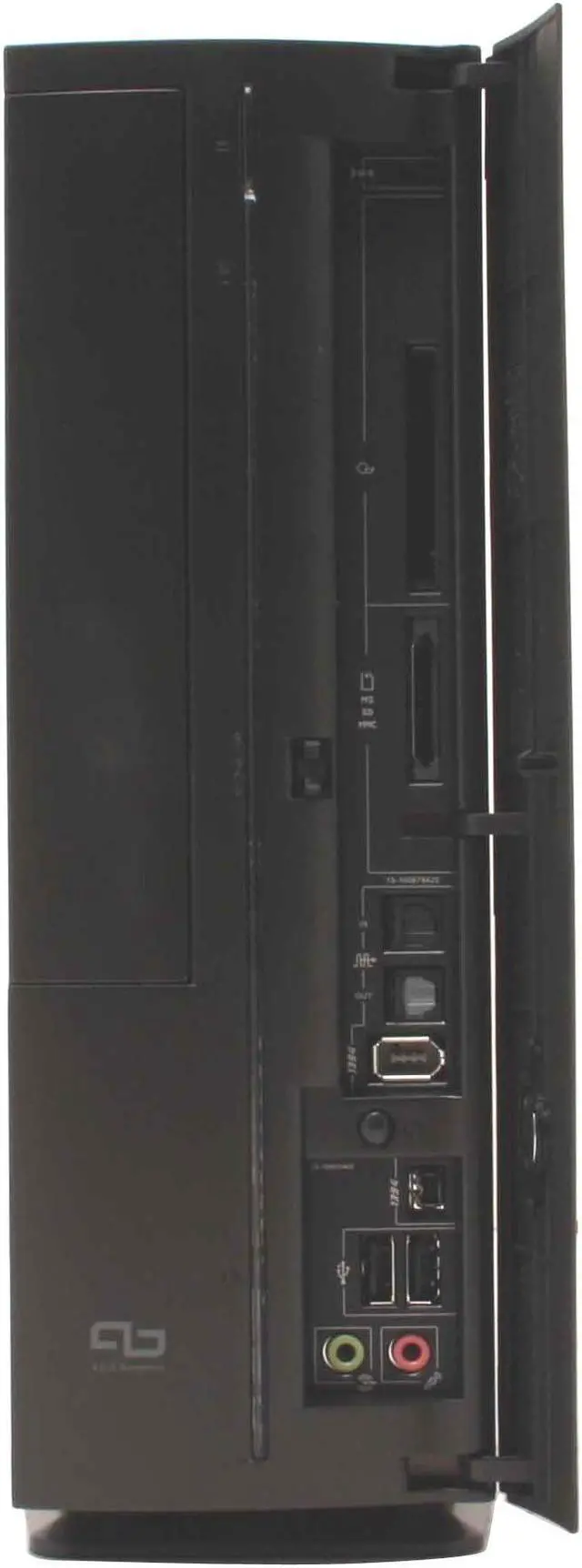

Front Panel Ports
Front USB	2
Front IEEE 1394	2 x IEEE 1394 (6pin/4pin)
Front Audio Ports	2 jacks
Front S/PDIF In	Yes
Front S/PDIF Out	Yes
Card Reader	1 x CF Card Reader 1 x 3-in-1 Card Reader

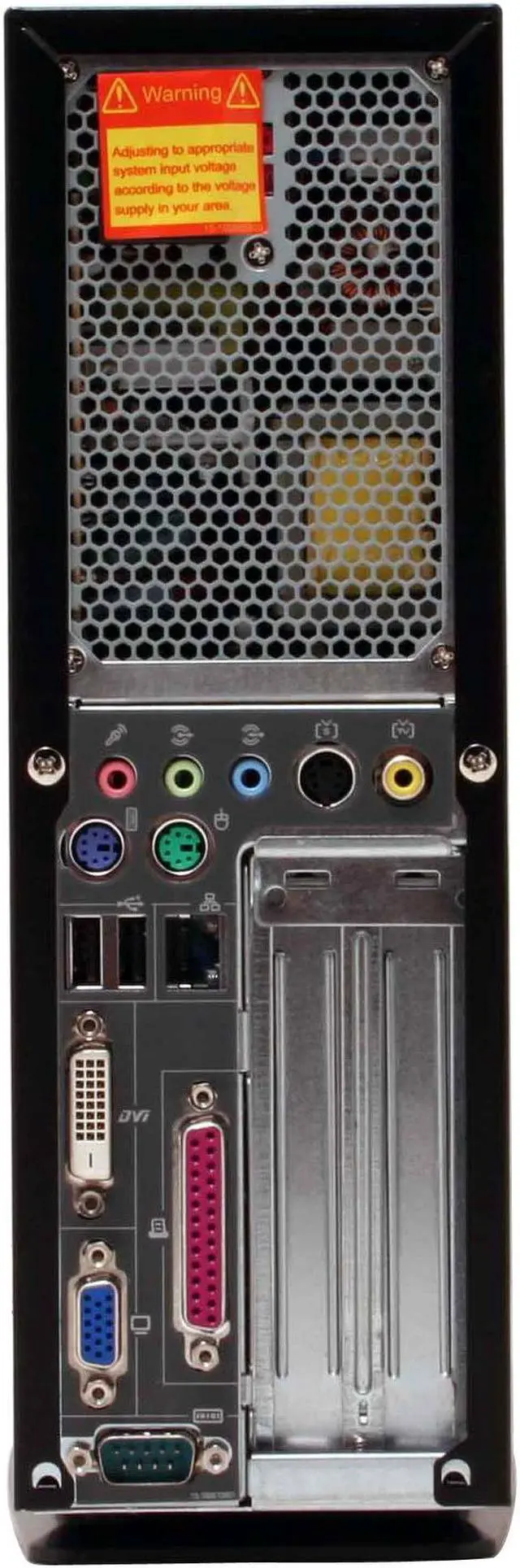

Back Panel Ports
PS/2	2
COM	1
LPT	1
VGA	1 x D-Sub
DVI	1 x DVI
TV-Out	S-Video + RCA
Rear USB	2
RJ45	1
Rear Audio Ports	3 jacks

Power Supply
Power Supply	250W (PFC)

Physical SPEC
Dimensions	3.6" x 14.1" x 10.8"

Features
Features	The Pundit P1-PH1 is large on style and multimedia power, yet takes up little space. The P1-PH1 leveraged a host of industry-leading specifications for building an all around multimedia powerhouse. When space is at a premium, the P1-PH1 will also be the most fitting fine works for your precious desk real estate.

Packaging

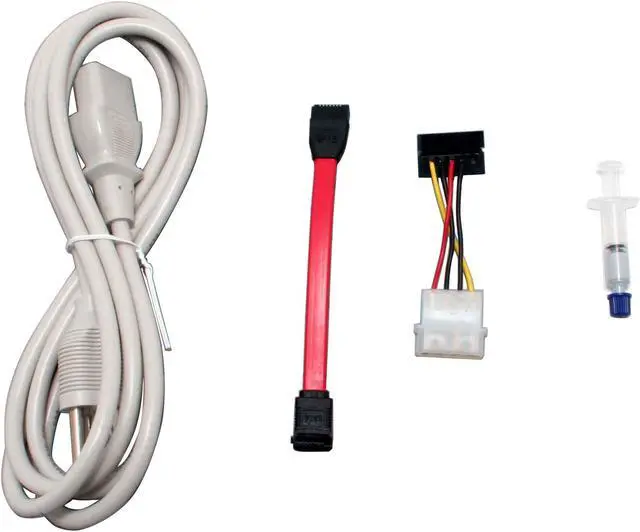

Package Contents	P1-PH1 User Manual Driver Disk SATA Cable Power Cable Power Cord Thermal Grease

Additional Information
First Listed on Newegg	March 17, 2006
