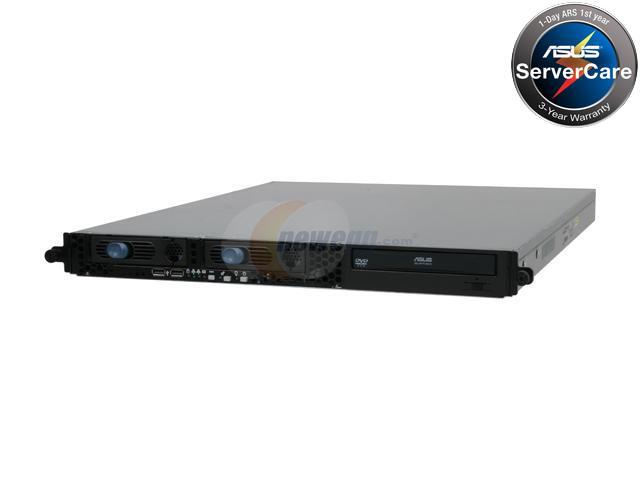

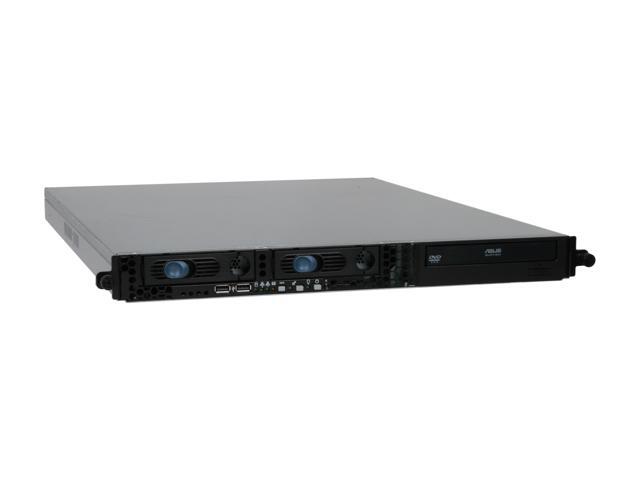

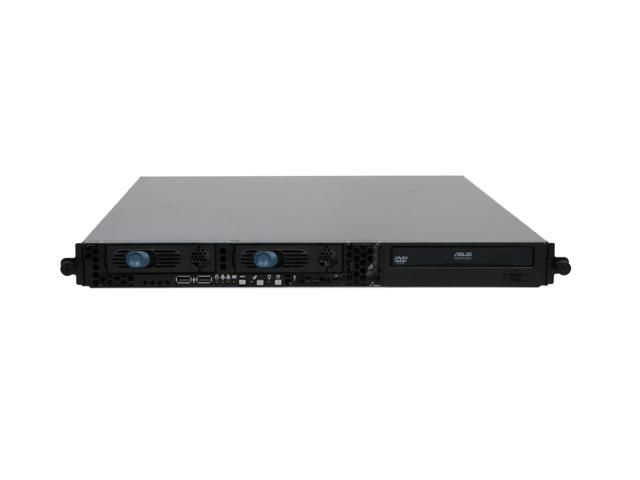

Brand | ASUS |
---|---|
Model | RS120-E5/PA2 |
CPU Type | Intel Xeon |
---|---|
CPU Socket | LGA 775 |
FSB | 1333/1066 MHz |
North Bridge | Intel 3200 |
---|---|
South Bridge | ICH7R |
Memory Slots | 4 x 240Pin |
---|---|
Max Memory Supported | 8GB |
Memory Type Supported | DDRII 800/667/533 |
ECC Supported | Yes |
Serial ATA | 2 x SATA 300 |
---|---|
SATA RAID | Intel Matrix Storage (for Windows only) (Support software RAID 0,1) LSI MegaRAID (Linux/Windows) (Support software RAID 0, 1) |
GPU/VPU | XGI Z9s |
---|---|
Video Memory | 32MB |
PCI Express | Default: 1 x PCI-E x 16 slot (x8 link) (Full-Height / Half-Length) 1 x PCI-E x 8 slot (x4 link) (Full-Height / Half-Length) Configuration Option: 1 x PCI-E x8 slot (x8 link) (Full-Height / Half-Length) |
---|---|
PCI-X | Configuration Option: 1 x PCI-X 64-bit/133MHz slot (Full-Height / Half-Length) |
First LAN | Broadcom BCM5721 |
---|---|
Second LAN | Broadcom BCM5721 |
Max. LAN Speed | 10/100/1000Mbps |
5.25" Bays | 1 |
---|---|
Hot-Swap Bays | 2 |
Front USB | 2 |
---|---|
COM | 1 |
PS/2 | 2 |
VGA | 1 |
Rear USB | 2 |
RJ45 | 2 |
Max. Power | 315W Single Power Supply |
---|
Form Factor | 1U Rackmount |
---|
Dimensions | 23.6" x 17.5" x 1.7" |
---|---|
Weight | 26.5 lbs. |
Date First Available | January 24, 2008 |
---|
