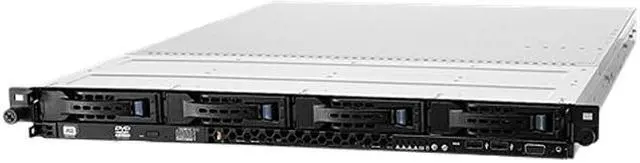

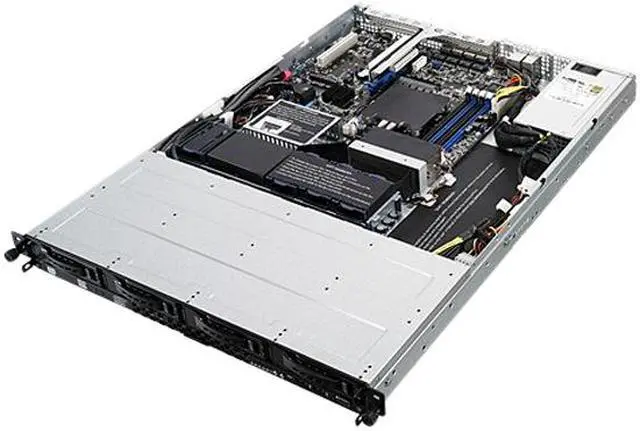

Learn more about the ASUS RS300-E9-PS4
Model| Brand | ASUS |
|---|
| Model | RS300-E9-PS4 |
|---|
CPU Supported| CPU Type | Intel Xeon processor E3-1200 v5 product family |
|---|
| CPU Socket | LGA 1151 |
|---|
Chipset| North Bridge | Intel C232 |
|---|
Memory Supported| Max Memory Supported | 64GB |
|---|
| Memory Type Supported | DDR4 2133 UDIMM non ECC and with ECC |
|---|
| Channel Supported | Dual Channel |
|---|
Storage Supported| Serial ATA | Intel C232 6 x SATA3 6Gb / s ports 2 x M.2 connector (2280 / 2260 / 2242) Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) |
|---|
| SATA RAID | RAID 0/1/5/10 |
|---|
| SAS | ASUS PIKE II 3008-8i 8-port SAS 12G RAID card (Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card (Optional) |
|---|
Expansion Slots| PCI Express | Total PCI / PCI-X / PCI-E / PIKE Slots: 2 1 x PCI-E x16 (x8 Gen3 Link) 1 x PCI-E x8 (x8 Gen3 Link) |
|---|
Communications| First LAN | Intel I210-AT |
|---|
Expansion Bays| Slim Bays | 1 x Slim-type Optical Drive Bay |
|---|
| Hot-Swap Bays | 4 x 3.5” Hot-Swap HDD Bays |
|---|
Panel Ports| PS/2 | 1 x PS/2 KB / MS port |
|---|
| VGA | 1 |
|---|
| Rear USB | 2 x USB 3.0 ports 2 x USB 2.0 ports |
|---|
| RJ45 | 4 |
|---|
| Other Ports | Total PCI / PCI-X / PCI-E / PIKE Slots: 2 1 x PCI-E x16 (x8 Gen3 Link) 1 x PCI-E x8 (x8 Gen3 Link) |
|---|
Power Supply| Max. Power | Single 400W 80 PLUS Gold Power Supply Rating: 100-240V AC, 6-3A 60-50Hz, Class 1 |
|---|
Features| Features | Platinum power efficiency with up to 94.4%
Optimized thermal design for heat sink and heat pipe
Advanced storage support with dual M.2
Quad Intel I210 Server Class GbE delivering high networking bandwidth |
|---|
Details| Form Factor | 1U Rackmount |
|---|
Dimensions & Weight| Dimensions | 1.73" x 24.21" x 17.48" |
|---|
| Weight | 19.80 lbs. |
|---|
Additional Information| First Listed on Newegg | February 22, 2026 |
|---|
