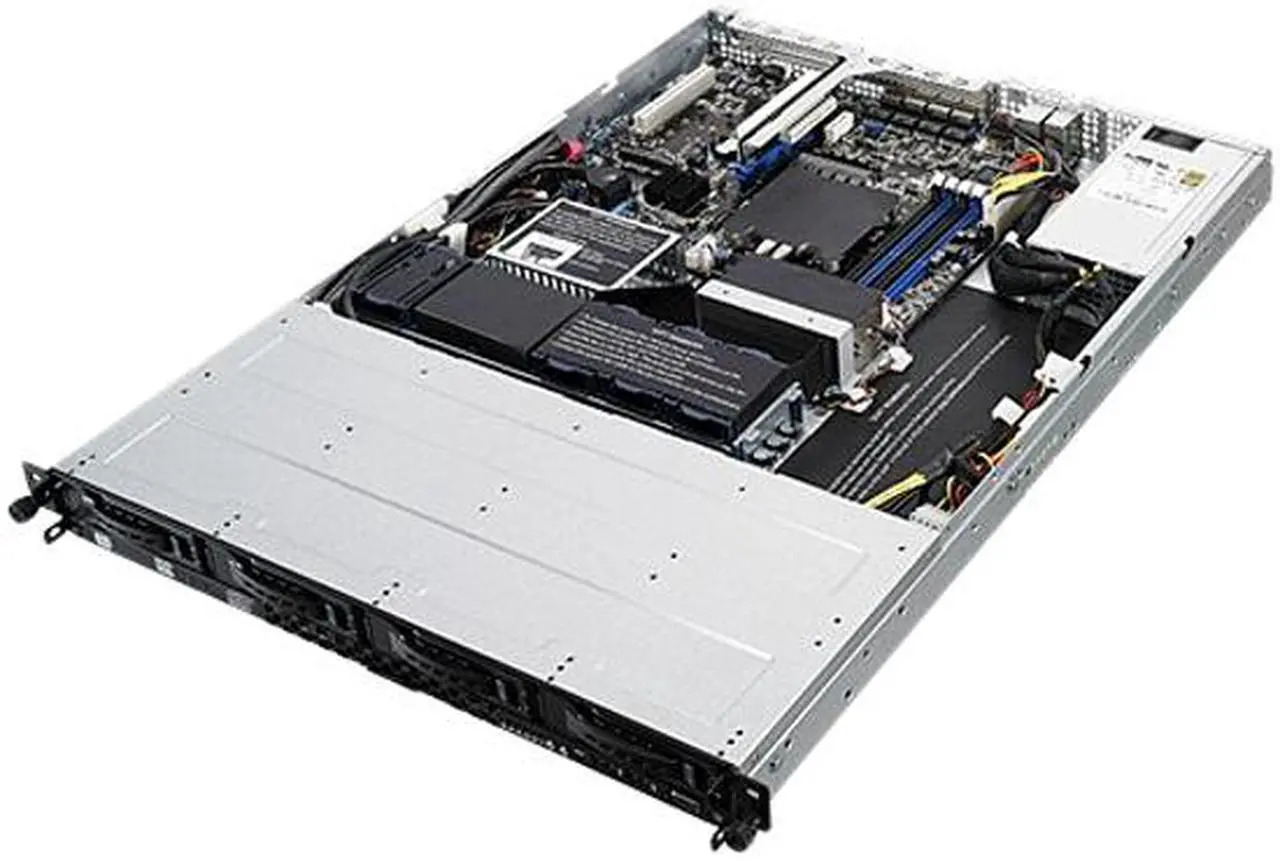

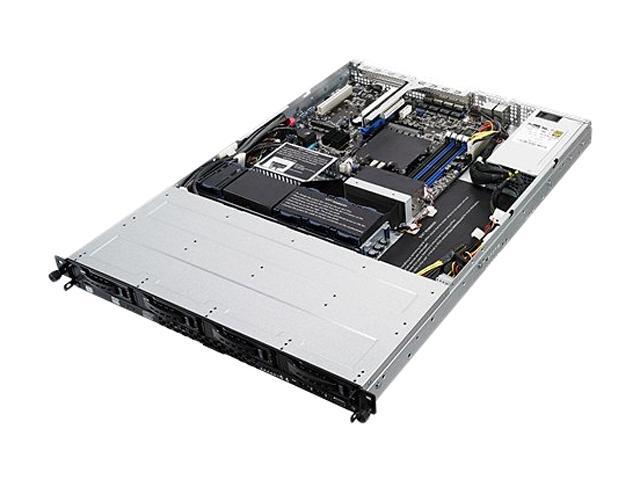

Asus RS300-E9-PS4 Barebone System - 1U Rack-mountable - Intel C232 Chipset - Socket H4 LGA-1151 - 1 x Processor Support
(1)
Write a Review
LGA 1151
Intel Xeon processor E3-1200 v5 product family
Single 400W 80 PLUS Gold Power Supply Rating: 100-240V AC, 6-3A 60-50Hz, Class 1
This item is covered under the
Manufacturer Only Return Policy
.
Overview
Specs
Reviews
(1)
Learn more about the ASUS RS300-E9-PS4
Model
Brand
ASUS
Model
RS300-E9-PS4
CPU Supported
CPU Type
Intel Xeon processor E3-1200 v5 product family
CPU Socket
LGA 1151
Chipset
North Bridge
Intel C232
Memory Supported
Max Memory Supported
64GB
Memory Type Supported
DDR4 2133 UDIMM non ECC and with ECC
Channel Supported
Dual Channel
Storage Supported
Serial ATA
Intel C232
6 x SATA3 6Gb / s ports
2 x M.2 connector (2280 / 2260 / 2242)
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 )
SATA RAID
RAID 0/1/5/10
SAS
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card (Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card (Optional)
Expansion Slots
PCI Express
Total PCI / PCI-X / PCI-E / PIKE Slots: 2
1 x PCI-E x16 (x8 Gen3 Link)
1 x PCI-E x8 (x8 Gen3 Link)
Communications
First LAN
Intel I210-AT
Expansion Bays
Slim Bays
1 x Slim-type Optical Drive Bay
Hot-Swap Bays
4 x 3.5” Hot-Swap HDD Bays

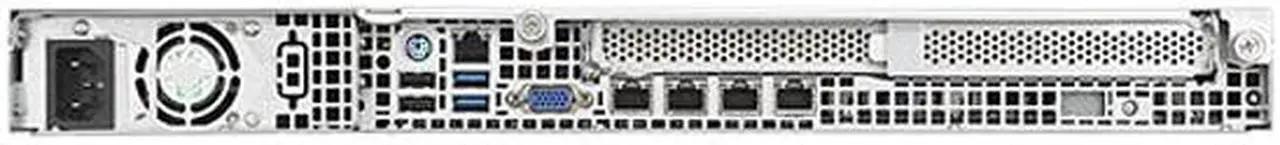

Panel Ports
PS/2
1 x PS/2 KB / MS port
VGA
1
Rear USB
2 x USB 3.0 ports
2 x USB 2.0 ports
RJ45
4
Other Ports
Total PCI / PCI-X / PCI-E / PIKE Slots: 2
1 x PCI-E x16 (x8 Gen3 Link)
1 x PCI-E x8 (x8 Gen3 Link)
Power Supply
Max. Power
Single 400W 80 PLUS Gold Power Supply
Rating: 100-240V AC, 6-3A 60-50Hz, Class 1
Features
Features
Platinum power efficiency with up to 94.4%
Optimized thermal design for heat sink and heat pipe
Advanced storage support with dual M.2
Quad Intel I210 Server Class GbE delivering high networking bandwidth
Details
Form Factor
1U Rackmount
Dimensions & Weight
Dimensions
1.73" x 24.21" x 17.48"
Weight
19.80 lbs.
Additional Information
Date First Available
October 21, 2016
