8 x NVMe/SAS*/SATA + 4 NVMe/SATA (*HBA/RAID card is required to support SAS hard drives)
M.2
2
Expansion Slots
PCI Express
Up to 9 slots 6 x PCIe G5 x8 link or 3 x PCIe G5 x16 link (FHFL or FHHL) 1 x PCIe G5 x16 link (FHHL) 1 x OCP 3.0/PCIe Gen5 x16 link (FHHL) 1 x PCIe G5 x16, LP
Communications
First LAN
Intel I710-AT2
Max. LAN Speed
10 Gigabit
Expansion Bays
3.5" Bays

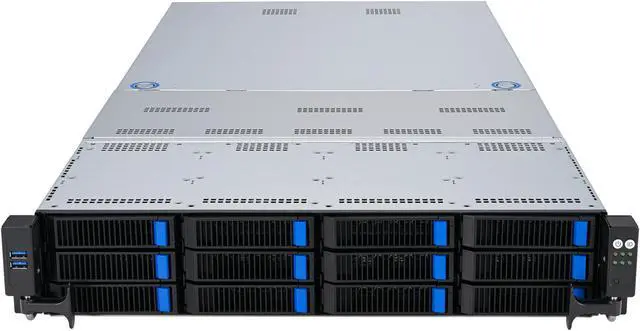

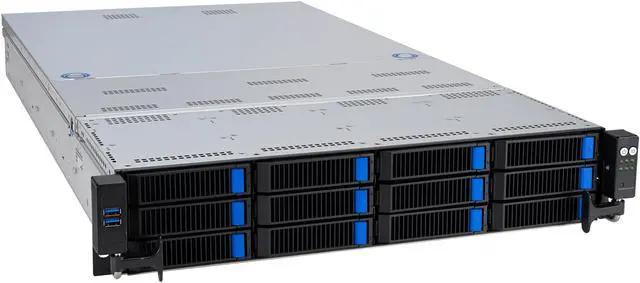

12 x 3.5”/2.5" hot-swap bay
Panel Ports
Front USB
2 x USB 3.2 Gen1
VGA
1 x VGA (Rear)

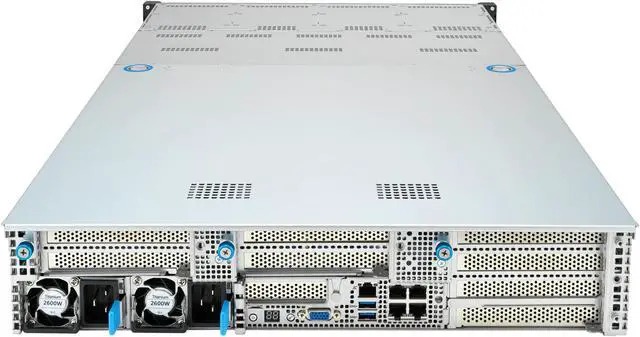

Rear USB
2 x USB 3.2 Gen1
RJ45
2 x 10GbE LAN ports (RJ45)
Other Ports
1 x RJ-45 Management LAN port
Power Supply
Max. Power
1600W Redundant 1+1, 80 Plus Platinum
Dimensions & Weight
Dimensions
33.07" x 17.6" x 3.46"
Weight
63.61 lbs.
Additional Information
First Listed on Newegg
May 09, 2024
