WiFi Generation | Wi-Fi 5 |
---|
Wireless Standard | IEEE 802.11a / IEEE 802.11ac / IEEE 802.11b / IEEE 802.11g / IEEE 802.11n |
---|
Network Protocols | IPv4, IPv6 |
---|
Device Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Universal Repeater, System Event Log |
---|
Security | Firewall: SPI intrusion detection,DoS protection Access control: Parental control, Network service filter, URL filter, Port filter |
---|
WPA | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
---|

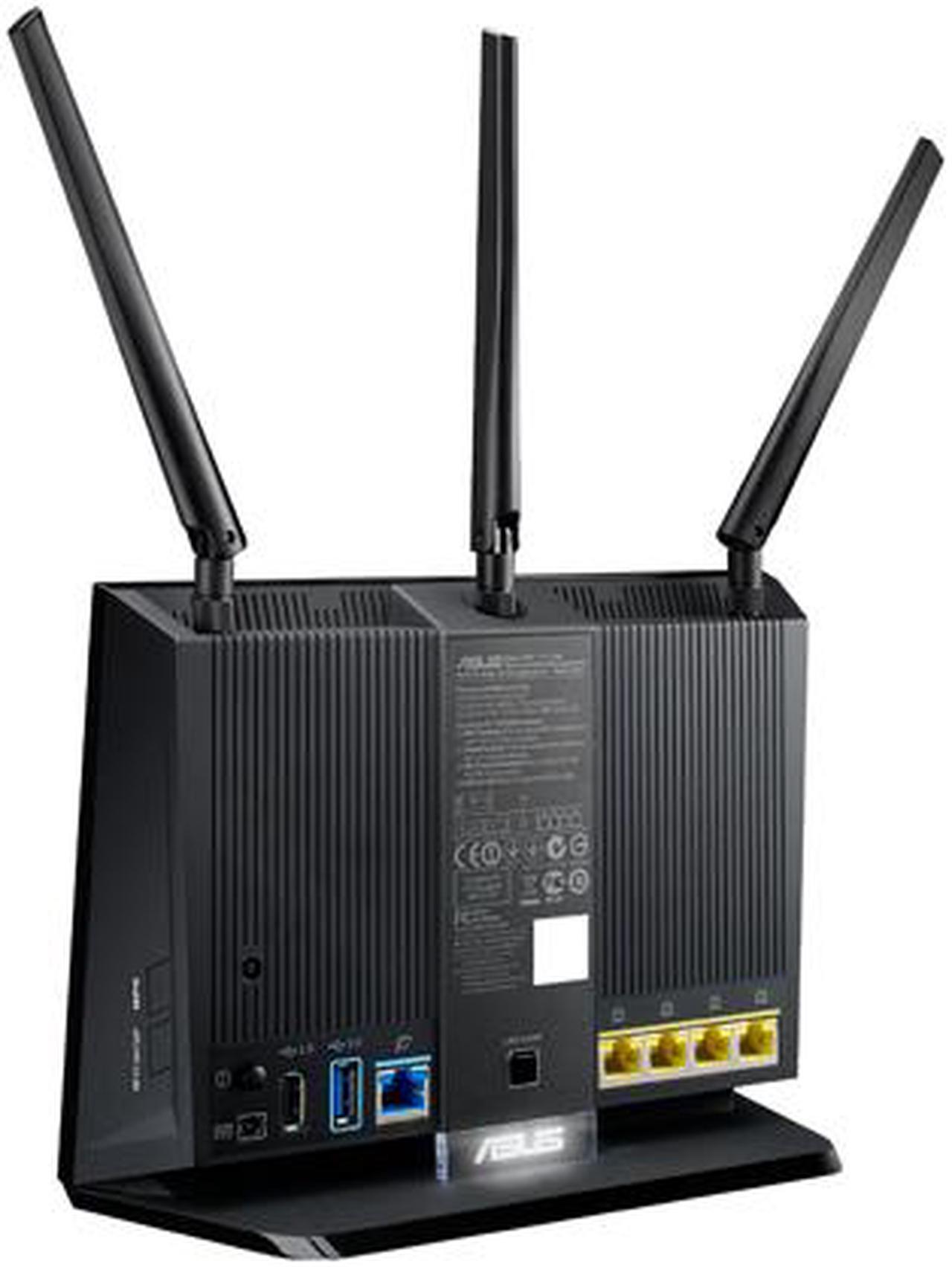

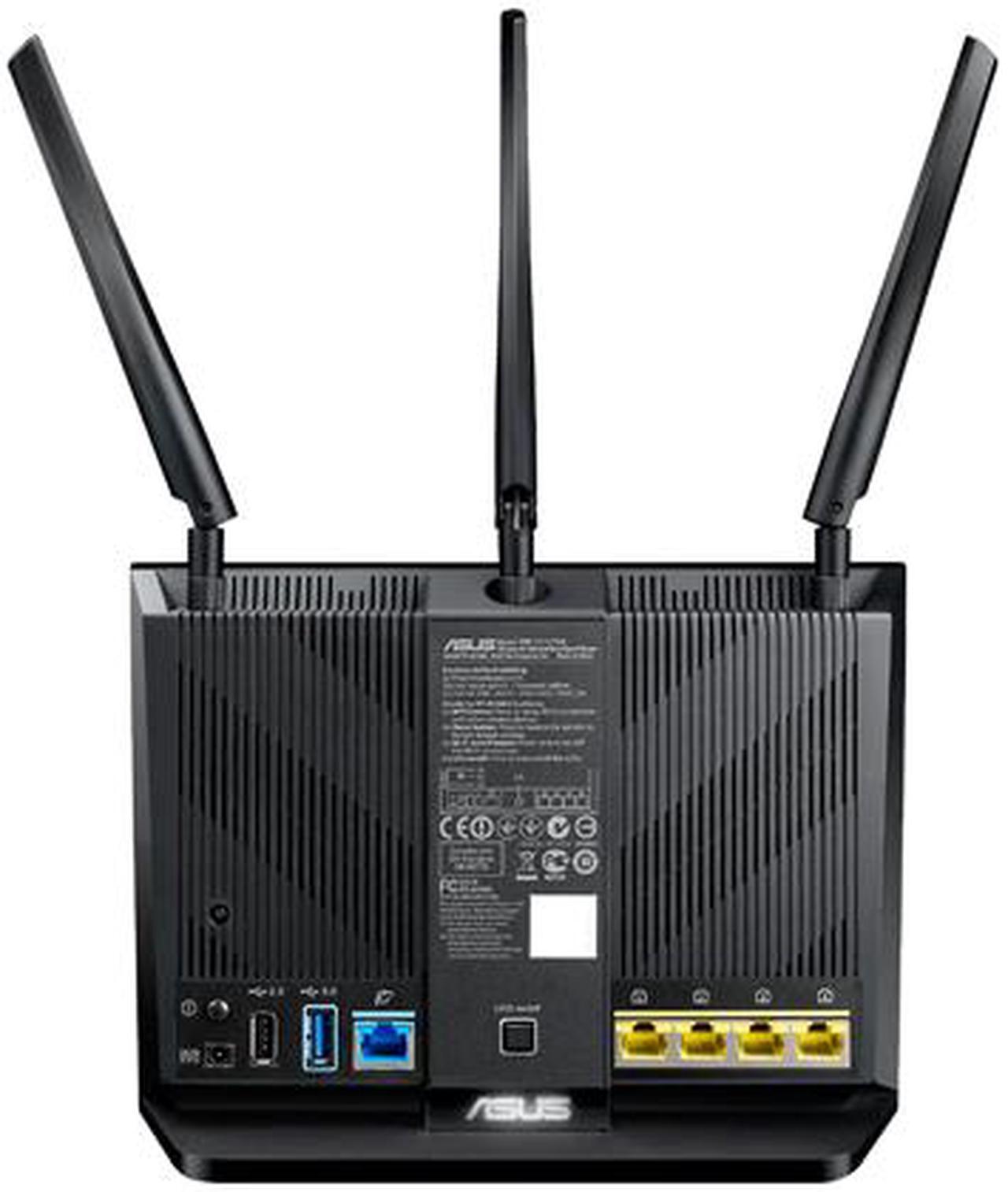

WAN Ports | 1 x 10/100/1000M |
---|
LAN Ports | 4 x 10/100/1000M |
---|
LEDs | 1 x Power 2 x Wi-Fi 4 x LAN 1 x WAN 2 x USB |
---|
Buttons | WPS Button, Reset Button, Power Button, Wireless on / off Button |
---|
Wireless Data Rates | AC1900 / Up to 1.9Gbps |
---|
Frequency Band | 2.4 GHz / 5 GHz |
---|
Antenna | 3 x External Antenna |
---|
Operation Mode | Access Point Mode / Media Bridge Mode / Range Extender Mode / Wireless Router Mode |
---|
Interface | 1 x USB 2.0 1 x USB 3.0 |
---|
Power Supply | AC Input: 110V~240V (50~60 Hz) DC Output: 19V with max. 1.75A current |
---|
Wireless Adapter included | No |
---|
System Requirements | Windows 10 86x64 Windows 8.1 86x64 Windows 8 86x64 Windows 7 86x64 Windows Vista 86x64 Windows 2000 86x64 Windows ME Windows XP 86x64 Windows Server 2003 Windows Server 2008 Mac OS X 10.1 Mac OS X 10.4 Mac OS X 10.5 Mac OS X 10.6 Mac OS X 10.7 Mac OS X 10.8 Mac OS X Linux Kernel (Support Ubuntu only) Linux |
---|
Dimensions | 6.30" x 8.66" x 3.28" (Without Bezel) |
---|
