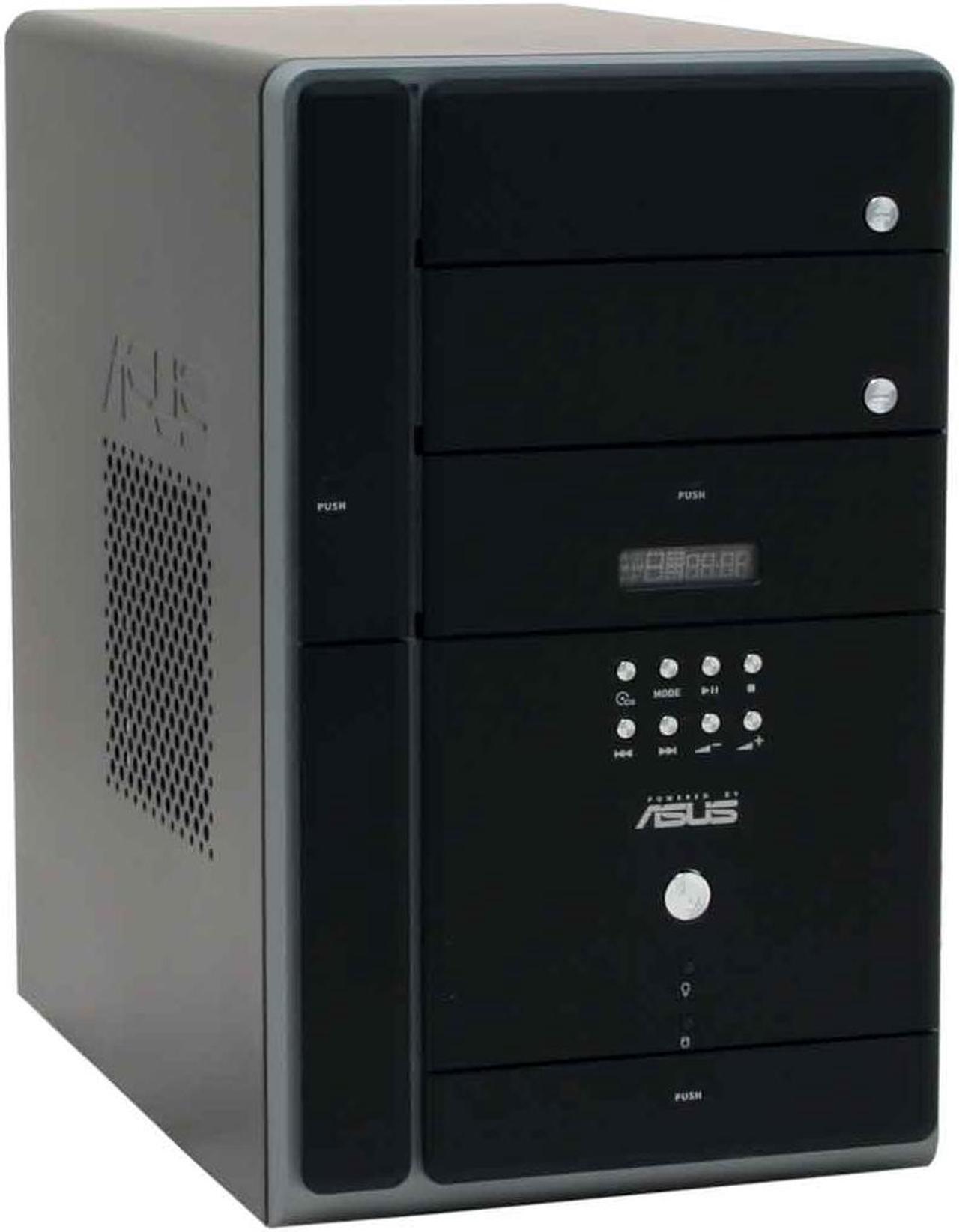

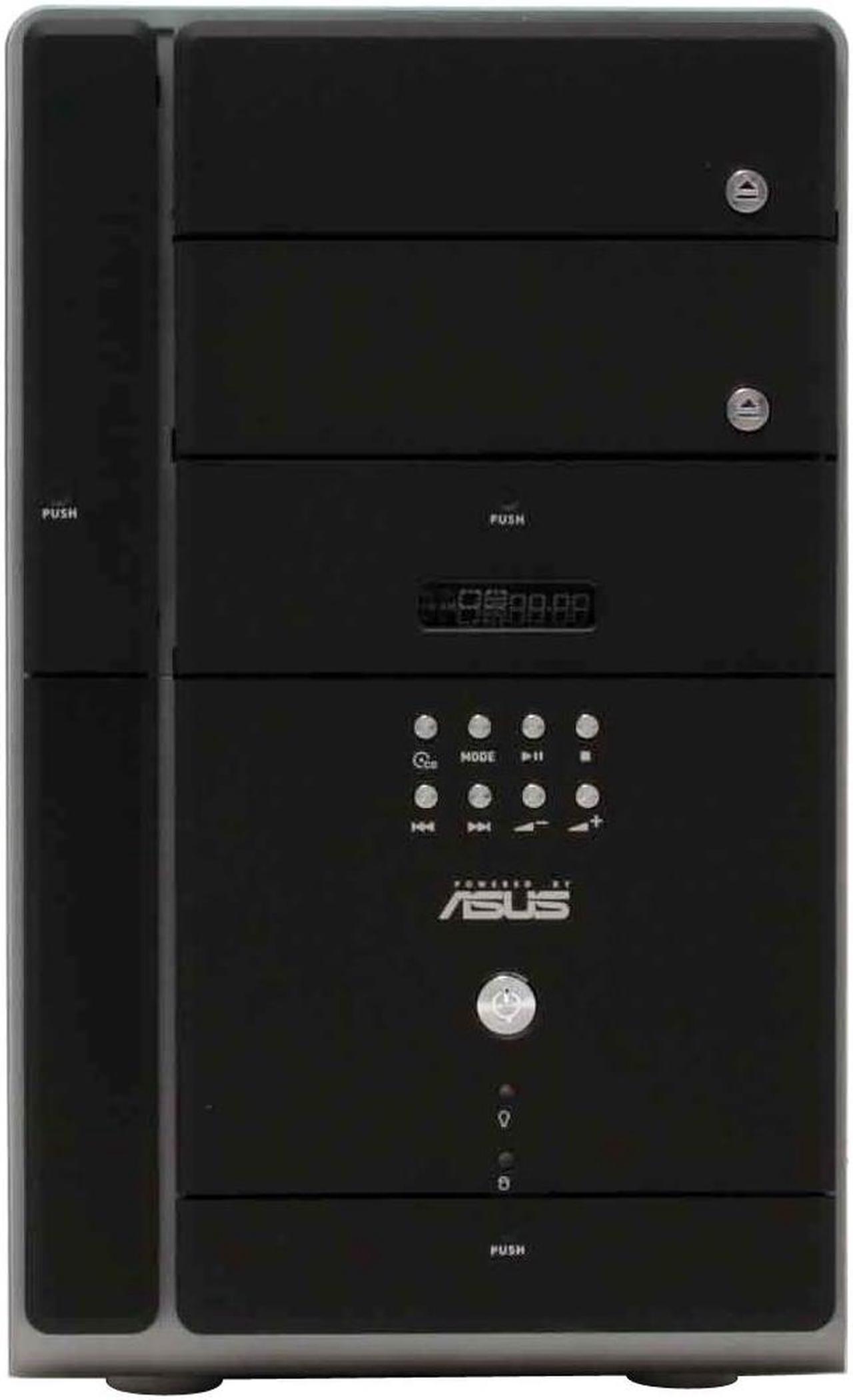

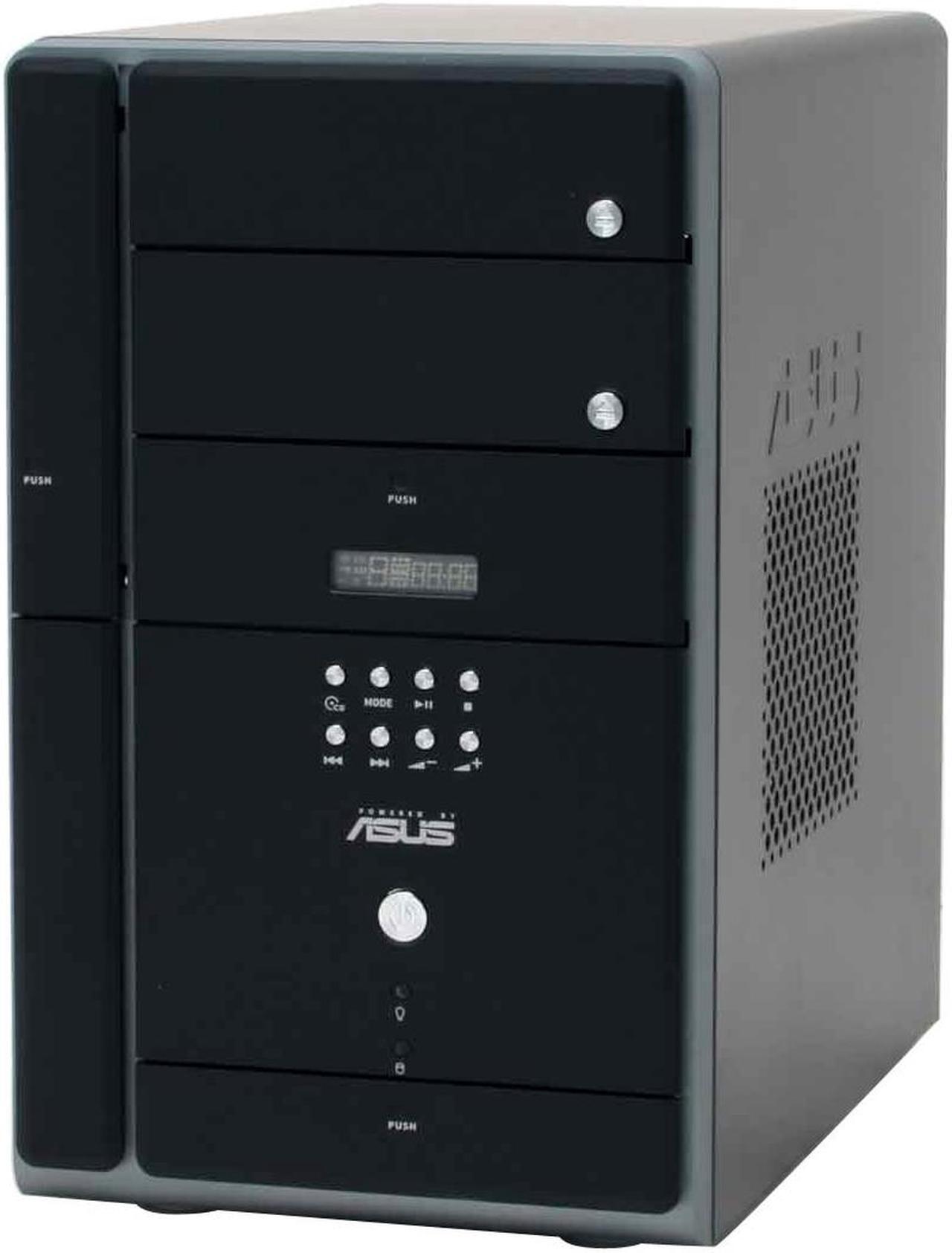

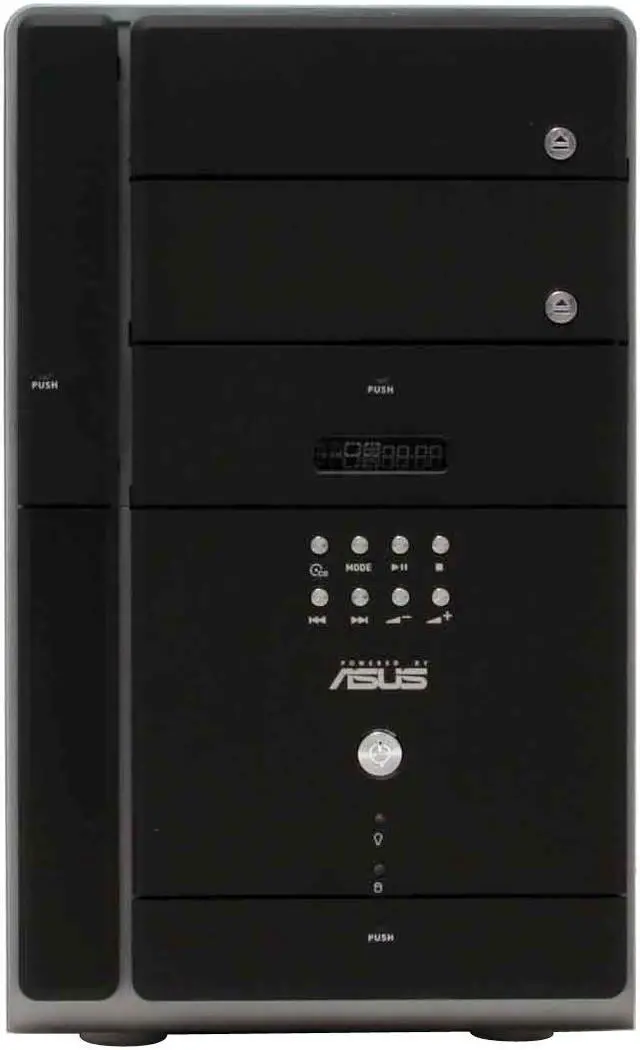

ASUS Terminator2 T2-AH1 AMD Socket 939 ATI XPRESS 200 Barebone
- AMD Athlon 64 FX / Athlon 64 / Sempron AMD Socket 939
- ATI XPRESS 200 ULi M1573
- 2 x 184Pin DIMM DDR 400/333
- ATI Radeon Xpress 300
Specs
Reviews (29)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS T2-AH1
| Brand | ASUS |
|---|---|
| Series | Terminator2 |
| Model | T2-AH1 |
| CPU Type | AMD Athlon 64 FX / Athlon 64 / Sempron |
|---|---|
| CPU Socket | AMD Socket 939 |
| FSB | 1000 MHz |
| North Bridge | ATI XPRESS 200 |
|---|---|
| South Bridge | ULi M1573 |
| Memory slot | 2 x 184Pin DIMM |
|---|---|
| Memory Type Supported | DDR 400/333 |
| Max Memory Supported | 2GB |
| PCI Express | 1 x PCI Express x16 |
|---|---|
| PCI | 1 |
| IDE ATA | 1 x ATA 100 |
|---|---|
| Serial ATA | 4 x SATA 1.5Gb/s |
| Onboard Video | ATI Radeon Xpress 300 |
|---|---|
| Video Memory | Shared |
| Onboard Audio | Realtek ALC655 |
|---|---|
| Channel | 6-CH |
| First LAN | 10/100/1000 LAN |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| 3.5" Internal bays | 1 |
|---|---|
| 3.5" External bays | 1 |
| 5.25" External bays | 2 |

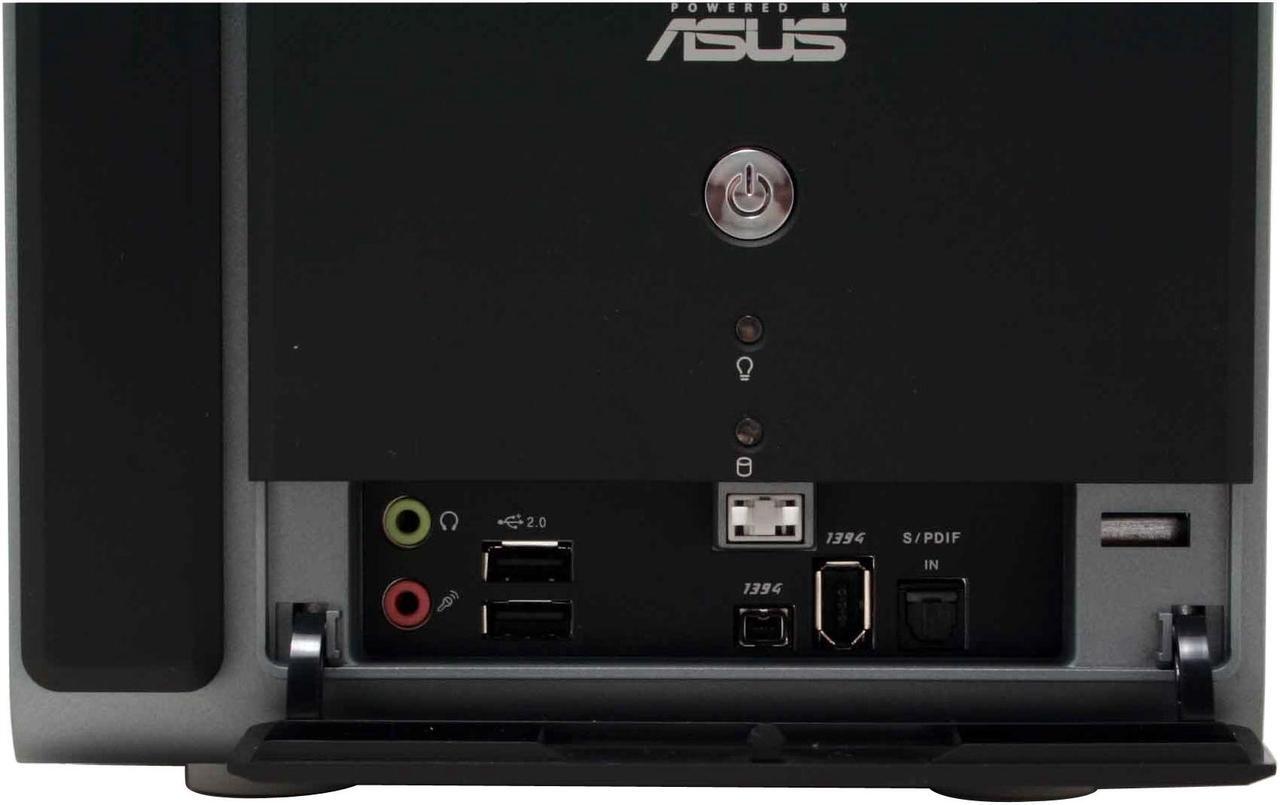

| Front USB | 2 |
|---|---|
| Front IEEE 1394 | 2 x IEEE1394 (4-pin & 6-pin) |
| Front Audio Ports | 2 jacks |
| Front S/PDIF In | Yes |

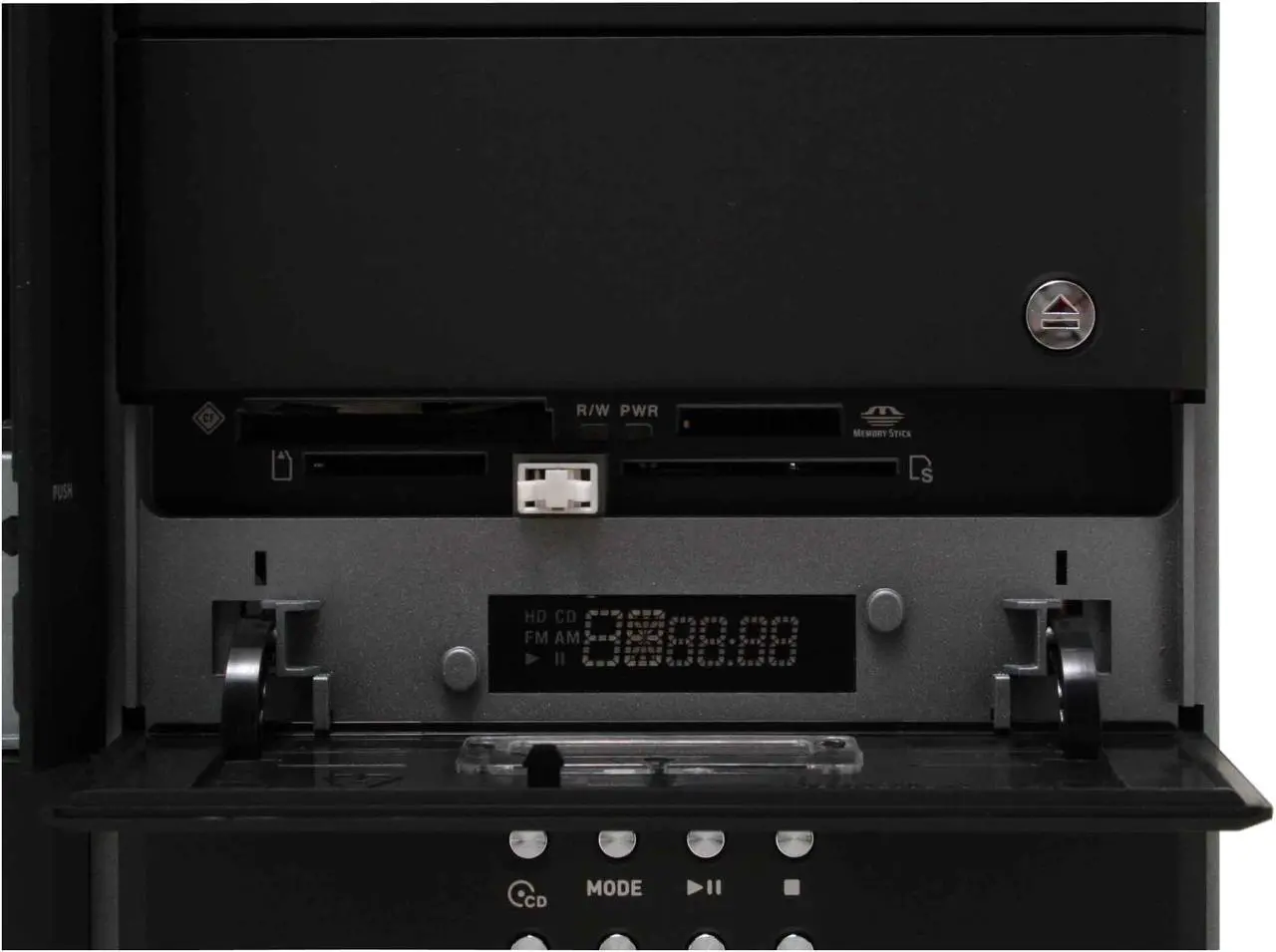

| Card Reader | 7 in 1 |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| VGA | 1 x D-Sub |
| DVI | 1 x DVI |
| TV-Out | RCA |

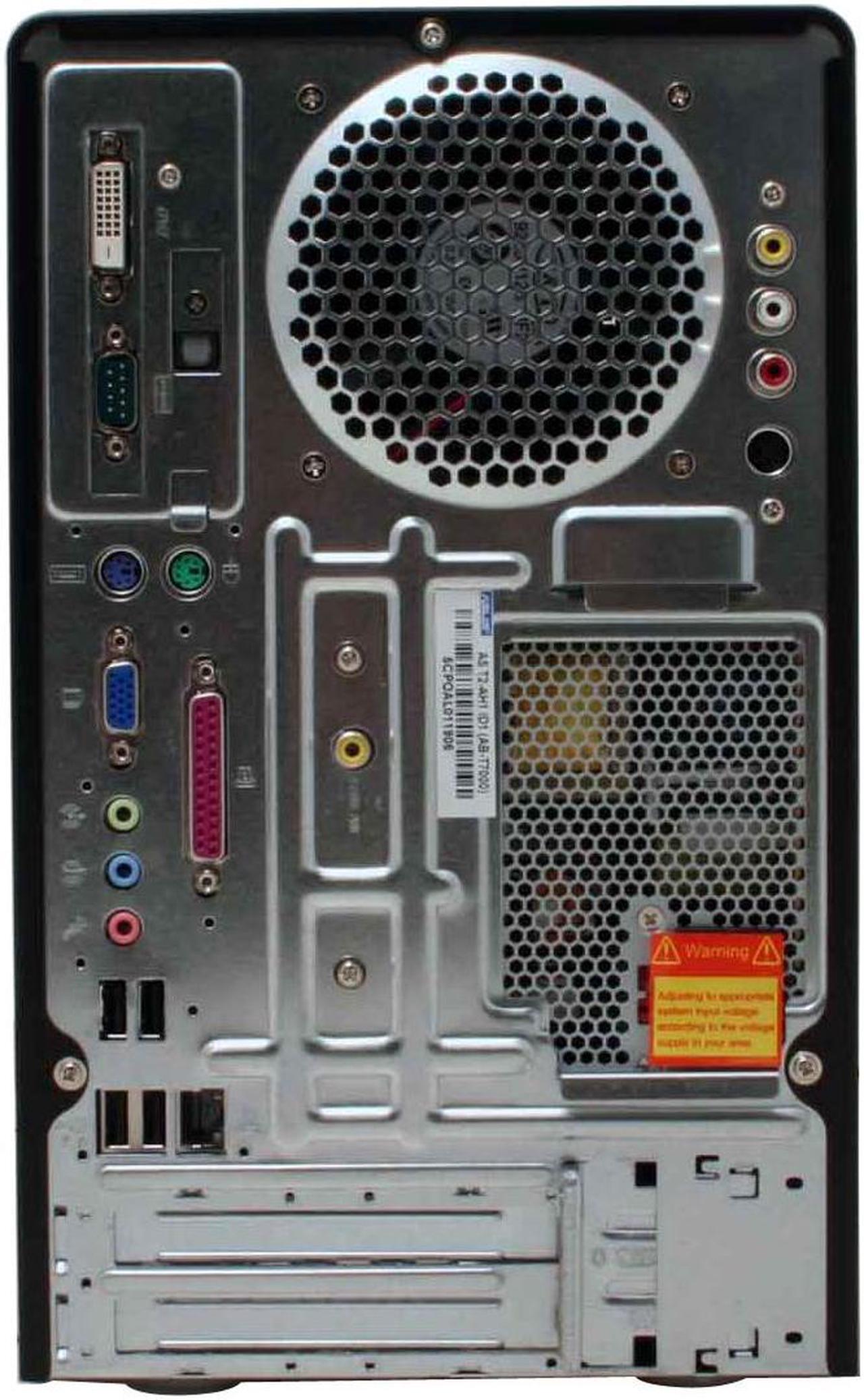

| Rear USB | 4 |
| RJ45 | 1 |
| Rear S/PDIF Out | Yes |
| Rear Audio Ports | 3 jacks |

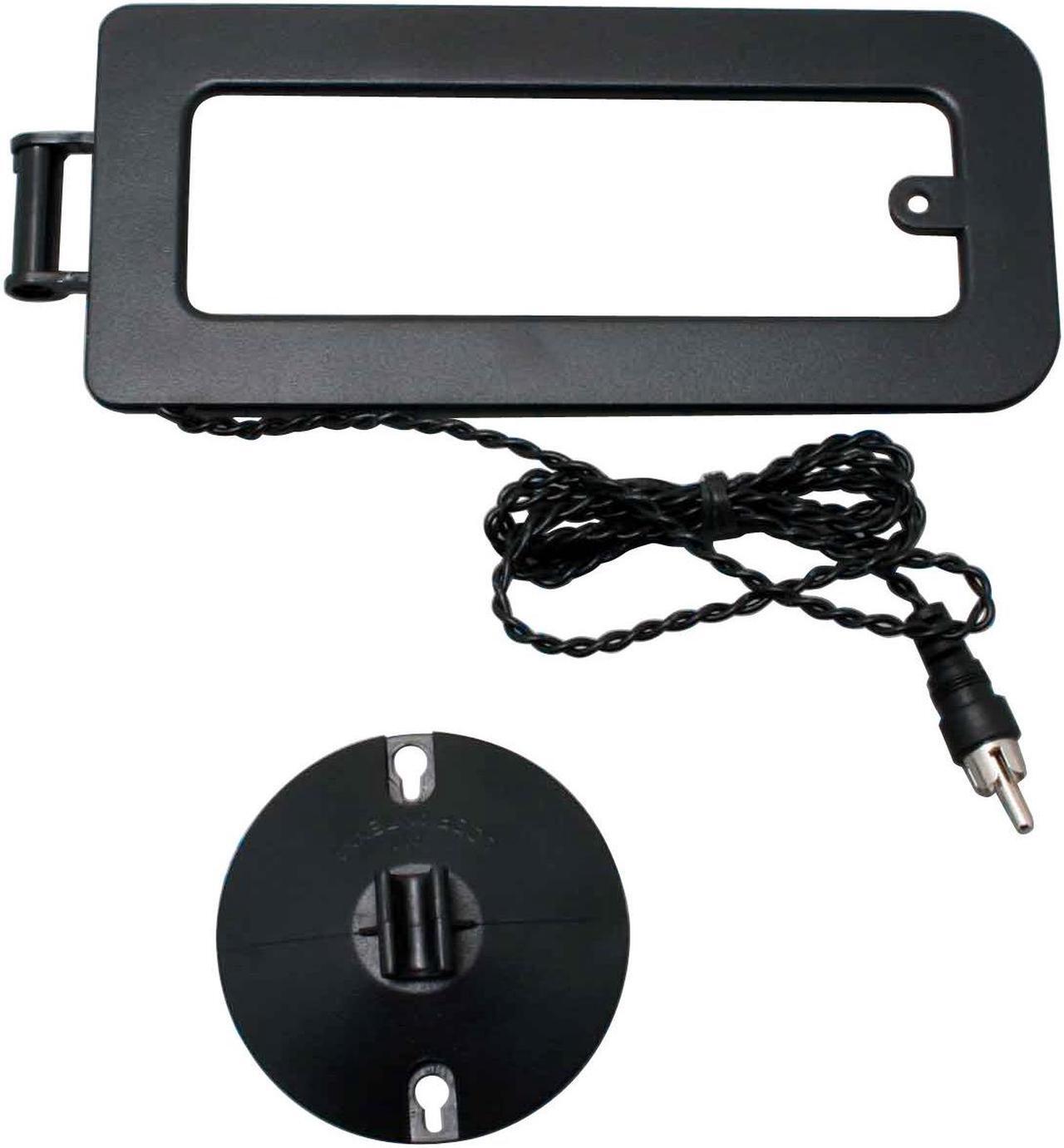

| Other Rear Ports | FM Radio Antenna |
| Power Supply | 250 W (PFC) |
|---|
| Dimensions | 7.5" x 12.2" x 11.8" |
|---|
| Features | Floppy drive included |
|---|

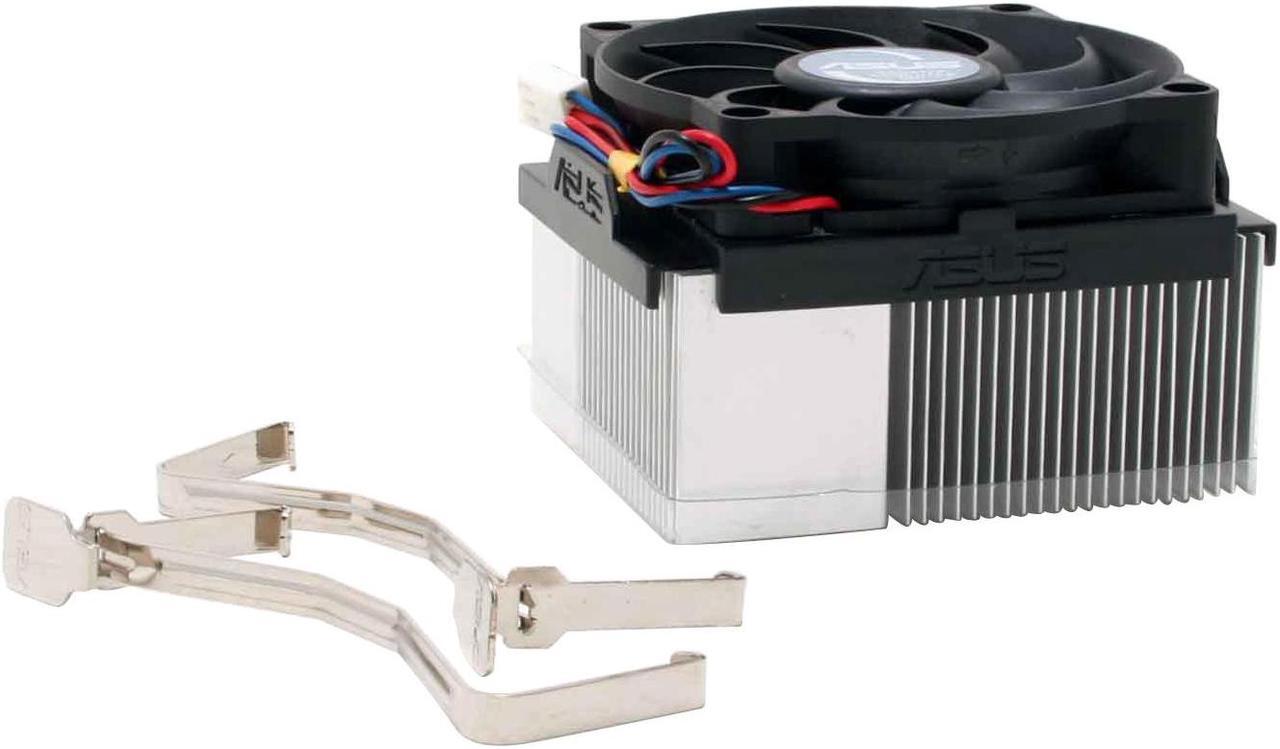

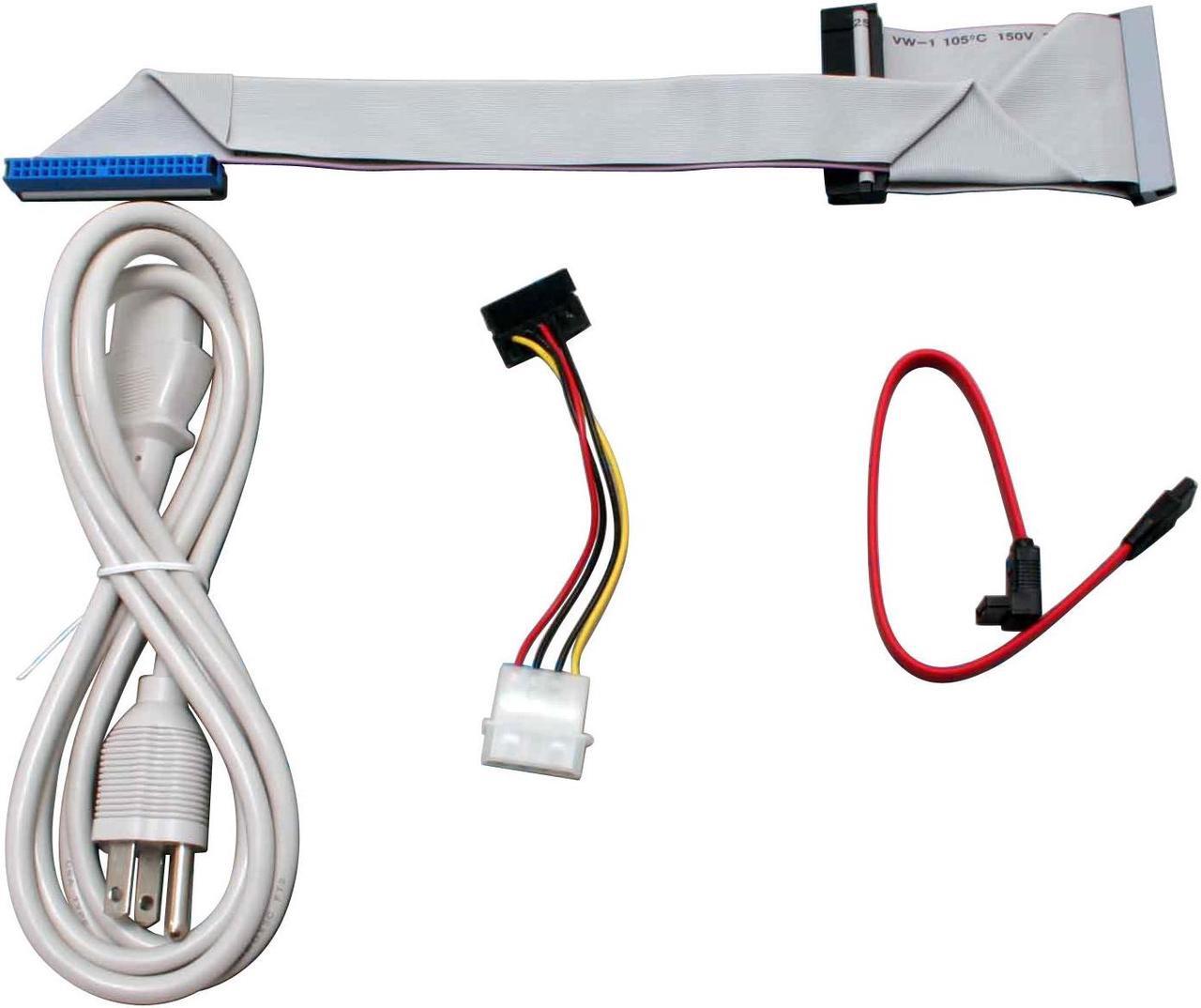

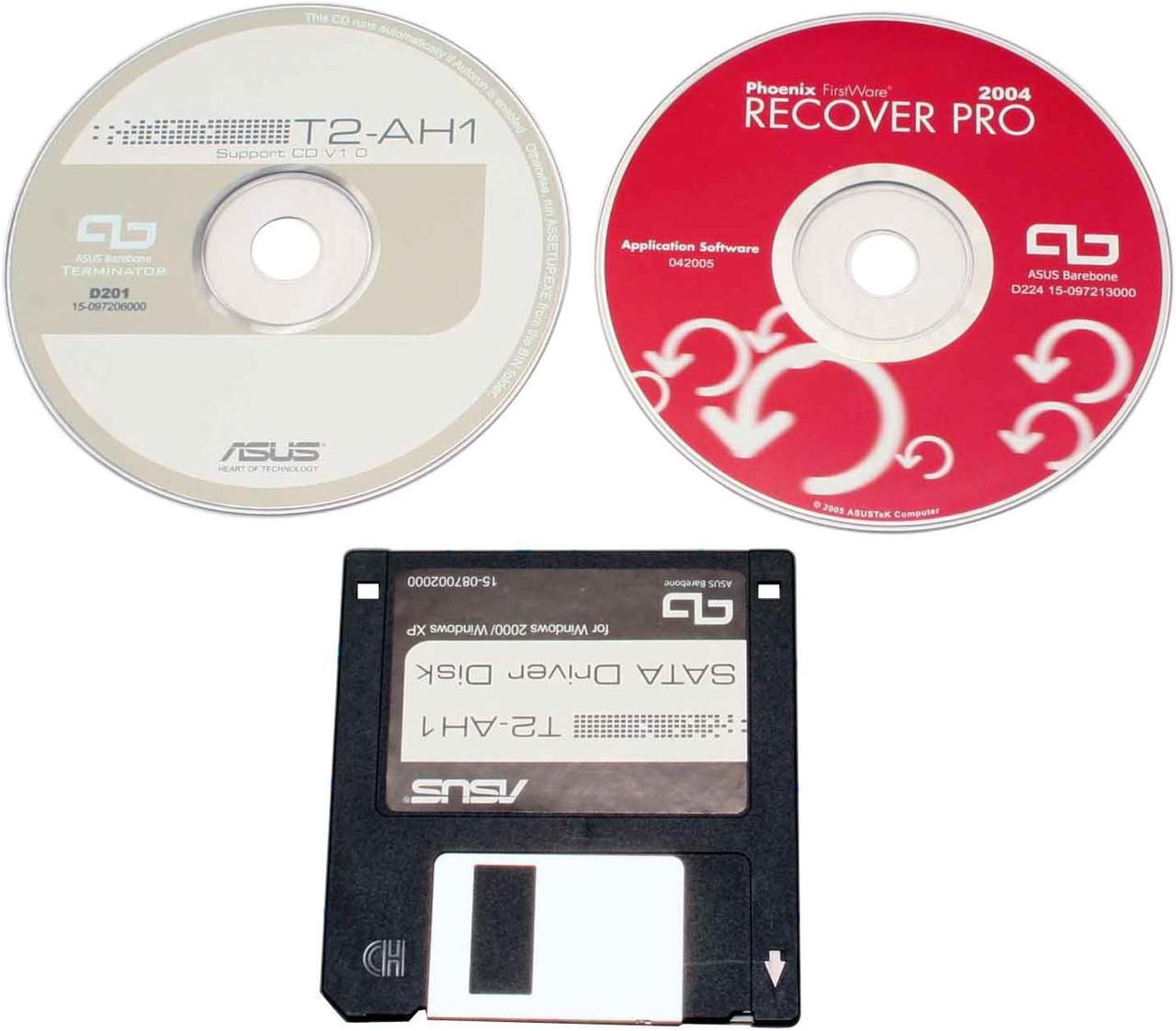

| Package Contents | T2-AH1 User Manual Driver Disk Floppy Drive Diskette IDE/PATA Cable SATA Cable Power Cable Power Cord CPU Heatsink & Fan |
|---|
| First Listed on Newegg | March 28, 2006 |
|---|
