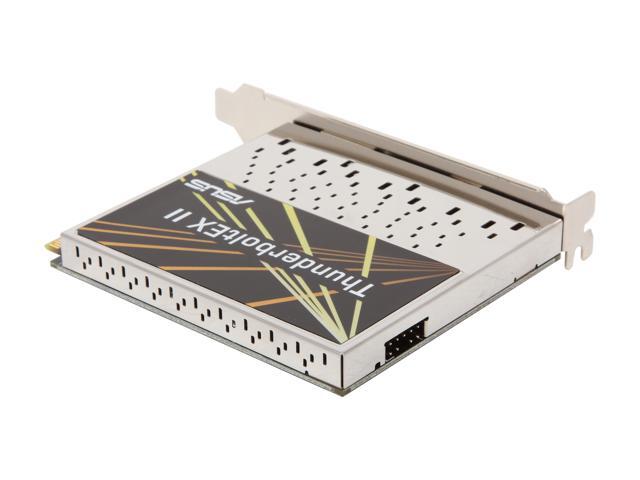

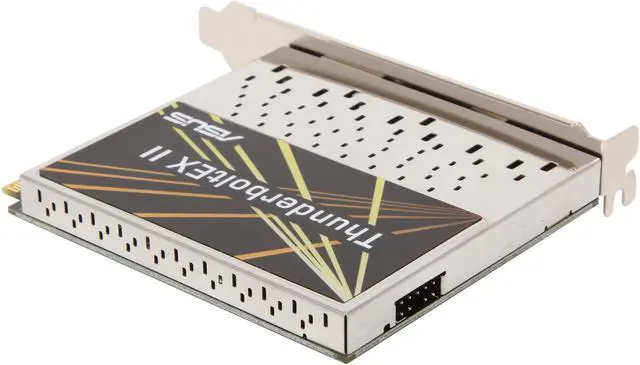

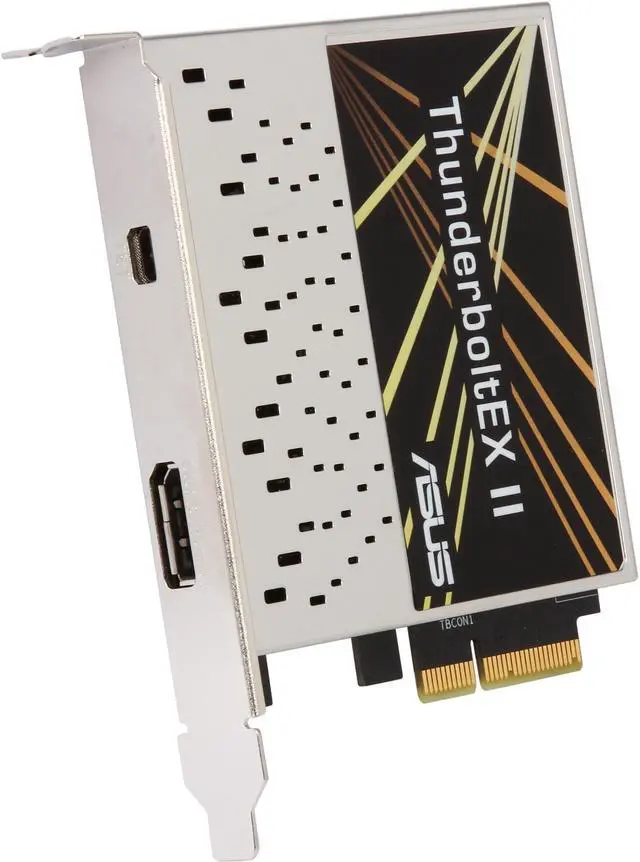

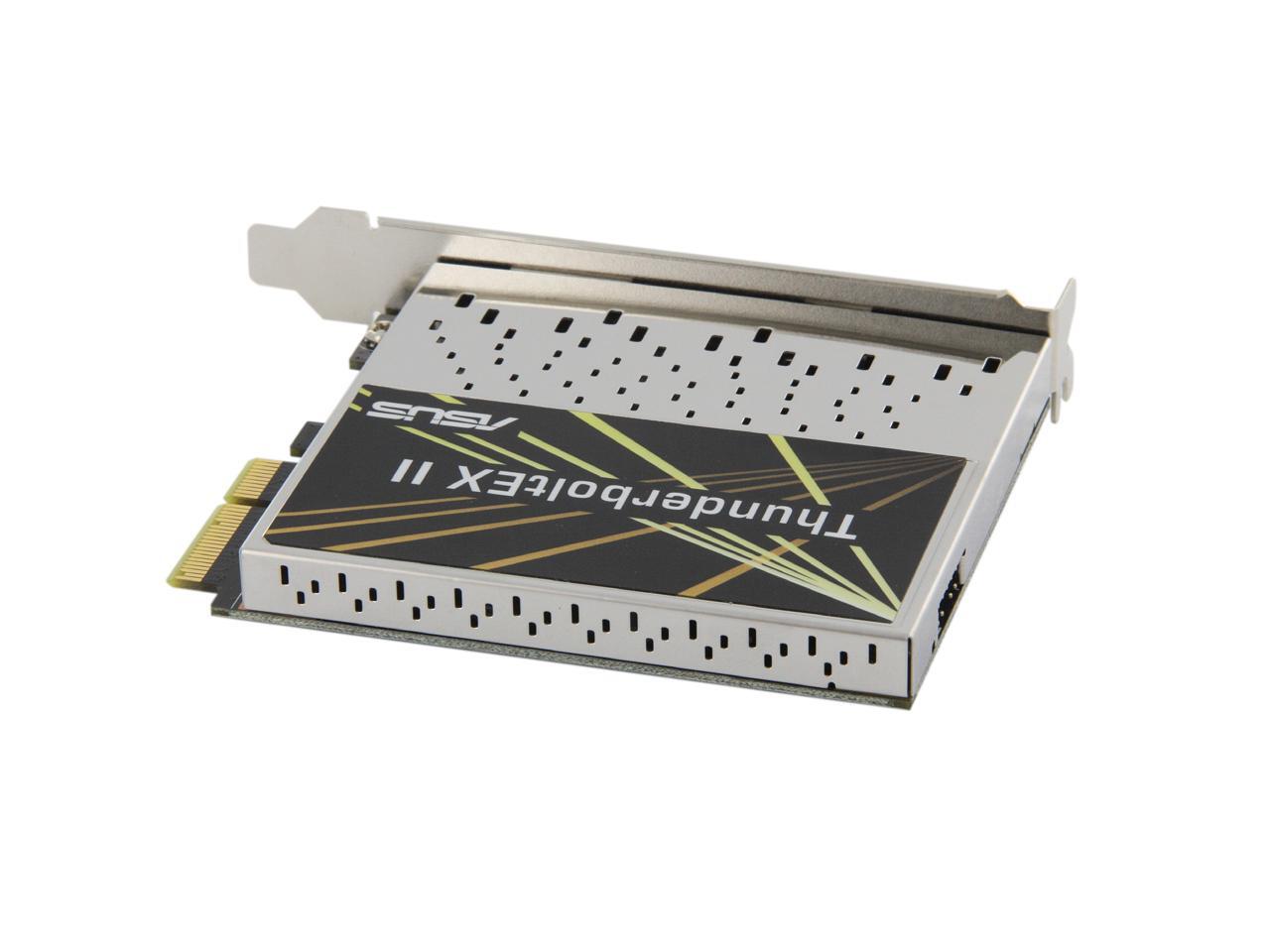

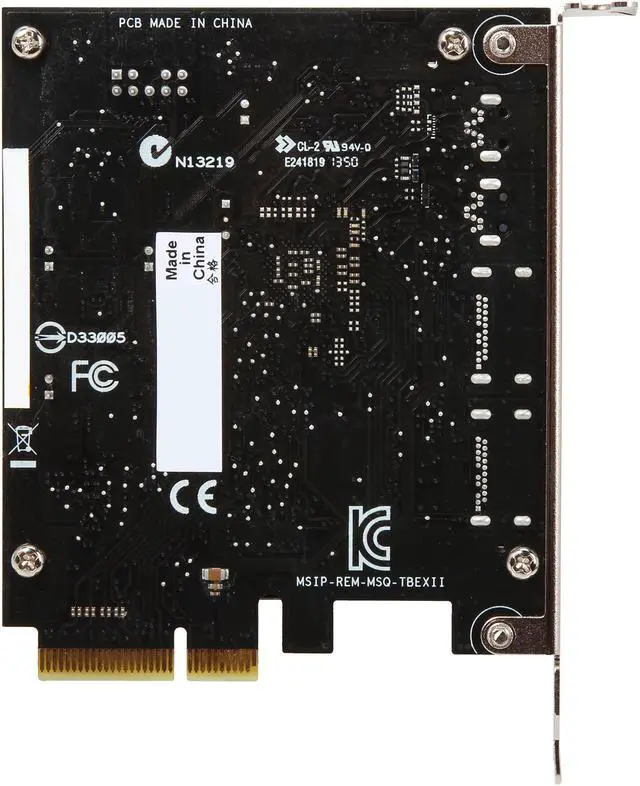

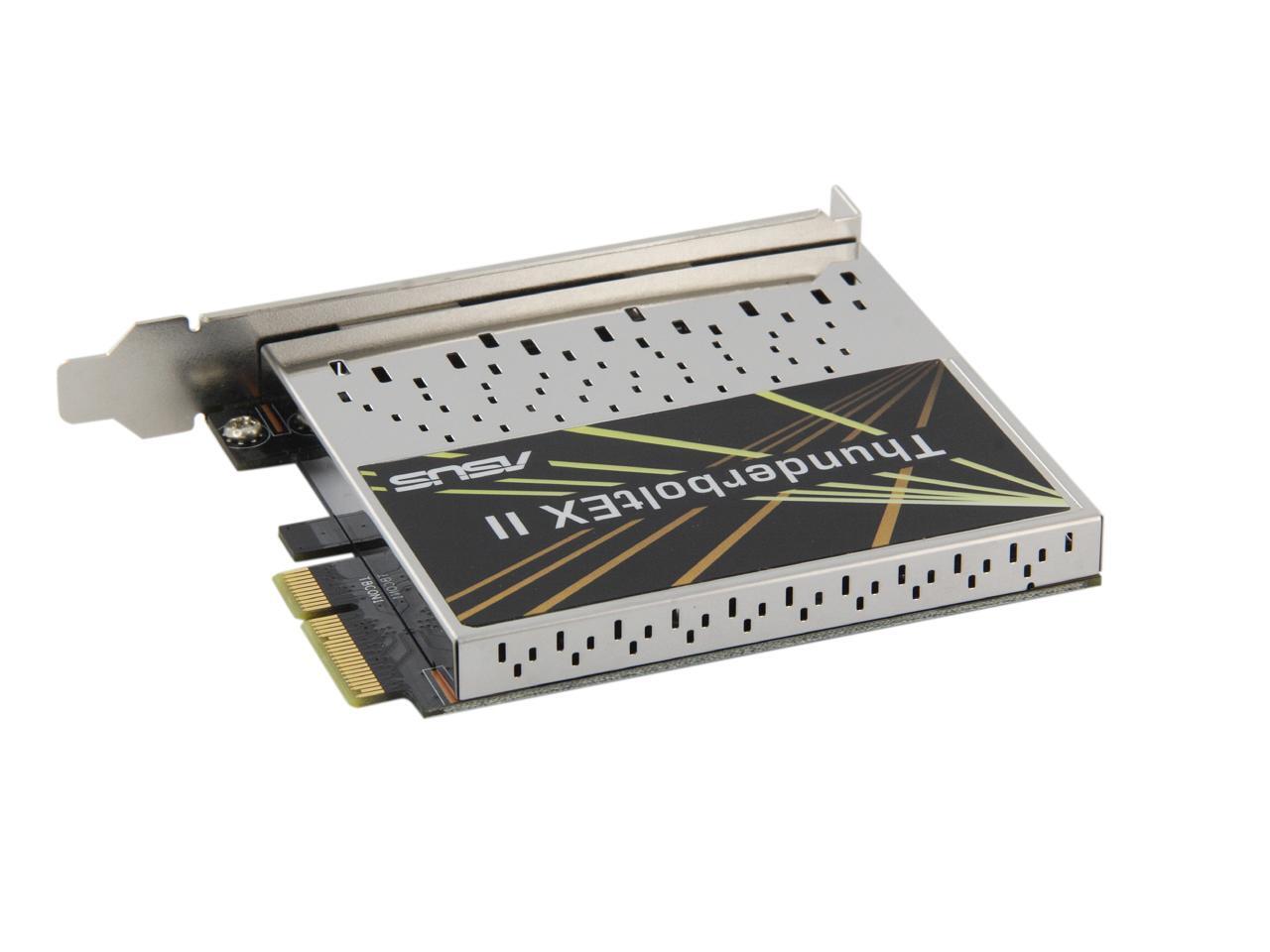

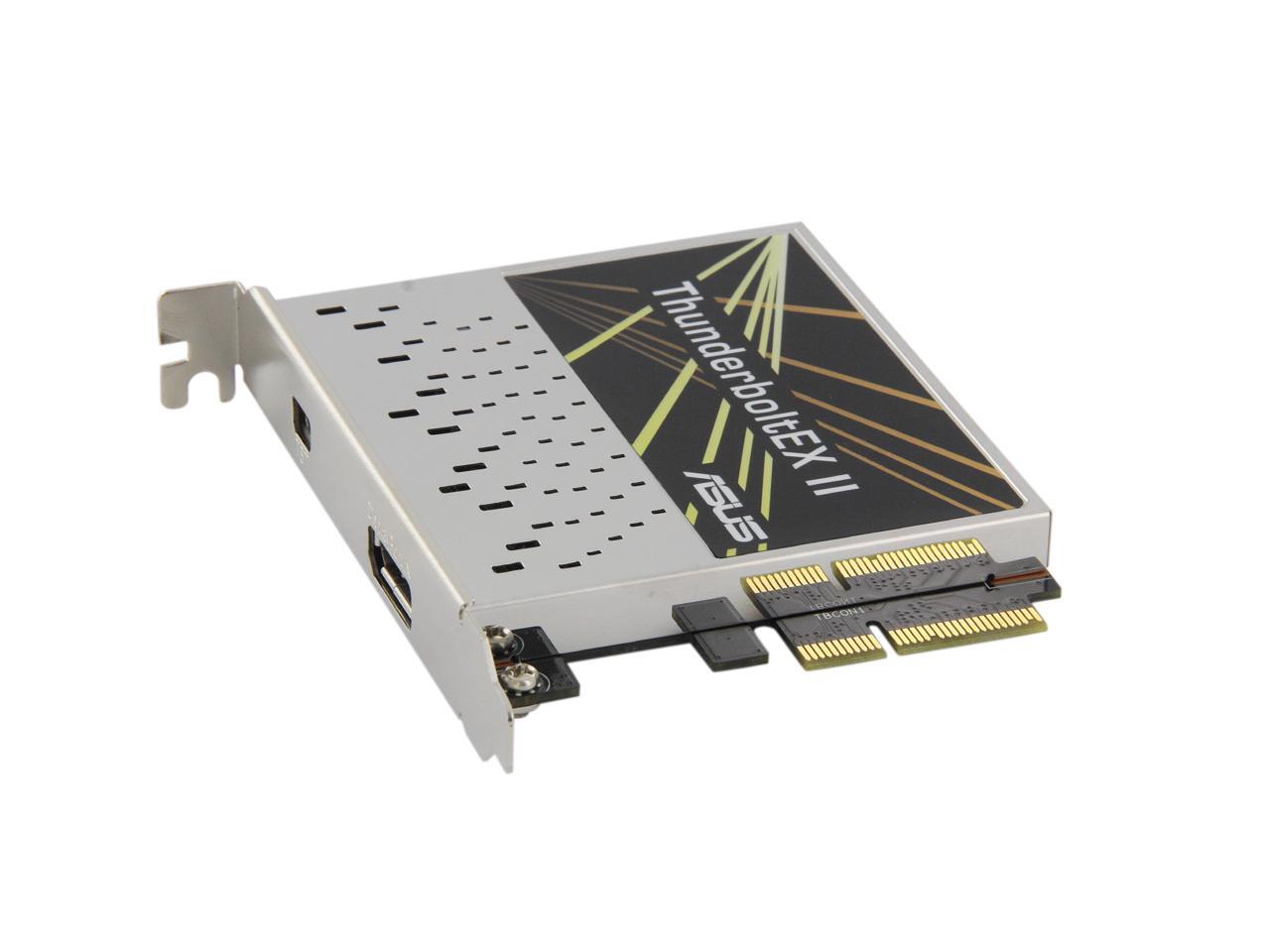

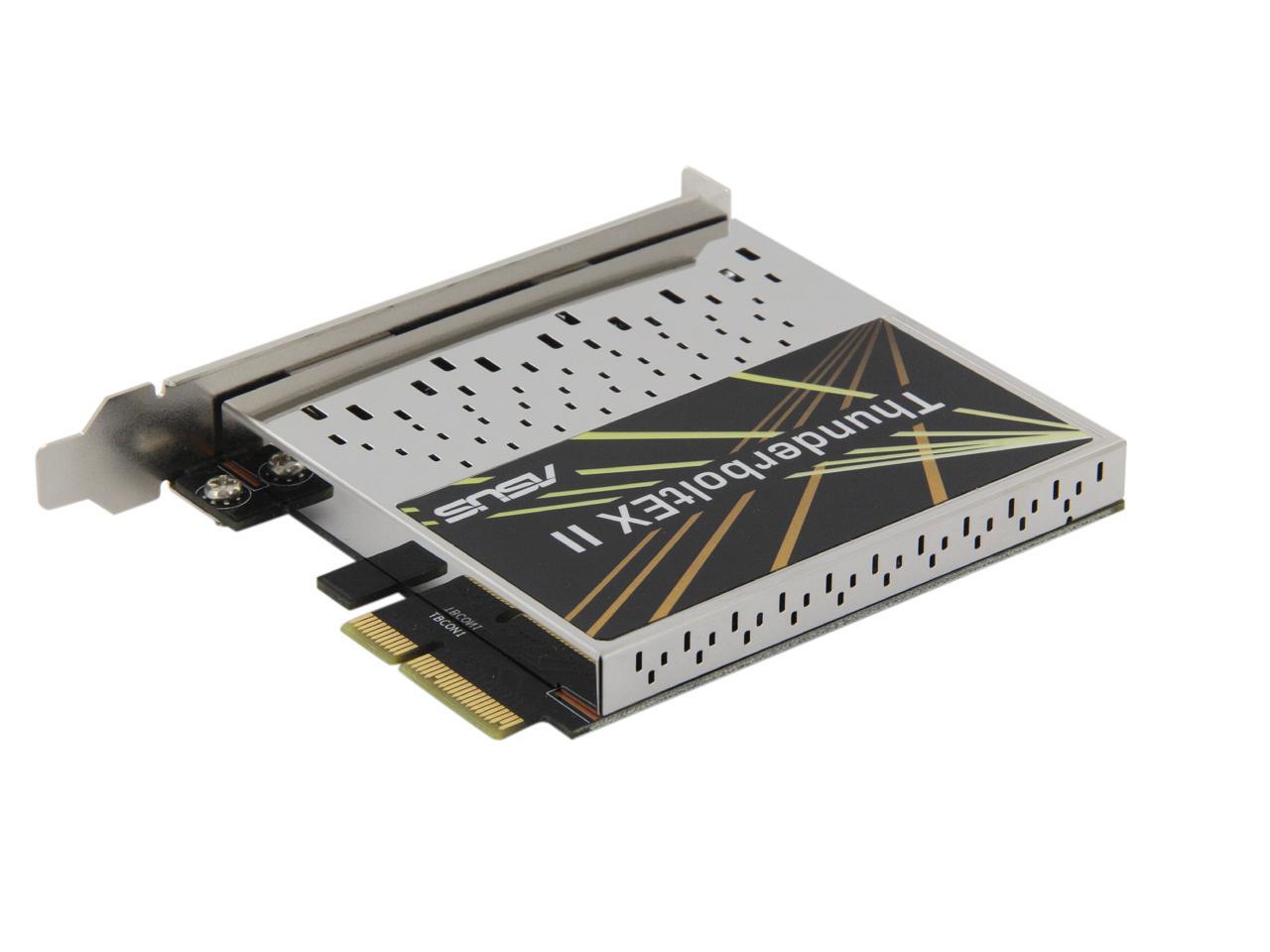

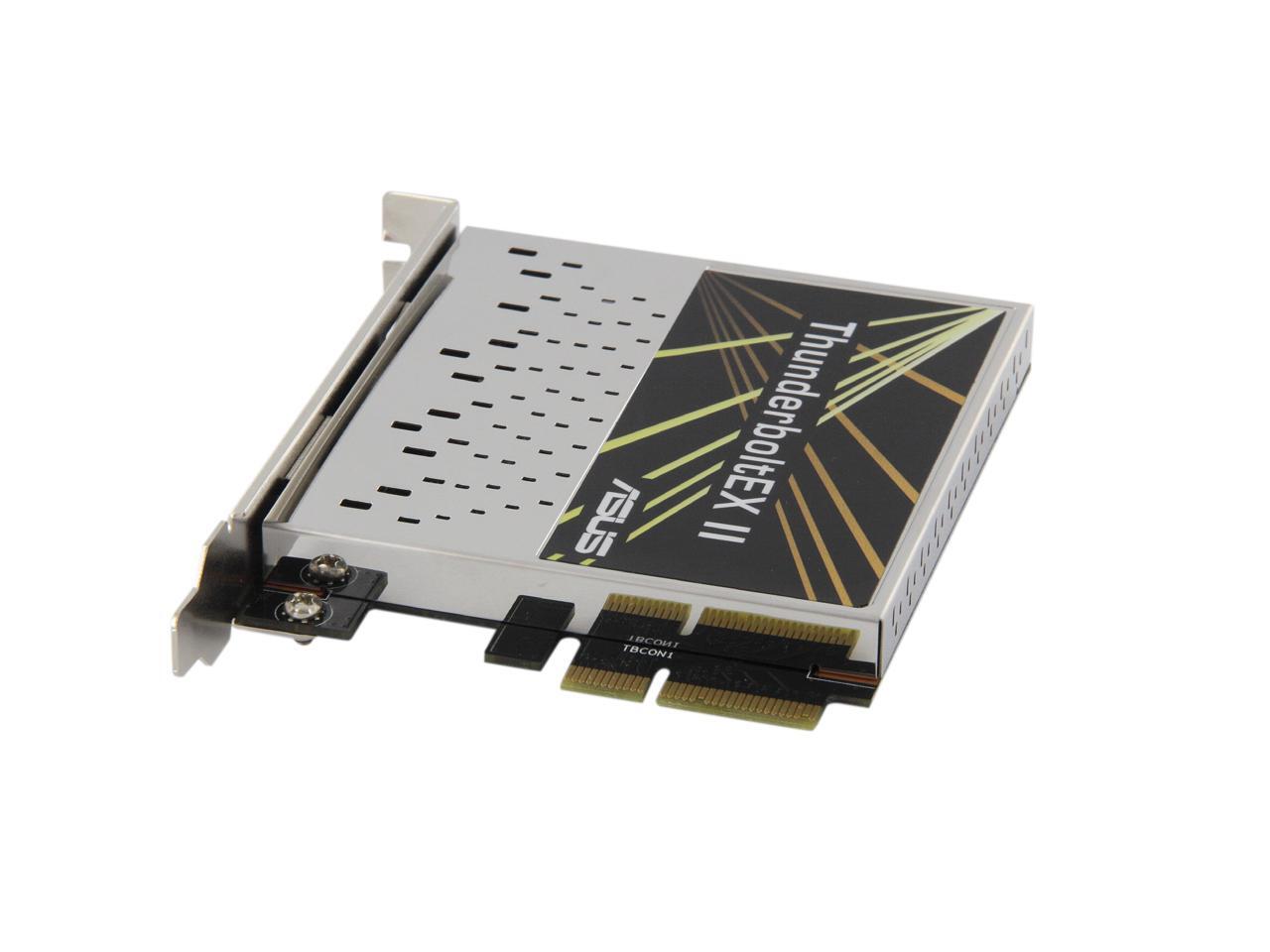

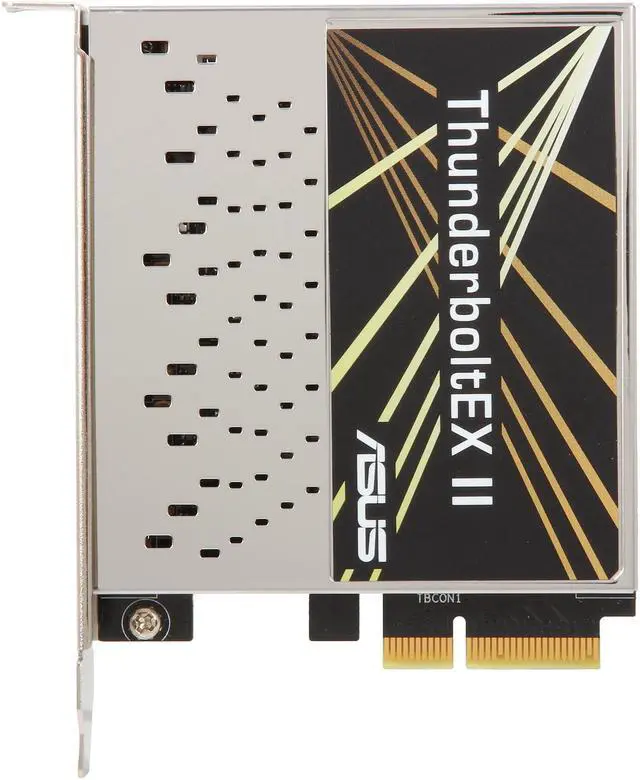

ASUS ThunderboltEX II Expansion Card

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Thunderbolt 2 Technology
  • Simply Plug and Upgrade!
  • Easy Installation

LOADING... LOADING...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the ASUS ThunderboltEX II

Model

|
Brand
ASUS
Model
ThunderboltEX II

Spec

|
Specifications
Chipset: Intel DSL5320 Thunderbolt 2 Controller

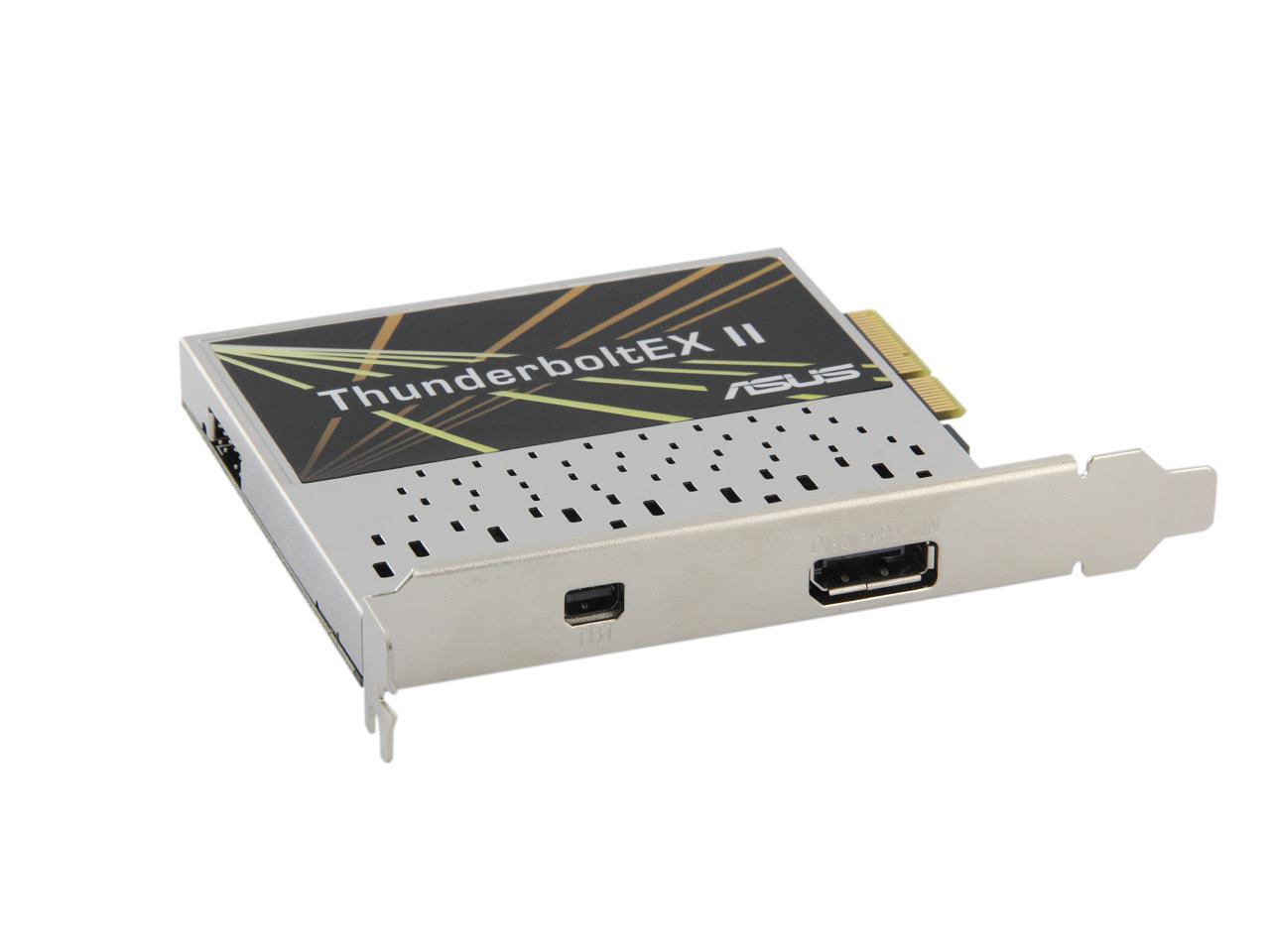

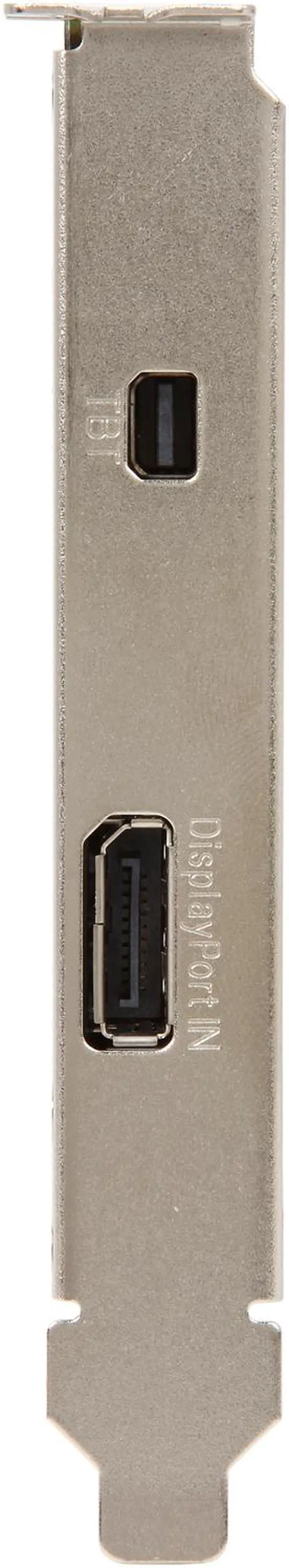

External Connectors
-1 x Thunderbolt 2 port runs up to 20Gbps
-1 x DisplayPort IN port

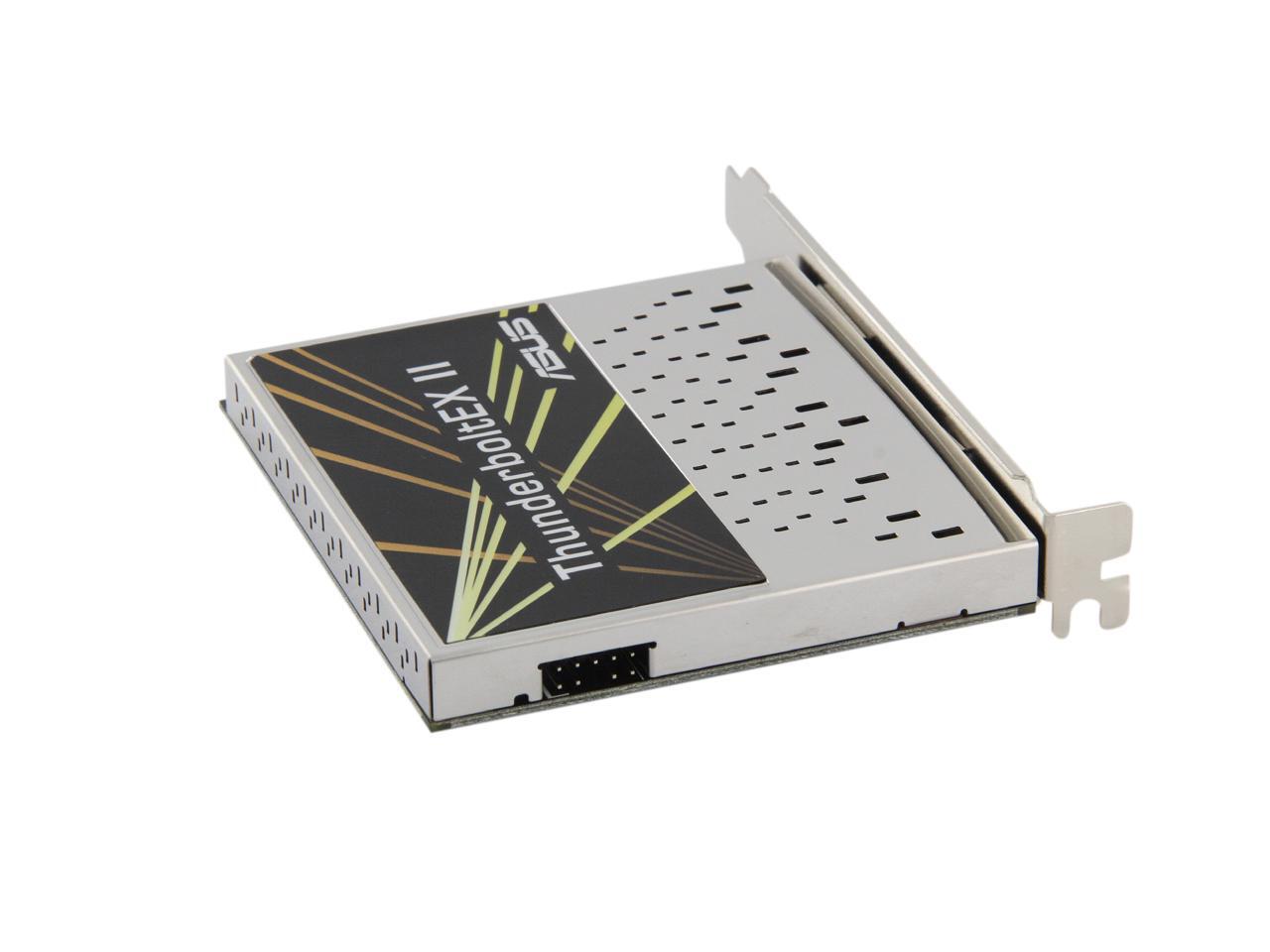

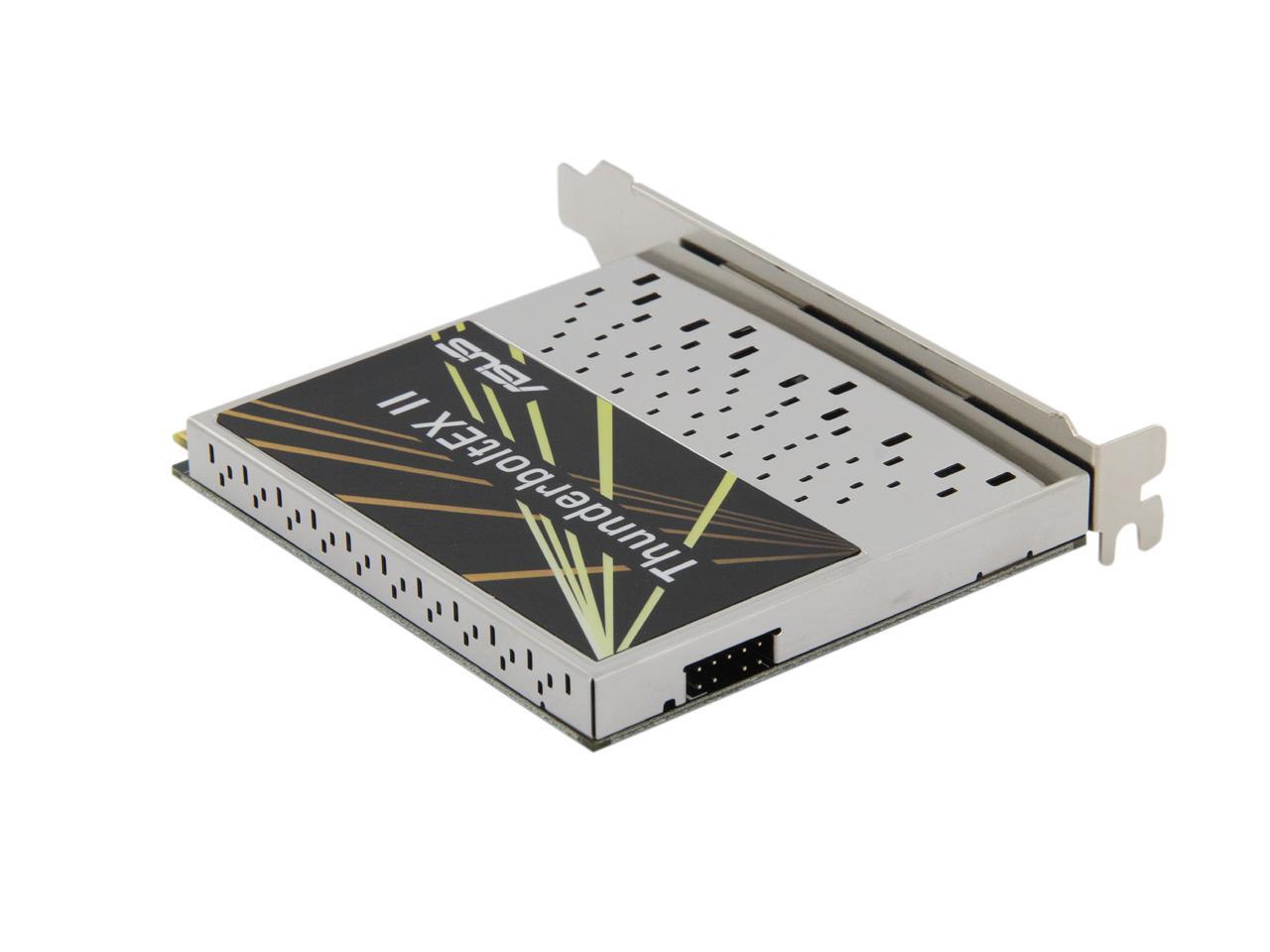

-1 x 9 pin TB header

Dimensions: 3.35" x 3.94"

Interface:

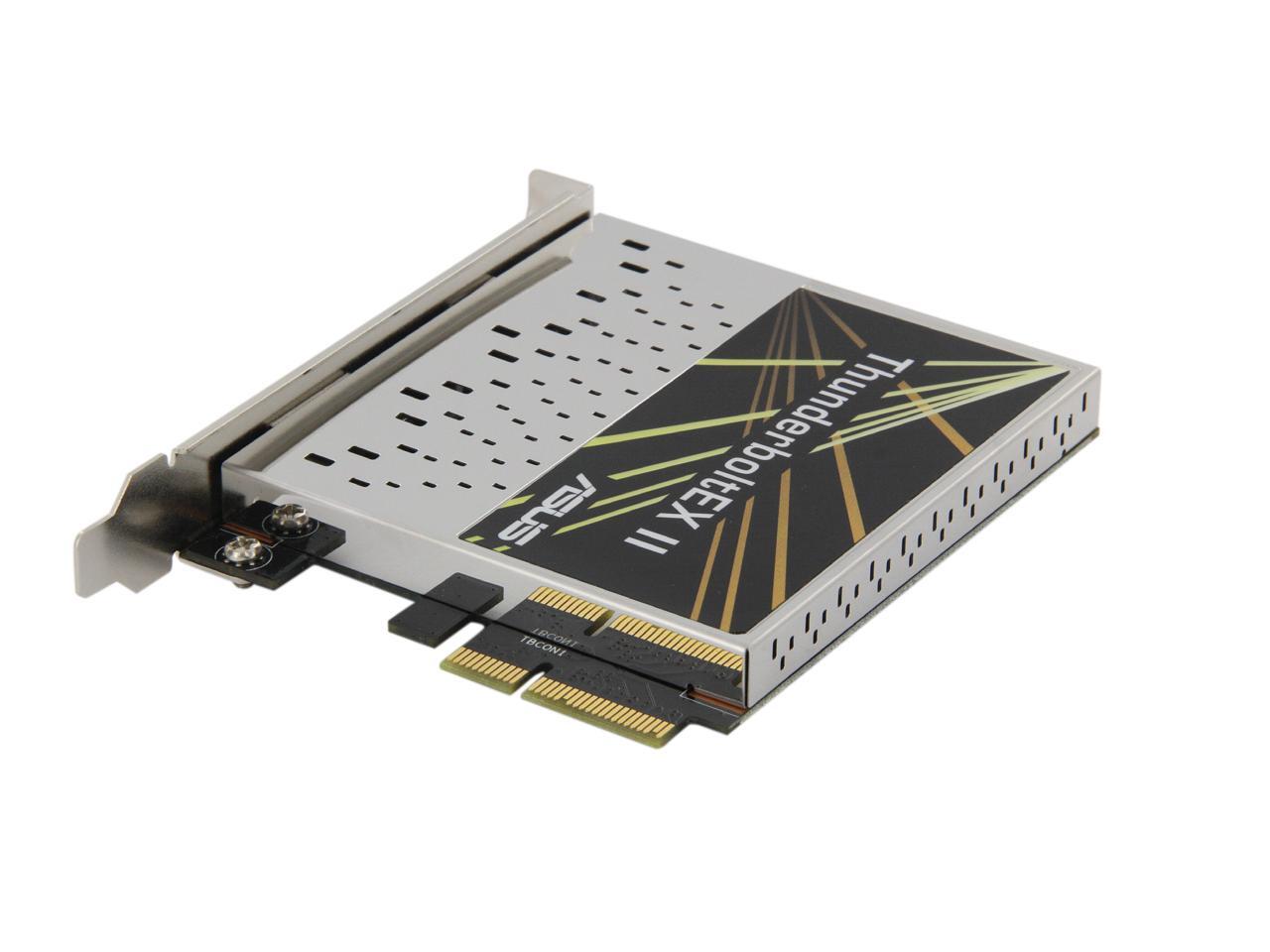

-PCI Express 2.0 x4 interface
-Compatible with PCI Express x8, and x16 slots

VGA:
-Supports Thunderbolt 2 Interface with max. resolution of 4096 x 2160@24Hz / 3840 x 2160@60Hz
-DisplayPort 1.2 Multi-Stream Transport compliant; supports DisplayPort 1.2 monitor daisy-chain up to 3 displays

Data Rate: 1 x Thunderbolt 2 port, maximum at 20Gbps bidirectional

Operating System:
-Windows 8.1 32/64-bit
-Windows 8.1 64-bit
-Windows 8 64-bit
-Windows 8 32/64-bit
-Windows 7 32/64-bit
-Windows 7 (Ultimate SP1) 32/64-bit

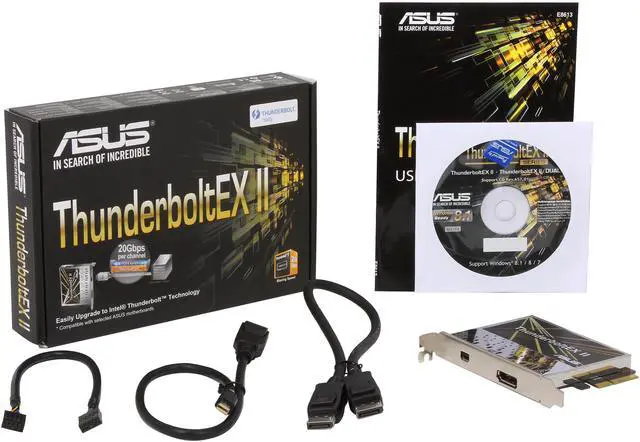

Accessories
-1 x DisplayPort cable
-1 x mini DisplayPort Cable
-1 x ASUS TB header cable(linked from an ASUS motherboard's TB header to ThunderboltEX II card's TB header)

Compatible Model
-MAXIMUS VI EXTREME
-SABERTOOTH Z87
-Z87-PRO
-Z87-PRO(V EDITION)
-Z87-PLUS
-Z87-PLUS(VivoMouse EDITION)
-Z87-A
-Z87-A(NFC EXPRESS EDITION)

Features

|
Features
Thunderbolt 2 Technology - 2X Faster than original Thunderbolt and 4X faster than USB3.0. Daisy-chain up to 9 devices per port with improved transferring speed up to 20 Gb/s.

Simply Plug and Upgrade! - Compatible with all the Thunderbolt devices

Easy Installation - Exclusively Compatible with ASUS 8 series MBs

Additional Information

|
Date First Available
March 06, 2014
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
5/ 5
Works as advertised. 7/26/2016 11:49:26 PM

Pros: Very fast. I use it with a Thunderbolt 2 disk array.

Cons: Requires a compatible motherboard. I use it with an ASUS X99-AII motherboard. Thunderbolt was disabled in the Motherboard BIOS by default so it is not plug-and-play. You also must tell the BIOS which PCIe slot the expansion card is installed. The BIOS settings were not documented in either the motherboard manual or in the expansion card manual.

1 out of 1 people found this review helpful. Did you?
Ownership: 1 month to 1 year
Verified Owner
4/ 5
Card works, but you are very limited 5/5/2014 9:02:39 AM

Pros: The card works as advertised
Blazing fast speed
You can daisy chain components
Can enable use of Apple Thunderbolt Display

Cons: To use the video, you must connect a big displayport wire from your video card to the Thunderbolt card. This isn't a huge deal, it can just be unsightly if you are going for a single-wire setup from the pc.

It absolutely will not work unless you have one of the following motherboards:

MAXIMUS VI EXTREME
SABERTOOTH Z87
Z87-PRO
Z87-PRO(V EDITION)
Z87-PLUS
Z87-PLUS(VivoMouse EDITION)
Z87-A
Z87-A(NFC EXPRESS EDITION)

Overall Review: I originally purchased the card (and subsequently a compatible motherboard) to be able to connect my Apple Thunderbolt Display to my PC. While the display works fine, I've found that unless you are running PC peripherals, there will be no driver support, so all the added functionality from the display (eg. USB, Brightness, etc) does not work.

18 out of 19 people found this review helpful. Did you?
