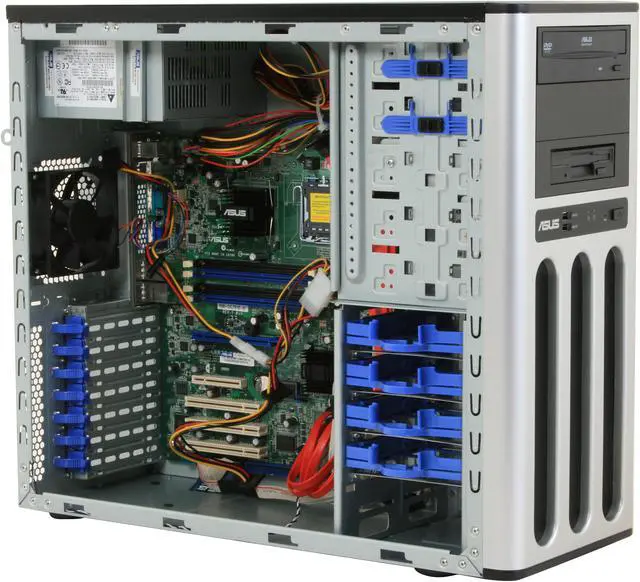

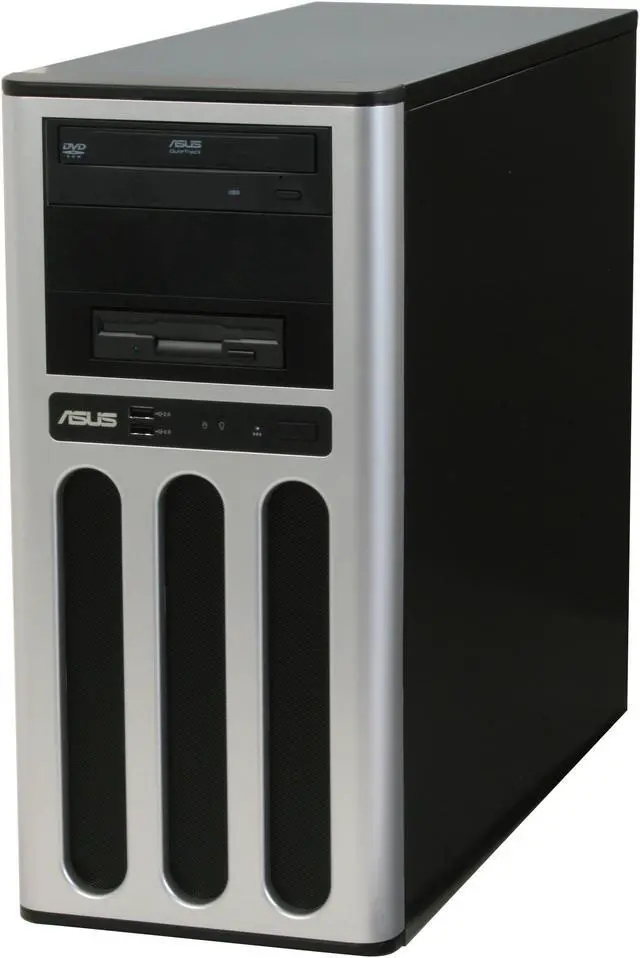

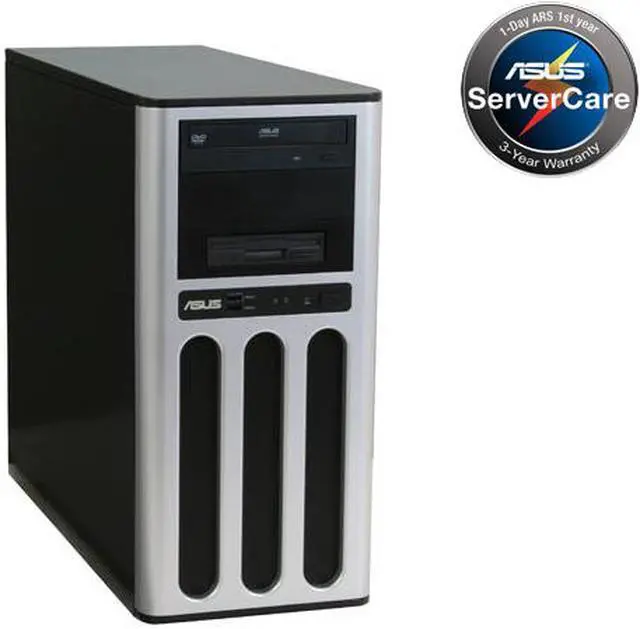

ASUS TS100-E5/PI4 Pedestal Barebone Server LGA 775 Intel 3200 DDRII 800/667/533
- LGA 775
- Intel Xeon
- 4 x 240Pin Memory Slots
- 350W Single Power Supply (Non-Auto Switching)
Overview
Specs
Reviews (8)
Any questions? Our AI beta will help you find out quickly.
Try me now
The TS100-E5/PI4 from Asus is a great server for home offices or small businesses that do not have the need to invest in a rack system. It would also work well as a workgroup or remote server. Asus has engineered the system to maximize cooling efficiency so fan speed could be minimized. Fan speeds are all thermally controlled so they only work as hard as they have to.
The Quad-LAN setup integrates the 4 Gigabit Ethernet ports into a single effective port so you get almost 4x the bandwidth of a single port. Failover support keeps the data flowing even if there is a port failure. Or you can split the ports and use them in individual sub-nets.
Asus has put hardware RAID controllers on the motherboard so you get powerful data security without having to use CPU cycles to control it. RAID levels 0, 1, 5, and 10 are supported in Windows environments and 0, 1, and 10 are supported in Linux giving you a choice in how you want to protect your data.
The TS100-E5/PI4 from Asus is a great server for home offices or small businesses that do not have the need to invest in a rack system. It would also work well as a workgroup or remote server. Asus has engineered the system to maximize cooling efficiency so fan speed could be minimized. Fan speeds are all thermally controlled so they only work as hard as they have to.
The Quad-LAN setup integrates the 4 Gigabit Ethernet ports into a single effective port so you get almost 4x the bandwidth of a single port. Failover support keeps the data flowing even if there is a port failure. Or you can split the ports and use them in individual sub-nets.
Asus has put hardware RAID controllers on the motherboard so you get powerful data security without having to use CPU cycles to control it. RAID levels 0, 1, 5, and 10 are supported in Windows environments and 0, 1, and 10 are supported in Linux giving you a choice in how you want to protect your data.
The Quad-LAN setup integrates the 4 Gigabit Ethernet ports into a single effective port so you get almost 4x the bandwidth of a single port. Failover support keeps the data flowing even if there is a port failure. Or you can split the ports and use them in individual sub-nets.
Asus has put hardware RAID controllers on the motherboard so you get powerful data security without having to use CPU cycles to control it. RAID levels 0, 1, 5, and 10 are supported in Windows environments and 0, 1, and 10 are supported in Linux giving you a choice in how you want to protect your data.

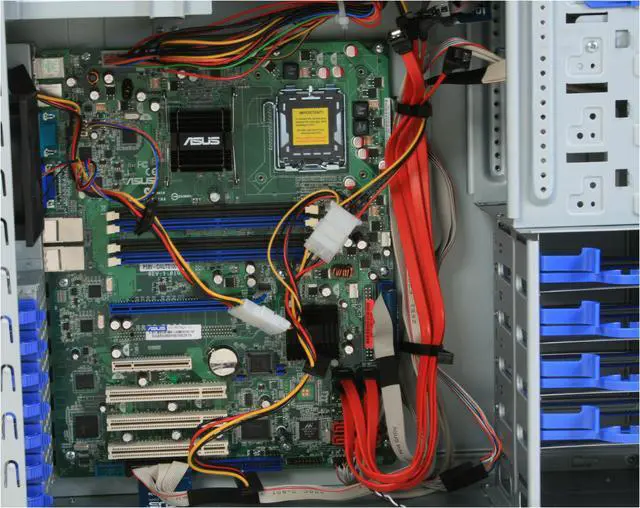

Intel Xeon Processor SupportThe onboard 775-pin LGA Socket supports Intel's entry-level Xeon processors including the Quad-Core Intel Xeon Processor 3300/3200 sequence and Dual-Core Xeon Processor 3100/3000 sequence as well as non-Xeon processors based on the Conroe-L 400 core.
Integrated XGI Z9S Graphics CoreThe integrated XGI Z9S graphics core features the low power requirement less than 1.5-watt and a DVO interface for remote server management and KVM over IP solutions, delivering best-in-class performance, reliability, compatibility and longevity.
Four ECC DDR2 Memory SlotsFour 240-pin DIMM sockets support unbuffered ECC DDR2 677 and 800 SDRAM in capacities of up to 8GB.
Superior ExpandabilityWith one PCI Express x16, one PCI Express x8 and three PCI slots, the Asus TS100-E5/PI4 supports a wide range of add-on cards for superior expandability.

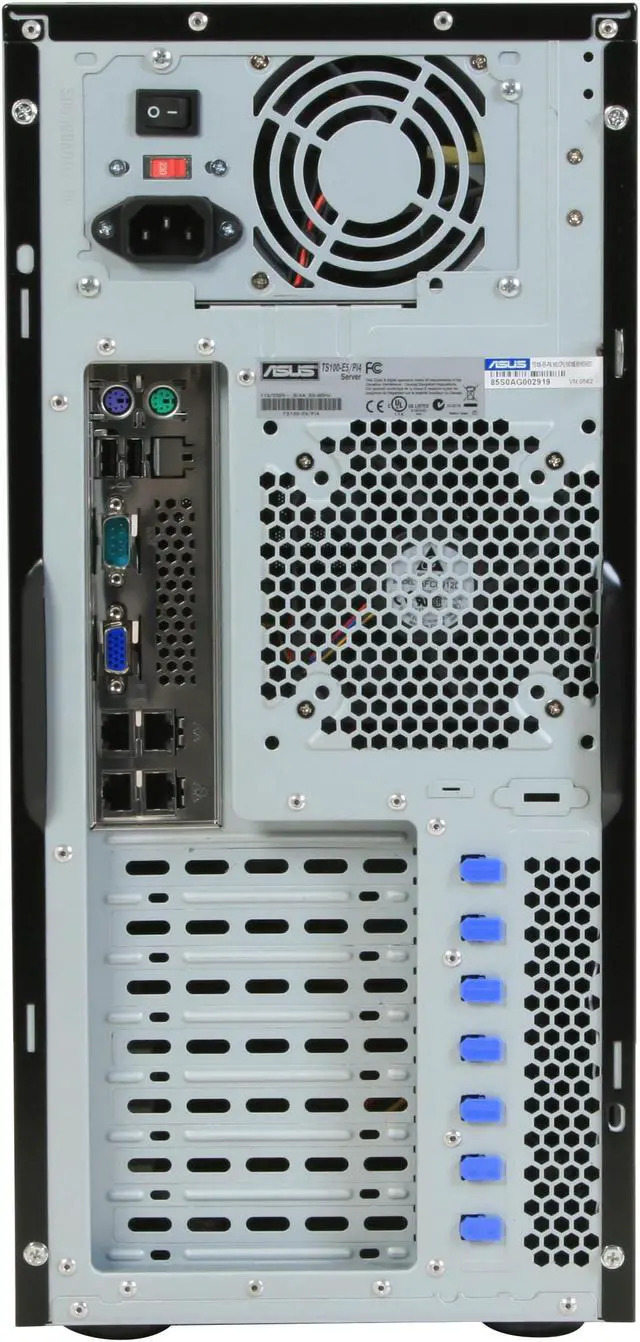

Quad-LAN with Teaming and Failover FunctionsThe Asus TS100-E5/PI4 is equipped with four built-in Marvell 8056 PCI-E Gigabit Ethernet LAN controllers for ultra fast network connectivity. Teaming and Failover functions provide load-balance and fault tolerance features for higher bandwidth aggregation and smooth network connection.

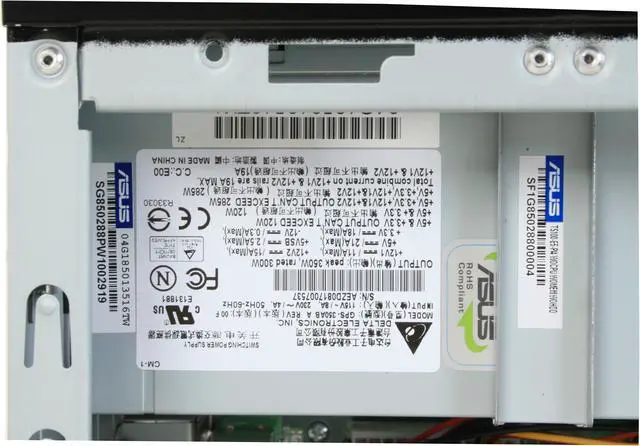

350W Power SupplyThe 350W power supply provides power for all components installed and ensures system reliability with minimized power consumption.
Intel Xeon Processor SupportThe onboard 775-pin LGA Socket supports Intel's entry-level Xeon processors including the Quad-Core Intel Xeon Processor 3300/3200 sequence and Dual-Core Xeon Processor 3100/3000 sequence as well as non-Xeon processors based on the Conroe-L 400 core.
Integrated XGI Z9S Graphics CoreThe integrated XGI Z9S graphics core features the low power requirement less than 1.5-watt and a DVO interface for remote server management and KVM over IP solutions, delivering best-in-class performance, reliability, compatibility and longevity.
Four ECC DDR2 Memory SlotsFour 240-pin DIMM sockets support unbuffered ECC DDR2 677 and 800 SDRAM in capacities of up to 8GB.
Superior ExpandabilityWith one PCI Express x16, one PCI Express x8 and three PCI slots, the Asus TS100-E5/PI4 supports a wide range of add-on cards for superior expandability.
Quad-LAN with Teaming and Failover FunctionsThe Asus TS100-E5/PI4 is equipped with four built-in Marvell 8056 PCI-E Gigabit Ethernet LAN controllers for ultra fast network connectivity. Teaming and Failover functions provide load-balance and fault tolerance features for higher bandwidth aggregation and smooth network connection.
350W Power SupplyThe 350W power supply provides power for all components installed and ensures system reliability with minimized power consumption.Warranty & Returns
