Question 1

Should I choose the ASUS TUF Gaming Z690-PLUS WiFi or a TUF Gaming Z790-PLUS WiFi?

Accepted Answer

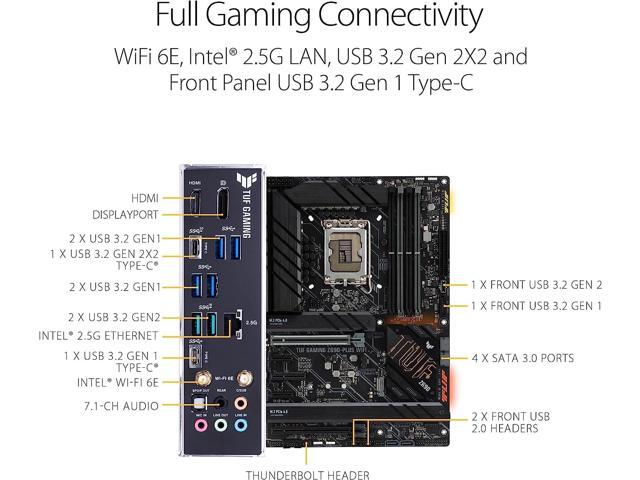

Choose the Z690-PLUS WiFi when it is meaningfully less expensive and you need its four M.2 slots, PCIe 5.0 graphics slot, Wi-Fi 6E, 2.5Gb Ethernet, and LGA1700 support. Choose the Z790-PLUS WiFi when its newer chipset features, higher validated DDR5 speeds, additional chipset PCIe bandwidth, or newer USB options justify the added cost. Both ASUS boards support 12th-, 13th-, and 14th-generation Intel processors, subject to the required BIOS and CPU support list.

Question 2

Can the ASUS TUF Gaming Z690-PLUS WiFi handle a high-power Core i7 or Core i9?

Accepted Answer

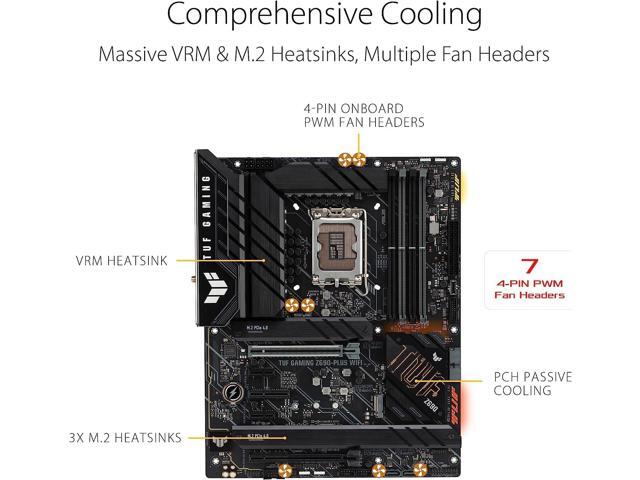

Choose this board for a high-performance LGA1700 build when you want strong VRM cooling, DDR5 support, four M.2 slots, and CPU overclocking capability without moving to a premium enthusiast board. Use a capable CPU cooler and adequate case airflow, especially with a Core i9 or manual overclock. Professional testing of the closely related TUF Z690-PLUS WiFi D4 found that its VRM remained within specification with a power-hungry Core i9-12900K at stock and overclocked settings, although results can vary with processor limits, BIOS settings, and airflow.

Question 3

Is the ASUS TUF Gaming Z690-PLUS WiFi a worthwhile upgrade from a Z590 motherboard?

Accepted Answer

Choose the Z690-PLUS WiFi for a new platform built around a 12th-, 13th-, or 14th-generation Intel processor, DDR5 memory, PCIe 5.0 graphics support, and four M.2 slots. Keep a Z590 board if you already have a compatible 10th- or 11th-generation processor and DDR4 memory and do not need those newer platform features. Moving from Z590 to Z690 requires a new motherboard and compatible LGA1700 processor, and the DDR5 version also requires DDR5 memory.

Question 4

Is the ASUS TUF Gaming Z690-PLUS WiFi better than a B660 or B760 motherboard?

Accepted Answer

Choose the Z690-PLUS WiFi when you plan to use an unlocked Intel processor, want CPU overclocking support, or need more expansion flexibility. Choose a B660 or B760 board for a stock-clocked processor and a simpler gaming or productivity build. Intel lists Z690 as supporting IA, BCLK, and memory overclocking, while B660 and B760 primarily support memory overclocking.

Question 5

ASUS TUF Gaming Z690-PLUS WiFi DDR5 vs the Z690-PLUS WiFi D4: which should I buy?

Accepted Answer

Choose the ASUS TUF Gaming Z690-PLUS WiFi DDR5 for a new build using DDR5 memory and for a longer-term DDR5 upgrade path. Choose the D4 version only if you already own compatible DDR4 memory or want to reduce total platform cost. The two boards use the same LGA1700/Z690 platform, but DDR4 and DDR5 memory are not interchangeable.

Question 6

How much RAM can this motherboard support?

Accepted Answer

The official ASUS specification lists up to 192GB of non-ECC, unbuffered DDR5 memory across four DIMM slots. Supported speeds and maximum capacity can vary with the processor, module configuration, and memory compatibility list.

Question 7

Does the ASUS TUF Gaming Z690-PLUS WiFi support DDR4 memory?

Accepted Answer

No. This version supports DDR5 memory only. It has four DDR5 DIMM slots, supports dual-channel memory, and supports speeds up to DDR5-6000 through overclocking, depending on the CPU and memory kit.

Question 8

Which Intel processors are compatible with this motherboard?

Accepted Answer

The LGA1700 socket supports Intel Core processors from the 12th, 13th, and 14th generations, plus compatible Pentium Gold and Celeron processors. BIOS support should be checked before installing a newer-generation CPU, especially on older board inventory.

Question 9

How many M.2 NVMe SSDs can be installed?

Accepted Answer

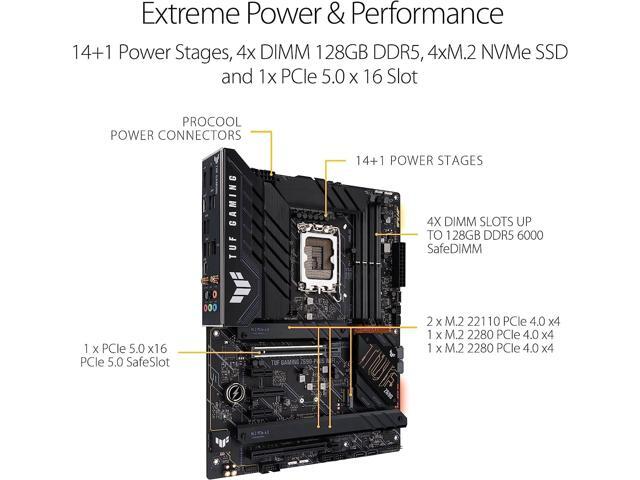

Up to four M.2 drives can be installed. The board also provides four SATA 6Gb/s ports, giving desktop builders multiple storage-expansion options. M.2 slot support varies by slot, with PCIe 4.0 x4 support available on the listed M.2 connectors.

Question 10

Who is the ASUS TUF Gaming Z690-PLUS WiFi best suited for?

Accepted Answer

It is best suited for users building or upgrading a full-size ATX desktop with an LGA1700 Intel processor, DDR5 memory, multiple M.2 drives, and wired or wireless networking. Its main trade-offs are the ATX form factor, the requirement for DDR5 memory, and the need to verify CPU BIOS support before installation.
