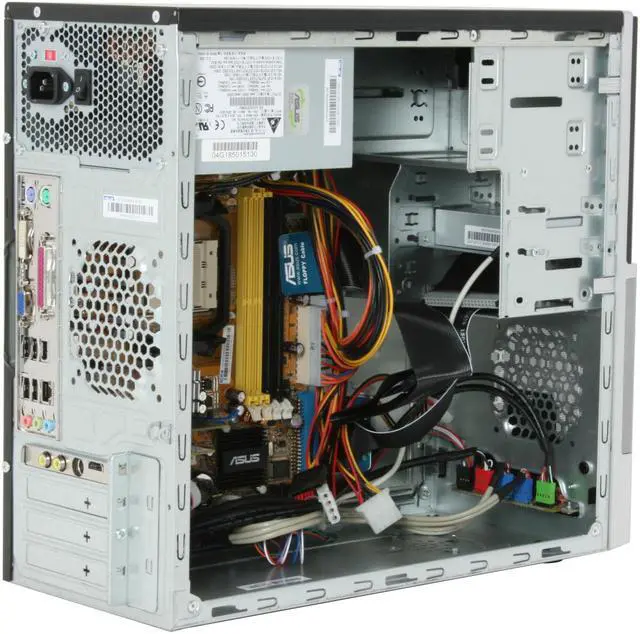

ASUS V3-M2A690G AMD Socket AM2 AMD 690G 1 x HDMI Barebone
- AMD Athlon X2 / Athlon 64 FX / Athlon 64 AMD Socket AM2
- AMD 690G AMD SB600
- 4 x 240Pin DIMM DDR2 800/667
- ATI Radeon X1250
Specs
Reviews (61)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS V3-M2A690G
| Brand | ASUS |
|---|---|
| Model | V3-M2A690G |
| CPU Type | AMD Athlon X2 / Athlon 64 FX / Athlon 64 |
|---|---|
| CPU Socket | AMD Socket AM2 |
| FSB | 1000 MHz |
| North Bridge | AMD 690G |
|---|---|
| South Bridge | AMD SB600 |
| Memory slot | 4 x 240Pin DIMM |
|---|---|
| Memory Type Supported | DDR2 800/667 |
| Max Memory Supported | 8GB |
| PCI Express | 1 x PCI Express x16 + 1 x PCI Express x1 |
|---|---|
| PCI | 2 |
| IDE ATA | 1 x ATA 100 |
|---|---|
| Serial ATA | 4 x SATA 3.0Gb/s |
| SATA RAID | RAID 0/1 |
| Onboard Video | ATI Radeon X1250 |
|---|---|
| Video Memory | Shared |
| Onboard Audio | Realtek ALC883 |
|---|---|
| Channel | 6-CH |
| First LAN | 10/100/1000 LAN |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| 3.5" Internal bays | 1 |
|---|---|
| 3.5" External bays | 2 |
| 5.25" External bays | 2 |
| Front USB | 4 |
|---|---|
| Front IEEE 1394 | 1 |
| Front Audio Ports | 2 jacks |
| Card Reader | 6 in 1 |
| PS/2 | 2 |
|---|---|
| LPT | 1 |
| VGA | 1 x D-Sub + 1 x DVI |
| HDMI | 1 x HDMI |
| TV-Out | S-Video + RCA |
| Rear USB | 4 |
| Rear IEEE 1394 | 1 |
| RJ45 | 1 |
| Rear Audio Ports | 3 jacks |
| Power Supply | 300W |
|---|
| Package Contents | V3-M2A690G User Manual 3 x Software Disk Power Cord SATA Cable |
|---|
| Date First Available | May 16, 2007 |
|---|
