The WL-520GU wireless router from Asus deserves the word "versatile" in its name. It distinguishes itself from others by adding a built-in printer server, bringing today’s digital home and digital office a simply solution to share MFP printing and scanning functions for multiple users.
This router uses the 802.11g wireless standard, which is backwards compatible with the older 802.11b standard, allowing it to work with a wide range of Wi-Fi-enabled equipment. Asus BroadRange technology provide faster data transfer speeds and better wireless coverage than standard 802.11g, so each user can enjoy the fast wireless access within the range.
Setup is fast and effortless with the easy-to-use ASUS EZ UI, composed of a number of connectivity features including QIS (Quick Internet Setup), Network Map, Dr.Surf, EZQos, 125 High Speed Mode and WDS.
The WL-520GU wireless router from Asus deserves the word "versatile" in its name. It distinguishes itself from others by adding a built-in printer server, bringing today’s digital home and digital office a simply solution to share MFP printing and scanning functions for multiple users.
This router uses the 802.11g wireless standard, which is backwards compatible with the older 802.11b standard, allowing it to work with a wide range of Wi-Fi-enabled equipment. Asus BroadRange technology provide faster data transfer speeds and better wireless coverage than standard 802.11g, so each user can enjoy the fast wireless access within the range.
Setup is fast and effortless with the easy-to-use ASUS EZ UI, composed of a number of connectivity features including QIS (Quick Internet Setup), Network Map, Dr.Surf, EZQos, 125 High Speed Mode and WDS.
All-in-One Print ServerWith a built-in USB port, plug in a USB printer to the Asus WL-520gU, and the router is able to wirelessly share the printing function for multiple users.
IEEE 802.11b/g CompliantCompliant with the IEEE 802.11b/g protocol, the Asus WL-520gU smoothly integrated into any existing wireless network with up to 54 Mbps data transfer speed.

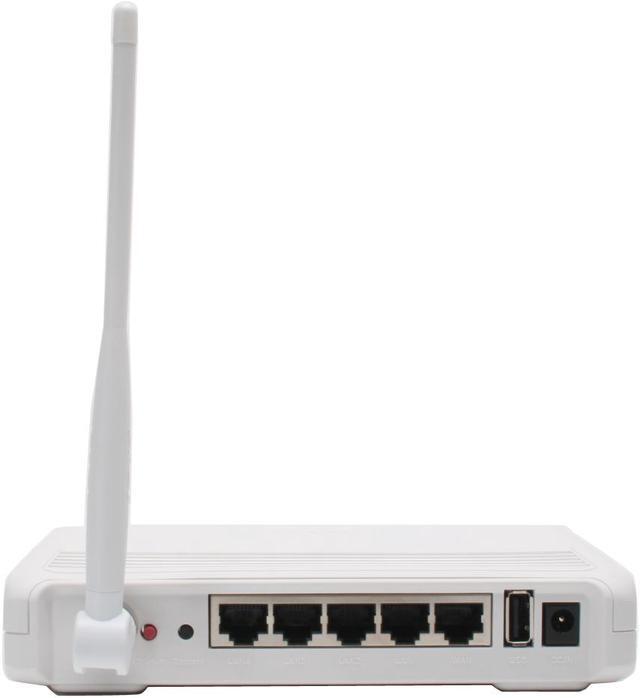

10/100Mbps Network ConnectionThe Asus WL-520gU features a built-in 4-port 10/100Mbps Ethernet switch for direct connections to four PCs or additional switches, and one 10/100Mbps WAN port for broadband Internet connection.
BroadRangeBroadRang triples wireless signal coverage of 802.11g standard by enhancing reception sensitivity. For best result, the client device should support this technology as well. Enjoy smooth wireless connection in every corner of every environment.
125 High Speed Mode125 High Speed Mode increases data transfer speeds of 802.11g standard by 35%. It makes speed reach up to 125Mbps. Wireless sharing of digital content is now faster and easier than ever before.
Wireless SecurityThe Asus WL-520gU supports 64/128-bit WEP, WPA, WPA2, WPA-TKIP/AES, WPA-PSK and WPA-ENT encryption function to enhance transmission security.
Learn more about the ASUS WL-520gU
Model
Brand
ASUS
Model
WL-520gU
Details
Standards
IEEE 802.3/3u/3x, IEEE 802.11b/g
Network Protocols
UPnP, DHCP, DNS Proxy, NTP Client, DDNS, Port Trigger, Virtual Server, Virtual DMZ, VPN Pass-Through, WDS
Security
64/128-bit WEP, WPA, WPA2, WPA-TKIP/AES, WPA-PSK, WPA-ENT, Radius with 802.1x, MAC address filter
WPA
WPA2
WAN Ports
1 x 10/100M
LAN Ports
4 x 10/100M

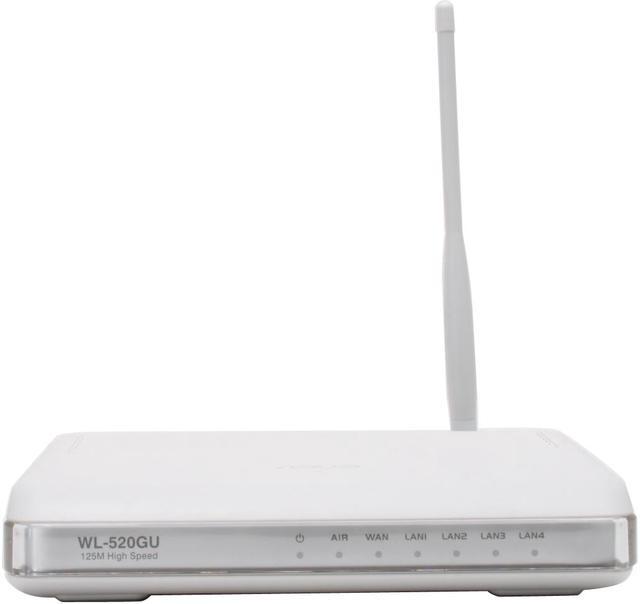

LEDs
Power x 1, AIR x 1, WAN x 1, LAN x 4
Wireless Data Rates
Up to 54Mbps
Frequency Band
2.4 GHz - 2.5 GHz
Antenna
1 x External detachable antenna (Support Antenna Diversity, 1 x Internal antenna on board)
Channels
11 CH (US, Canada), 13 CH (ETSI), 14 CH (Japan)
Interface
USB 2.0
VPN support
IPSec, L2TP, and PPTP VPN pass-through
Power Supply
DC Output: +5V with max. 2A current (Use only the adapter included in the package. Using other adapters may damage the device)
Wireless Adapter included
No
Dimensions
6.5" x 4.6" x 1.2"
Weight
0.58 lbs.
Temperature
0°C - 40°C (32°F - 104°F)
Humidity
50~90%
Features
Features
BroadRange delivers 300% more signal coverage than standard 802.11g.
125 High Speed Mode(HSM) technology enables 135% transfer speed compared to standard 11g product.
Firewall: NAT Firewall, SPI (Stateful Package Inspection) Firewall, WAN ping control, Single Port and Port Range filter, URL based filter, MAC Address filter
Utilities: EZQoS – BODTM (Bandwidth-On-Demand). WMM (Wi-Fi multimedia). Device Discovery: Discover WL520GU in network and help user to invoke Web Configuration page. EZSetup: Help you to setup wireless and Internet connection easily. Firmware Restoration: Restore firmware while system enters rescue mode. Network Printer Setup Program (in utility CD): Share your MFP (multifunction printer) scanning and printing function simultaneously and wirelessly.
All-in-One Printer Server: Wirelessly and simultaneously share printing and scanning functions for multiple users.
