Question 1

Will this work okay in a PCIe 16x slot?

Accepted Answer

Yes.

Generally speaking if a PCIe card physically fits in the slot it will work.  This even applies the other direction (i.e. x4 card in x1 slot) when motherboards have open back slots although obviously maximum throughput will be limited.

There is one caveat to keep in mind.  If you're running a mainstream platform (i.e. AM4 or LGA1151) due to the limited lane count, the second x16 slot is often shared with the main slot through what is known as bifurcation.  If this is the case then inserting a card into that slot will force the GPU into x8.  Refer to the specs/manual for your motherboard to determine which slots share lanes.

Question 2

What is the maximum data transfer speed of the ASUS XG-C100C Network Adapter?

Accepted Answer

The ASUS XG-C100C Network Adapter delivers hyper-fast 10 Gbps networking, providing up to 10X-faster data-transfer speeds for bandwidth-demanding tasks.

Question 3

What operating systems are supported by the ASUS XG-C100C 10G Network Adapter?

Accepted Answer

The ASUS XG-C100C 10G Network Adapter supports Windows 10, 8.1, 8, 7, and Linux Kernel versions 4.4, 4.2, 3.6, and 3.2.

Question 4

does it work well in centos 7?

Accepted Answer

Do not use centos 7? However, works great in about 8 computers.

Question 5

does have WOL (wake on lan)?

Accepted Answer

I spoke to asus support and they said it does if your mobo supports it.

Question 6

I see driver support for Win 7 - 10, but was curious if the matching Server OS (2008 R2 - 2016) would install and function as well?  From experience, the drivers would probably work, but I've seen instances of installers having very rigid version checks, which then requires some hackery to get things to work...

Accepted Answer

I was able to install the drivers that came with the card on Windows Server 2016 with no issues

Standards	IEEE 802.3an 10GBASE-T IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Priority Queuing
Interface	PCI-Express
LEDs	Dual color Speed LED Single color Link / Act LED
Temperature	Operating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit) Storage Temperature: -40 ~ 85 degree Celsius (-40 ~ 185 degree Fahrenheit)

Dimensions	0.81" x 3.33" x 4.72"
Weight	0.20 lb.

Best Sellers

Meet Your Seller

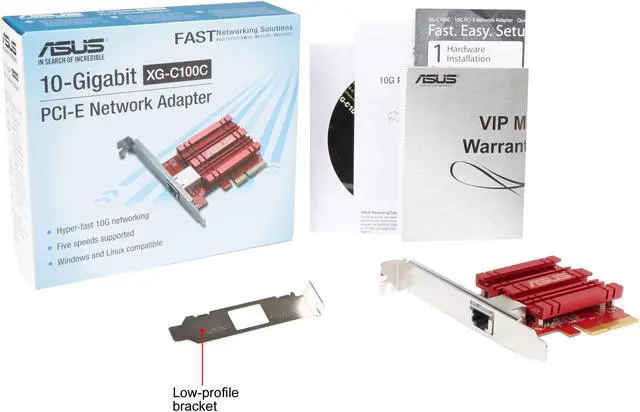

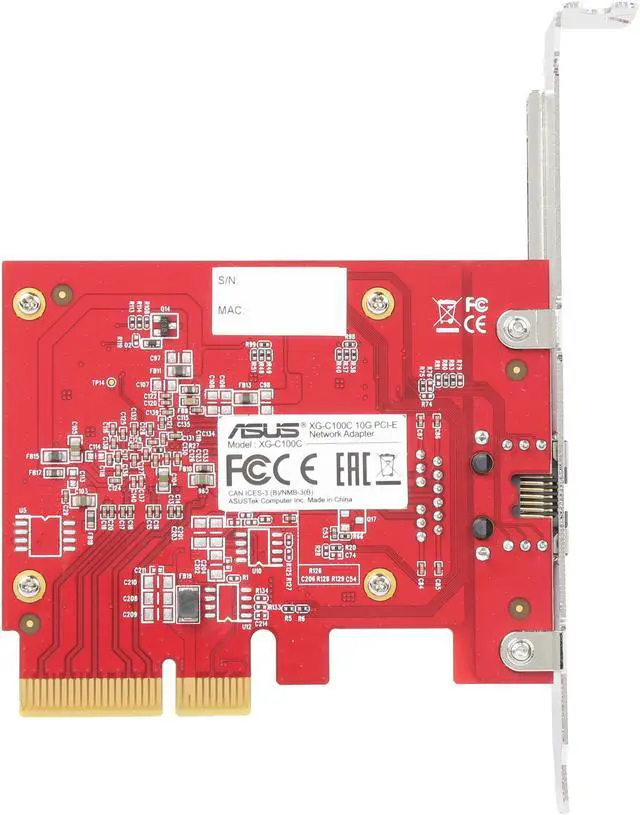

ASUS XG-C100C 10G Network Adapter PCI-E x4 Card with Single RJ-45 Port and built-in QoS for Use with Windows 10 / 8.1 / 8 / 7 and Linux Kernel 4.4 / 4.2 / 3.6 / 3.2 (XG-C100C), TAA Compliant

Learn more about the ASUS XG-C100C

Customer Reviews of the ASUS XG-C100C

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Model
Brand	ASUS
Model	XG-C100C

Item#: 9SIAK14M0K5866
