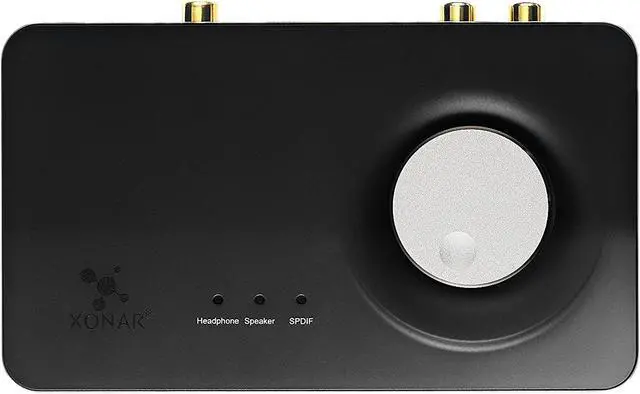

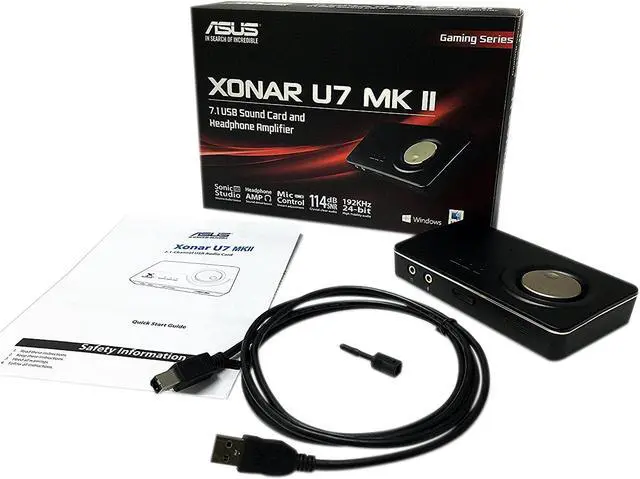

ASUS Xonar U7 MKII 7.1 USB DAC with Headphone Amplifier

Name: ASUS Xonar U7 MKII 7.1 USB DAC with Headphone Amplifier
Brand: ASUS
SKU: N82E16829132083
Rating: 3 (2 reviews)

7.1 Channels
24-bit Analog Playback Sample Rate and Resolution: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit
Analog Recording Sample Rate and Resolution: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit
S/PDIF Digital Output: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit
USB 2.0 high-speed / USB 1.0 for playback Interface

Overview

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Audio Chipset	C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 192 KHz/24bit)
Channels	7.1
Sample Rate	Analog Playback Sample Rate and Resolution: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit Analog Recording Sample Rate and Resolution: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit S/PDIF Digital Output: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit
Digital Audio	24-bit
SNR	Output Signal-to-Noise Ratio (A-Weighted) (Front-out): 114dB Input Signal-to-Noise Ratio (A-Weighted): 110dB Output THD+N at 1 KHz (Front-out): > 0.0006 % (104dB)

Line In	1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)

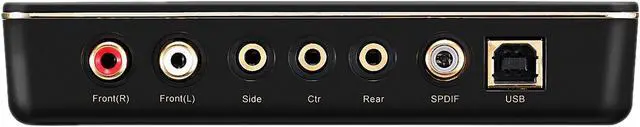

Line Out	4 x 3.5 mm jack (1/8") (Headphone out / Side out / Center-Subwoofer out / Rear out) 2 x RCA (Un-Balanced)
SPDIF Out	1 x S/PDIF out (1 x Coaxial)
MIC In	Yes

Dimensions	0.98" x 3.15" x 5.12"
Weight	1.41 lbs.

Interface	USB 2.0 high-speed / USB 1.0 for playback
Operating Systems Supported	Windows 10 Windows 8.1 Windows 7 Mac OS X
