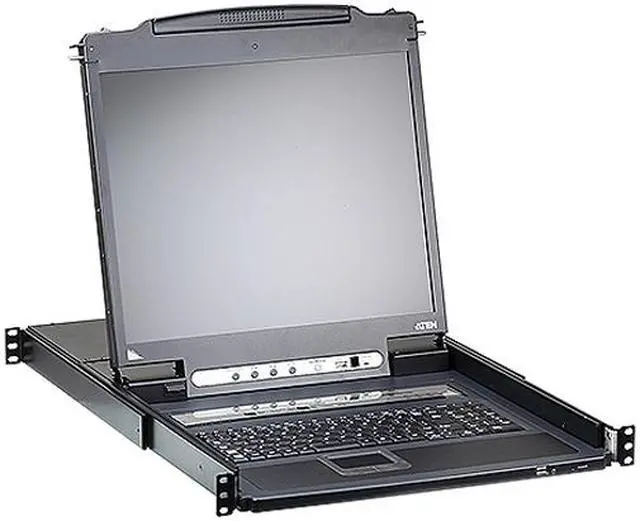

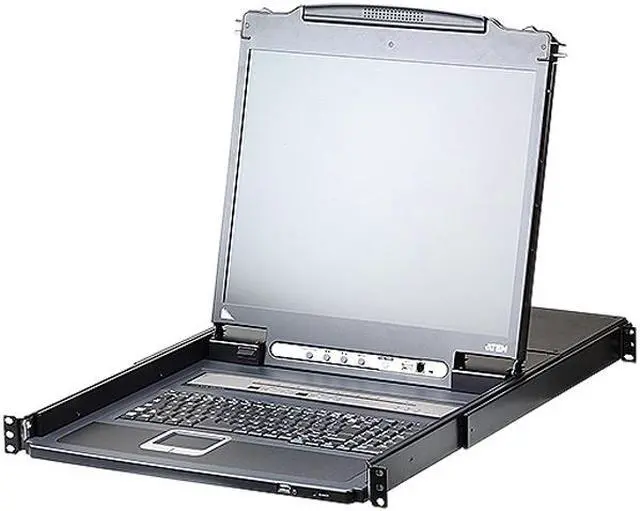

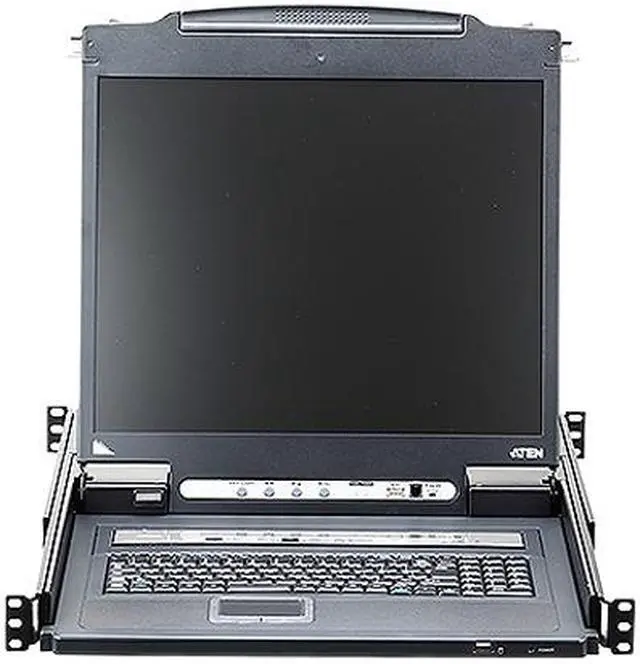

ATEN CL5708iN 8-Port 19" LCD Integrated IP KVM USB/PS2 Combo
- Direct: 8
- Maximum: 128 (via Daisy-chain) Computer Connections
- Video Resolution 1920 x 1200 @60 Hz
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ATEN CL5708iN
| Brand | ATEN |
|---|---|
| Model | CL5708iN |
| Type | D-Sub, USB, PS/2 |
|---|---|
| PC Connectors | External Console Ports: 1 x SPHD-18 Male (Yellow) External Mouse Port: 1 x USB Type-A Female USB Port: 1 x USB Type-A Female KVM Ports: 8 x SPHD-17 Female Daisy Chain Ports: 1 x DB-25 Male Firmware Upgrade: 1 x RJ-11 Female LAN Ports: 1 x RJ-45 Female Power: 1 x IEC 60320/C14 |
| Console Connectors | Local: 1 (Share Remote Bus) Remote: 1 |
| Computer Connections | Direct: 8 Maximum: 128 (via Daisy-chain) |
| Video Resolution | 1920 x 1200 @60 Hz |
| LED Indicators | Online: 8 x (Orange) Port ID: 1 x 2-digit, 7-segment (Yellow) Station ID: 1 x 2-digit, 7-segment (Yellow) 10/100 Mbps: 1 x (Orange/Green) Power: 1 x (Dark Green) Lock: 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| Features | Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway housing Space saving technology - up to two consoles (one bus) control up to 8 computers Daisy chain up to 15 additional units – control up to 128 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A) Extra console port – manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse) Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions Dual Interface - supports computers and console with PS/2 or USB keyboards and mice LCD module USB port allows connected computers to access USB peripherals* Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position Hot pluggable - add or remove computers without having to power down the switch Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere Supports multimedia USB keyboards for Windows, Mac and Sun Supports external USB mouse Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution Rack mountable in a 1U system rack LCD module rotates up to 115 degrees for a more comfortable viewing angle * The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections. |
|---|
| Dimensions | 27.13" x 18.90" x 1.73" |
|---|---|
| Weight | 29.54 lbs. |
| First Listed on Newegg | December 28, 2017 |
|---|
