ATEN CL5716M 17" LCD 16 Port PS/2 USB Combo KVM with Peripheral Sharing Technology

Be the first to review this product...

16 Ports Computer Connections
AutoScan Interval 1-255 sec.
Video Resolution 1280 x 1024

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

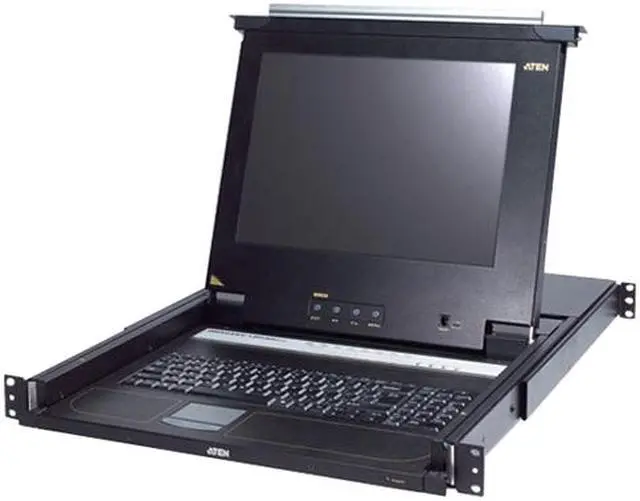

The CL5716 Slideaway LCD KVMP Switch is an integrated LCD console and keyboard, video, and mouse (KVM) switch that offers secure access to 16 attached computers and mounts in only 1U of rack space. It features independently retractable 19? LCD monitor and keyboard with built-in touchpad. The CL5716 incorporates a single USB hub for sharing USB devices on a one at a time basis among first tier servers, this allows updates, and software installations to be performed from the common console, no need to connect an external drive to each server, or interfere with your network traffic.

The CL5716 Slideaway LCD KVMP Switch is an integrated LCD console and keyboard, video, and mouse (KVM) switch that offers secure access to 16 attached computers and mounts in only 1U of rack space. It features independently retractable 19? LCD monitor and keyboard with built-in touchpad. The CL5716 incorporates a single USB hub for sharing USB devices on a one at a time basis among first tier servers, this allows updates, and software installations to be performed from the common console, no need to connect an external drive to each server, or interfere with your network traffic.

Model
Brand	ATEN
Model	CL5716M

Details
Type	USB, PS/2
PC Connectors	Power 3 prong AC Socket Computer/KVM 16 x SPHD-15 Female (Yellow) USB 1 x USB Type-A Female (White)
Console Connectors	Keyboard, Mouse, and Monitor 1 x SPHD-18 M Flash ROM Upgrade 1 x RJ-11 F Mouse 1 x USB Type-A Female (White)
Computer Connections	16 Ports
Video Resolution	1280 x 1024
PC Selection	Push Buttons/Hot Keys/OSD
AutoScan Interval	1-255 sec.
LED Indicators	Port ID 2 x 7-segment LED (Yellow) Power On 1 (Dark Green) LCD Power 1 (Orange) Station ID 2 x 7-segment LED (Yellow) On Line 16 (Orange)

Environmental
Temperature	Operation 32~122 F(0~50 C) Storage -4~140F (-20~60C)
Humidity	0% to 80%,Non-Condensing

Features
Power Features	100-240 V AC, 1 A
Features	Space saving technology-up to two consoles (one bus) control up to 8/16 computers Extra console port-manage computers in the LCD KVM switch from an external console Dual interface-supports PS/2 and USB keyboards and mice in the KVM Ports Supports external USB mouse USB peripheral support for attached computers Convenient station and port selectors, each with two 7-segment LED displays Dedicated Hotkey Mode and OSD Invocation Keys Convenient computer selection via mouse-driven OSD Console lock- locks the console draw to remain securely locked away when not in use Daisy chain up to 31 additional KVM switches to control up to 256 computers No software required Hot pluggable-add or remove computers without powering down the switch OSD port list automatically expands when new stations are added Auto Scan Mode enables continuous monitoring of user-selected computers Security-Administrator/User password authorization for enhanced security protection; Two level password security-only authorized users can view and control computers OSD screen automatically adjusts to resolution changes Supports Windows, Sun, Linux, Mac, Unix, Netware, AIX (RS6000), and DOS 6.2 and later Standard 105-key keyboard Video resolutions up to 1280 x 1024@ 75Hz.

Dimensions & Weight
Dimensions	24.9" x 1.7" x 18.9"
Weight	31.3 lbs.

Additional Information
First Listed on Newegg	May 28, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
