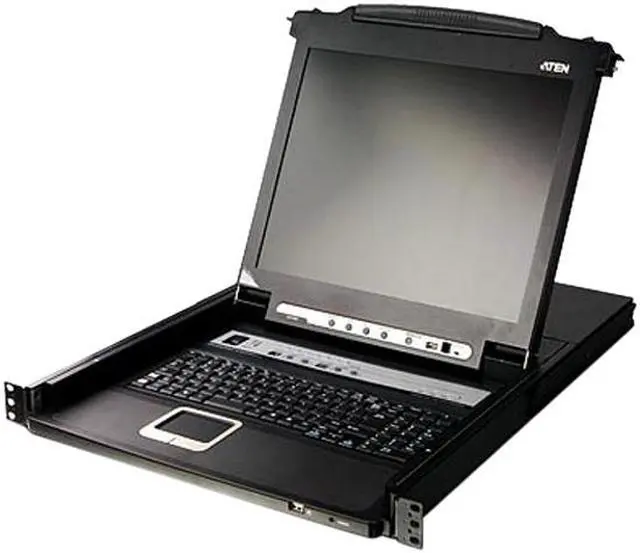

ATEN CL5716N 16-Port Slideaway 19in. Single Rail LCD KVM

Be the first to review this product...

16 Ports Computer Connections
Video Resolution 1280 x 1024

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The CL5716 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

The CL5716 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

Model
Brand	ATEN
Model	CL5716N

Details
Type	USB, PS/2
Console Connectors	Keyboard, Mouse, and Monitor: 1 x SPHD-18 M Flash ROM Upgrade: 1 x RJ-11 F Mouse: 1 x USB Type-A Female (White) Daisy Chain: 1 x DB-25 M
Computer Connections	16 Ports
Video Resolution	1280 x 1024
PC Selection	Push Buttons/Hot Keys/OSD
LED Indicators	Port ID: 2 x 7-segment LED (Yellow) Power On: 1 (Dark Green) LCD Power: 1 (Orange) Station ID: 2 x 7-segment LED (Yellow) On Line: 16 (Orange)

Environmental
Temperature	0ºC to 50ºC(32ºF to 122ºF)
Humidity	0% to 80%,Non-Condensing

Features
Power Features	Power Consumption: 27.5W : 95 BTU/h; 23W : 78 BTU/h
USB Features	1 x USB Type-A Female (White)
Features	Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions Integrated KVM console with 19" LED-backlit LCD monitor in a Slideaway housing Available with or without Fingerprint Identification Reader Space saving technology - up to two consoles (one bus) control up to 16 computers Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A) Dual Interface - supports computers and console with PS/2 or USB keyboards and mice LCD module USB port allows each computer to access USB peripherals LCD module rotates up to 115 degrees for a more comfortable viewing angle Multiplatform support - Windows, Linux, Mac, and Sun Supports multimedia USB keyboards for PC, Mac and Sun Auto PS/2 and USB interface detection Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere Supports external USB mouse Superior video quality - supports resolutions up to 1280 x 1024 at 75 Hz No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position Port names automatically reconfigured when station sequence is changed Two level password security - only authorized users can view and control computers Supports one administrator and four user accounts with separate profiles Auto Scan mode enables continuous monitoring of user-selected computers Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation Hot pluggable - add or remove computers without having to power down the switch

Dimensions & Weight
Dimensions	1.70" x 18.90" x 24.90"
Weight	31.30 lbs.

Additional Information
Date First Available	April 16, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
