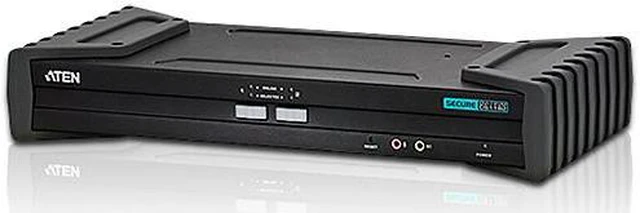

ATEN CS1182 2-port USB DVI Secure KVM Switch
- 2 Ports Computer Connections
- 1 Port Monitor Connections
- Video Resolution 2560 x 1600
+
+
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the ATEN CS1182
| Brand | ATEN |
|---|---|
| Model | CS1182 |
| Type | DVI, USB |
|---|---|
| PC Connectors | Keyboard / Mouse: 2 x USB Type-B Female (White) Video: 2 x DVI-I Dual Link Female (White) Speaker: 2 x Mini Stereo Jack Female (Green) Microphone: 2 x Mini Stereo Jack Female (Pink) |
| Console Connectors | Keyboard: 1 x USB Type-A Female (Black) Video: 1 x DVI-I Dual Link Female (White) Mouse: 1 x USB Type-A Female (Black) Speaker: 2 x Mini Stereo Jack Female (Green;1 x front panel,1 x rear panel) Microphone: 2 x Mini Stereo Jack Female (Pink;1 x front panel,1 x rear panel) |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2560 x 1600 |
| PC Selection | 2 x Pushbuttons |
| LED Indicators | Power: 1 (Blue) On Line: 2 (Green) Selected: 2 (Orange) |
| Temperature | Operating Temp: 0-40°C Storage Temp: -20-60°C |
|---|---|
| Humidity | 0 - 80% RH, Non-condensing |
| Power Features | Power Consumption: 120V / 5.1W; 230V / 5.1W |
|---|---|
| USB Features | with USB support |
| Features | 2-port USB DVI Dual-Link Secure KVM Switch Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security One USB console controls 2 secure computers NIAP-certified — validated to Common Criteria EAL2+ security requirements Restricted USB connectivity — non HIDs (Human Interface Devices) are ignored when switching Isolated channel per port — makes it impossible for data to be transferred between computers Tamper-evident tape – provides a visual indication of any attempt to gain access to the switch’s internal components Chassis intrusion detection — if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash Tamper-proof hardware — all integrated circuits are soldered directly to the circuit board to prevent tampering with the components Non-reprogrammable ROM — prevents tampering and attempts to reprogram the switch’s firmware Clears keyboard buffer — keyboard data is automatically cleared after transmission to the switch Video DynaSync — stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution Multiplatform support — Windows, Linux, Mac, and Sun Superior video quality — 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A) Rugged metal enclosure Built-in internal power Speaker and microphone support |
| Dimensions | 13.74" x 6.65" x 2.39" |
|---|---|
| Weight | 4.54 lbs. |
| First Listed on Newegg | October 13, 2026 |
|---|
