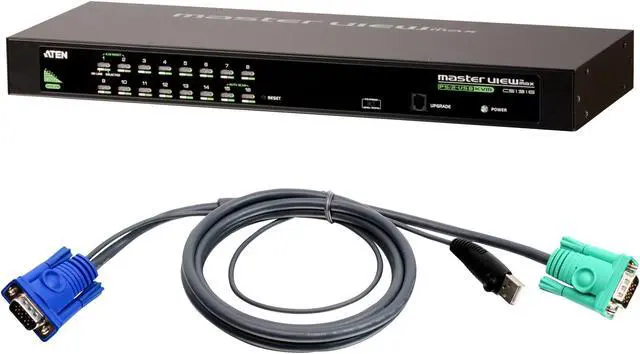

ATEN CS1316KIT 16-port USB/PS2 KVM Switch w/ 16 USB Cables

Be the first to review this product...

16 Ports Computer Connections
1 Port Monitor Connections
AutoScan Interval 1-255 Seconds
Video Resolution 2048 x 1536; DDC2B

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

This Sku combines following items

CS1316 16-port USB/PS2 Combo KVM Switch

4-2L5201U 4 ft. USB KVM Cable
8-2L5202U 6 ft. USB KVM Cable
4-2L5203U 10 ft. USB KVM Cable

MAIN OVERVIEW FEATURES: Number of Computers Supported: 16Maximum Video Resolution: 2048 x 1536Management Port: YesForm Factor: Rack-mountableRack Height: 1UHeight: 1.7"Width: 17"Depth: 6.3"Weight (Approximate): 4.60 lbPackage Contents: CS1316KIT KVM Switch1 x Console Cable1 x Firmware Upgrade Cable1 x Grounding Wire1 x Foot Pad Set (4 Pads)1 x Power Adapter (AC Models)1 x User Manual1 x Quick Start Guide4 x 4 ft. USB KVM Cable8 x 6 ft. USB KVM Cable4 x 10 ft. USB KVM CableEnvironmentally Friendly: YesEnvironmental Certification: RoHS,WEEE

Model
Brand	ATEN
Model	CS1316KIT

Details
Type	D-Sub, USB, PS/2
PC Connectors	Keyboard, Mouse, and Monitor: 16 x SPHD-15 Female (Yellow)
Console Connectors	Keyboard, Mouse, and Monitor: 1 x SPHD-18 Male (Yellow) Flash ROM Upgrade: 1 x RJ-11 Female (Black)
Computer Connections	16 Ports
Monitor Connections	1 Port
Video Resolution	2048 x 1536; DDC2B
PC Selection	Push Buttons/Hot Keys/OSD
AutoScan Interval	1-255 Seconds
LED Indicators	On Line: 16 (Orange) Selected: 16 (Green) Power On: 1 (Dark Green)

Environmental
Temperature	Operation: 32-122 F degree (0-50 C degree) Storage: -4-140 F degree (-20-60 C degree)
Humidity	0-80% RH, Non-condensing

Features
Features	One USB-PS/2 console controls 16 computers Cascade up to 2 levels - control up to 256 computers Dual Interface - supports computers with PS/2 or USB keyboards and mice Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun Supports multimedia USB keyboards for PC, Mac and Sun Auto PS/2 and USB interface detection USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere Superior video quality - up to 2048 x 1536; DDC2B Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each Auto Scan feature for monitoring user-selected computers Hot pluggable - add or remove computers without having to power down the switch

Dimensions & Weight
Dimensions	17.0" x 6.3" x 1.7"
Weight	4.2 lbs.

Additional Information
First Listed on Newegg	February 04, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
