ATEN CS1708 8 port USB KVM Switch

(1) Write a Review
  • 8 Ports Computer Connections
  • 1 Port Monitor Connections
  • AutoScan Interval 1 - 255 secs. (default 5 secs.)
  • Video Resolution 2048 x 1536
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ATEN CS1708

Model
Brand ATEN
Model CS1708
Details
Type D-Sub

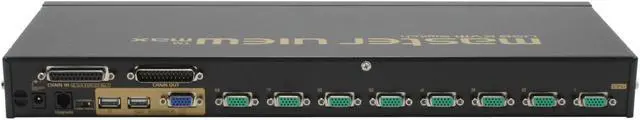

PC Connectors 8 x SPHD-15 Female
Console Connectors Keyboard: 1 x USB Type A
Video: 1 x HDB15 Female
Mouse: 1 x USB Type A
Computer Connections 8 Ports
Monitor Connections 1 Port
Video Resolution 2048 x 1536
PC Selection Hotkeys, OSD
AutoScan Interval 1 - 255 secs. (default 5 secs.)
Environmental
Temperature 0ºC to 50ºC(32ºF to 122ºF)
Humidity 0% to 80%,Non-Condensing
Features
Power Features DC 5V, 5.5W
USB Features with USB support
Features Control 8 Pure USB computers with one USB K/B, one USB mouse, and one VGA monitor.
Daisy chain up to 31 additional units - Control up to 256 computers from a single console
Supports multimedia USB keyboards (PC, Mac and Sun).
Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable.
OSD is mouse driven for quick and convenient navigation of the menu.
OSD selection for OS and keyboard language.
Security - administrator / user password authorization for enhanced security protection (PSP).
Buzzer ON/OFF via hotkey and OSD.
Broadcast Mode: Operations simulaneously performed on all selected computers, software installation and upgrading, system wide shutdown....etc
ATEN USB ASIC Inside.

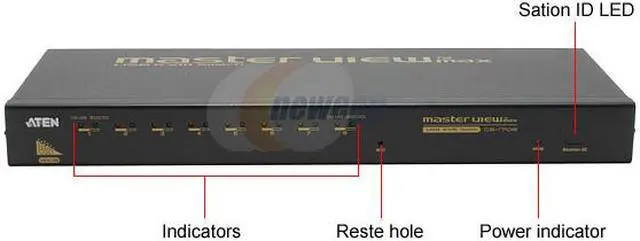

Auto-sensing of station's position on daisy chained installations - no need for manual DIP switch setting - front panel LED indicates station's position
Superior video quality - up to 2048 x 1536; DDC2B
Rack mountable in 19" system rack
OS Compatibility:WIN98?WIN ME?WIN 2K?WIN 2003?WIN XP?LINUX?Mac OS 8.6/9/10 and SUN Solaris 8/9.
For more information about KVMs which can connect to CS-1708, see Compatible KVM Table.
Dimensions & Weight
Dimensions 17.0" x 6.3" x 1.7"
Weight 6.02 lbs.
Package Contents
Package Contents 1x 8 Port KVM Switch
2x USB KVM Cables
1x Firmware Upgrade Cable
1x Power Adapter
1x Rack Mount Kit
1x User Manual
1x Quick Start Guide
Additional Information
Date First Available August 23, 2005
