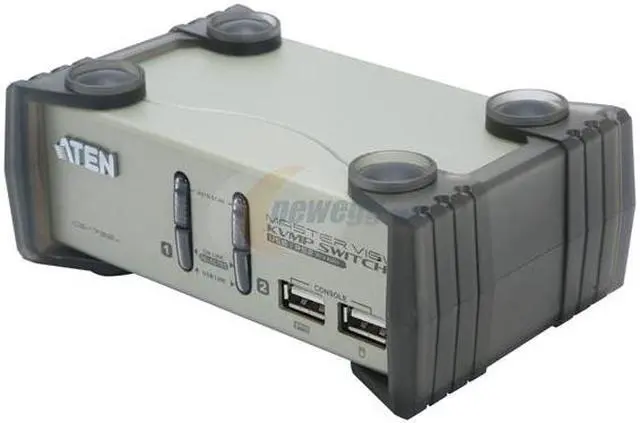

Main image of ATEN CS1732 2-Port USB KVMP Switch with Audio Support

Alt view image 2 of 5 - ATEN CS1732 2-Port USB KVMP Switch with Audio Support

Alt view image 3 of 5 - ATEN CS1732 2-Port USB KVMP Switch with Audio Support

Alt view image 4 of 5 - ATEN CS1732 2-Port USB KVMP Switch with Audio Support

Alt view image 5 of 5 - ATEN CS1732 2-Port USB KVMP Switch with Audio Support

Shop All ATEN Products

ATEN CS1732 2-Port USB KVMP Switch with Audio Support

Be the first to review this product...

2 Ports Computer Connections
1 Port Monitor Connections
AutoScan Interval 5 sec.
Video Resolution 2048 x 1536

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

CS1732A 2 Port KVM Switch has built-in USB on each of the front and rear panels and audio signal connectors. It allows users to control the computer and peripheral devices via a signal console at ease.Number of Computers Supported: 2Maximum Video Resolution: 2048 x 1536USB: YesVGA: YesNumber of USB Ports: 4Number of VGA Ports: 1Form Factor: DesktopHeight: 2.2Width: 3.4"Depth: 5.5"Weight (Approximate): 1.08 lb"

Model
Brand	ATEN
Model	CS1732

Details
Type	D-Sub, USB

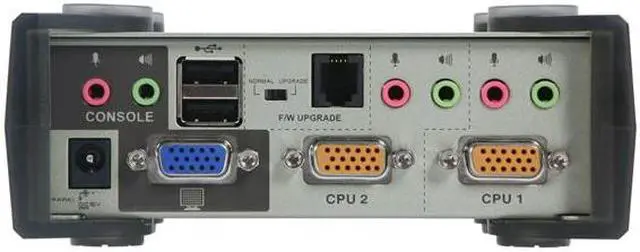

PC Connectors	Keyboard, Mouse, and Monitor 2 x SPDB15 Peripherals 2 x USB Type A Audio 2 x stereo speaker; 2 x Microphone
Console Connectors	Monitor 1 x HDB-15 Female (Std. VGA/SVGA) Mouse 1 x USB Type A Audio 1 x stereo speaker; 1 x Microphone Flash ROM Upgrade 1 x RJ11 socket Keyboard 1 x USB Type A
Computer Connections	2 Ports
Monitor Connections	1 Port
Video Resolution	2048 x 1536
PC Selection	Push Buttons/Hot Keys
AutoScan Interval	5 sec.
LED Indicators	Selected 2 On Line 2 USB Peripherals 2

Environmental
Temperature	Operating: 4 - 40 °C Storage : -20 - 60 °C
Humidity	0% to 80%,Non-Condensing

Features
Audio Features	with Audio
USB Features	with USB support
Features	One console controls two computers and two additional USB 1.1 devices Capable of independent (asynchronous) switching of KVM and peripheral USB ports Dual interface - supports computers with PS/2 or USB keyboards and mice Computer selection via front panel switches or Hotkeys Supports PC, Mac, and Sun systems Superior video quality; 2048 x 1536; DDC2B Fully compliant with USB 1.1 specification Firmware upgradable for life Hi Tech Pure USB KVMP Switch. No PS/2 to USB Conversion! Audio enabled

Dimensions & Weight
Dimensions	2.25" x 7" x 9.5"

Additional Information
First Listed on Newegg	May 11, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
