HI, IS THIS UNIT WINDOWS 7 AND 8 COMPATIBAL?

Yes. I have been using 3 of these KVMP switches for multiple Windows 7 64-bit and 32-bit systems for over a year. The basic operation of the switch, at least for manual switching by presing the buttons, does not depend on the operating system(s) of the computers as long as they support USB 2.0 and DVI video, so this switch should work fine with systems running Windows 8.

My set up is like so... comp1 & comp2 - dual dvi outputs (one cord for each monitor) will this switch recognize that inputs 1 and 2 are from Comp1 and inputs 3 and 4 are from Comp2?

No..I'm afraid. You need a DUAL-MONITOR KVM (They cost more!!) The ATEN CS1764a has ONE Monitor INPUT. When you switch, it switches OUT to ONE Monitor via the cable. You Might try splitting the monitor OUTPUT with a DVI splitter adapter...but then you're in strange territory between Windows and the KVM. Odd are, it won't Work.

What is the maximum video resolution supported by the ATEN CS1764A?

The maximum video resolution supported by the ATEN CS1764A is 1920 x 1200.

What types of connectors does the ATEN CS1764A KVM Switch support?

The ATEN CS1764A KVM Switch supports DVI-I, USB, and Mini Stereo Jack connectors for both PC and console connections.

Out of stock

$304^.99

Free 30-day Returns

Most customers receive within 3-9 days.

Sold by Technology Galaxy

Hot Seller

4.1 (2,348 seller ratings)

Shipped by Technology Galaxy

Price alert

Add to wish list

Best Sellers

Compute4Less Corp

Hot Seller

3.6 (354 total ratings)

$277^.42
+ FREE SHIPPING

NothingButSavings

Top Rated

4.5 (9,001 total ratings)

$259^.56

Meet Your Seller

Technology Galaxy

See Seller Store

More Resources

ATEN;CS1764A;CS1762 / CS1764A - SWS, a.s.

ATEN;CS1764A;CS1762A / CS1764A

ATEN;CS1764A;CS1762A/CS1764A - Aten

ATEN;CS1764A;CS1762 / CS1764A - SWS, a.s.

ATEN;CS1764A;CS1762A / CS1764A

ATEN;CS1764A;CS1762A/CS1764A - Aten

ATEN;CS1764A;CS1762A / CS1764A

ATEN;CS1764A;CS1762 / CS1764A - SWS, a.s.

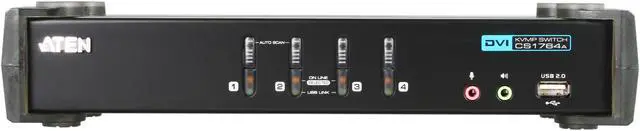

Main image of ATEN CS1764A 4-Port USB DVI / Audio KVMP Switch

100%

Alt view image 2 of 6 - ATEN CS1764A 4-Port USB DVI / Audio KVMP Switch

Alt view image 3 of 6 - ATEN CS1764A 4-Port USB DVI / Audio KVMP Switch

Alt view image 4 of 6 - ATEN CS1764A 4-Port USB DVI / Audio KVMP Switch

Alt view image 5 of 6 - ATEN CS1764A 4-Port USB DVI / Audio KVMP Switch

Alt view image 6 of 6 - ATEN CS1764A 4-Port USB DVI / Audio KVMP Switch

360^°

Shop All ATEN Products | Visit Technology Galaxy Store

ATEN CS1764A 4-Port USB DVI / Audio KVMP Switch

(20) Write a Review

4 Ports Computer Connections
1 Port Monitor Connections
AutoScan Interval 1-99 secs. (5 secs. default)
Video Resolution 1920 x 1200

Overview

Specs

Reviews (20)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

The CS1764A KVM Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI). In addition, the CS1764A comes with ATEN's new Video DynaSync technology.

Model
Brand	ATEN
Model	CS1764A

Details
Type	DVI, USB

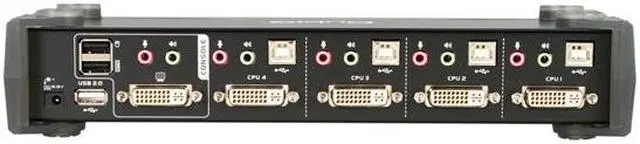

PC Connectors	DVI-I, USB, Mini Stereo Jack 4 x stereo speaker; 4 x Microphone
Console Connectors	DVI-I, USB, Mini Stereo Jack
Computer Connections	4 Ports
Monitor Connections	1 Port
Video Resolution	1920 x 1200
PC Selection	Push Buttons/Hot Keys
AutoScan Interval	1-99 secs. (5 secs. default)
LED Indicators	Selected: 4 USB Peripherals: 4

Environmental
Temperature	Operation Temperature: 32F~122F (0C~50C) Storage Temperature: -4F~140F (-20C ~ +60C)
Humidity	0 ~ 80% RH, Non-condensing

Features
Power Features	Power Consumption: 10.07W / 34.4 Btu/hour Voltage: DC 5.3V Amps: 2A
Features	One USB console controls four DVI computers and two additional USB 2.0 devices Fully compliant built in 2-port USB 2.0 hub. Computer selection via front panel pushbuttons or hotkeys Audio enabled - full bass response 2.1 channel sound Multiplatform support - Windows 2000 / XP / Vista, Linux, Mac, and Sun Superior video quality - 1920 x 1200, 60Hz; DDC2B Independent switching of KVM, USB, and Audio focus DVI digital and analog monitor support - fully compliant with the DVI specifications HDCP compliant Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to automatically optimize display resolution and refresh rate Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer Console mouse port emulation/bypass supports multifunction / programmable mice Mac/Sun keyboard support and emulation Auto Scan Mode for monitoring all computers Firmware upgradeable via USB

Dimensions & Weight
Dimensions	10.6" x 3.4" x 2.2"
Weight	2.2 lbs.

Package Contents

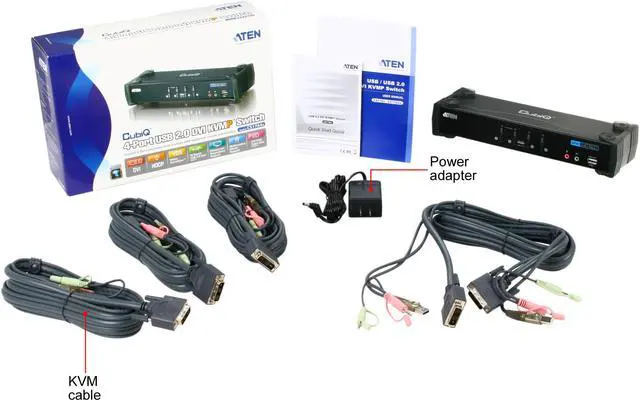

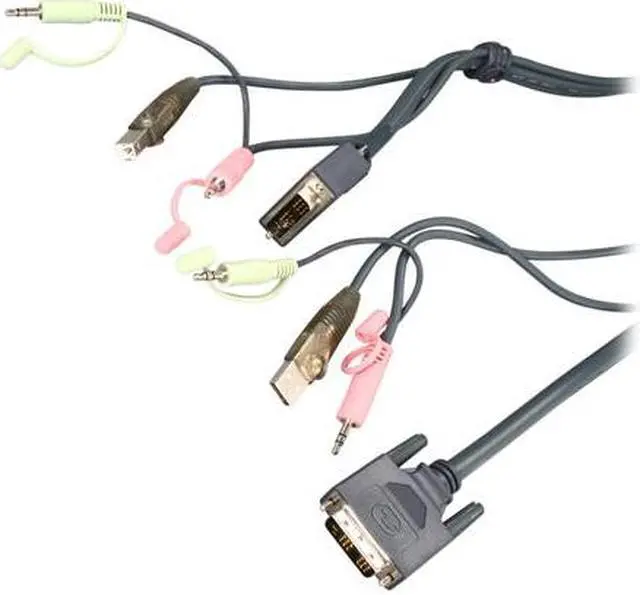

Package Contents	1 x CS1764A USB 2.0 DVI KVMP Switch 4 x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft) 1 x Power Adapter 1 x User Instructions

Additional Information
First Listed on Newegg	February 12, 2025
