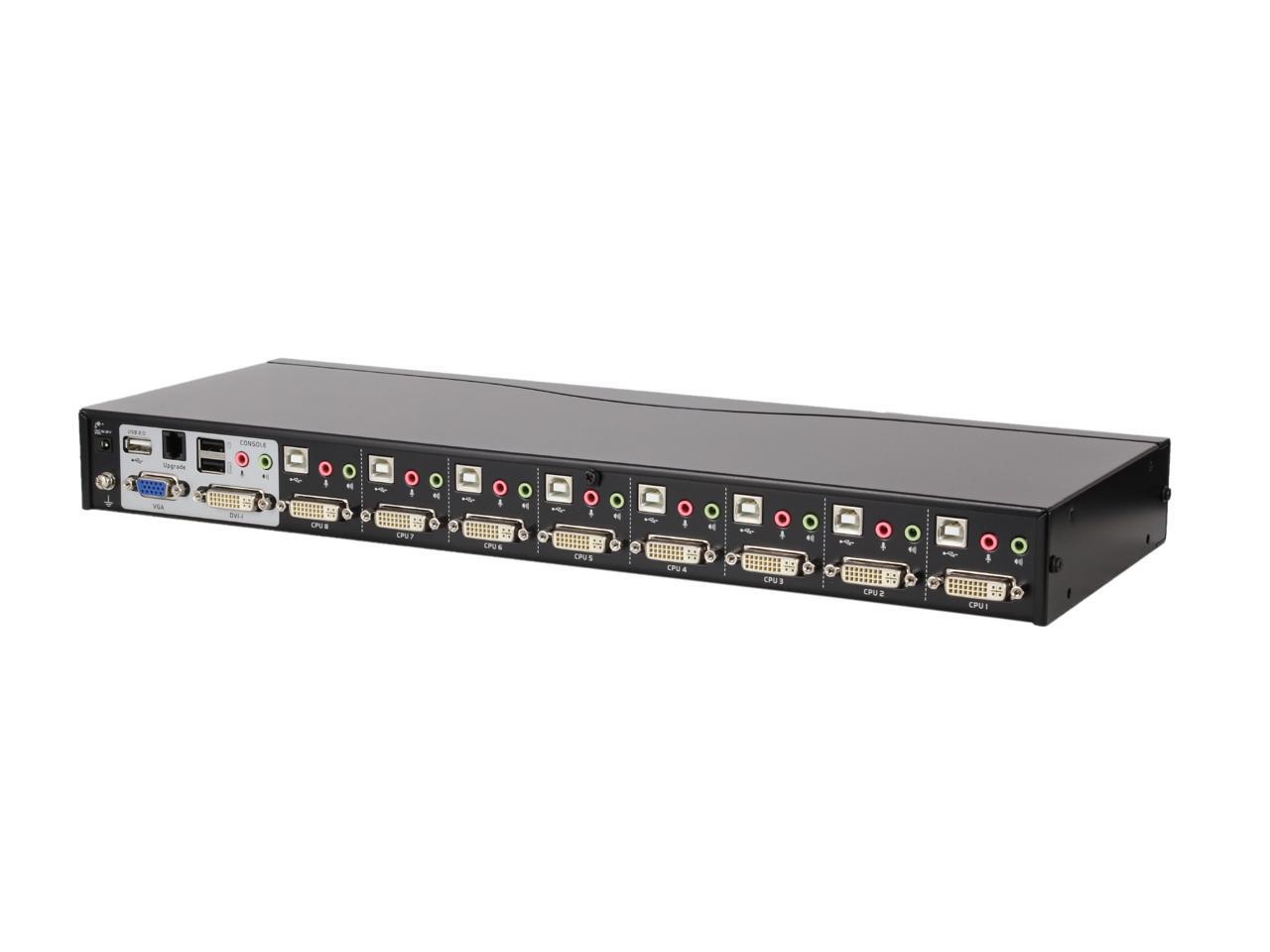

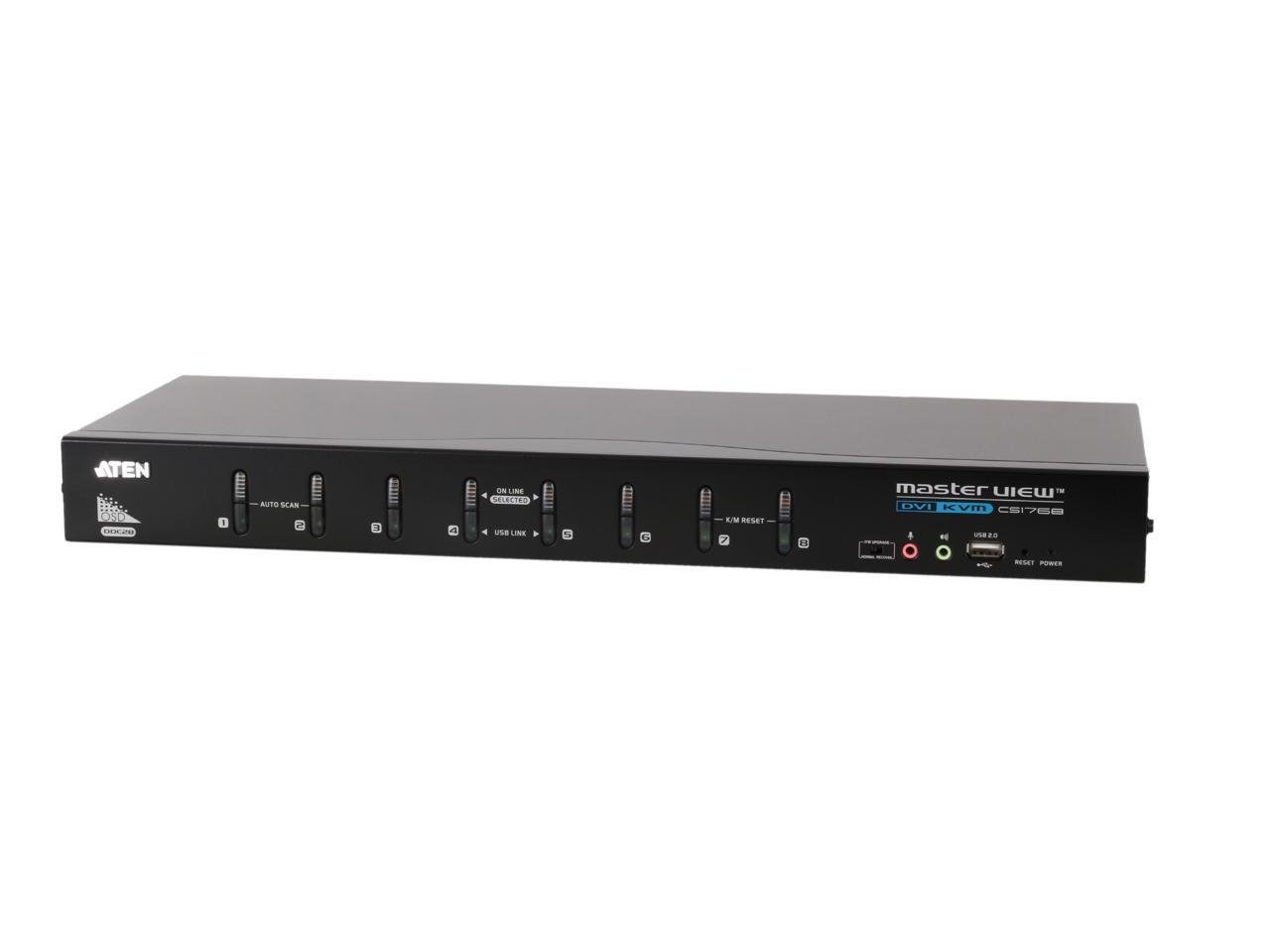

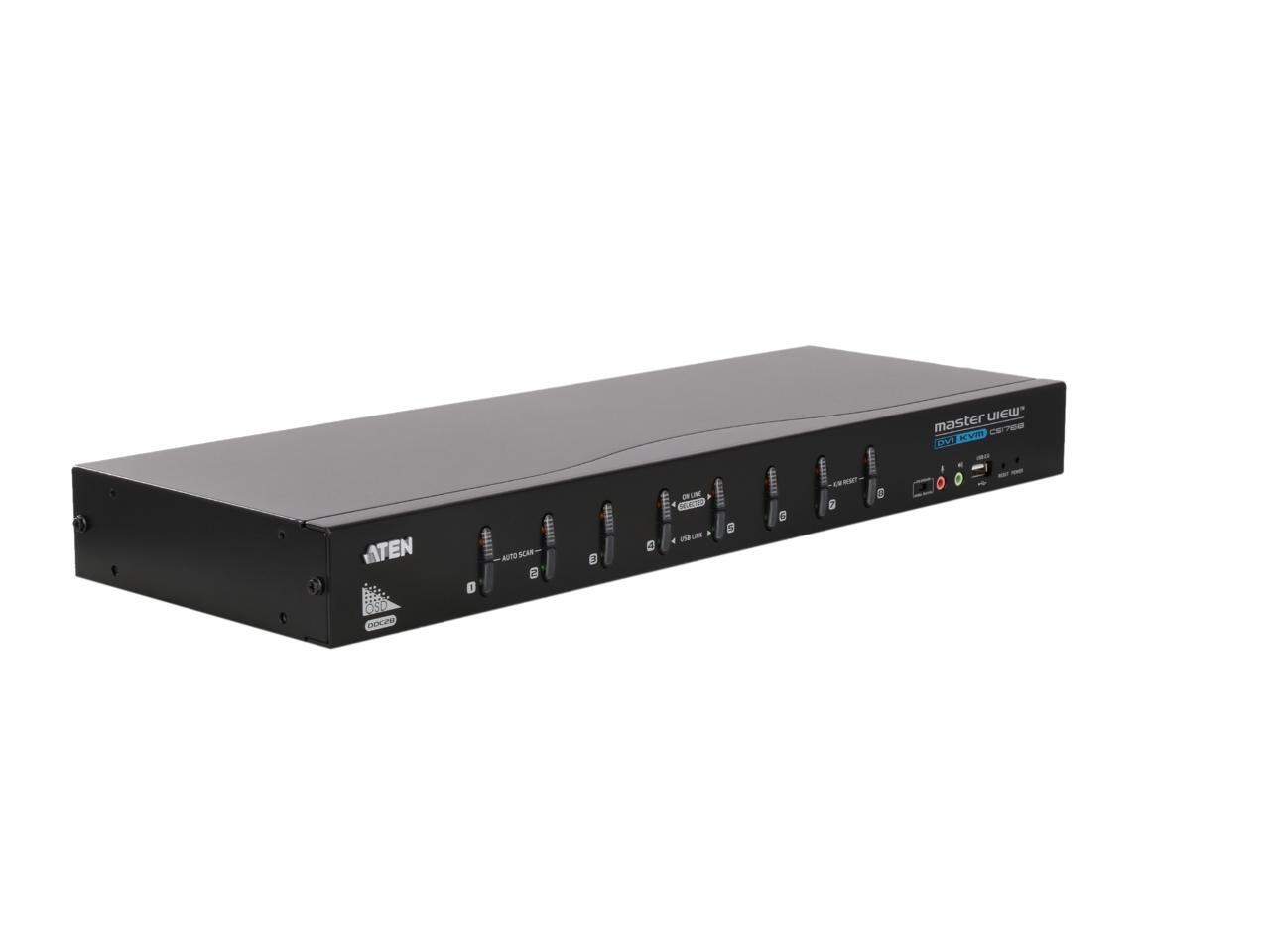

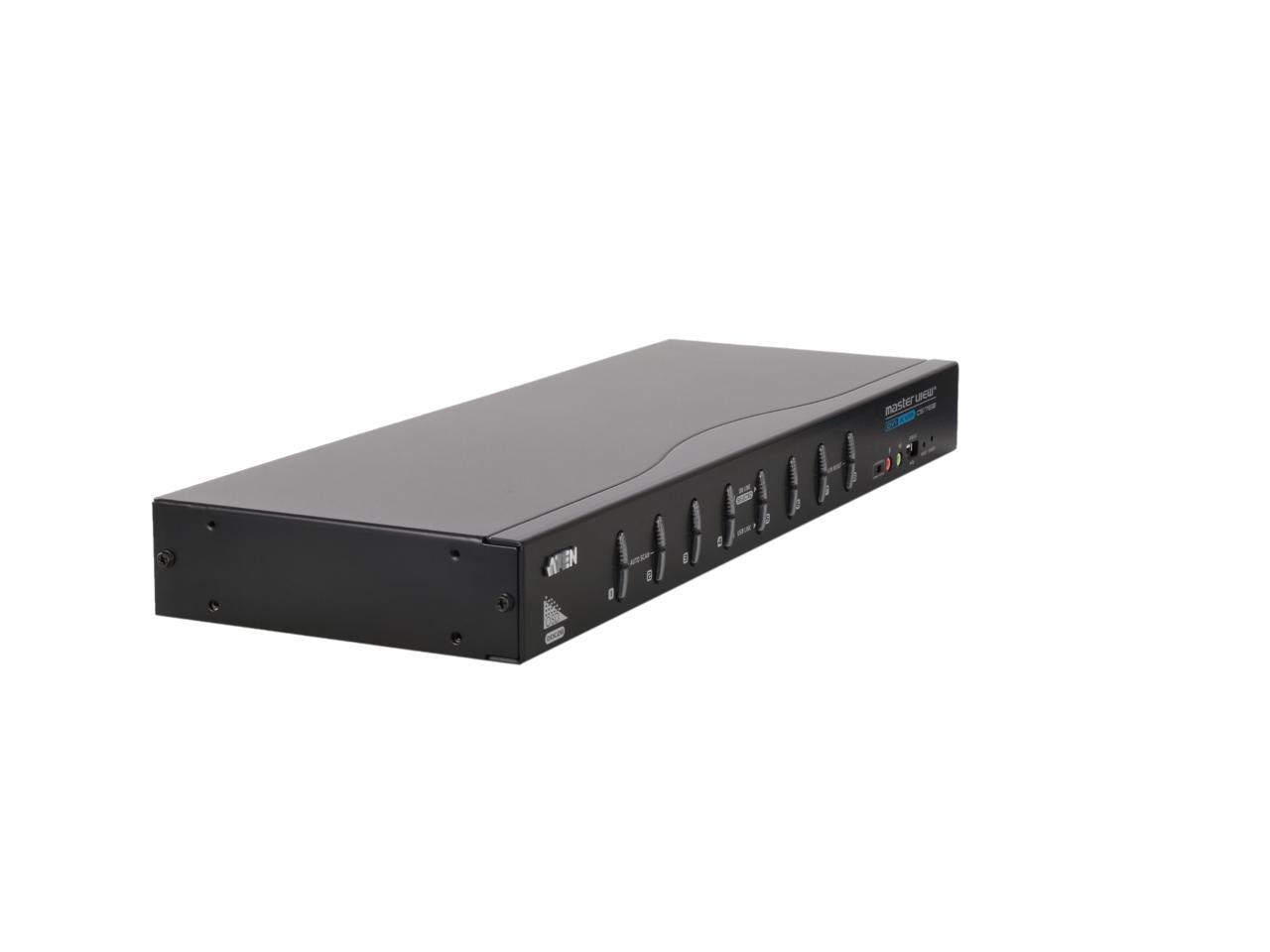

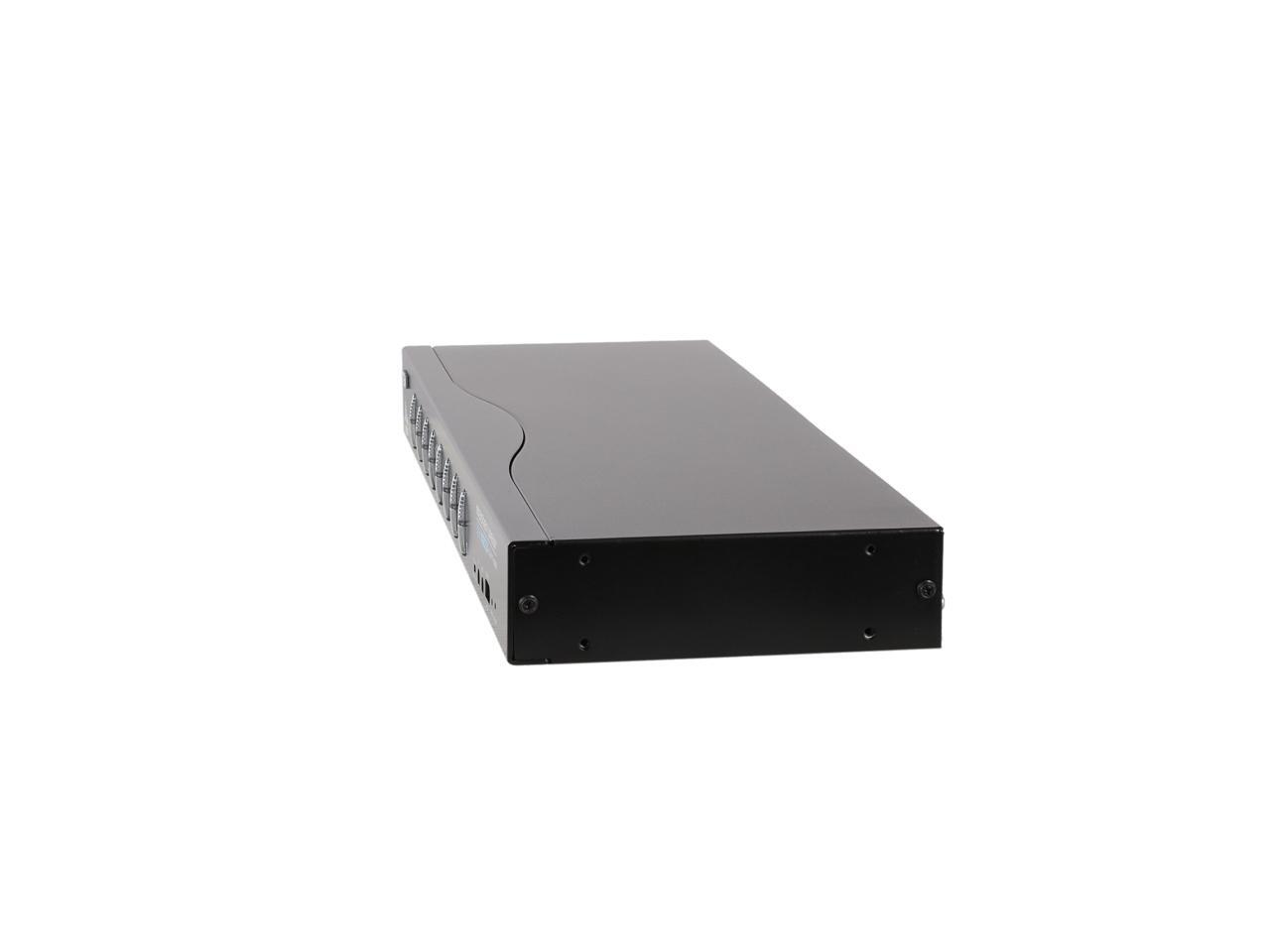

Main image of ATEN CS1768 8-Port USB DVI KVM Switch

100%

Alt view image 3 of 6 - ATEN CS1768 8-Port USB DVI KVM Switch

Alt view image 4 of 6 - ATEN CS1768 8-Port USB DVI KVM Switch

Alt view image 5 of 6 - ATEN CS1768 8-Port USB DVI KVM Switch

Alt view image 6 of 6 - ATEN CS1768 8-Port USB DVI KVM Switch

Alt view image 7 of 6 - ATEN CS1768 8-Port USB DVI KVM Switch

360^°

Shop All ATEN Products | Visit NothingButSavings Store

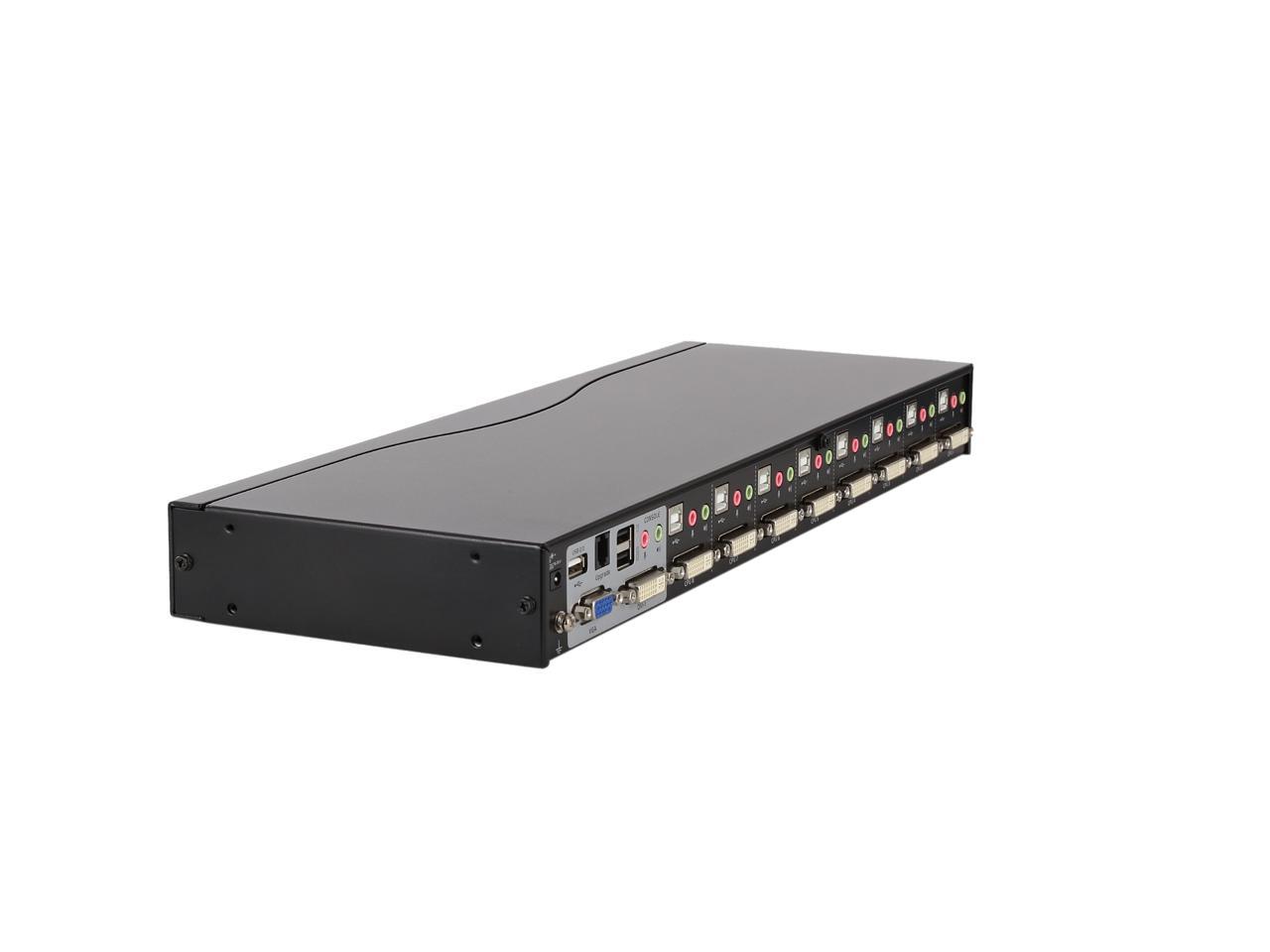

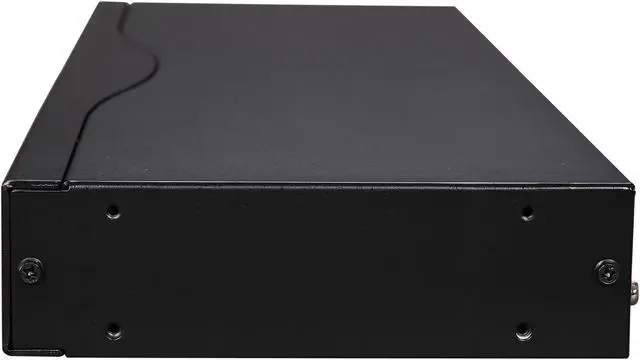

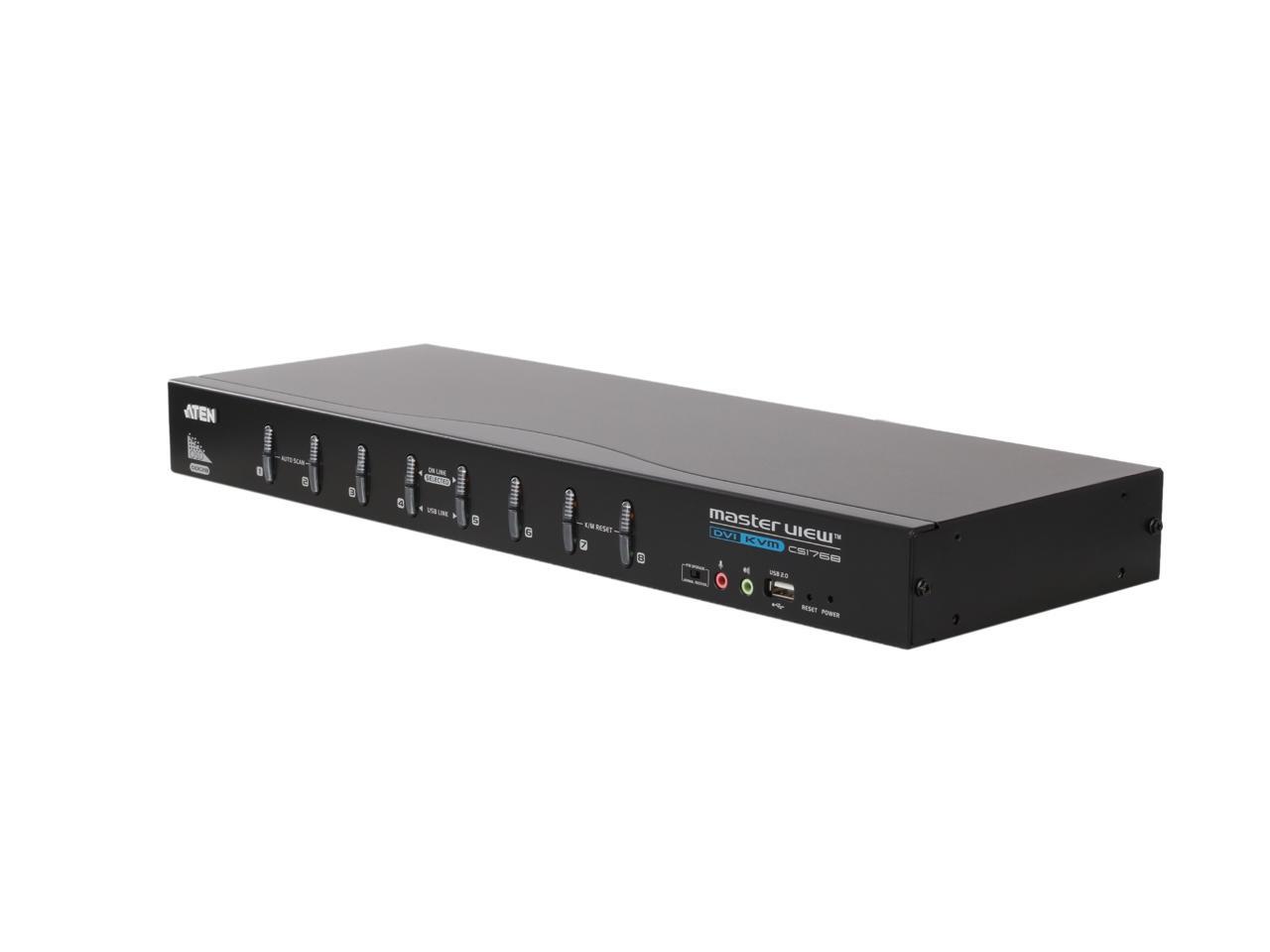

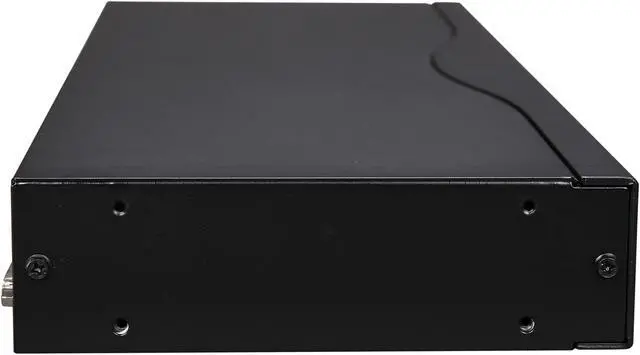

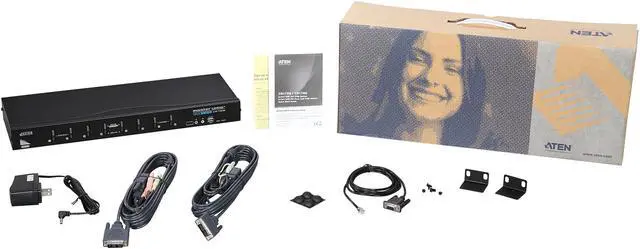

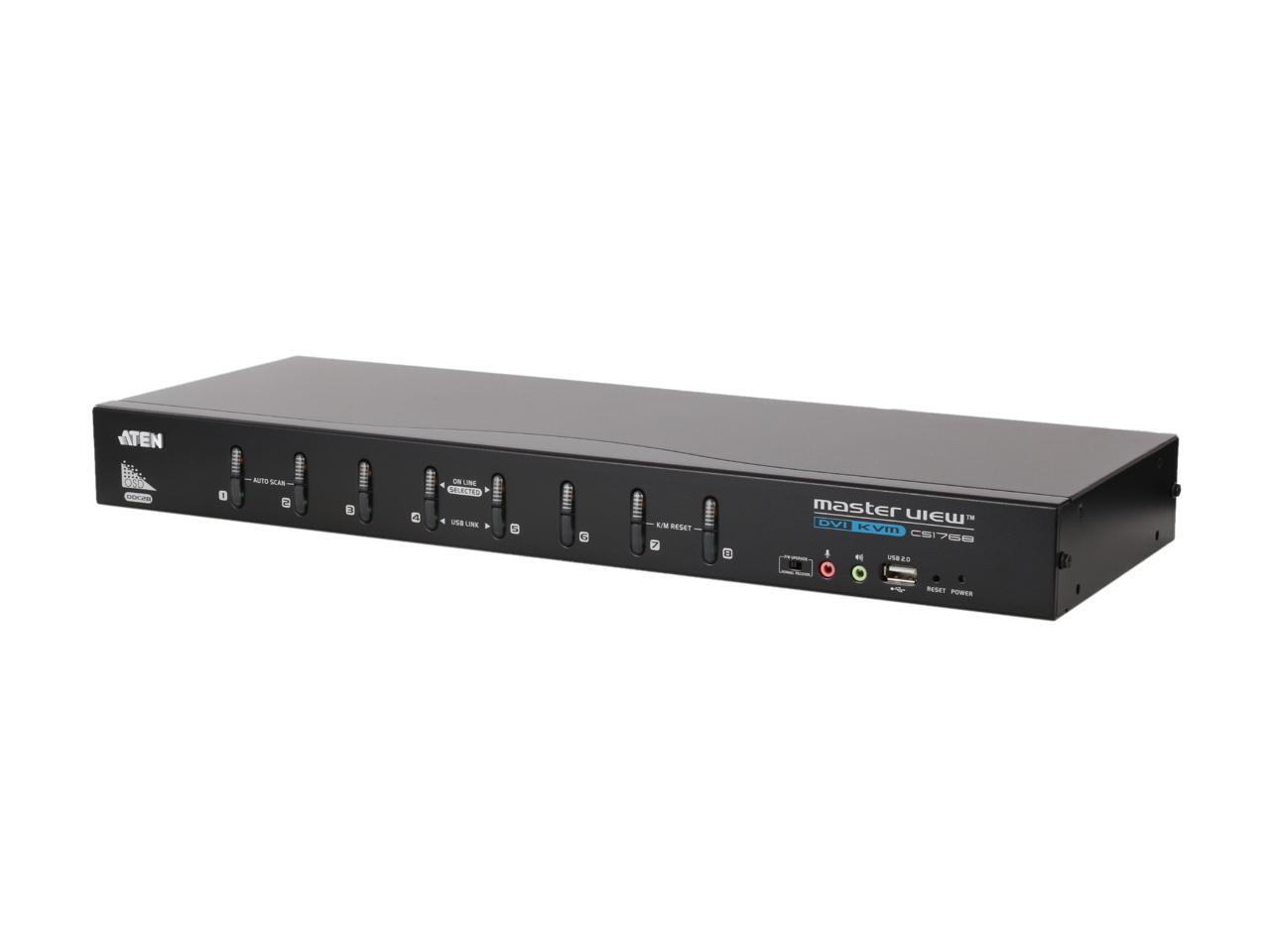

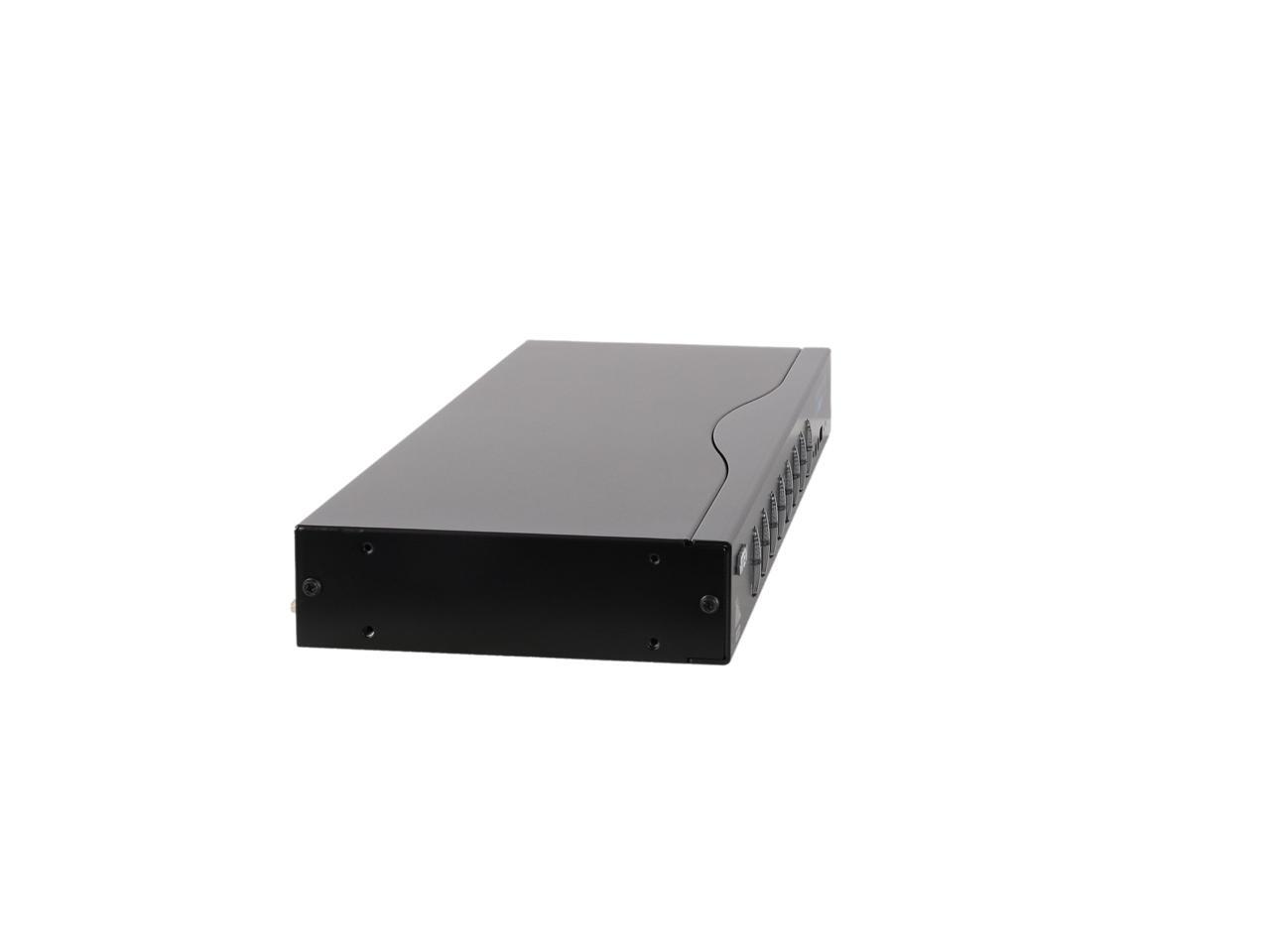

ATEN CS1768 8-Port USB DVI KVM Switch

Name: ATEN CS1768 8-Port USB DVI KVM Switch
Brand: ATEN
SKU: N82E16817802244
Price: 650.17 USD
Availability: InStock
Rating: 1 (1 reviews)

(1) Write a Review

8 Ports Computer Connections
AutoScan Interval 1-255 seconds
Video Resolution 2048 x 1536

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

8-PORT DVI USB KVM W/ AUDIO

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
This item is covered by NothingButSavings Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Type	D-Sub, DVI, USB

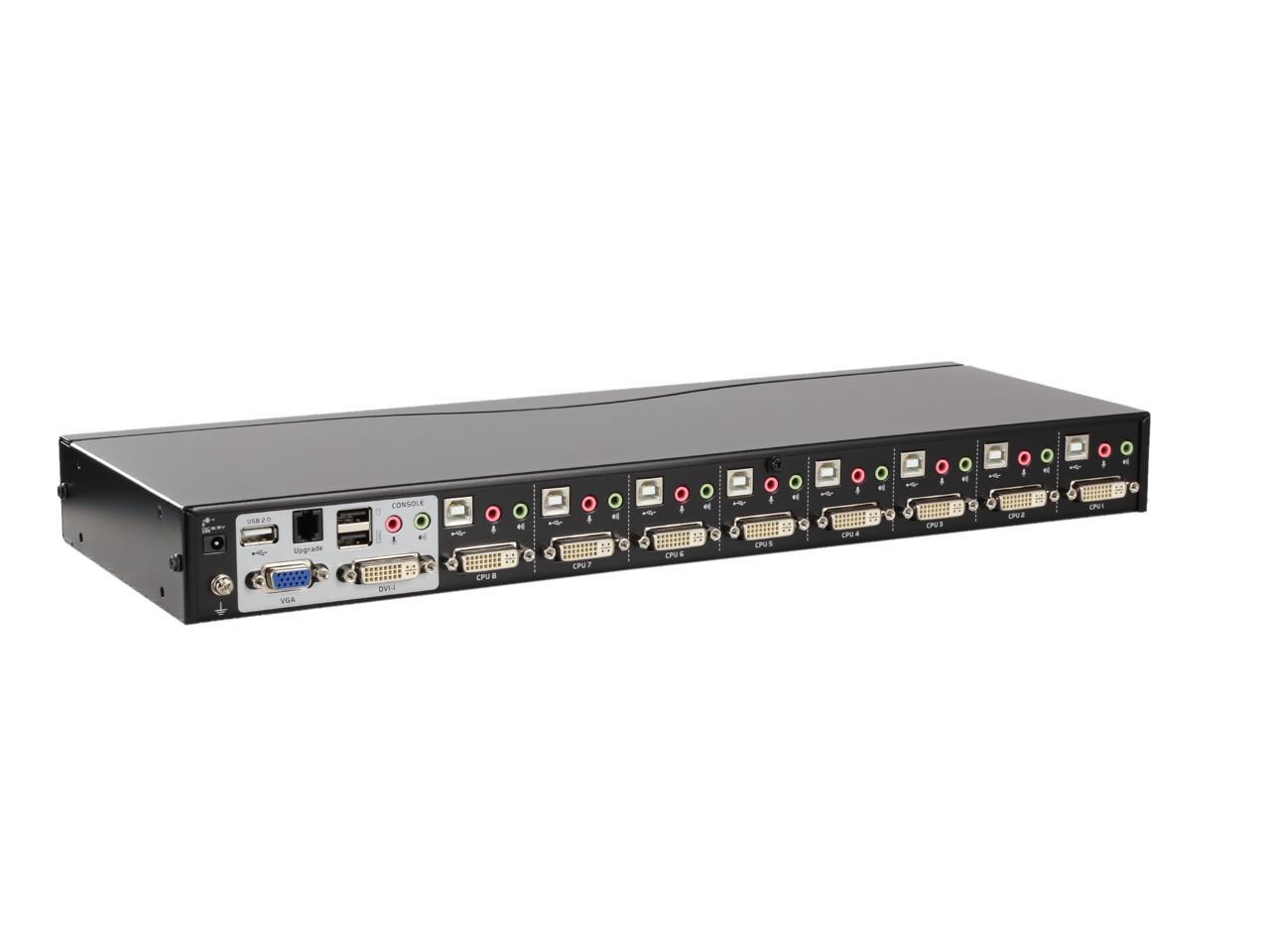

PC Connectors	Flash ROM Upgrade: 1 x RJ-11 Female (Black) Monitor: 8 x DVI-I Female Keyboard & Mouse: 8 x USB Type B Female Audio: 8 x Mini Stereo Jack Female (Green) Microphone: 8 x Mini Stereo Jack Female (Pink) Peripherals: 2 X USB Type A Female (White; 1 x Front Panel, 1 x Rear Panel)
Console Connectors	Monitor: 1 x HDB-15 Female (Blue) / 1 x DVI-I Female (White) Keyboard: 1 x USB Type A Female (Black) Mouse: 1 x USB Type A Female (Black) Audio: 2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel) Microphone: 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)
Computer Connections	8 Ports
Video Resolution	2048 x 1536
PC Selection	Push Buttons/Hot Keys/OSD
AutoScan Interval	1-255 seconds
LED Indicators	Power On: 1 (Dark Green) Selected: 8 (Orange) USB Peripherals: 8 Link (Green)

Temperature	Operating: 0~50°C Storage: -20~60°C
Humidity	0-80% RH, Non-condensing

Power Features	Voltage: 5.3 VDC Amps: 700mA Power Consumption: 3.76W -- 13 BTU / Hr
Features	One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices Supports both digital (DVI) and analog (VGA) video – mixed operation possible Cascadable to three levels – control up to 512 computers 2-port USB 2.0 hub built in Fully compliant with the USB 2.0 specification Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) Two-level (Administrator/User) password authorization for enhanced security protection Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems Console audio ports on front panel for easy access Multiplatform support – Windows, Linux, Mac, Sun Supports widescreen resolutions Superior video quality – 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B Independent switching of KVM and USB focus DVI digital and analog monitor support – fully compliant with the DVI specifications HDCP compatible Video DynaSync – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Complete keyboard emulation for error-free booting Mac/Sun keyboard support and emulation* Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish Auto Scan Mode for monitoring all computers Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously Firmware upgradable

Dimensions	17.21" x 6.34" x 1.73"
Weight	6.17 lbs.
