What are the dimensions and weight of the ATEN CS1784A KVM switch?

The dimensions of the ATEN CS1784A KVM switch are 2 x 10.6 x 3.4 inches and it weighs approximately 2.2 lbs.

What is the maximum video resolution supported by the ATEN CS1784A KVM switch?

The maximum video resolution supported by the ATEN CS1784A KVM switch is 2560 x 1600.

$424^.99

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

BeachAudio

Top Rated

4.4 (8,558 total ratings)

$457^.22

NothingButSavings

Top Rated

4.5 (8,976 total ratings)

$456^.97

Technology Galaxy

Hot Seller

4.2 (2,330 total ratings)

$479^.57
+ FREE SHIPPING

More Resources

ATEN;CS1784A;CS1782A / CS1784A

ATEN;CS1782A;PR031412 - CS1782A-CS1784A NVIDIA 3D Vision ... - Aten

ATEN;CS1782A;PR012412 - CS1782A-CS1784A USB DVI Dual Link KVMP ... - Aten

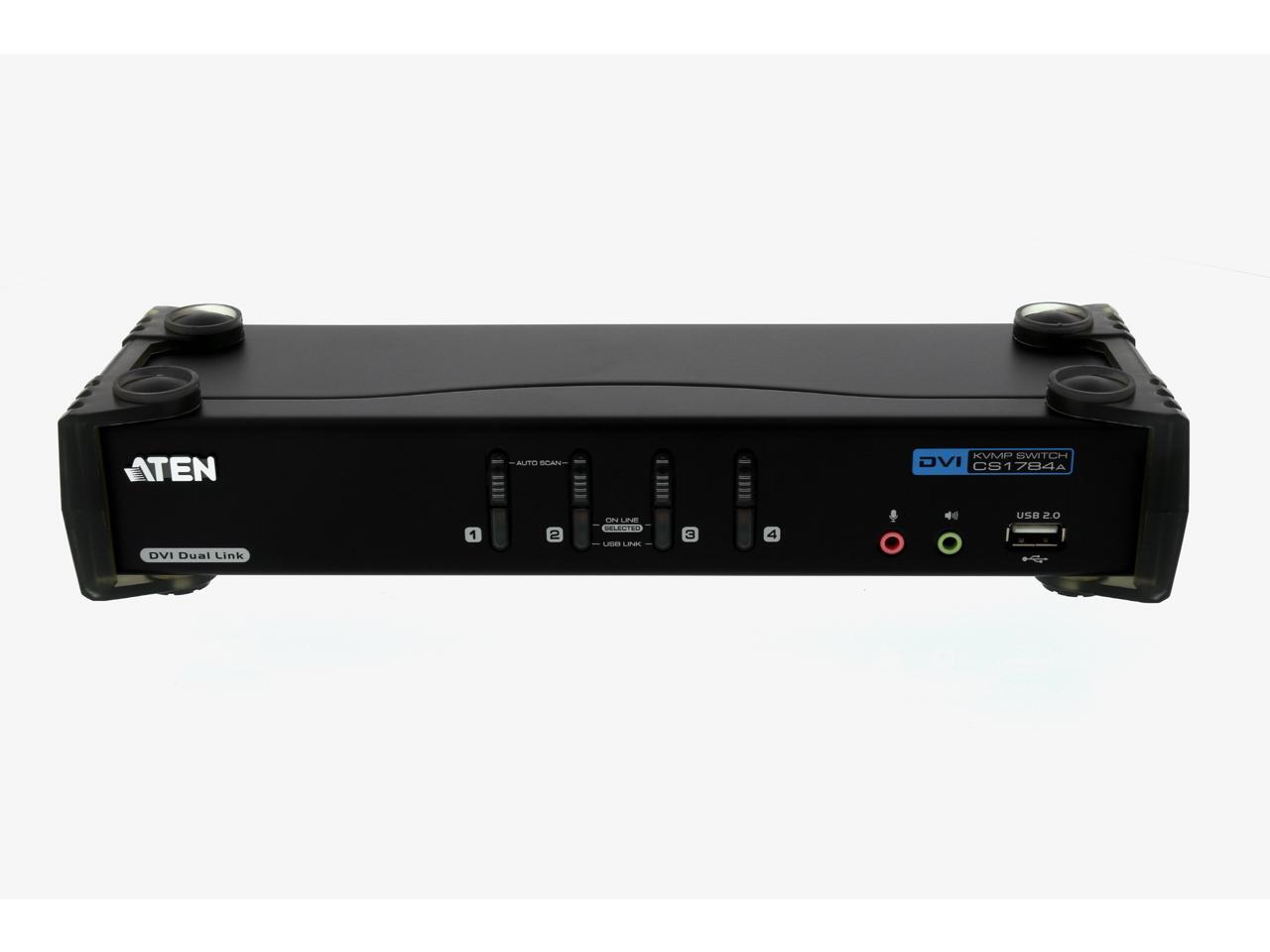

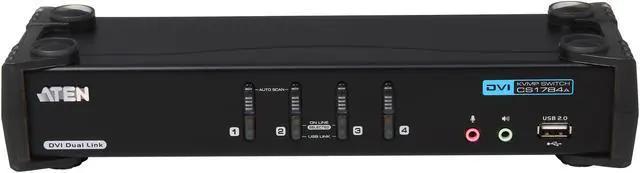

Main image of ATEN CS1784A 4 Port Dual-Link DVI KVM with USB 2.0 and 2.1 Audio Support

100%

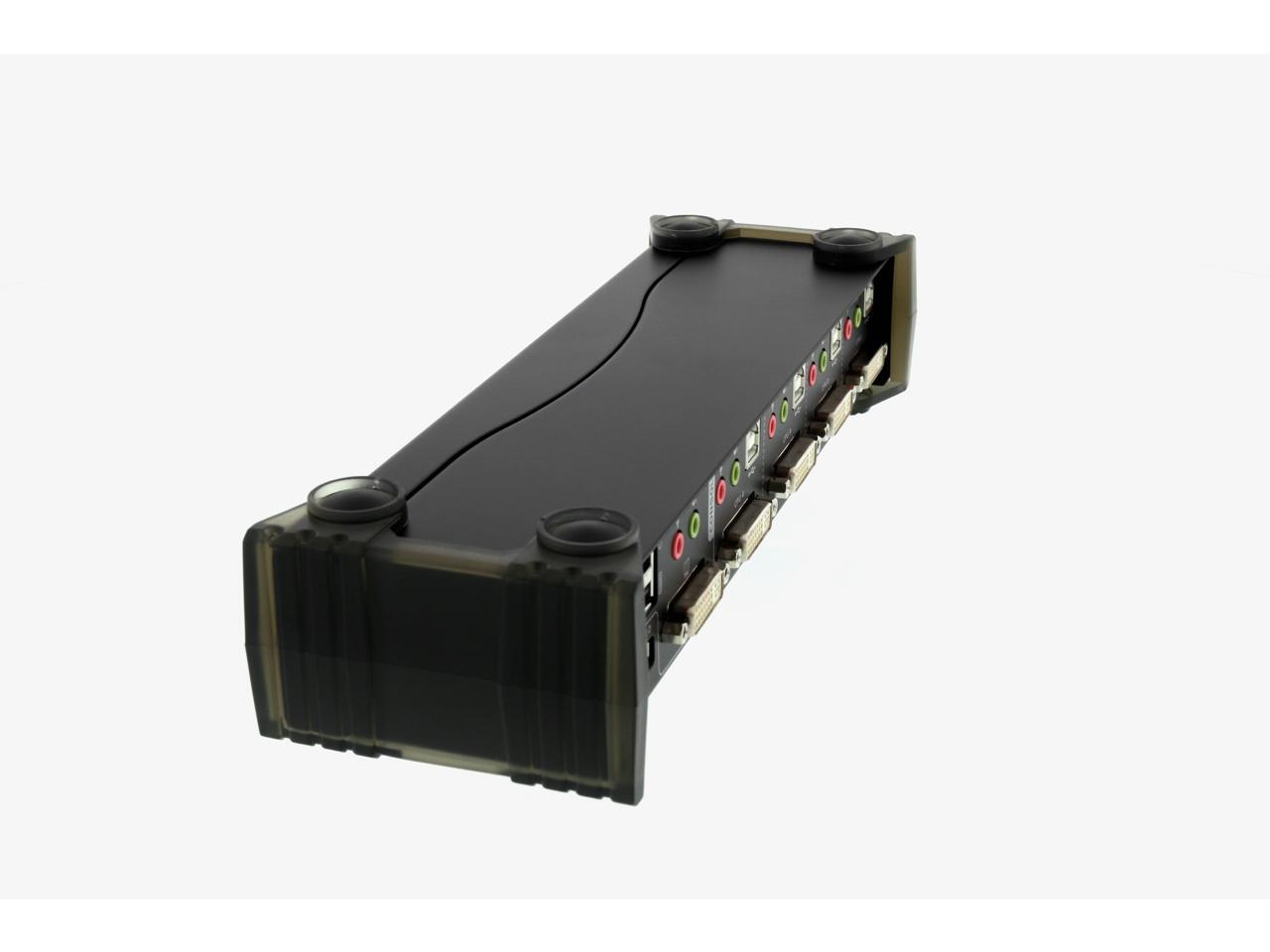

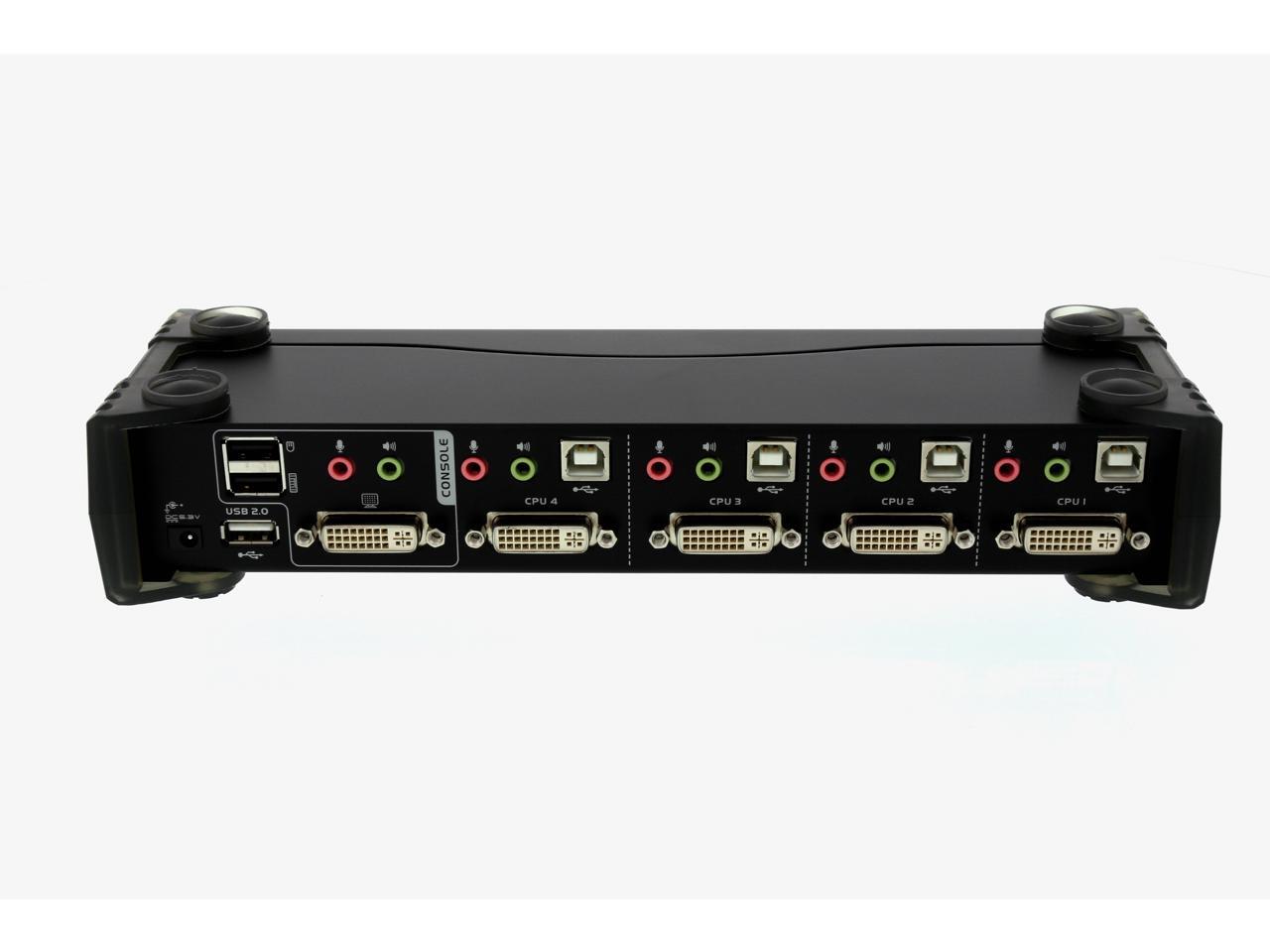

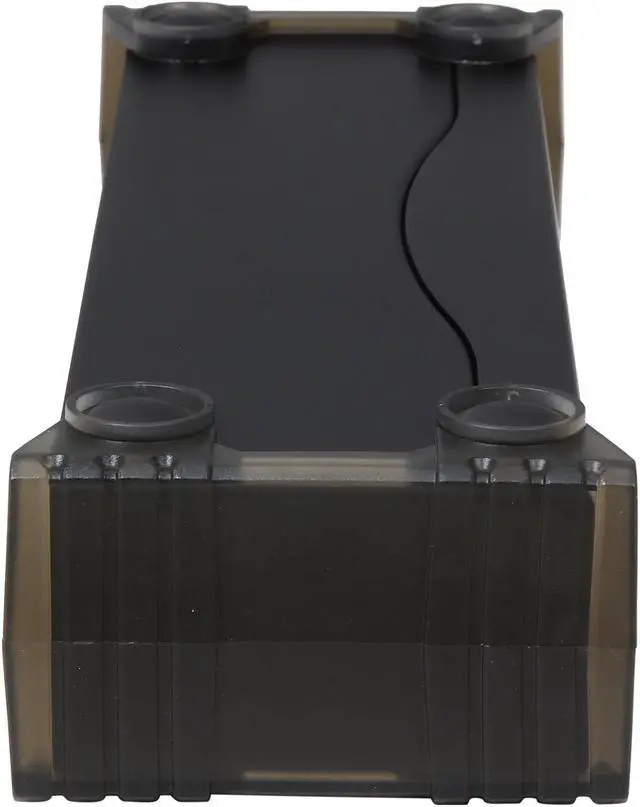

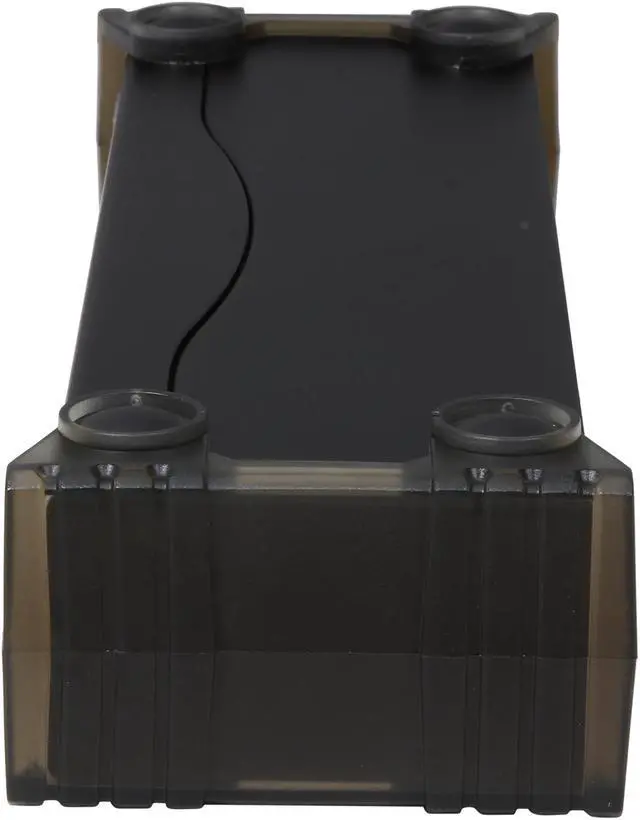

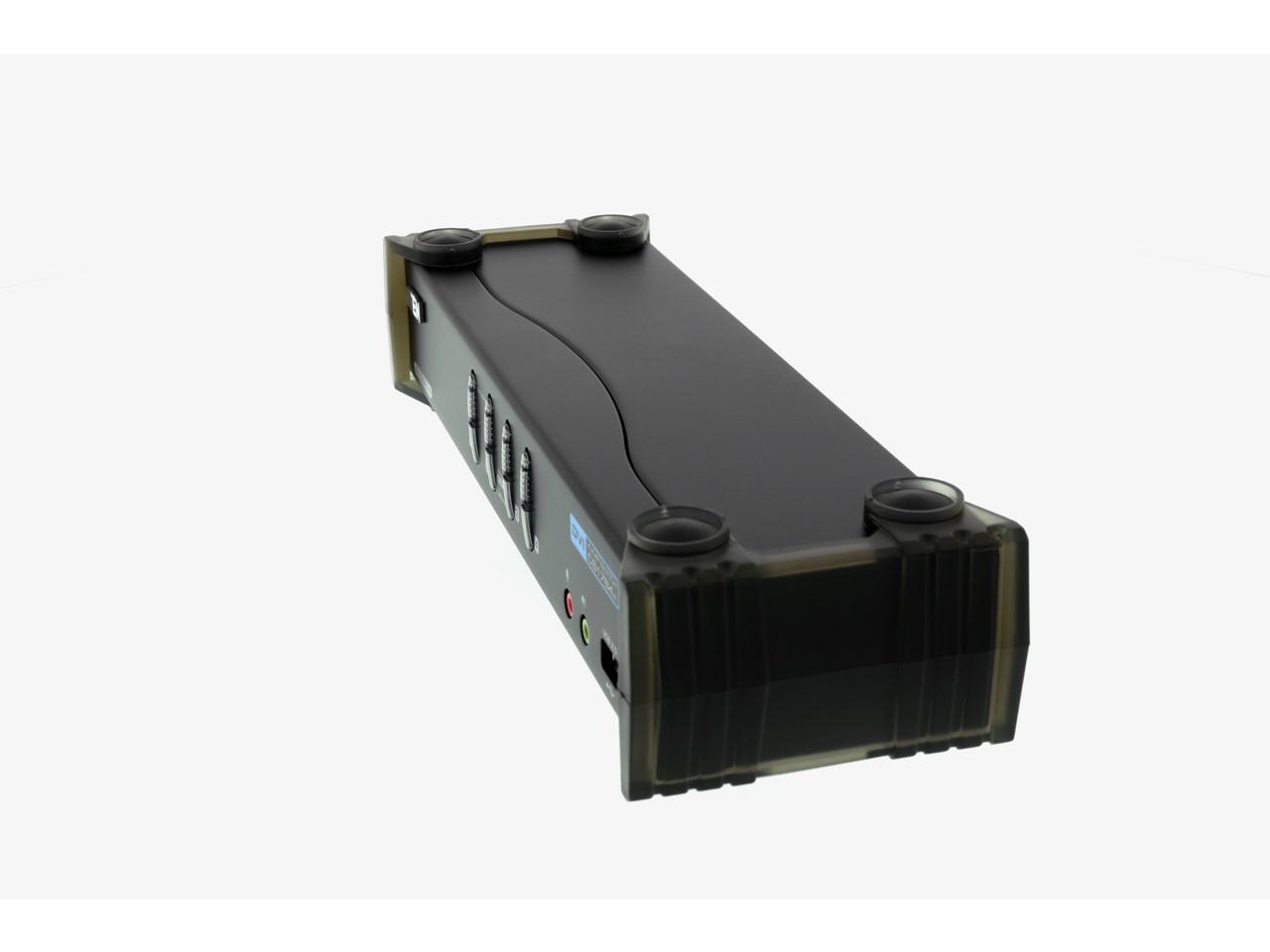

Alt view image 2 of 7 - ATEN CS1784A 4 Port Dual-Link DVI KVM with USB 2.0 and 2.1 Audio Support

Alt view image 3 of 7 - ATEN CS1784A 4 Port Dual-Link DVI KVM with USB 2.0 and 2.1 Audio Support

Alt view image 4 of 7 - ATEN CS1784A 4 Port Dual-Link DVI KVM with USB 2.0 and 2.1 Audio Support

Alt view image 5 of 7 - ATEN CS1784A 4 Port Dual-Link DVI KVM with USB 2.0 and 2.1 Audio Support

Alt view image 6 of 7 - ATEN CS1784A 4 Port Dual-Link DVI KVM with USB 2.0 and 2.1 Audio Support

Alt view image 7 of 7 - ATEN CS1784A 4 Port Dual-Link DVI KVM with USB 2.0 and 2.1 Audio Support

360^°

Shop All ATEN Products

ATEN CS1784A 4 Port Dual-Link DVI KVM with USB 2.0 and 2.1 Audio Support

(2) Write a Review

4 Ports Computer Connections
Video Resolution DVI-D( Dual Link): 2560x1600
DVI-D(Single Link): 1920x1200

Overview

Specs

Reviews (2)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: Number of Computers Supported: 4Maximum Video Resolution: 2560 x 1600USB: YesDVI: YesNumber of USB Ports: 8Number of DVI Ports: 5Height: 2.2"Width: 10.6"Depth: 3.4"Weight (Approximate): 2.05 lbPackage Contents: CubiQ CS1784A KVM Switch4 x Custom DVI-D KVM Cable Sets1 x Power Adapter1 x User Manual1 x Quick Start GuideEnvironmentally Friendly: YesEnvironmental Certification: RoHS,WEEE

Model
Brand	ATEN
Model	CS1784A

Details
Type	USB

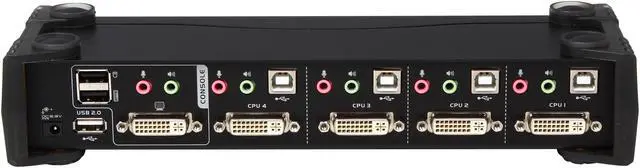

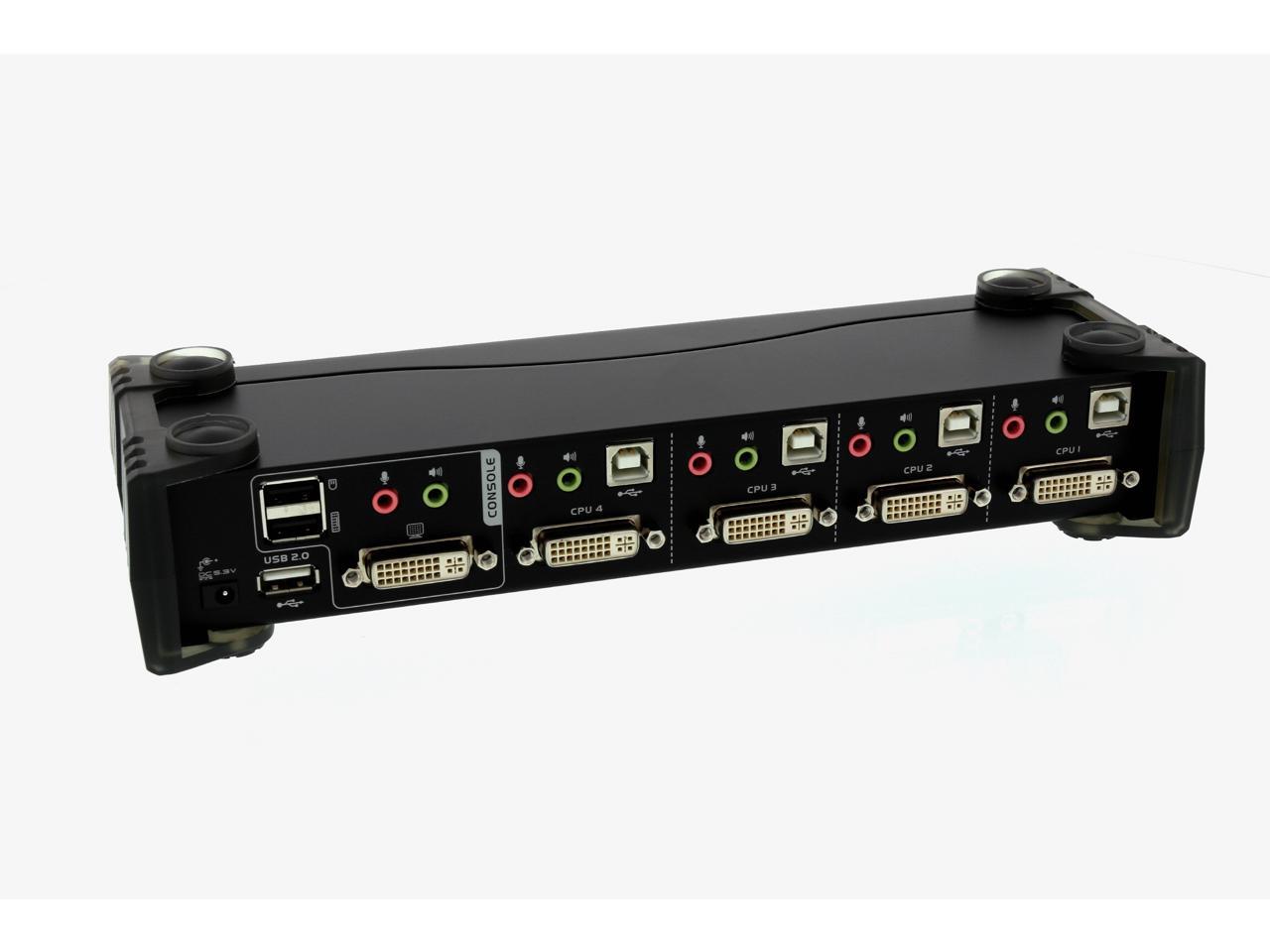

Console Connectors	Keyboard: 1x USB Type A Female (Rear Panel) Monitor: 1x DVI-I Female (Rear Panel) Mouse: 1x USB Type A Female (Rear Panel)
Computer Connections	4 Ports
Video Resolution	DVI-D( Dual Link): 2560x1600 DVI-D(Single Link): 1920x1200

Environmental
Temperature	Operation Temperature: 32~122 F (0~50C) Storage Temperature: -4~140F (-20~60C)
Humidity	0~80% RH, Non-condensing

Features
Features	Resloution: 2560x1600@60Hz (Dual Link); 1920x1200@60Hz( Single Link) Built-in High-Speed 2-port USB 2.0 Hub Supports high end gaming keyboards and mice Independent (Asynchronous) switching of KVM and peripheral USB/Audio ports Support high Quality 2.1 channel surround sound system Support widescreen resolutions Sources selection via front panel pushbuttons, hotkeys, and Mouse Multiplatform support: Windows 2000/XP/Vista, Linux, MAc, and Sun Video DynaSync - Exclusive technology that eliminate boot-up display problem and optimizes resolution when switch between ports Support gaming/multimedia keyboards Sun/Mackeyboard support and emulation Auto Scan Mode for monitoring all computers Firmware upgradeable

Dimensions & Weight
Dimensions	2 x 10.6 x 3.4in
Weight	2.2 lbs

Package Contents

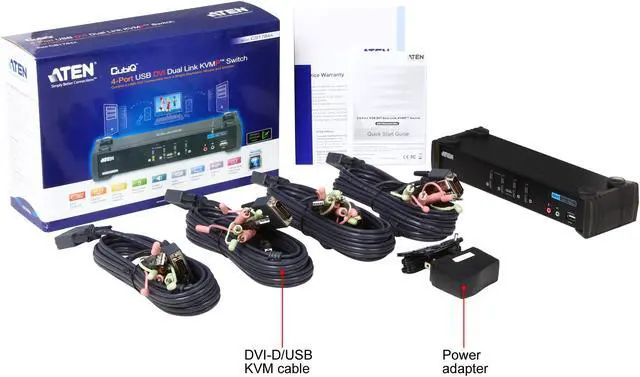

Package Contents	1x CS1784A USB DVI Dual Link KVMP Switch 4x DVI-D/USB KVM cables 1x Power Adapter 1x User Manual 1x Quick Start Guide

Additional Information
First Listed on Newegg	February 21, 2011
