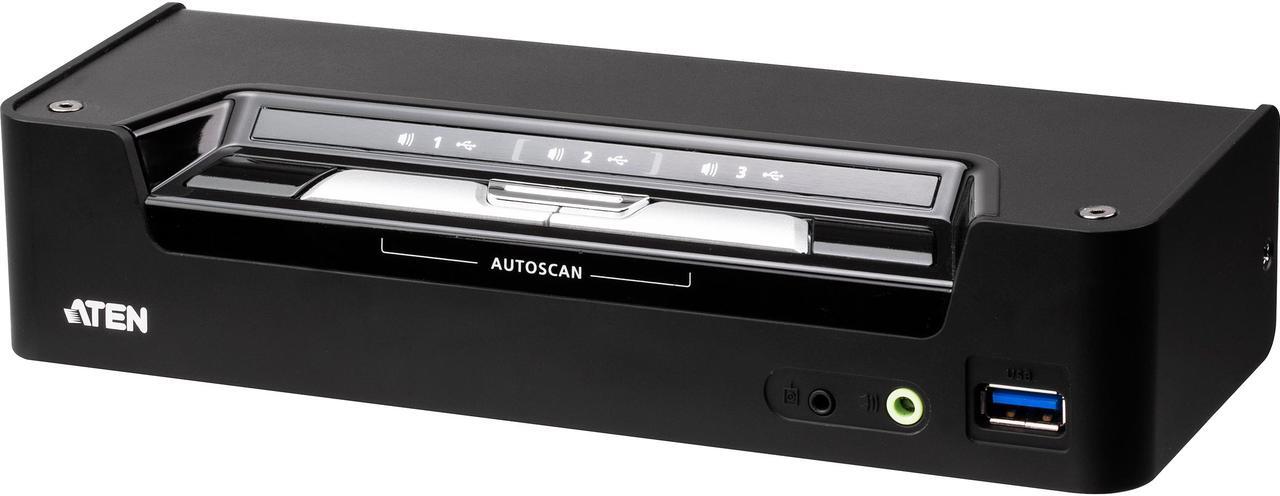

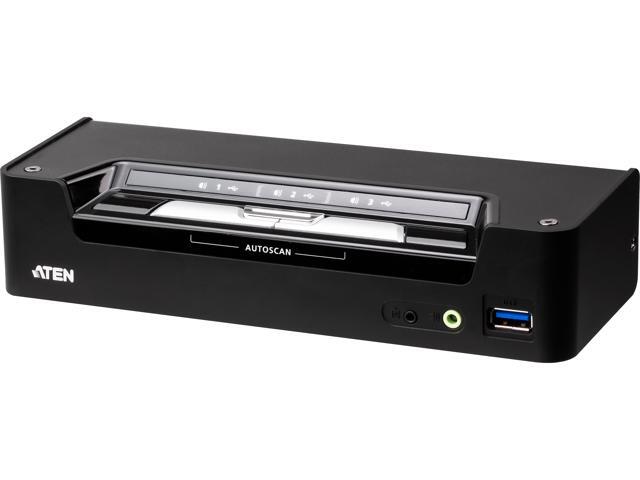

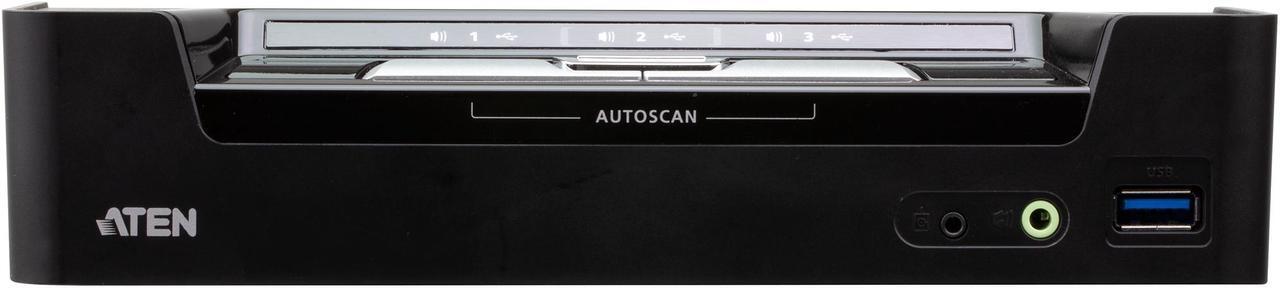

Name: ATEN 4K 3-Port USB-C and DisplayPort KVM Switch / Hybrid KVMP Switch (CS1953)
Brand: ATEN
SKU: N82E16817802447
Price: 711.90 USD
Availability: InStock

ATEN 4K 3-Port USB-C and DisplayPort KVM Switch

The CS1953 is engineered to enhance your desktop productivity. With the DisplayPort monitor set up on your desktop and access to up to two PCs via DisplayPort and a laptop (or other mobile device) via USB-C, you can expect a rich experience with outstanding 4K visual clarity, as well as fast switching between multiple computers and mobile flexibility. 3.5mm Aux connection and two USB 3.1 ports are built in, allowing you to share speakers and USB peripherals like flash drives and cameras between multiple computers.

Work Smart with Desktop Agility - ATEN 3-Port USB-C DisplayPort Hybrid KVMP Switch (CS1953)

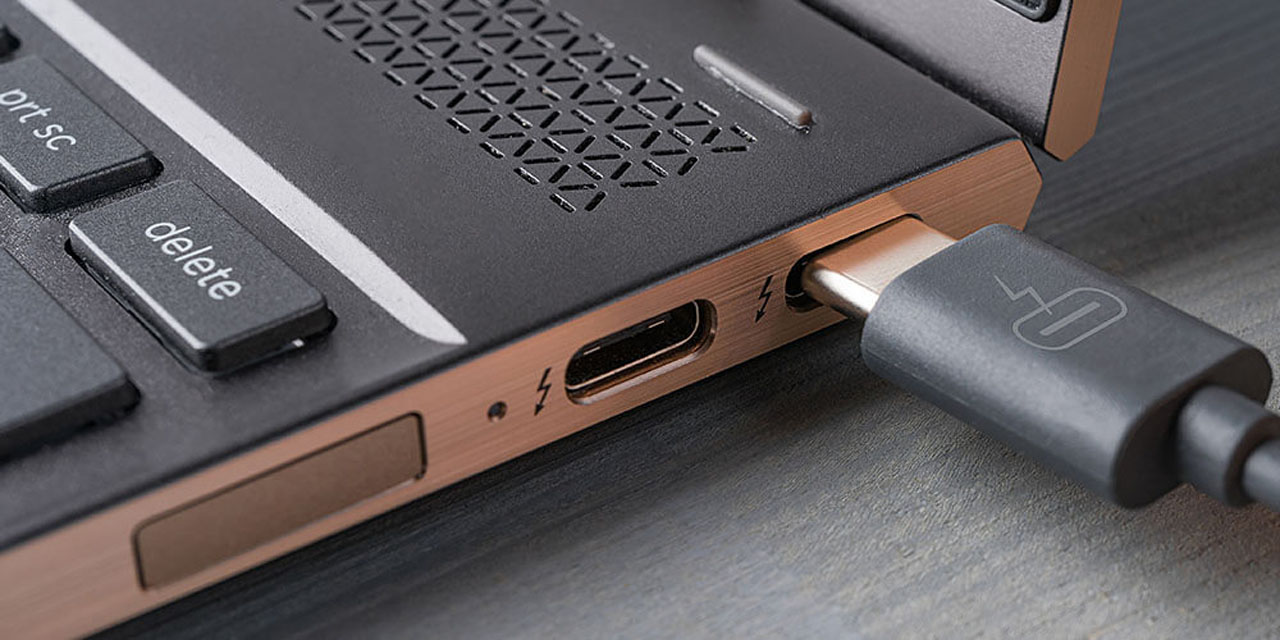

USB-C for Space-Cost Efficiency

The CS1953 boasts the increasingly popular USB-C interface to facilitate a plug-n-play connection to mobile devices (laptops, tablets, smartphones) without going through a docking station, making it a true space and money saver for your desktop workspace.

DisplayPort for Exceptional AV Performance

The CS1953 supports DisplayPort connectivity between up to two computers, a monitor, and a mobile device (over USB-C). It brings 4K superior viewing quality to your desktop, revealing all your visual content, text and numerical digits in outstanding precision.

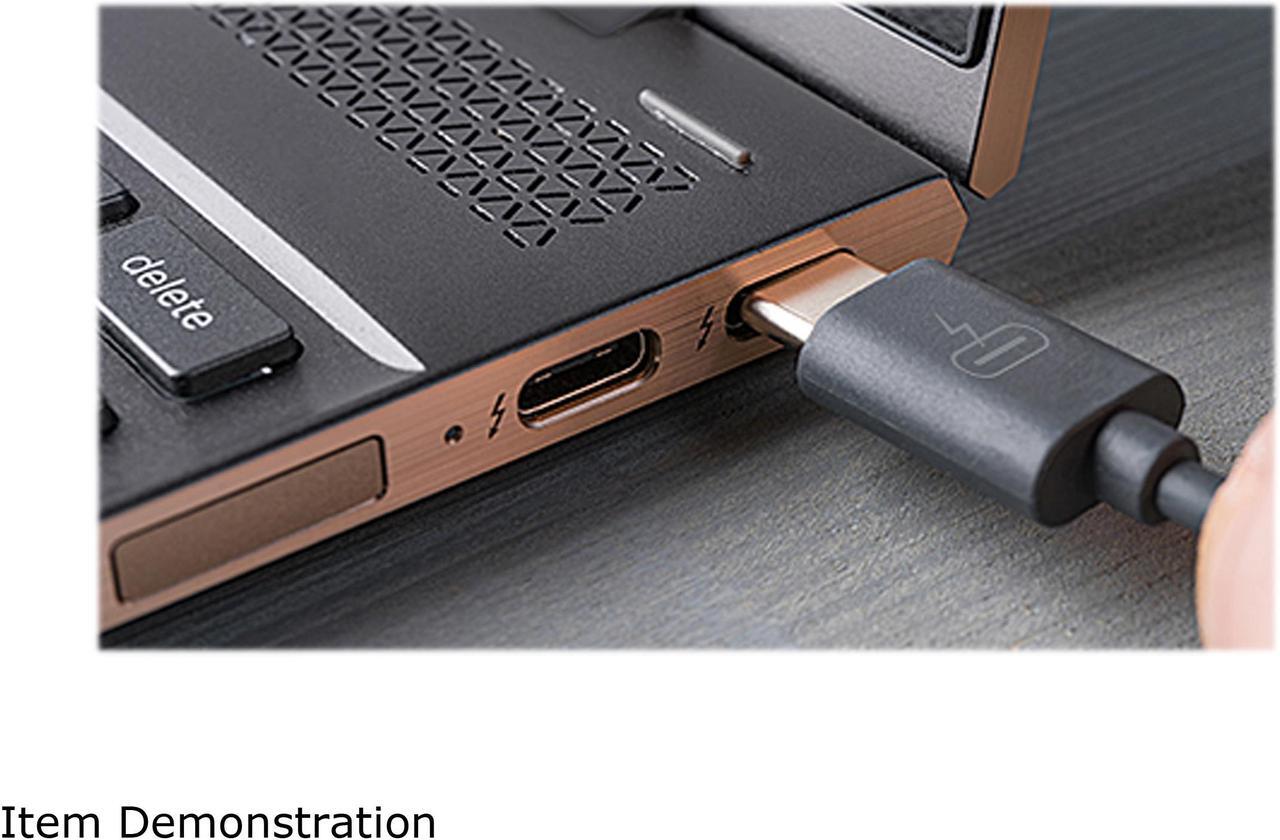

Plug In, Power On

By enabling the USB-C device power delivery 3.0 standard, your mobile devices start charging upon connection to the CS1953, elevating your desktop productivity with even quicker mobility.

Extended Desktop for Productive Multitasking

Taking advantage of the CS1953's DisplayPort connectivity, you can daisy-chain two monitors to form an extended desktop for productive multitasking on a dual-display workspace setup.

Flexible Port Switching, Any Way You Like

Port switching is flexible and you can choose from using the pushbuttons, mouse, hotkeys and remote port selector, whichever works best for you.

4K Visual Clarity

Full 4K visual experience

SuperSpeed Data Access

Superb 5 Gbps d ata transfer rate to connected USB 3.1 peripherals

Smart Switching Selection

Flexible port-switching options (pushbuttons / remote port selector / mouse / hotkeys)

Applications

The CS1953 is perfectly suited to time-critical and data-intensive operations in desktop workspaces:

Office

The CS1953 is ideal for those who need fast multi-computer switching to handle heavy data processing or verify user-interface development over high performance monitors, such as government staff, marketing professionals, sales warriors and engineers. Simply plug-n-charge your mobile devices when returning to your desktop after meetings or visiting with customers.

Finance

The CS1953 is good for those who need increased productivity and high precision for multitasking between computers to monitor diverse data and indicators in trading and sales charts, such as financial and market analysts. In addition, these multi-computer setups can serve as a backup to avoid downtime and financial losses caused by potential equipment failure.

Graphic Design

The CS1953 allows users such as graphic designers and CAD engineers to switch between two computers and your USB-C mobile devices for design artwork in 4K visual quality. You can simply quick plug-n-charge your mobile devices without installing extra hardware, such as a docking station, while keeping a tidy desktop workspace.

Healthcare

The CS1953 allows medical staff to switch between two computers for different medical work, like imaging or referencing patient records. They can examine patient’s diagnostic scans in 4K precision effortlessly over the screen, as well as simply quick plug-n-charge mobile devices after making daily patient rounds.

Package Contents

1x CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch
2x DisplayPort 1.2 Cables
2x USB 3.0 Type-A to Type-B Cables
1x USB-C Cable
3x Audio Cables
1x Remote Port Selector
1x User Instructions
1x Power Adapter*
Note: *The CS1953 is provided in two packages; one package contains a power adapter, the other does not.

Type	DisplayPort, USB

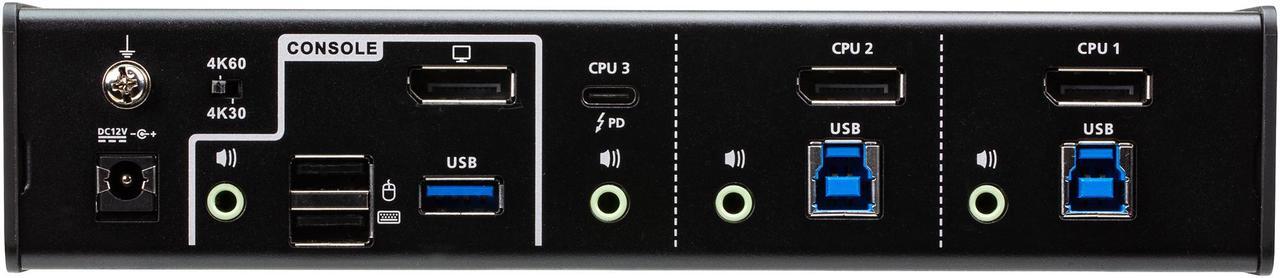

Console Connectors	2 x USB Type A Female, 1 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
Computer Connections	CPU1 and CPU2: 2 x USB 3.1 Gen 1 Type B Female (Blue); 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) CPU3: 1 x USB Type-C Female (Black); 1 x 3.5mm Audio Jack Female (Green)
PC Selection	Hotkey / Pushbutton / Mouse / Remote Port Selector
LED Indicators	KVM: 3 (Orange) Audio: 3 (Green) USB: 3 (Green)

Temperature	Operating Temperature: 0 ~ 50°C Storage Temperature: -20 ~ 60°C
Humidity	0-80% RH, Non-condensing

Power Features	DC 12V: 5.78W: 269BTU
Features	One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers, one USB-C device and share two USB peripherals Supports superior video quality - up to 4K DCI (4096 x 2160 @ 60Hz) Provides USB Power Delivery 3.0 for USB-C device charging up to 45W Computer selection via pushbuttons, hotkeys, mouse, and remote port selector Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals Independent switching of KVM, USB peripheral, and audio focus DisplayPort 1.2 compliant; HDCP 1.4 compliant Supports HD Audio Supports DisplayPort Dual-Mode technology (DP++) Firmware upgradeable Bus-powered

Dimensions	1.73" x 8.12" x 2.97"
Weight	1.10 lbs.
