Question 1

Can you use a combination of ps/2 and USB keyboards and mice? E.g., PC1=USB KB and USB mouse; PC2=PS/2 KB and USB mouse; PC3=PS/2 mouse and USB KB; PC4=PS/2 mouse and PS/2 KB. This is what I need. Also, if above is yes, do the master KB and mouse (the ones you plug into the ATEN CS84U) need to be the same or can (must?)be a mix of PS/2 and USB? (Could not discern this from reading the manual). Thanks.

Accepted Answer

Got th KVM to use with 4 PC used for testing Hard Drives.  Test bench has 3 Dell optiplex GX 270s and 1 Dell Optiolex GX280

The 270 use PS2 connectors for mouse and keyboard.

The 280 uses USB's for mouse and keyboard

It appears that Dell PC that use USB require seperate USB connectors, 1 for mouse and 1 for keyboard.

The 270's with PS2 work will this KVM swtich.  To use the 280, the single USB from the KVM switch runs the keyboard.

I have to run a seperate USB mouse connnected to the 280,

I have spent over an hour with Aten technical people. Have updated the BIOS on the 280. Problem still percests.

I have spent 3 sessions wiht Dell Technical staff. the 280 problem still persists.

I have replaced the Dell 280 with newer Dell PC's and the USB problem still persists.

Th Aten unit is well build and works well except for the USB problem.

Karl R. Manager of Computger Refurbishing Special Interest Group of The Chesapeake PC Users Group.

Question 2

does this unit come with the 4 connecting cables from KVM to the 4 PCs ?

Accepted Answer

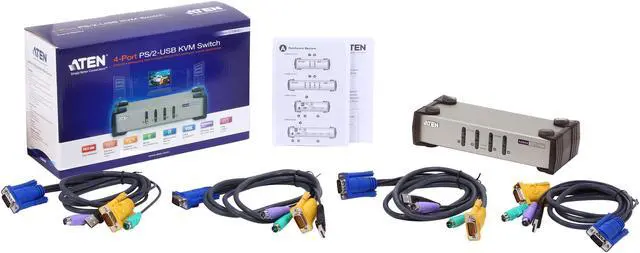

Karl-
yes it does- each cable is approx 6 feet long,and on the "computer" end, there are four "breakout "connectors:
db15 connector for video out
one USB connector
one keyboard  "
one   mouse    "

Type	D-Sub, USB, PS/2
PC Connectors	4 x SPHD-18 Female (Yellow)

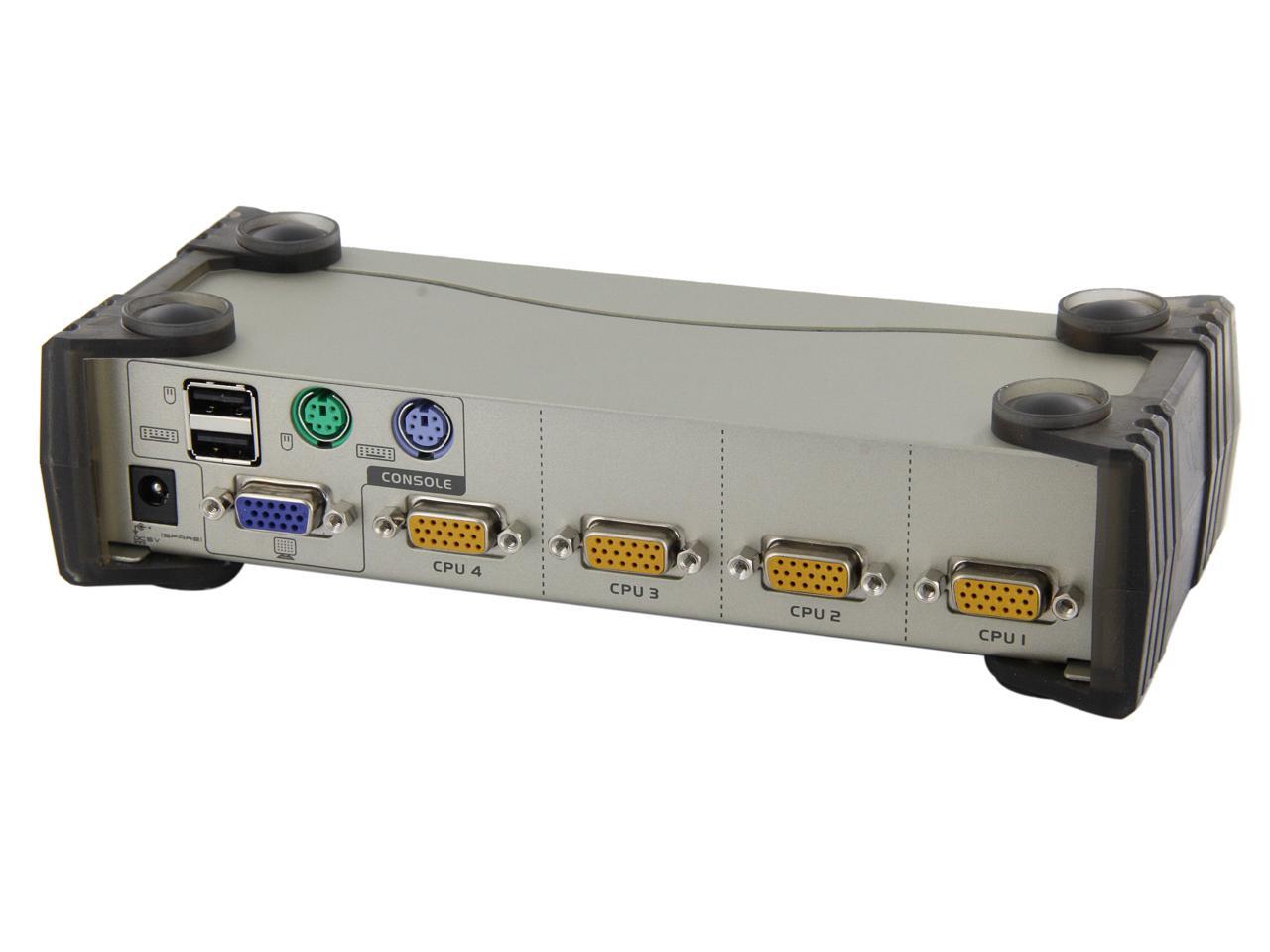

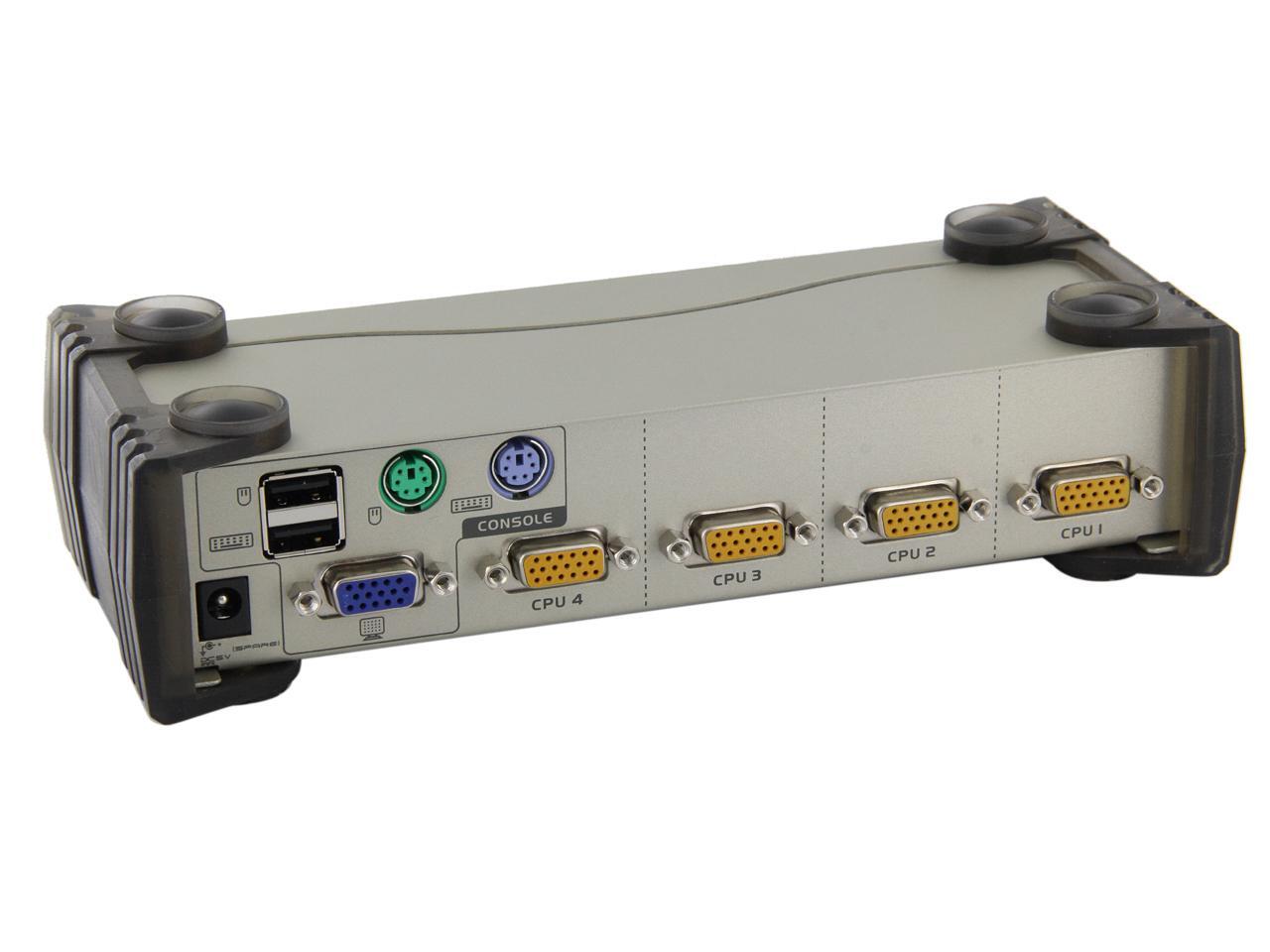

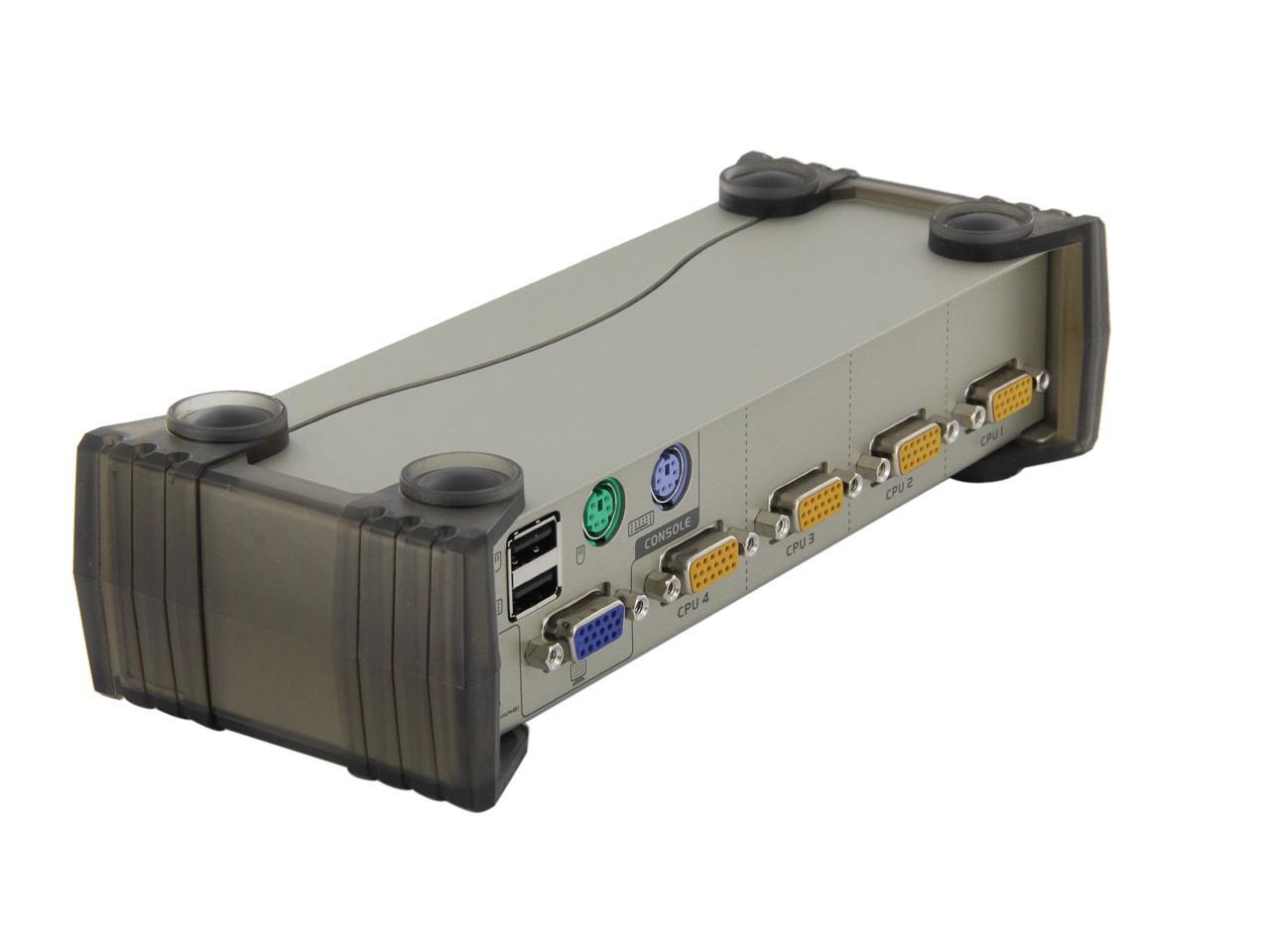

Console Connectors	Keyboard: 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN Female (Purple) Video: 1 x HDB-15 Female (Blue) Mouse: 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN Female (Green)
Computer Connections	4 Ports
Monitor Connections	1 Port
Video Resolution	2048 x 1536
PC Selection	Push Buttons/Hot Keys
AutoScan Interval	3, 5, 10, 20 secs. (5 secs. default)
LED Indicators	On Line: 4 (Orange) Selected: 4 (Green)

Temperature	Operating Temp: 0-50 degree C Storage Temp: -20-60 degree C
Humidity	0 - 80% RH, Non-condensing

Power Features	Power Consumption: DC 5V, 1.2W
USB Features	with USB support
Features	One PS/2-USB VGA console controls four VGA interface computers. Dual Interface - supports computers with PS/2 or USB keyboards and mice Computer selection via front panel pushbuttons, hotkeys, and mouse Multiplatform support - Windows, Linux, Mac, and Sun Superior video quality - 2048 x 1536; DDC2B Video DynaSync - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Complete keyboard emulation for error-free booting Mac/Sun keyboard support and emulation* Multilingual keyboard mapping - supports English, Japanese, and French keyboards Gaming keyboard support Auto Scan Mode for monitoring all computers Firmware upgradable Non-powered * 1. PC keyboard combinations emulate Mac/Sun keyboards 2. Mac/Sun keyboard work only with their own computers

Dimensions	8.27" x 3.43" x 2.17"
Weight	1.7 lbs.
