8-PORT 1U CAT5 IP KVM TAA COMPLNT
Learn more about the ATEN KH1508Ai
Model
Brand
ATEN
Model
KH1508Ai
Details
Type
D-Sub, USB, PS/2
PC Connectors
Keyboard, Video, Mouse: 8 x RJ-45 Female
Console Connectors
Keyboard: 1 x 6-pin Mini-DIN Female / 1 x USB Type A Female Mouse: 1 x 6-pin Mini-DIN Female / 1 x USB Type A Female Monitor: 1 x HDB-15 Female
Computer Connections
8 Ports
Monitor Connections
1 Port
Video Resolution
1600 x 1200
PC Selection
Push Buttons
LED Indicators
Power On: 1 (Blue) Link: 8 (Orange) Selected: 8 (Orange) 10/100 Mbps: 1 (Orange / Green)
Features
Features
Dedicated USB port directly connects to a laptop for easy console operation
High port density – RJ-45 connectors for up to 16 ports in a 1U housing
One bus for remote KVM over IP access
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides PS/2 and USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and serial devices
High video resolution – up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters, with the new ATEN KVM Cable Adapter KA7000 series.
Daisy chain up to 31 additional units – control up to 256 (KH1508Ai) or 512 (KH1516Ai) computers from a single console.
Up to 64 user accounts – up to 32 users simultaneously share the control
Firmware upgradeable
Integration with ALTUSEN CC2000 Management software
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Advanced security features include password protection and advanced encryption technologies – 1024 bit RSA; 56 bit DES; 256 bit AES; and 128 bit SSL
Flexible encryption design allows users to choose any combination of 56- bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Support for IP/MAC Filter
Full screen or scalable video display
On-screen keyboard with multi-language support
Dimensions & Weight
Dimensions
17.2" x 6.4" x 1.7"
Weight
6.2 lbs

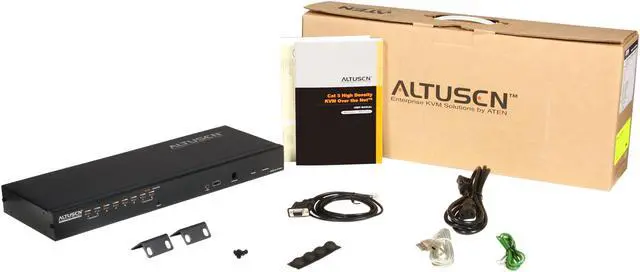

Package Contents
Package Contents
1x KH1508Ai 1x Power Cord 1x Firmware Upgrade Cable 1x Rack Mount Kit 1x Foot Pad(4pcs) 1x User Manual 1x Quick Start Guide
Additional Information
First Listed on Newegg
October 02, 2024
