Aten Add-On Card Model IP8000

Be the first to review this product...

PCI to LAN Card

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

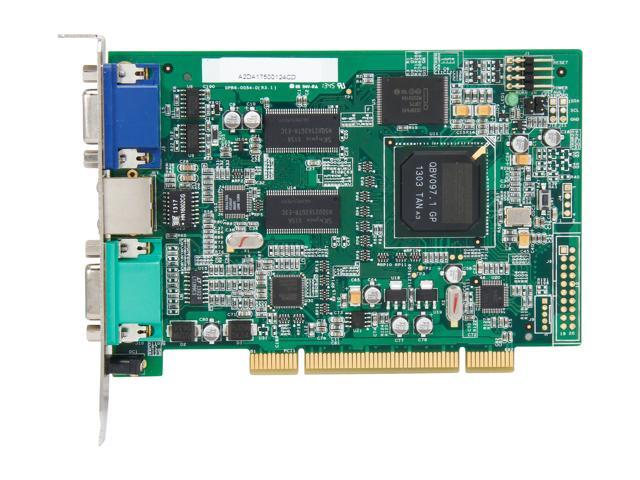

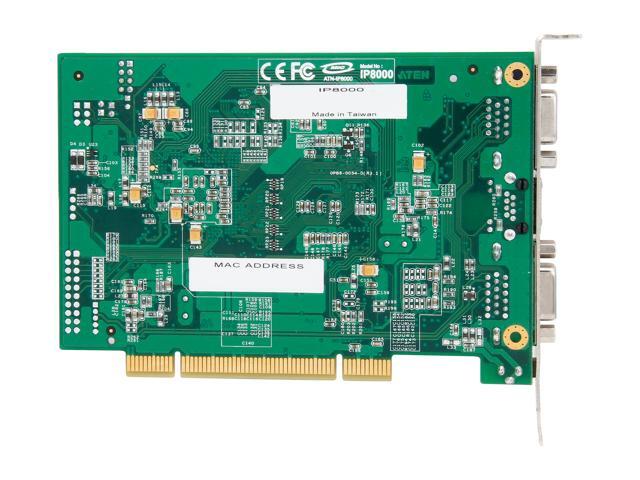

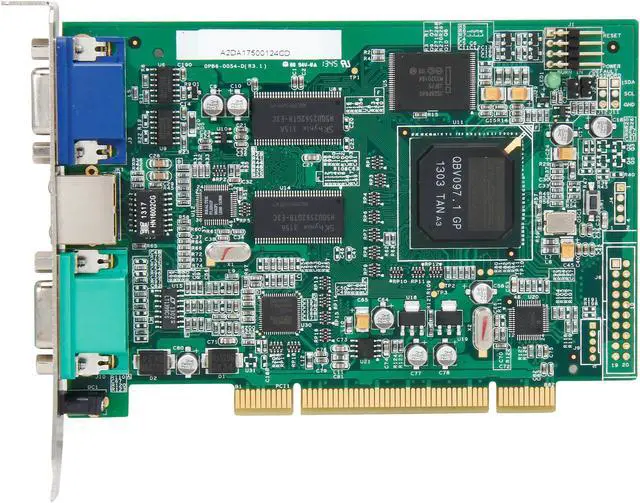

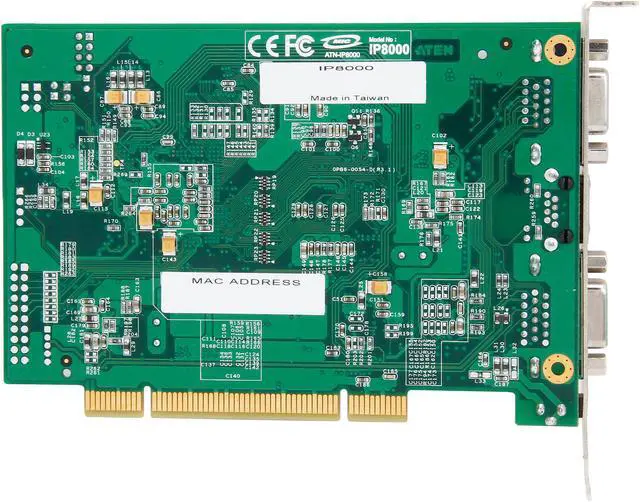

The IP8000 is a PCI card implementation of a control unit that provides "over-IP" access and control of the server it is installed in. The IP8000 allows multi-platform access and control of the server from remote locations using a standard Internet browser or with stand-alone Windows and Java applications

Model
Brand	Aten
Model	IP8000

Details
Type	PCI to LAN Card

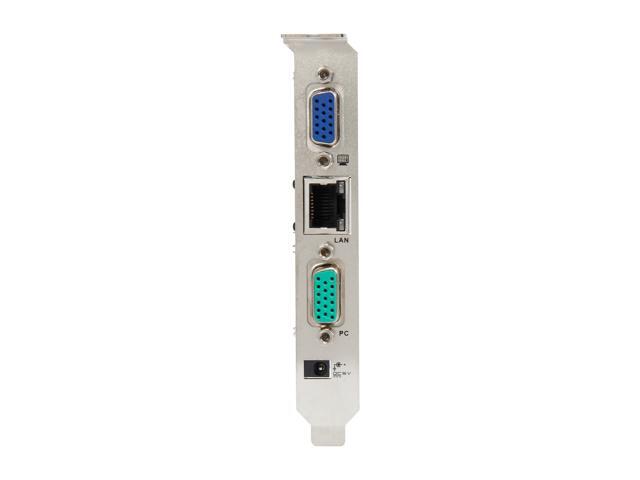

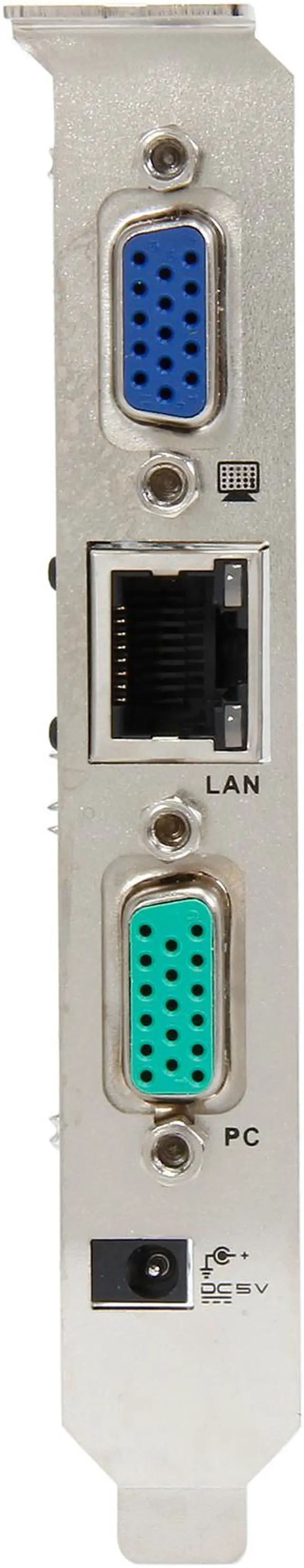

Specifications	1 x SPHD-18 Female (Green) 1 x HDB-15 Female (Blue) 1 x RJ-45 Female LEDs Link: 1 (Green) 10/100 Mbps: 1 (Green / Orange) Video Resolution: 1600 x 1200@60Hz; DDC2B Power Consumption: DC5V, 1.2A

Features
Features	Standard PCI-sized card provides over-IP access and control of a remote server from anywhere in the world Virtual media via USB 2.0 data transmission Remote power control and reset support Up to 64 user accounts - Up to 32 concurrent user logins for single-bus sharing Message board feature allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions External authentication support: RADIUS; LDAP; LDAPS; MS Active Directory Web-based Windows and Java implementations allow the server to be controlled from any browser Windows GUI and Java client software for non-browser access - the Java client works with practically all operating systems Supports TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP Supports 10Base-T, 100Base-T Superior video resolution* up to 1600 x 1200 @ 60Hz; 24-bit color depth for remote sessions Bandwidth optimization via grayscale and video quality setting Advanced security features include password protection and advanced encryption technologies Secure 128-bit SSL encryption Enable/disable browser operation Three level authentication - Multi - Administrators, Users, Viewers Event logging Remote firmware upgrading Host-side OS support - Windows 2000/2003/XP/NT/Vista/Redhat 7.1 and above; FreeBSD, Novell

Dimensions & Weight
Dimensions	6.1" x 4.7" x 0.8"

Packaging

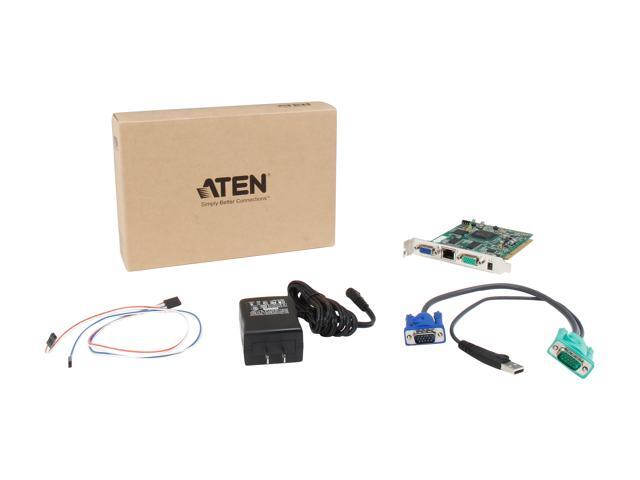

Package Contents	1x Remote Management PCI Card 1x Custom KVM Cable Set 1x Feature Cable 1x Power Adapter 1x Software CD 1x User Manual 1x Quick Start Guide
