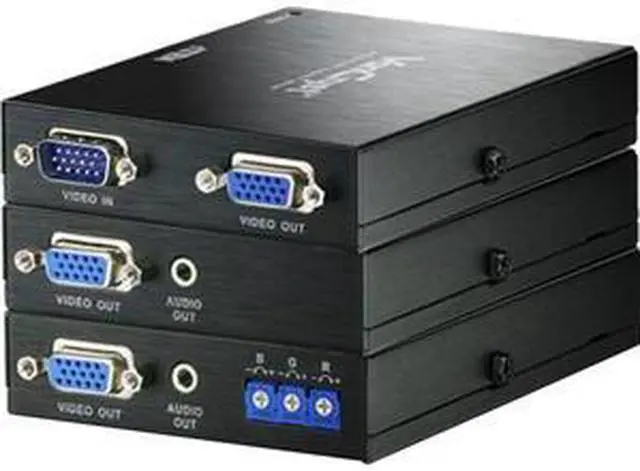

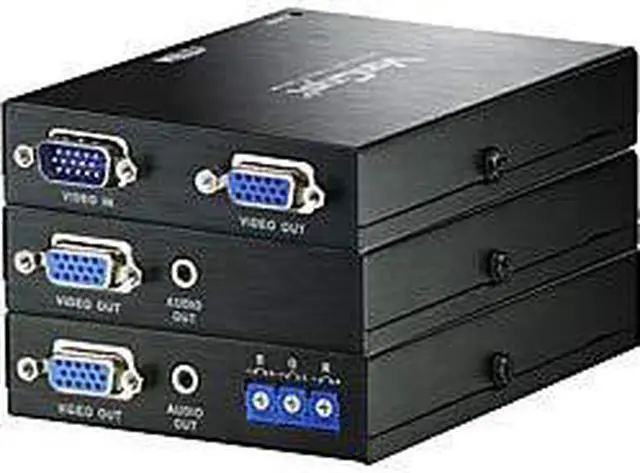

Learn more about the ATEN VE-170Q
| Brand | ATEN |
|---|---|
| Model | VE-170Q |
| Specifications | Connectors Video In: 1 x HDB-15 Male (Blue) Video Out: 1 x HDB-15 Female (Blue) Audio In: 1 x Audio Jack Female (Green) Audio Out: 1 x Audio Jack Female (Green) Unit to Unit: 1 x RJ-45 Female Power: 1 x DC Jack LEDs Power: 1 (Green)VE170R, VE170RQ Switch Manual Gain Control: 2 x Knob (VE170R, VE170RQ) RGB Tuner: 3 x Knob (VE170RQ) Cable Distance: 1000 feet (300 m) Power Consumption VE170T: DC 5.3V, 0.9W VE170R: DC 5.3V, 1.11W VE170RQ: DC5.3V, 4.82W Video VE170T, VE170R: 1920 x 1200 at 60Hz, 100 feet(30 m) 1600 x 1200 at 60Hz, 500 feet(150 m) 1024 x 768 at 60Hz, 1000 feet(300 m) VE170RQ: 1920 x 1200 at 60Hz, 500 feet(150 m) 1280 x 1024 at 60Hz, 1000 feet(300 m) |
|---|
| Features | The VE170 A/V Over Cat 5 Extender, comprising of a VE170T Transmitter unit and a VE170RQ Receiver unit, is a cost-effective and efficient solution for sending and receiving high quality audio and video content. Connect the two units using Cat 5e cable and the displays can be located up to 300 m (1000 ft.) away from the Transmitter's input source. The VE170RQ Receiver unit can also be used with the ATEN VS1204T/VS1208T A/V Over Cat 5. Uses Cat 5e cable to connect the transmitter and receiver uints Supports one local and one remote display Long distance transmission up to 1000 feet (300 m) Deskew Function (VE170RQ) – allows you to synchronize the time delay of RGB signals to compensate for distance Superior video quality - VE170RQ: 1920 x 1200 at 60Hz 500 feet (150 m); 1280 x 1024 at 60Hz 1000 feet(300 m) Audio enabled (mono) Adjustable gain/compensation control BBuilt-in 8KV/15KV ESD protection Rack-mountable Complies with VESA FDMI mount standard |
|---|
| Dimensions | 0.90" x 3.40" x 4.70" (H x W x D) |
|---|---|
| Weight | 0.60 lb. |
| First Listed on Newegg | August 21, 2025 |
|---|
