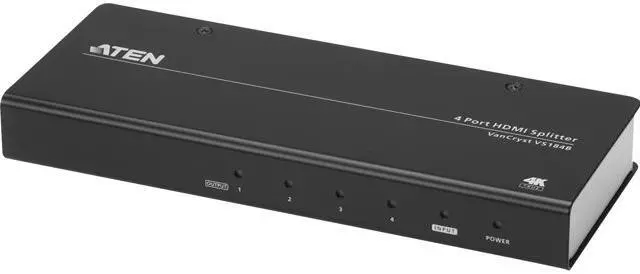

ATEN VS184B 4-Port True 4K HDMI Splitter

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The VS184B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.
The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Model
Brand	ATEN
Model	VS184B

Connectors
Input Connector	1x HDMI female
Output Connector	4x HDMI female

Performance
Maximum Resolutions	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Features
Features	Connects one HDMI source to four HDMI displays at the same time HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible Supports HDR Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) Long distance transmission- up to 15 m(1920x1200) / 1.8m (True 4K)* Max pixel clock rate up to 600 MHz Max data rate up to 18 Gbps (6 Gbps per lane) LED indication of power status and source devices EDID Expert -Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto Plug-and-play - No software installation required *Note: Compatible with ATEN 2L-7D02H

Dimensions & Weight
Dimensions	7.87" x 3.15" x 0.98"
Weight	1.06 lbs.

Package Contents
Package Contents	1 x VS184B 4-Port True 4K HDMI Splitter 1 x Power adapter 1 x HDMI cable 1 x User Instructions

Additional Information
First Listed on Newegg	September 17, 2018
