Athena Power AP-1U70P868 700W 1U single power supply certified to UL/TUV 62368-1 Safety compliance OEM/ODM available
Limited time offer, ends 08/11 By ACPC
- Efficiency during max and low loads meets 80Plus Platinum standard.
- Certified to IEC/UL/CSA/EN 62368-1 safety standards to ensure compliance with the latest regulatory standards in the United States, Canada, and Europe.
- Complied with EMI regulatory: 47 CFR FCC part 15, subpart B, ANSI C63.4:2014.
- Dual Fan features located at the front and back of the power supply, allows the power supply to be able to take 100% of the heat that is generated by the interior system and pushes it out of the server/system.
- Smart Auto Fan Speed Controller will detect the amount of heat generated by the computer and spin accordingly.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

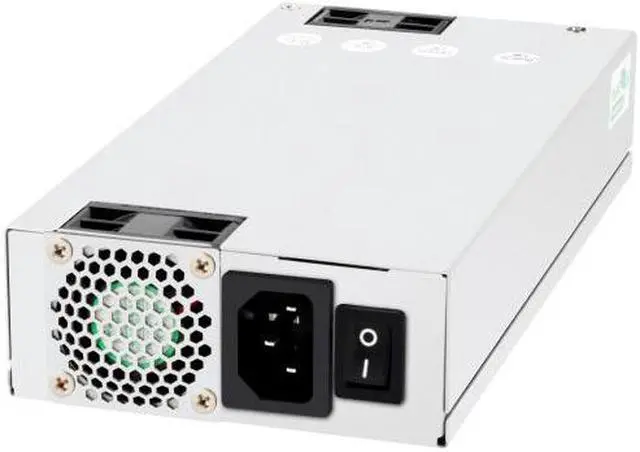

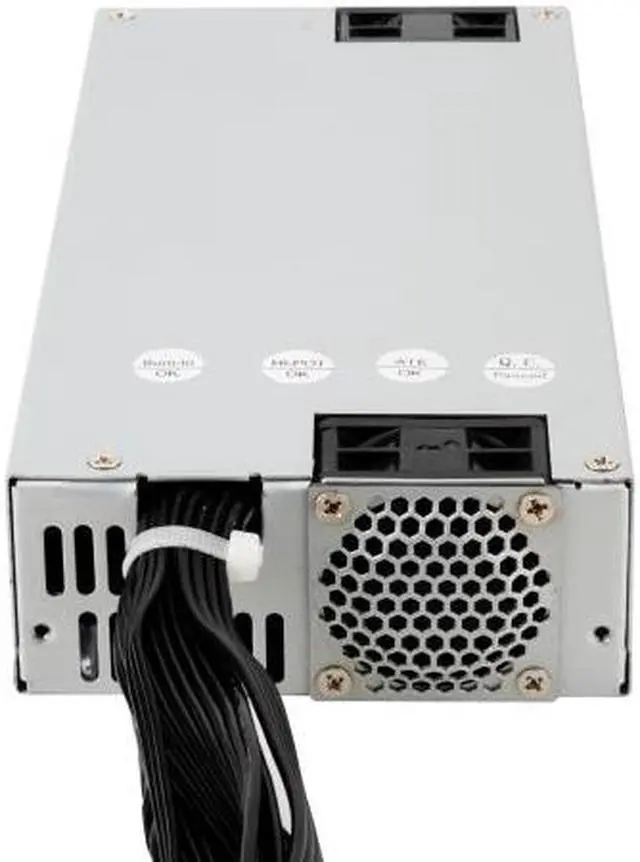

Athena Power standard 1U single 700W power supply, AP-1U70P868, designed for the standard 1U form factor (Length: 200mm). This PSU provides a compact fit alongside flexibility for small industrial computer rackmounts that is certified to the latest UL/TUV 82368-1 compliance. The EPS-12V 8Pin and the additional 8(4+4) Pin connector gives full support for core 2 dual processors. The AP-1U70P868 also includes the Active PFC (Power Factor Correction) and remote ON/OFF function for high efficiency and reliability. With its internal front and rear 40mm ball-bearing fan and thermal fan speed control, allow this PSU to handle heavy server loads.
Connectors:
ATX Connector 24 (20+4) Pin x 1
EPS 12V 8 Pin x 1, 8 (4x4) Pin x 1
PCIE 6+2 Pin x 2
SATA 15 Pin x 3
Molex 4 Pin x 2, Floppy 4 Pin x 1
Connectors:
ATX Connector 24 (20+4) Pin x 1
EPS 12V 8 Pin x 1, 8 (4x4) Pin x 1
PCIE 6+2 Pin x 2
SATA 15 Pin x 3
Molex 4 Pin x 2, Floppy 4 Pin x 1
