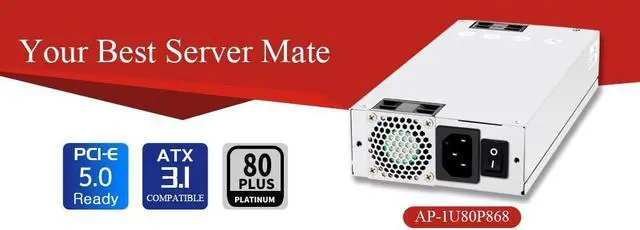

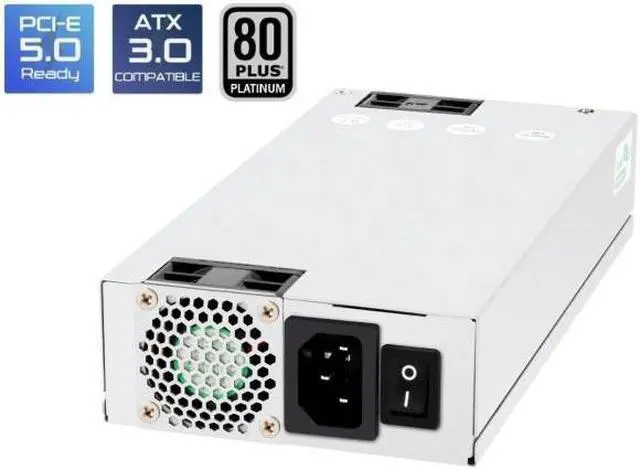

Athena Power 1U 800W PSU, AP-1U80P868, 200mm for small industrial rackmounts, UL 62368-1 compliant, 80+ PLATINUM, 12V-2X6 cable for ATX3.1, supports PCIe 5.0 GPU & Server.

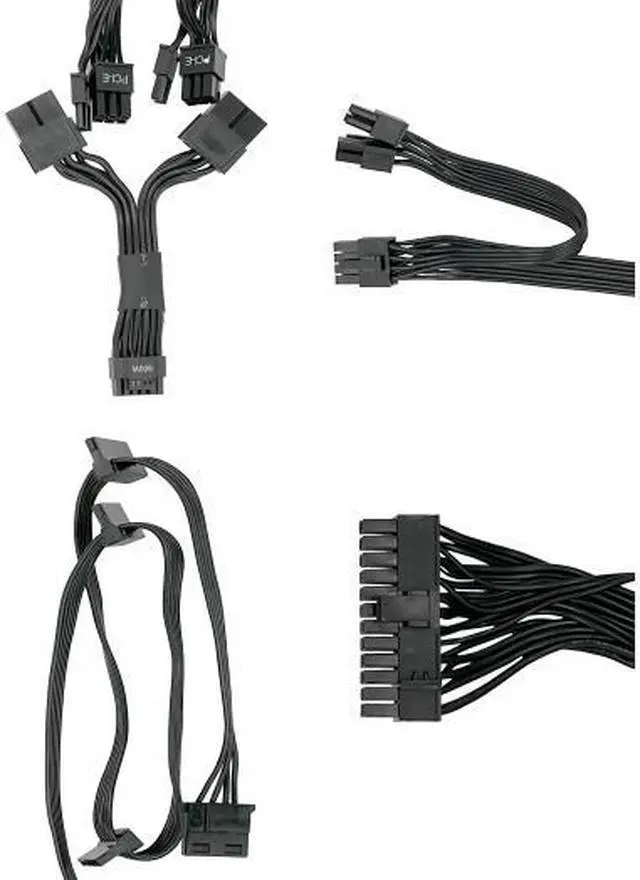

- High Compatibility: EPS-12V 8Pin and 8(4+4) Pin connectors support Core 2 Duo processors.
- Advanced Efficiency: Active PFC (Power Factor Correction) and remote ON/OFF function for high efficiency and reliability.

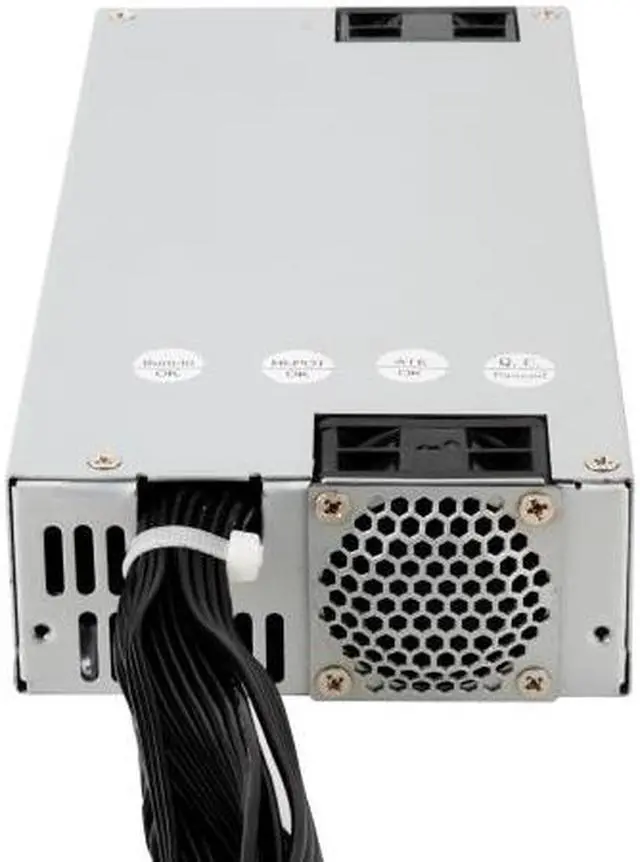

- Dual Fan Design: Dual 40mm ball-bearing fans at front and rear manage heat effectively. The thermal fan speed control balances performance and noise reduction.
- Safety Compliance: Certified to IEC/UL/CSA/EN 62368-1 safety standards for the latest regulatory requirements in the United States and Canada.
- Smart Auto Fan Speed Controller: Automatically adjusts fan speed based on heat levels for efficient cooling without manual intervention.
- 80PLUS Platinum Efficiency: Meets 80PLUS Platinum standard for exceptional energy efficiency during both maximum and low loads, saving energy and reducing operational costs.
+
+
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the Athena Power AP-1U80P868
| Brand | Athena Power |
|---|---|
| Series | 1U EPS Power Supplies 62368 |
| Model | AP-1U80P868 |
| Type | EPS12V |
|---|---|
| Single/Redundant | Single |
| Maximum Power | 800W |
| Fans | Dual Fan |
| Main Connector | 20+4Pin |
| Output Current | +3.3V@18A, +5V@18A,12V@64A, [email protected], [email protected] |
| Output | +3.3V, +5V,12V, -12V, +5Vsb |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 8.8A@110V, 4.0A@ 240V |
| MTBF | 250,000 Hours on Maximum Load at +25 degree C |
| Efficiency | > 90% |
| Hold-up Time | 11 ms Minimum at Nominal Input Voltage |
| Protection | OCP, OVP, |
| Features | Rise time: Less than 70 ms |
|---|
| Dimensions | (L x W x H) 200 x 100 x 40.5 mm / 7.87 x 3.94 x 1.59 in |
|---|---|
| Weight | 4.50 lbs |
| Humidity | 20%-90% |
|---|---|
| Temperature | Operating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C |
