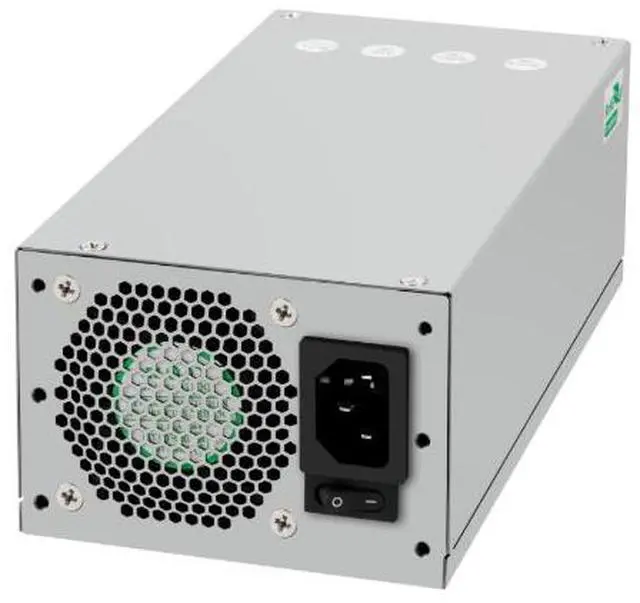

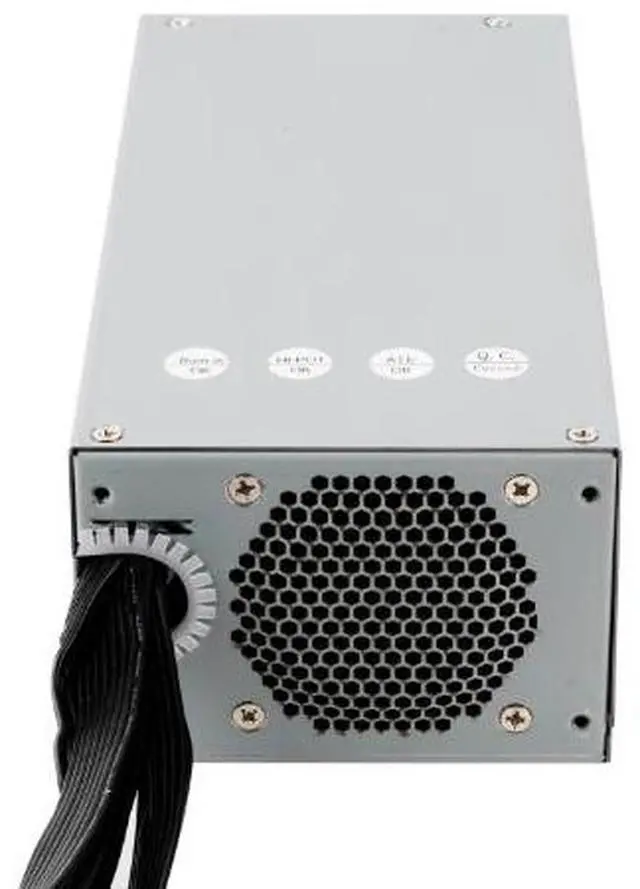

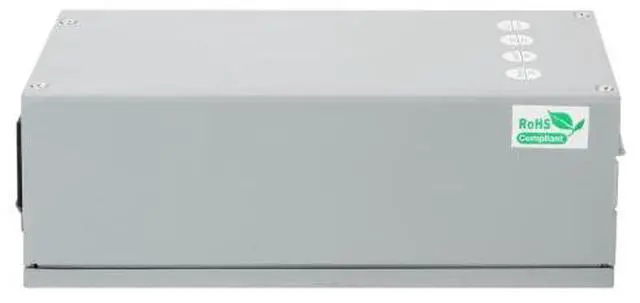

Athena Power AP-2U80P868 - 800W 2U 80 PLUS Platinum Industrial EPS Power Supply

Athena Power AP-2U80P868 800W 2U 80 PLUS Platinum Industrial EPS Power Supply

The AP-2U80P868 is an 800W 2U single power supply designed for IPC, rackmount servers, and 24/7 industrial computing environments. Its compact 2U form factor provides installation flexibility for industrial computer chassis and server platforms.

• 800W Continuous Power Output


• 2U Rackmount Form Factor


• 80 PLUS Platinum Certified Efficiency


• IEC/UL/EN 62368-1 Safety Certified


• Active PFC with Wide Input Range


• Dual 60mm Ball-Bearing Cooling Fans


• Smart Thermal Auto Fan Speed Control


• Supports EPS-12V Dual CPU Platforms


• Remote ON/OFF Control Function


• Designed for 24/7 Server Operation

Electrical specifications include 90264V AC input, 4763 Hz frequency, 80 PLUS Platinum efficiency, hold-up time of 11 ms minimum, and MTBF of 250,000 hours at 25°C. DC output ratings are +3.3V 18A, +5V 18A, +12V1/V2 64A, -12V 0.5A, and +5VSB 2.5A.

The unit measures 200 x 100 x 69.7 mm (7.87 x 3.93 x 2.75 in), weighs 5.0 lbs, and operates at 0°C to +50°C full load. It is certified to IEC/UL/EN 62368-1, 80 PLUS Platinum, RoHS, and CE / FCC standards.

The AP-2U80P868 is ideal for rackmount servers, industrial PC systems, mini-servers, network appliances, workstations, and 24/7 mission-critical systems. It is backed by a 5-Year Limited Manufacturer Warranty.
