Question 1

Does this actually have the monitor pass through and remote on/off switch shown in the picture?

Accepted Answer

Aboslutely it has a 4 wire power switch and the female power pass through. I've been using these Athena power supply's in dart boards for about a year and not one has failed yet. There isn't a better value on a AT 4 wire power supply anywhere.

Question 2

Hi. Can I use this standalone just to power one or two 3.5" SATA hard drives (using a molex->sata power adapter, and without it powering a computer at all)?  Will running it with such a low power draw cause it to fall out of spec?  Also, am I right that I can use the push button switch to power it on and don't have to do any funny ATX shorting tricks to power it on?  Thanks!

Accepted Answer

YES THE PUSH BUTTON WILL TURN IT ON.
YES IT WILL RUN YOUR DRIVES WITH OUT RUNNING A PC AT THE SAME TIME.  WE USE THESE POWER SUPPLIES TO RUN VARIOUS EQUIPMENT ALL THE TIME WITH OUT THEM BEING ATTACKED TO A MOTHER BOARD.  THEY ARE A GREAT SOURCE FOR 5V OR 12V REGULATED POWER.

Question 3

Does this power supply have a legit AT , non-atx, style power connector? The type that old 486/pentium1 era motherboards had? Looking to replace a failed retro/vintage PSU.

Accepted Answer

Sure does, it'll work like a champ!

Question 4

Does this power supply have 6 pin Connectors P8 and P9 to connect to older motherboards?

Accepted Answer

This is the one you want (N82E16 8173 38010), for older AT motherboards.  It's the only one left for sale.

Search that Item number in the Newegg Search field.

Question 5

Does this power supply come with 3-pin connector that connects the power switch to the main board?

Accepted Answer

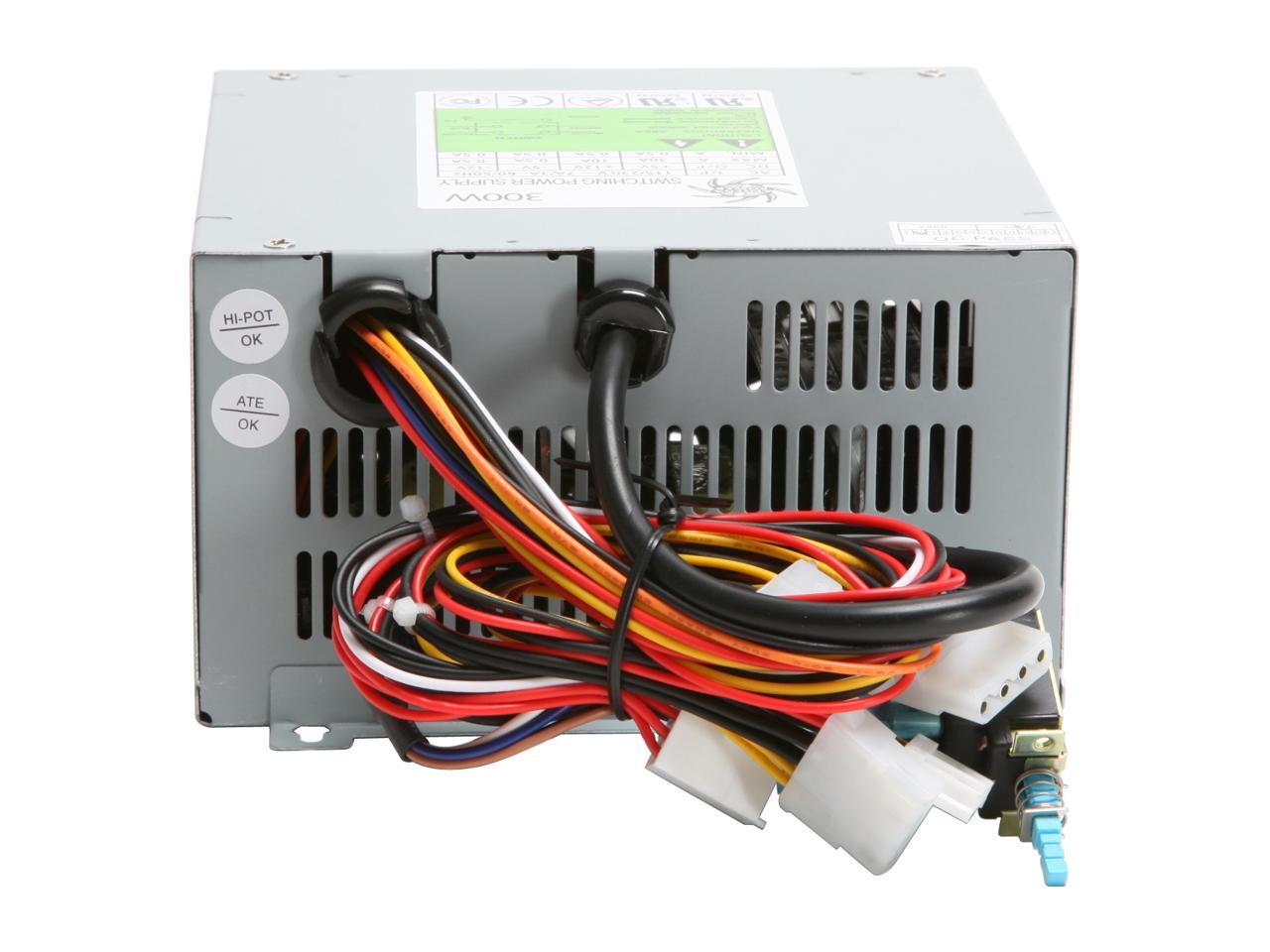

No, it does not.  My memory may be failing me, but I believe that was a standard for ATX power supplies and not AT.  This particular AT power supply has the P8/P9 6pin+6pin mainboard power connectors, 1 four-pin push-button switch to turn it on,  4 four-pin Molex connectors (for connecting to IDE hard drives, optical drives, 5-1/4" floppy drives, etc.), and 2 four-pin Floppy connectors (for connecting 3-1/2" floppy drives).

Question 6

Is the connection to the motherboard 2 6pin connectors?
Thanks

Accepted Answer

IT's P8 and P9 connectors.  This is an AT power supply not an ATX.  This will work with the older 586, 486, 386, 286, and most XT class machines.

Question 7

will this work on a hp6000 pro sff?

Accepted Answer

Tim:
I used this power supply for a microcontroller for a 1996 Bridgeport mill. It is an old PC-AT architecture. It matched the power supply in the mill that failed, and worked just fine. I did replace the fan with a ball bearing fan before I installed it to make sure to max out the fan life. Short answer: if it looks the same and matches the power required, and will fit the box, it will probably will work.

Question 8

How much current can the 12V rail supply?

Accepted Answer

10A on the +12V rail.  If you google name of the product, it'll give you a link to Athena Power's site which has a chart of all the rails under Specifications.

Question 9

How many 4 pin female connectors does this have on it?

Accepted Answer

Molex connectors. It comes with 5. 3 on one strand and two on another with a floppy connector.
