Athena Power AP-P4ATX70FEP8 20+4Pin 700W Single Server Power Supply - 80 PLUS Bronze
- 700W Single
- 20+4Pin
+
+
Specs
Reviews (25)
Learn more about the Athena Power AP-P4ATX70FEP8
| Brand | Athena Power |
|---|---|
| Model | AP-P4ATX70FEP8 |
| Type | 1U EPS |
|---|---|
| Single/Redundant | Single |
| Maximum Power | 700W |
| Main Connector | 20+4Pin |

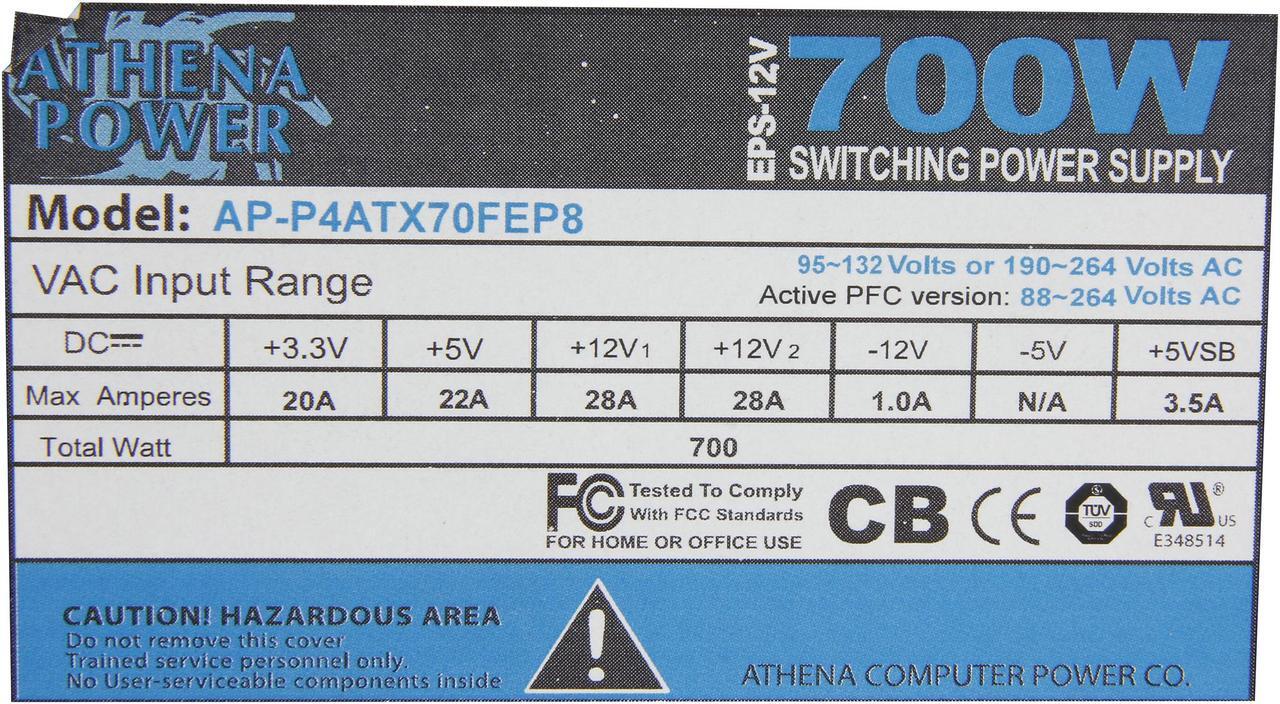

| Output Current | +3.3V@18A, +5V@20A,12V1/V2@28/28A, -12V@0.5A, -5V@0.3A, +5Vsb@2.5A |
| Output | +3.3V, +5V,12V1/V2, -12V, -5V, +5Vsb |
| Input Voltage | 88 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 9.0A@110V, 4.5A@ 240V |
| MTBF | >100,000 Hours |
| Efficiency | > 80% |
| Hold-up Time | 17ms min. |
| Protection | OCP, OVP, |

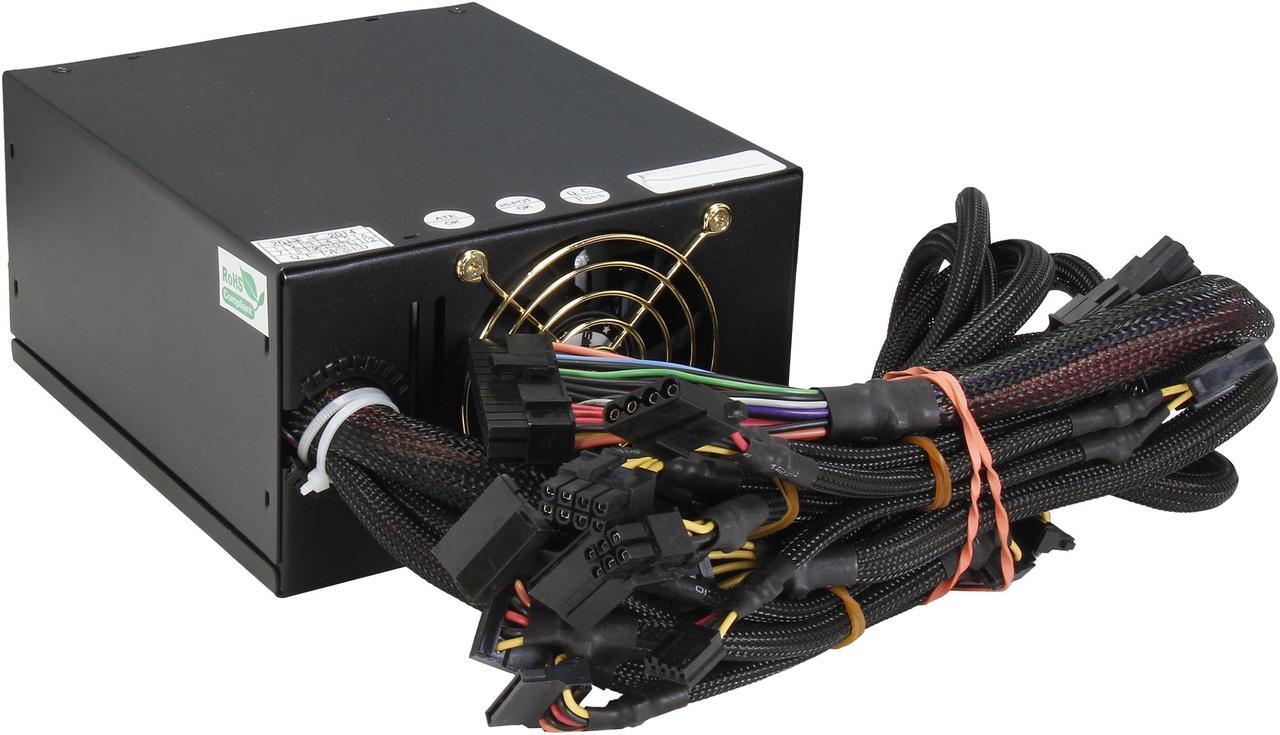

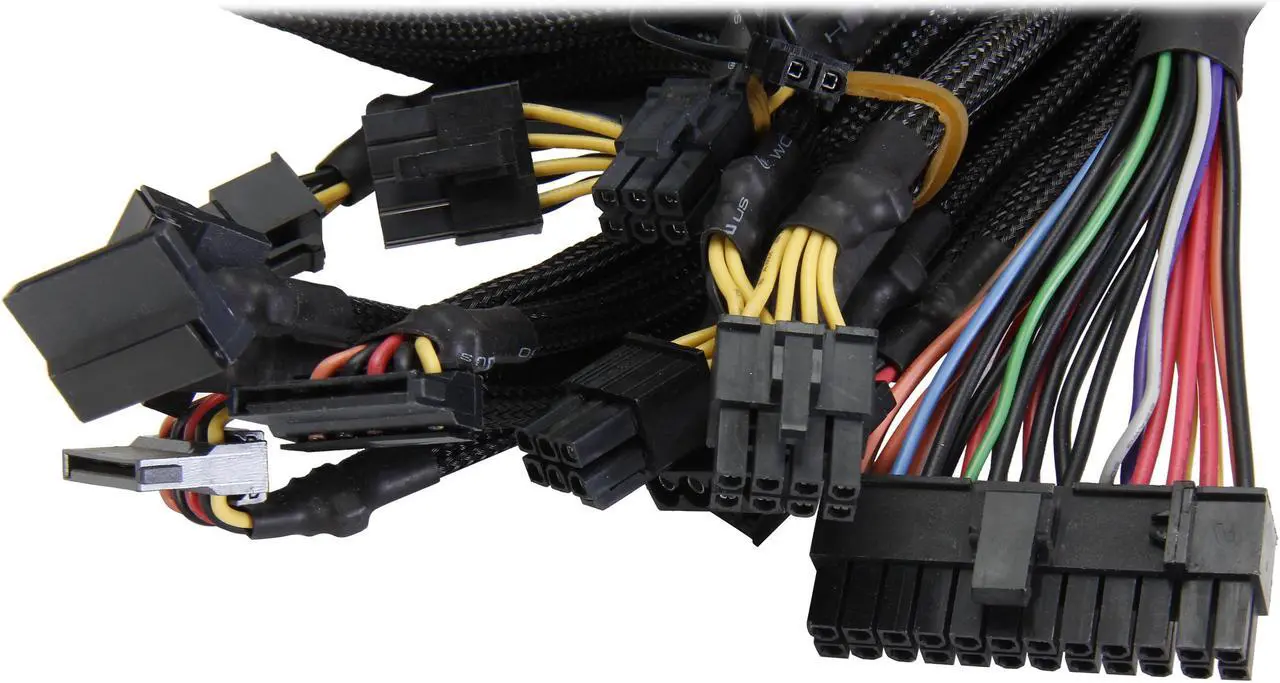

| Features | 80 PLUS Bronze Rise time: Less than 20 ms Connectors: ATX 24 (20+4) Pin P4-12V 4 Pin EPS 12V 8 Pin PCIE 6 Pin PCIE 6+2 Pin SATA 15 Pin Molex 4 Pin |
|---|
| Dimensions | 157 x 150 x 86 (mm) (L x W x H) |
|---|---|
| Weight | 4.50 lbs |
| Humidity | 20%-90% |
|---|---|
| Temperature | Operating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C |
| Date First Available | December 09, 2022 |
|---|
