AP-RRP4ATX5062 500W IEC 62368-1 Compliance Certified Mini Redundant with Active PFC, Hot-Swap
- Max. output 500W combined.
- Active PFC.
- Hot-Swap function.
- Operation Temperature range: 0°C ~ +50°C @ full load.
- Meet PMBus Revision 1.2.
- i2c-Bus compliant communication bus (SDA, SCL) at 100kHz.
- Protections: OCP, OVP, OPP, UVP, OTP, SCP, FFP.
- 62368-1 Safety Compliance: CB, CE, cUL, UL, TÜV.
- Environmental Compliance: ROHS, WEEE, REACH.
- Power supply efficiency meets 80 Plus Bronze standard.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

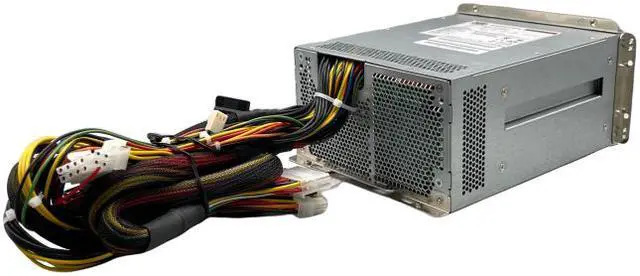

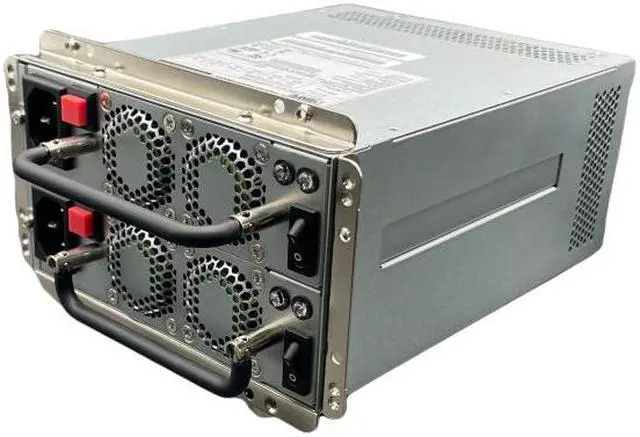

AP-AP-RRP4ATX5062 is a 500W AC-DC switching power supply.
It shall be able to operate with a single power supply module, or in a N+1 parallel hot-plug able operation with active load sharing in a N+1 redundant configuration.
Max. output 500W combined.
Hot-Swap function support for the power modules.
Passive cooled with PWM FAN of power modules.
Operation Temperature range: 0°C ~ +50°C @ full load.
i2c-Bus compliant communication bus (SDA, SCL) at 100kHz.
EEPROM for FRU information.
i2c-Bus compliant communication bus (SDA, SCL) at 100kHz.
PS_Alert# , PWOK#, Buzzer signaling.
Protections: OCP, OVP, OPP, UVP, OTP, SCP, FFP.
+5V and +3.3V Power reach to 130W Max.
62368-1 Safety Compliance: CB, CE, cUL, UL, TÜV.
Environmental Compliance: ROHS, WEEE, REACH.
Connectors:
ATX Connector 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
EPS 12V 8 Pin x 2
PCIE 6+2 Pin x 2
SATA 15 Pin x 6
Molex 4 Pin x 2
It shall be able to operate with a single power supply module, or in a N+1 parallel hot-plug able operation with active load sharing in a N+1 redundant configuration.
Max. output 500W combined.
Hot-Swap function support for the power modules.
Passive cooled with PWM FAN of power modules.
Operation Temperature range: 0°C ~ +50°C @ full load.
i2c-Bus compliant communication bus (SDA, SCL) at 100kHz.
EEPROM for FRU information.
i2c-Bus compliant communication bus (SDA, SCL) at 100kHz.
PS_Alert# , PWOK#, Buzzer signaling.
Protections: OCP, OVP, OPP, UVP, OTP, SCP, FFP.
+5V and +3.3V Power reach to 130W Max.
62368-1 Safety Compliance: CB, CE, cUL, UL, TÜV.
Environmental Compliance: ROHS, WEEE, REACH.
Connectors:
ATX Connector 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
EPS 12V 8 Pin x 2
PCIE 6+2 Pin x 2
SATA 15 Pin x 6
Molex 4 Pin x 2
