Athena Power AP-RRP4ATX6808 20+4Pin 800W Redundant 80 PLUS Bronze Certified ATLAS 800 PLUS Server Power Supply with PM Bus
Limited time offer, ends 08/31 By ACPC
- 800W Redundant
- 20+4Pin
+
+
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Athena Power AP-RRP4ATX6808
| Best Seller Ranking | #48 in Server Power Supplies |
|---|
| Brand | Athena Power |
|---|---|
| Model | AP-RRP4ATX6808 |
| Single/Redundant | Redundant |
|---|---|
| Maximum Power | 800W |
| Main Connector | 20+4Pin |

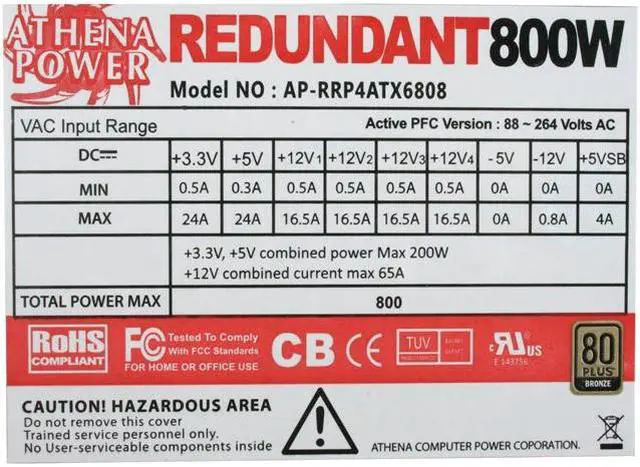

| Output Current | +5V@24A, +12V x [email protected], +3.3V@24A, -5V@0A, [email protected], +5V-SB@4A |
| Input Voltage | 88 -264 Volts Ac |
| Input Frequency Range | 47 - 63 Hz |
| MTBF | 100,000 Hours on Maximum Load at +25°C |
| Hold-up Time | 20ms Minimum at Nominal Input Voltage |
| Features | Dielectric Withstand: Primary Frame Ground 1800V AC for 1 Second Rise time: 50ms maximum |
|---|
| Dimensions | 5.9" x 3.4" x 8.9" |
|---|---|
| Weight | 9.0 lbs. |
| Humidity | 90% on Operating, 95% on Storage |
|---|---|
| Temperature | Operating +5° C ~ +40° C on 250W Output Load or -10° C ~ +50° C on 220W Output Load |
| First Listed on Newegg | September 30, 2022 |
|---|
